Products

E-House Air Conditioner Made in China

A brief introduction of HISURP CAC series E-house Air Conditioners

Cooling Capacity:  self-contained 3.5~50kW; split 8~70kW

Heating Capacity: 1.0~30kW (PTC electrical heating)

Refrigerant: R22/ R134A/ R407C/ R410A

Power Supply: 3P-AC380V-50Hz, 3P-AC460V-60Hz, 3P-AC400V-60Hz

Types1: single cooling, cold air & electrical heating, dehumidifying, fresh air cooling, micro-positive pressure, plateau Type

Types2:  inset cabinet/ ceiling type, external cabinet/ horizontal/ wall-mounted/top types

Performance:  CC/Air Volume<4.2,  SHR>8.5,  COP>2.5

Working temperature: -25℃~+55℃, high temperature type can 70℃

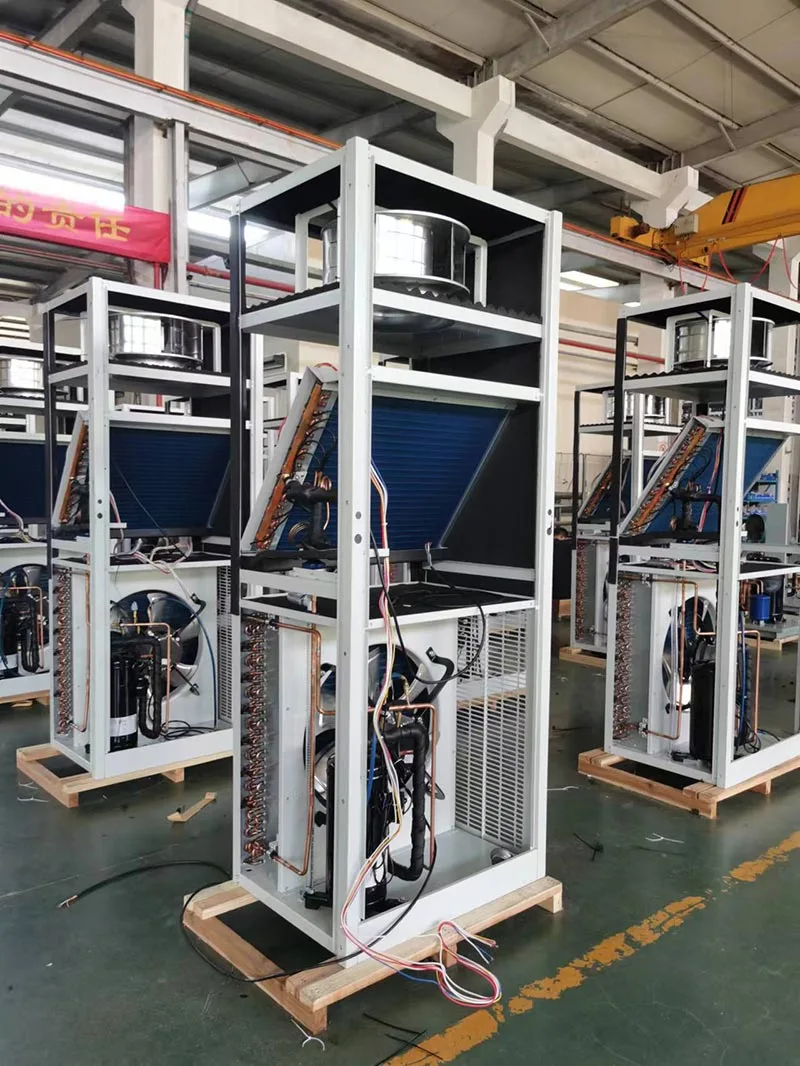

What are features of HISURP CAC series E-house Air Conditioners?

* Vibration Resistance: The system piping and ports are reinforced with supports, featuring a strengthened structural design.

features-of-HISURP-CAC-series-E-house-Air-Conditioners

* Year-Round Cooling Function: Employs imported pressure controllers or EC stepless speed-regulating fans.

* High Humidity Dehumidification Function: Optional indoor humidity sensor and electric heater enable professional-grade dehumidification control (for coastal or mountainous areas).

* Fresh Air Cooling Function: Optional fresh and exhaust air filtration systems allow for energy-efficient operation during winter and transitional seasons.

* Other Functions: Automatic restart after power failure, dual-unit rotation, fault switching, multi-unit linkage, fault output, fire linkage, room temperature alarm, and remote communication.

* High Temperature Resistant Motors: All fan motors are F-class insulated and B-class temperature rise resistant; outdoor fans utilize internal rotor type aluminum finned motors.

Working condition of HISURP CAC series E-house Air Conditioners



Cooling Working Condition

Standard

Outdoor DB=35℃, WB=24℃; Indoor DB=27℃, WB=19℃

E-house

Outdoor DB=35℃, WB=24℃; Indoor DB=24℃, WB=17℃

High-temperature

Outdoor DB=46℃; Indoor DB=29℃, WB=19℃

Configuration list/Main components for HISURP CAC series E-house Air Conditioners ?

Hisurp’s CAC series E-house air conditioners adopt well-known domestic and international brands as suppliers of major components, ensuring the quality of the units and facilitating overseas customers in procuring easily worn and consumable parts locally for maintenance and repair. You may check following table for reference.

No.

Component Name

Brand

Manufacture

Origin

Remarks

1

compressor

Panasonic/Bsonyo

Bingshan Songyang Compressor (Dalian) Co., Ltd.

Dalian



2

Low-voltage switch

Match-Well

Changzhou match-well Pressure Control Technology Co., Ltd.

Changzhou



3

High-pressure sensor

DUNAN

Zhejiang Dun'an Artificial Environment Co., Ltd.

Zhuji



4

Expansion valve

EMERSON

Copeland Climate Technologies (Suzhou) Co., Ltd.

Suzhou

foreign investment

5

Dry filter

EMERSON

Copeland Climate Technologies (Suzhou) Co., Ltd.

Suzhou

foreign investment

6

reservoir

DUNAN

Zhejiang Dun'an Artificial Environment Co., Ltd.

Zhuji



7

Cooling fan

KEMAO

Zhejiang Science and Trade Holding Group Co., Ltd.

Changzhou



8

Evaporator

HICON

Ningbo Hicon Industry Co.,Ltd.

Ningbo



9

Condenser

HICON

Ningbo Hicon Industry Co.,Ltd.

Ningbo



FUYUAN

Zhejiang Fuyuan Refrigeration Equipment Co., Ltd.

Shaoxing



10

Supply air fan

YILIDA

Zhejiang Yilida Ventilator Co., Ltd.

Taizhou



JIEFENG

Yuyao Jiefeng FAN and AIR Conditioning Co., Ltd.

Ningbo



11

PCB controller

SYSLAB

Shenzhen Syslab Electronics Co., Ltd.

Shenzhen



12

Intermediate relay

HONGFA

Xiamen Hongfa Electric POWER Controls Co., Ltd.

Xiamen



13

Electric heater

ANTAI

Changzhou Antai Galvanothermy Electric Appliance Co., Ltd.

Changzhou



14

Circuit breaker

LS

Lselectric (WUXI) Co., Ltd.

China

foreign investment

15

contactor

LS

Lselectric (WUXI) Co., Ltd.

China

foreign investment

16

Thermal relay

LS

Lselectric (WUXI) Co., Ltd.

China

foreign investment

What’s the EER Difference between Non-inverter and Inverter E-house Air Conditioners?

The EER (Energy Efficiency Ratio) of fixed-frequency and variable-frequency compressors are similar; the main difference lies in the Seasonal Energy Efficiency Ratio (SEER), with variable-frequency compressors generally having a higher SEER. However, E-house air conditioners are primarily designed for electrical equipment. Switching to a variable-frequency outdoor fan necessitates the use of an EC (Electronic Energy Efficiency) fan, significantly increasing the unit's cost.

What’s the Controller for HISURP CAC Series E-house Air Conditioners?

The standard e-house air conditioner uses a PCB board controller with LCD push-button wired control;

Controller-for-HISURP-CAC-Series-E-house-Air-Conditioners

If PLC control is required, there will be an additional charge. PLC-based centralized control is implemented in one room per shift.

Hisurp communication protocol standard is MODBUS-RTU. If TCP is required, a conversion module can be added.

View as

Pre-fab E-House Air Conditioner

Pre-fab E-House Air Conditioner

The Pre-fab E-House Air Conditioner is a cooling solution for prefabricated electrical rooms or energy storage enclosures. As one of leading manufacturer in China, HISURP has participated in projects across multiple sectors, including mining, ports, power substations, transmission, refining, energy storage, and communications.
Containerized Air Conditioner

Containerized Air Conditioner

Containerized Air Conditioner with high EER, provides optimal cooling while being energy-efficient. Also, it comes with special techniques on anti-corrosion, ensuring that the unit remains durable and long-lasting, even in harsh environments.
Prefabricated E-House Air Conditioner

Prefabricated E-House Air Conditioner

Hisurp Prefabricated E-house Air Conditioner for Renewable Energy, Utilities and Industrial Power Rooms
It is built for a wide range of power and energy applications, including renewable energy storage, utility substations, industrial electrical rooms, and containerized control facilities. As more industries adopt battery energy storage and modular electrical infrastructure, dependable thermal management becomes essential for protecting sensitive components and ensuring stable operation.
Electrical House Air Conditioner

Electrical House Air Conditioner

Electrical House Air Conditioner can meet the functional, structural and dimensional requirements of various types of electrical rooms, energy storage compartments and IOT base stations. It has excellent climate temperature adaptability, reliability, temperature and humidity regulation capability.
Hisurp is a professional E-House Air Conditioner Made in China manufacturer and supplier in China. We warmly welcome you to customized high-quality products at competitive prices from our factory.
