Reliable Air Handling Unit Manufacturer with Tailored Engineering Solutions

Industrial-Grade Air Treatment Solutions by Hisurp

Hisurp specializes in designing and manufacturing high-performance Air Handling Unit systems for industrial, commercial, and specialized environmental applications. Engineered for reliability, energy efficiency, and precise climate control, our solutions help businesses maintain stable indoor conditions while reducing operational costs.

Designed for Demanding Environments

Modern manufacturing facilities require consistent temperature, humidity, and air quality control. Hisurp develops HVAC solutions capable of supporting electronics production, pharmaceutical plants, food processing facilities, data centers, automotive manufacturing, and other critical industries where environmental stability directly impacts productivity and product quality.

Key Benefits

· High-efficiency air filtration

· Precise temperature and humidity control

· Energy-saving operation

· Flexible modular configurations

· Easy maintenance access

· Long service life

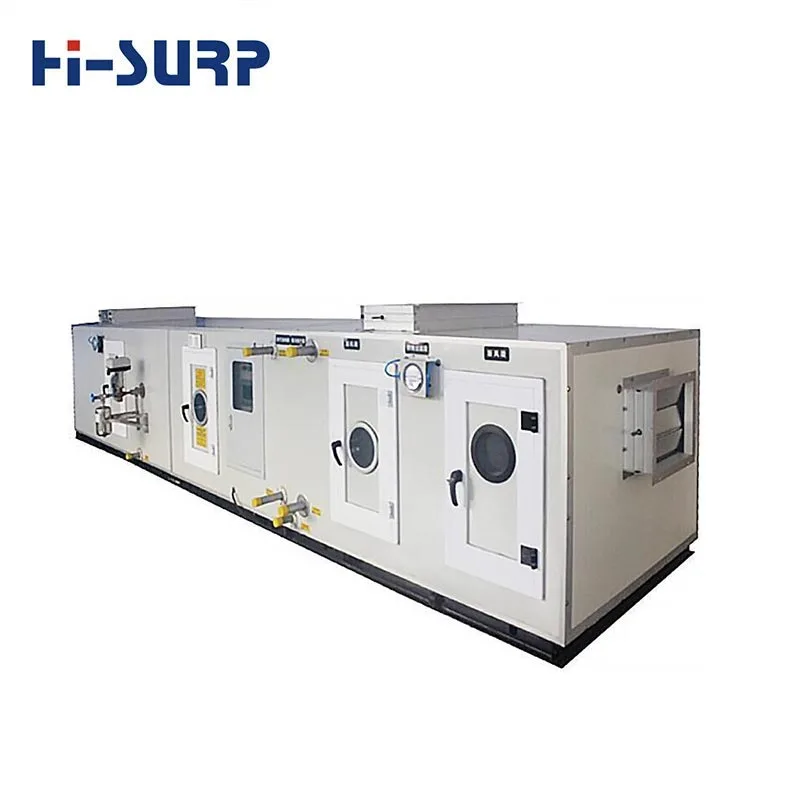

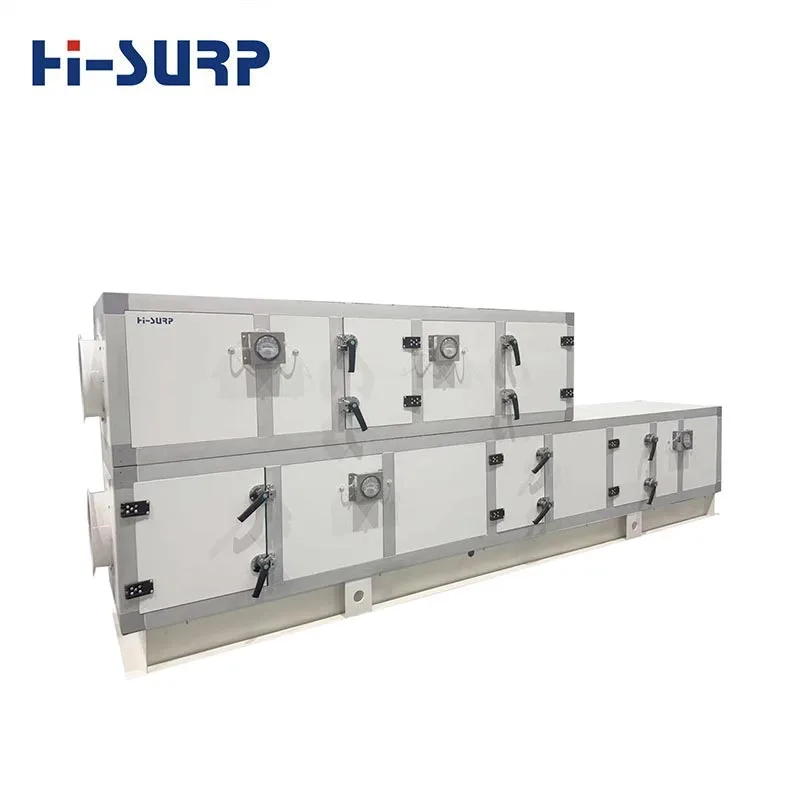

Components of the ahu functional segment

Cabinet

The Zk series modular air conditioning unit features a direct assembly structure for its cabinet panels. The panels are connected via tongue-and-groove clamps and bolts, forming a frame that ensures cabinet strength. The panel frame boasts a uniquely designed high-strength structure, with an outer ivory-white color steel plate and an inner galvanized steel plate (aluminized zinc plate or stainless steel plate are available upon request). High-density flame-retardant polyurethane foam is used in the middle, providing excellent corrosion resistance and high-temperature resistance while maintaining panel strength and preventing cabinet deformation under high static pressure. Three panel thicknesses are available (25mm, 35mm, 50mm).

Fresh air mixing section, air supply section

The unit has a pre-reserved mixing space to ensure uniform and thorough mixing of fresh and return air.

The position and size of the fresh and return air inlets, as well as the length of the mixing section, can be adjusted according to customer requirements.

Air distribution regulating section

Optional fresh and round air valves can be added to adjust the fresh and round air ratio.

The air distribution adjustment section controls the ratio of fresh, return, and exhaust air through the opening degree of the air valves to achieve optimal design. The air valve uses a split-blade design with a manually controlled linkage. An electric air valve can be configured upon request. The valve's dimensions are designed based on an air velocity of Bm/s to ensure that the noise generated by the air valve does not exceed the unit's noise level.

Filtering section

The filter section meets GB/T14295-93 standards for its unit area mass, resistance, mechanical properties, antistatic characteristics, hygroscopicity, flame retardancy, and filtration efficiency; the inlet cross-section air velocity uniformity is greater than 80%. The filter installation uses a frame structure with inspection doors/panels for easy filter replacement.

- Pre-filter: Plate type (bag type optional);

Medium-efficiency filter: Bag type (plate type optional for some specifications);

Sub-HEPA and HEPA filters: Pleated type;

Activated carbon filters are made of various organic carbonized fibers and are mainly used to remove gaseous pollutants from the air (such as annoying odors, corrosive gases, and toxic gases), effectively improving indoor air quality (IAQ). Conventional filters must be used before and after the activated carbon filter. The front filter needs protection to prevent dust from clogging the microporous structure of the activated carbon, and the rear filter needs protection to prevent possible activated carbon powder contamination of the ventilation system.

Cooling section and heating section

Self-cleaning cartridge HEPA filters are mainly suitable for air-conditioned workshops with high dust generation, such as cigarette manufacturing and packaging workshops. The self-cleaning method of cartridge filters uses compressed air for backflushing. When dust accumulates on the surface of the filter cartridge and the pressure difference across the filter reaches a set value, the pressure difference controller sends a signal to release compressed air to blow out the dust accumulated on the filter cartridge, achieving automatic dust removal.

The cooling and heating coils utilize high-quality copper tubing and specially designed corrugated aluminum fins, manufactured using OAK heat exchanger equipment from the USA, ensuring high heat transfer efficiency and minimal contact heat. The fins are 9-13 per inch. The water collection pipe is seamless steel, with an vent at the top and a drain at the bottom; all connections are standard-specification steel pipes. Supply and return water pipes and condensate pipes are located on the same side of the unit for easy on-site piping connections. Various specifications and materials of baffles can be added according to customer requirements, providing multiple airflow directions to ensure a water flow rate of less than 0.4g/kg dry air. The water collection tray is made of powder-coated steel plate with a flame-retardant insulation material on the outer surface to prevent condensation. The water tray slopes towards the drain, with a flow guide groove at the bottom and a drain pipe at the lowest point for rapid and effective condensate drainage.

The heating coil can be fitted with either copper or hydrophilic aluminum fins; the coil end plate and water tray can be made of stainless steel; the supply and return water pipes can be made of stainless steel or copper; the heating coil can also be made of steel pipe with steel fins, stainless steel pipe with stainless steel fins, stainless steel pipe with aluminum fins, or steel pipe with aluminum fins, etc., according to customer needs.

Precision Manufacturing Process

As a professional manufacturer, Hisurp controls every stage of production in-house. From raw material inspection to final assembly, each component undergoes strict quality verification procedures.

Our production facilities utilize modern manufacturing equipment and standardized workflows to ensure consistent product quality across every project. Detailed inspection records are maintained throughout the manufacturing process to provide full traceability.

Comprehensive Quality Assurance

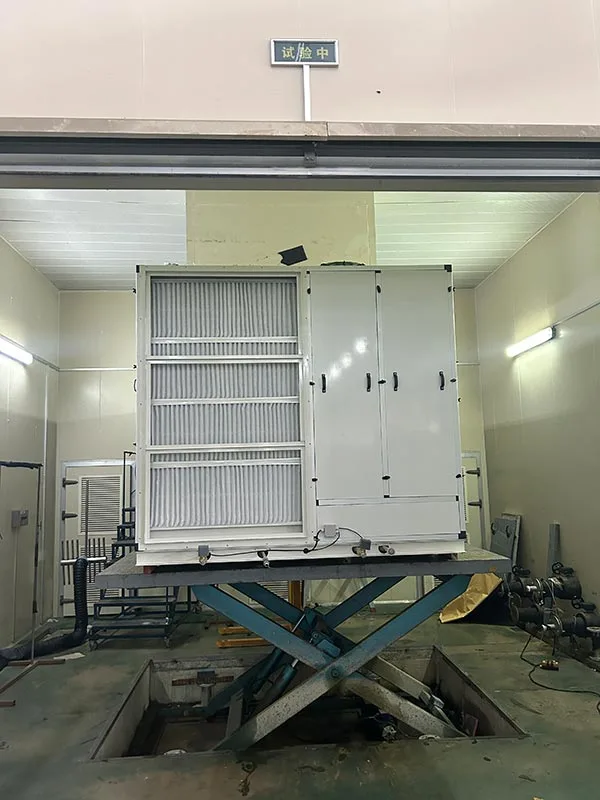

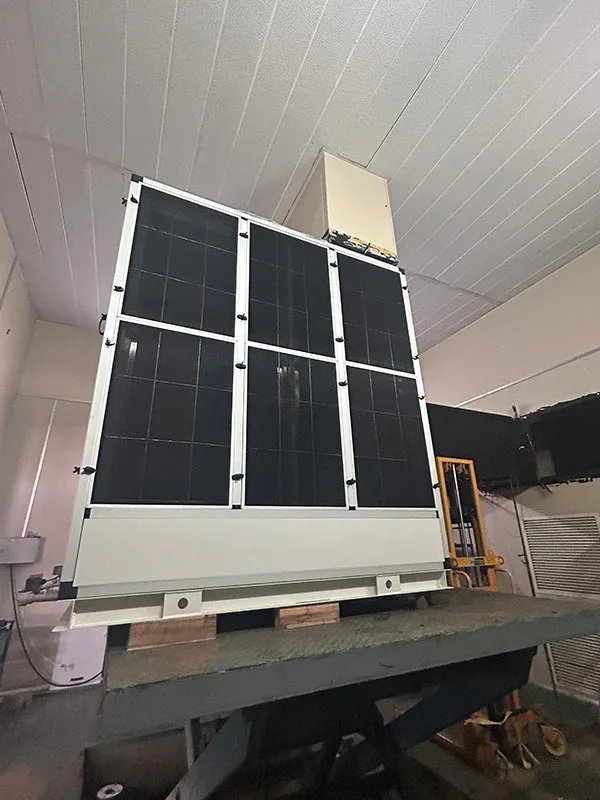

Quality is built into every Air Handling Unit we produce. Before shipment, units undergo multiple testing procedures including:

· Airflow performance testing

· Electrical safety verification

· Functional operation testing

· Noise level evaluation

· Component inspection

· Final quality audit

These testing procedures help ensure stable performance and reliable operation after installation.

Custom Solutions for Specialized Projects

Different industries have unique environmental requirements. Hisurp offers customized configurations including:

· High-temperature applications

· Corrosion-resistant designs

· Cleanroom systems

· Hygienic pharmaceutical solutions

· Explosion-proof configurations

· Marine and offshore applications

Our engineering team works closely with customers to develop solutions tailored to specific project requirements.

International Standards and Certifications

Hisurp is committed to maintaining internationally recognized manufacturing standards. Our quality management processes are developed in accordance with global industry requirements, and our products can be supplied with certifications based on project and market needs.

Continuous investment in research, testing, and compliance helps ensure our solutions meet the expectations of customers worldwide.

Proven Manufacturing Experience

With years of industry experience, Hisurp has supplied climate control equipment to customers across multiple sectors and regions. Our manufacturing expertise, project execution capabilities, and commitment to customer satisfaction have established us as a trusted partner for long-term industrial HVAC projects.

We regularly support OEM, ODM, and customized engineering projects for global clients seeking dependable manufacturing partners.

Global Service and Technical Support

Choosing a Air Handling Unit supplier involves more than product specifications. Technical support, project communication, documentation, and after-sales service are equally important.

Hisurp provides comprehensive support throughout the entire project lifecycle, including:

· Technical consultation

· System selection assistance

· Engineering documentation

· Installation guidance

· Commissioning support

· After-sales service

Our goal is to help customers achieve reliable long-term system performance and maximum operational value.

Why Choose Hisurp

When selecting an HVAC manufacturing partner, reliability and transparency matter. Hisurp combines engineering expertise, modern production capabilities, strict quality control, and customer-focused service to deliver solutions that meet the demands of today's industrial environments.
