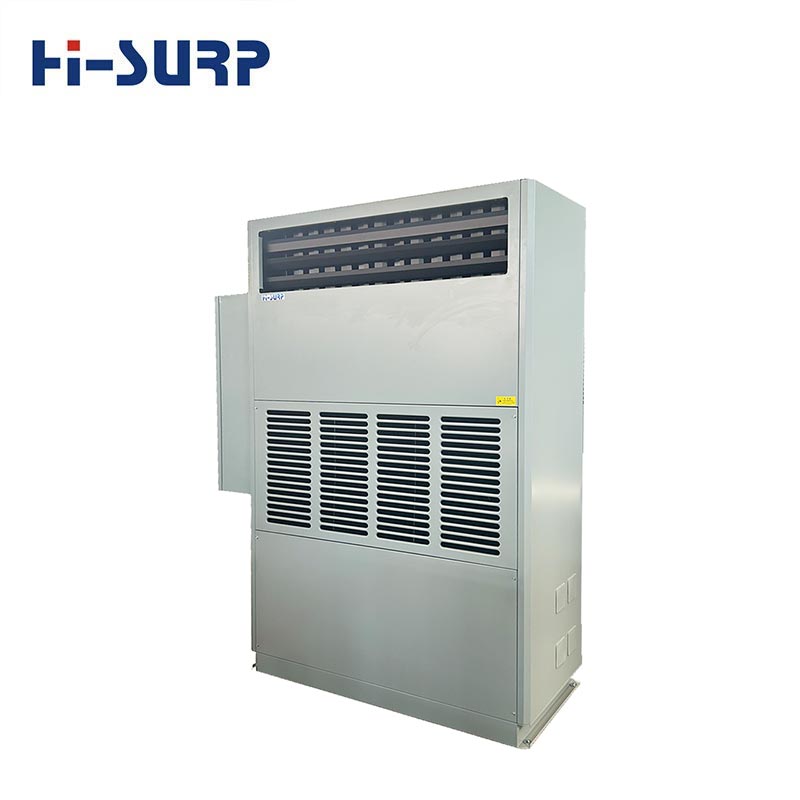

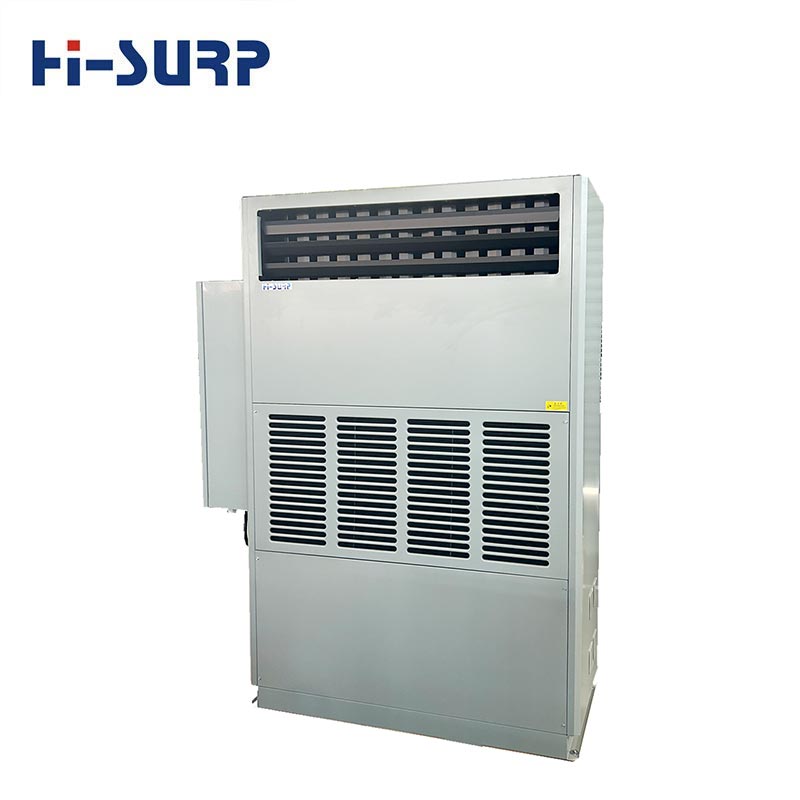

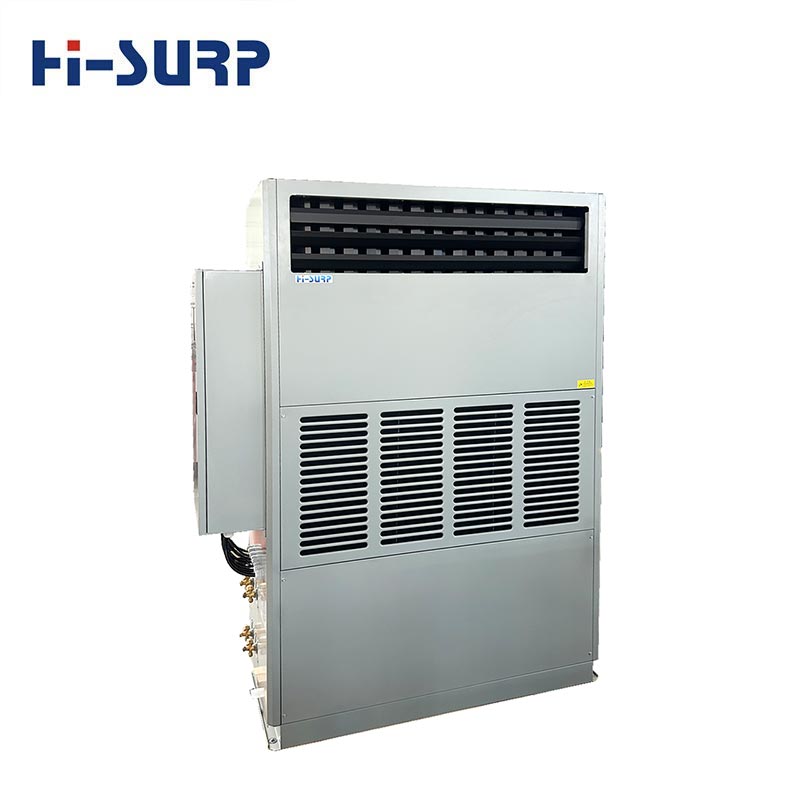

Magnetic-Resistant Air Conditioner

Hisurp Magnetic-Resistant Air Conditioner is an industrial air conditioner designed specifically for strong magnetic field environments. Through a multi-layer shielding system, it ensures stable and durable operation of the unit in a magnetic field environment of ≥2000GS.

Application

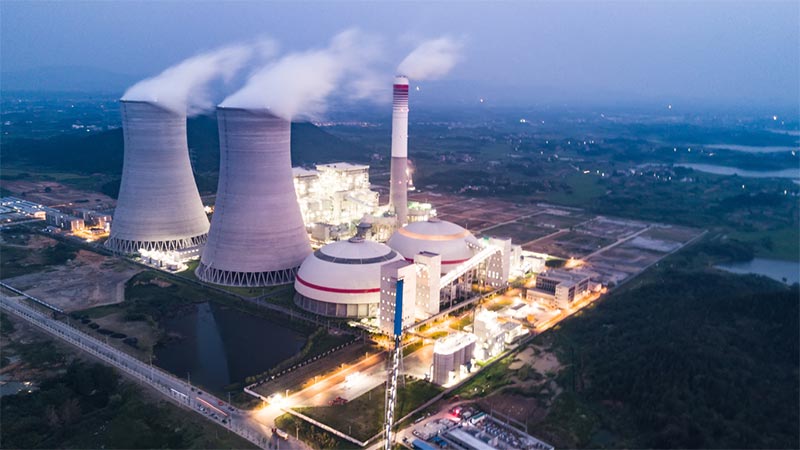

Magnetic-Resistant Air Conditioner is suitable for nuclear power plants, high magnetic field laboratories, data centers, and other locations with stringent electromagnetic environment requirements.

Application

Purpose

Magnetic-Resistant Air Conditioner effectively suppresses electromagnetic interference, ensures stable operation of the control system, extends equipment life, and safeguards industrial production safety.

Shielding Principle

Material Shielding

Utilizing high-permeability materials such as iron and nickel to absorb and guide magnetic fields, reducing magnetic field penetration (for low-frequency electromagnetic fields).

Utilizing high-conductivity materials such as copper and aluminum to exert a skin effect on magnetic fields (for high-frequency electromagnetic fields).

Structural Shielding

Improving shielding effectiveness through proper design of shielding layer thickness and gaps, ensuring the internal components of the equipment are not affected by magnetic field interference.

Grounding Shielding

Grounding the shielding body, utilizing the earth as a magnetic field loop, reduces the impact of magnetic fields on internal equipment.

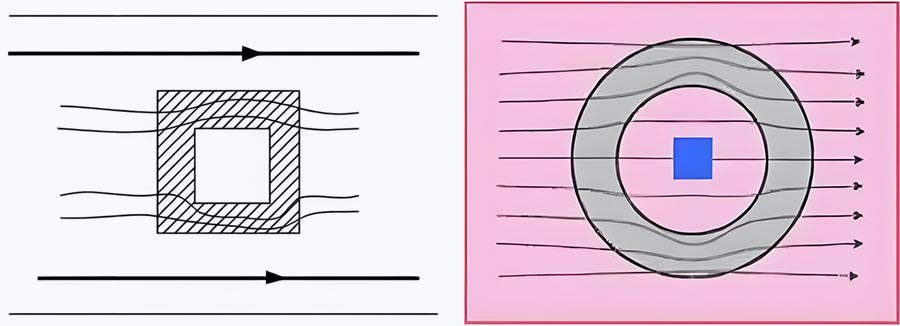

Diagram of Magnetic Field Bypass (Low-Frequency Electromagnetic Fields)

Diagram of Magnetic Field Bypass (Low-Frequency Electromagnetic Fields)

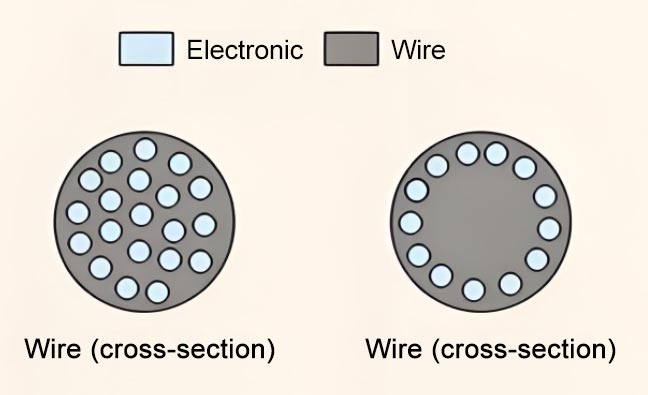

Diagram of Magnetic Field Skin Effect (High-Frequency Electromagnetic Fields)

Diagram of Magnetic Field Skin Effect (High-Frequency Electromagnetic Fields)

Shielding Implementation Plan for Electrical Control System

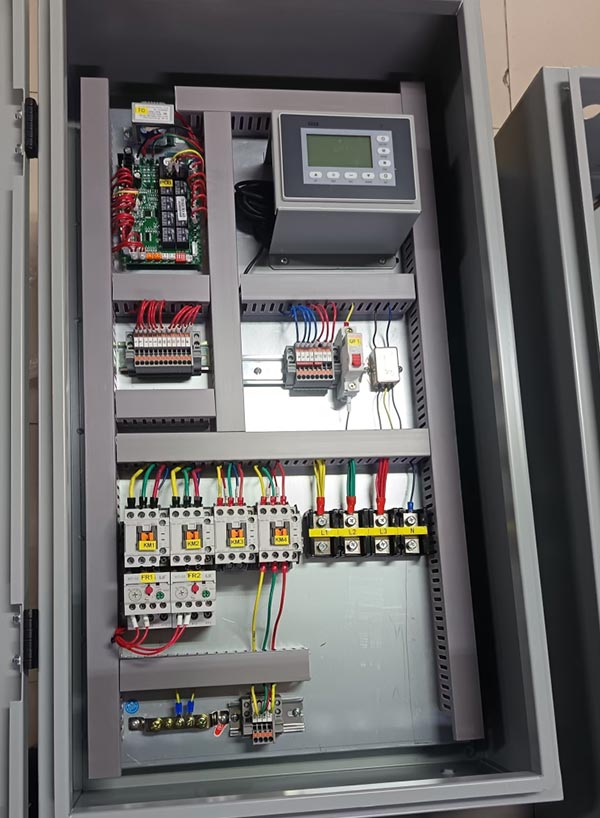

Independent Electrical Control Box

Utilizing a fully enclosed metal control box, it forms a Faraday cage effect, effectively shielding against external magnetic field interference.

Independent Electrical Control Box

EMI Filter

All incoming and outgoing lines are transitioned using EMI filters to suppress high-frequency interference and ensure stable signal transmission.

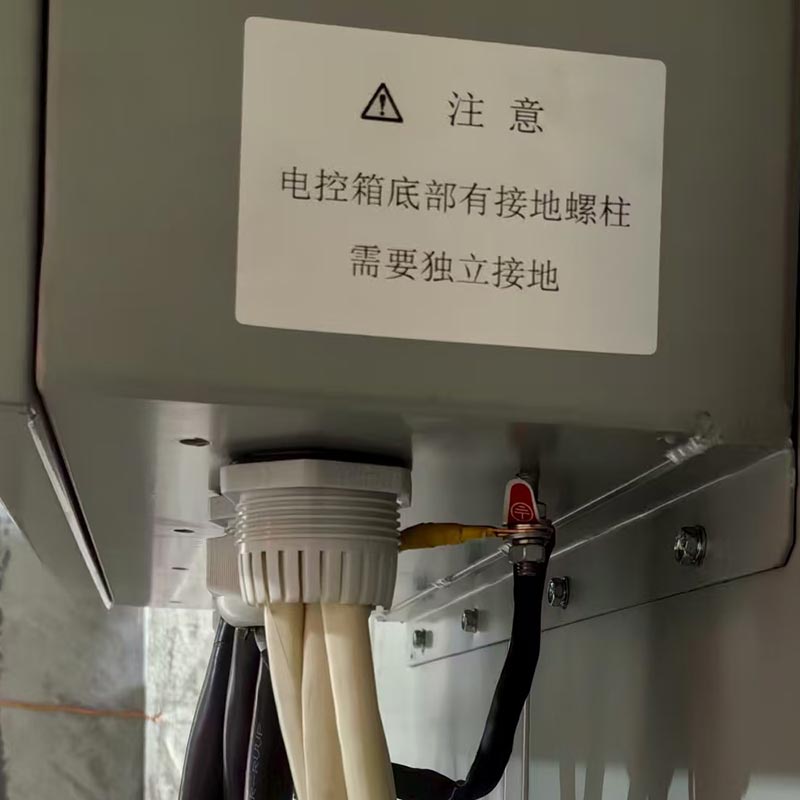

Grounding System

An independent shielded grounding terminal is provided, separate from the equipment's main grounding system. The grounding resistance is ≤0.1Ω to ensure effective grounding.

Project Cases

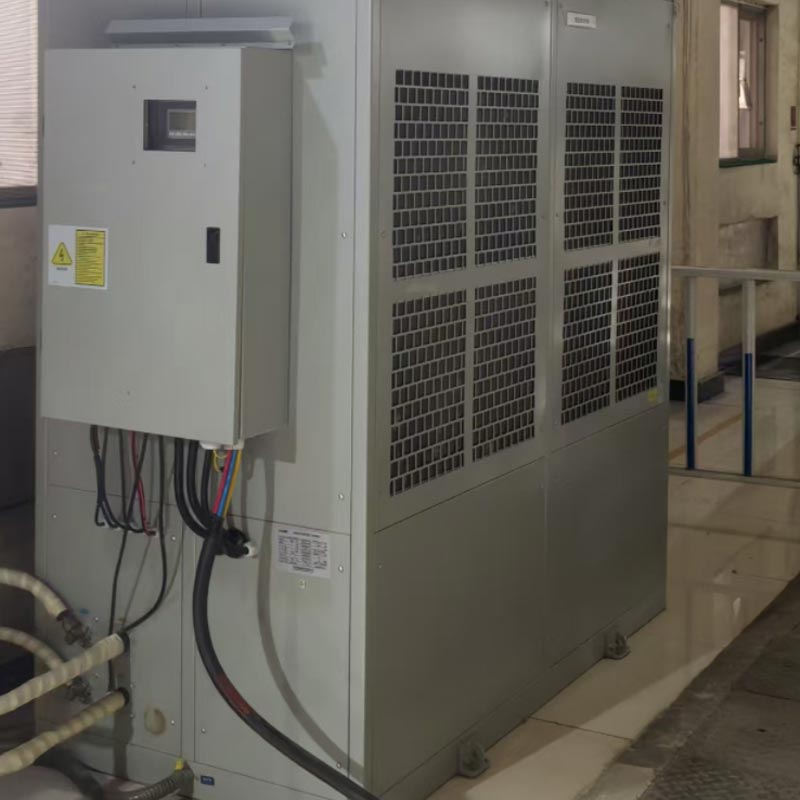

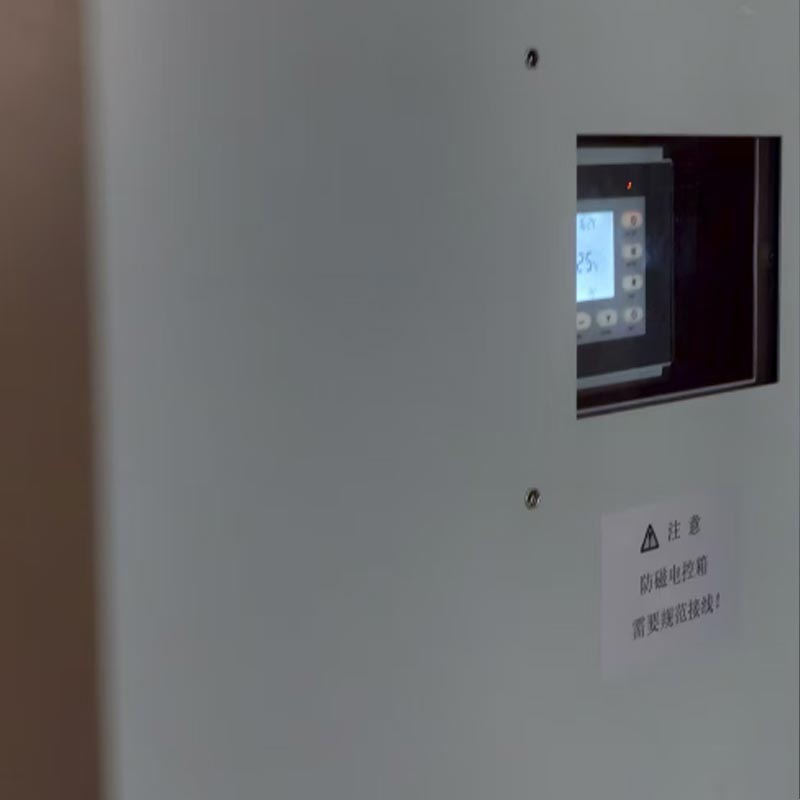

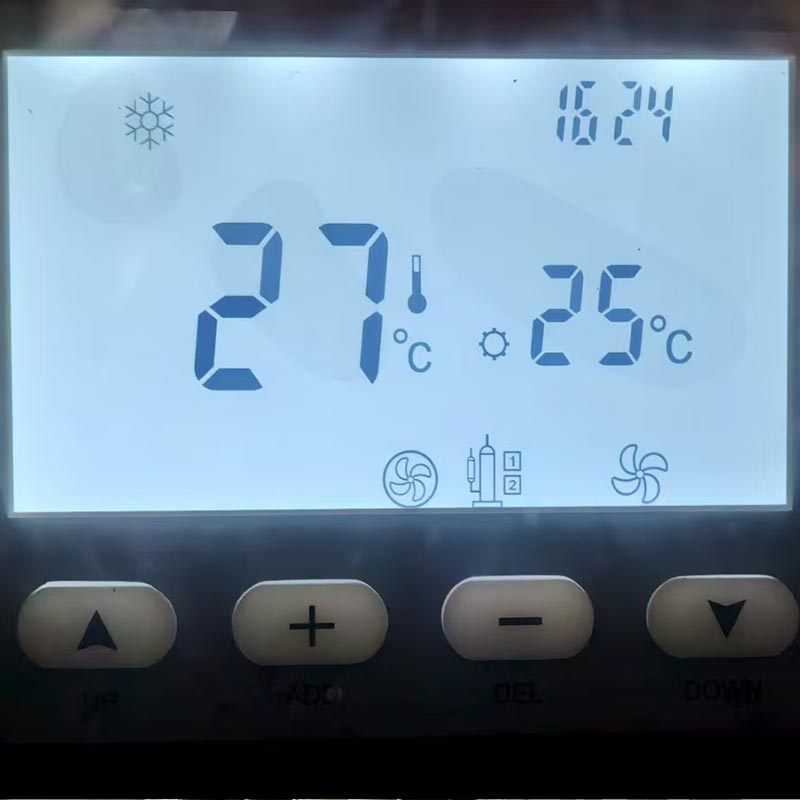

A new materials company has an outdoor magnetic field strength of 800GS and an indoor magnetic field strength of 2200GS, which places extremely high demands on the anti-magnetic performance of its air conditioning equipment.

Hisurp Magnetic-Resistant Air Conditioner is equipped with an independent electrical control box, shielded cables, and an anti-magnetic motor, effectively solving the problem of magnetic field interference.

With following pics feedback:

Project CasesProject CasesProject CasesProject Cases
