High-Efficiency Wall Mounted Cabinet Air Conditioner for Commercial and Industrial Applications

HISURP Wall Mounted Cabinet Air Conditioner Factory Direct | Buy OEM Wholesale side-mounted panel cooling units.

HISURP wall-mounted and side-mounted electrical cabinet cooling units are widely used in CNC machine tools, plastic machinery, telecom equipment, food processing equipment, textile machinery, woodworking machinery, metallurgy equipment, tobacco machinery, inverter cabinets, servo control panels, PLC cabinets and automated production line control systems. This installation style is one of the most practical options for industrial users who need broad cooling capacity, convenient maintenance and flexible retrofit capability.

A Wall Mounted Cabinet Air Conditioner is installed on the side panel of an electrical cabinet. It provides active refrigeration while keeping cabinet air separated from outside workshop air. It helps protect the electrical control system from both thermal stress and environmental contamination.

Why are side-mounted cabinet coolers popular?

Side-mounted cabinet coolers are popular because they offer wide cooling capacity coverage, easy service access and strong compatibility with existing electrical cabinets. HISURP side-mounted models are available in 300W, 600W, 1000W, 1500W, 2000W, 2500W, 3500W and 4000W, which makes them suitable for small control boxes, medium automation panels and higher heat-load industrial cabinets. For many maintenance teams, side installation is easier to inspect, clean and repair than roof installation.

Designed for real industrial environments

HISURP side-mounted units are developed to improve the cabinet micro-environment through forced cooling and internal circulation. The cabinet remains a relatively sealed space, and the cooling unit repeatedly conditions the internal air. As a result, PLCs, servo drives, inverters, precision instruments and communication modules can work in a cleaner and more temperature-stable condition.

Product advantages

1. Wide cooling capacity range From 300W to 4000W, HISURP side-mounted units can match different cabinet sizes and heat loads. This is useful for equipment manufacturers, wholesalers and project buyers who need multiple models for different machines.

2. Easy installation and maintenance The unit is mounted on the side of the cabinet with a simple structure. After power connection, it can operate without complex commissioning. Filters, drainage points and inspection areas are easier to reach than many top-installed structures.

3. Closed cabinet protection The sealed internal circulation helps prevent dust, oil mist and humid air from entering the cabinet. This is a major advantage over traditional fan cooling.

4. Temperature adjustment and dehumidification Users can set cabinet working temperature according to site requirements. The typical adjustment range is +20°C to +38°C, depending on the model. The unit also helps remove moisture and reduce condensation risk.

5. High-quality fan system The fan features compact structure, large airflow, low vibration and low noise. Strong air circulation helps remove heat from high-density electronic areas and reduces local hot spots.

6. Hermetic rotary compressor The fully enclosed rotary compressor provides stable cooling performance, high efficiency and low energy consumption. Vibration reduction design helps maintain stable long-term operation.

7. Efficient heat exchanger and condenser filter The inner-threaded tube and aluminum fin heat exchanger improves heat transfer. The primary filter on the condenser side reduces dust, oil and debris entering the unit, improving system stability and service life.

8. Adjustable air direction The cold air outlet can be equipped with an air guide plate. This helps direct cool air toward major heat sources and prevents airflow short circuits.

Model reference table

How to choose a Wall Mounted Cabinet Air Conditioner?

A correct selection should consider more than cabinet dimensions. Please review the following points before ordering:

1. Estimate internal heat load List the power consumption of PLCs, servo drives, inverters, transformers, power supplies and other heat-generating components.

2. Confirm maximum ambient temperature If the cabinet is installed near furnaces, hot machines, outdoor containers or enclosed production spaces, select additional cooling margin.

3. Check cabinet sealing The cabinet should be an independent closed space. Door seals, cable holes and unused openings should be inspected before installation.

4. Reserve side clearance Make sure the side-mounted unit does not interfere with machine doors, safety fences, operator passages or neighboring equipment.

5. Plan condensate drainage Condensate must be drained safely. If no drainage pipe is available, choose a water tank option.

6. Consider maintenance frequency In dusty or oily factories, the condenser-side filter should be cleaned regularly. A blocked filter reduces heat exchange efficiency and increases system load.

7. Compare other installation styles If side space is not available, consider a Top Mounted Cabinet Air Conditioner. If you need a full overview of cabinet cooling types, visit Cabinet Air Conditioner. For larger electrical rooms or containerized power systems, review E-HOUSE Air Conditioner.

Why HISURP

HISURP cabinet cooling technology benefits from cooperation and development experience with Japanese companies experienced in panel cooler manufacturing. KOUWAKOUGYO has strong panel cooler technology and stable product quality, while Apiste is well known in the Japanese electrical cabinet air conditioner market. Through cooperation and model development experience, HISURP has continuously improved the structure, stability and performance of side-mounted and top-mounted product series.

Factory capability and quality control

HISURP is backed by a large-scale industrial air conditioner manufacturing base with over 150,000 m² of workshop area, more than 400 employees, complete production lines and national-class CNAS labs. The company’s R&D personnel account for more than 10% of staff, and its industrial refrigeration experience covers high-temperature air conditioners, E-HOUSE cooling, marine ACUs, base station air conditioners, grain coolers, precision air conditioners, chillers and other special cooling systems.

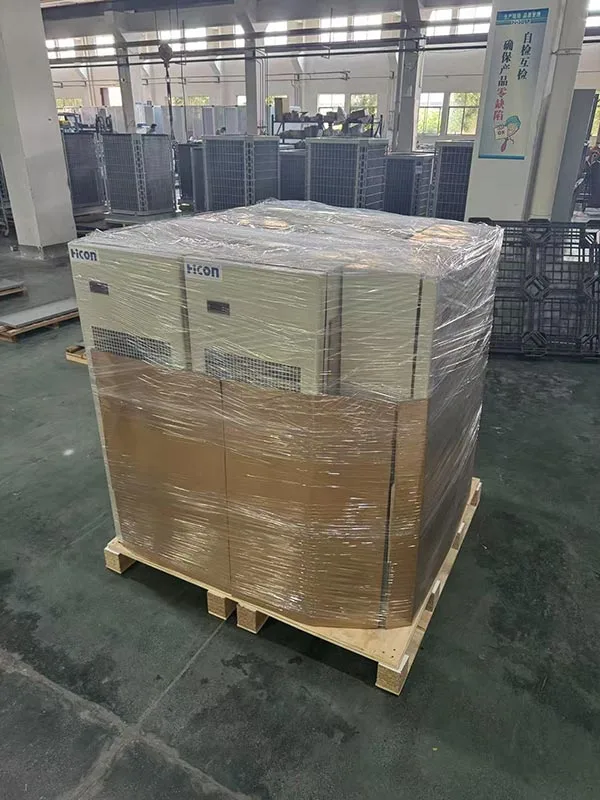

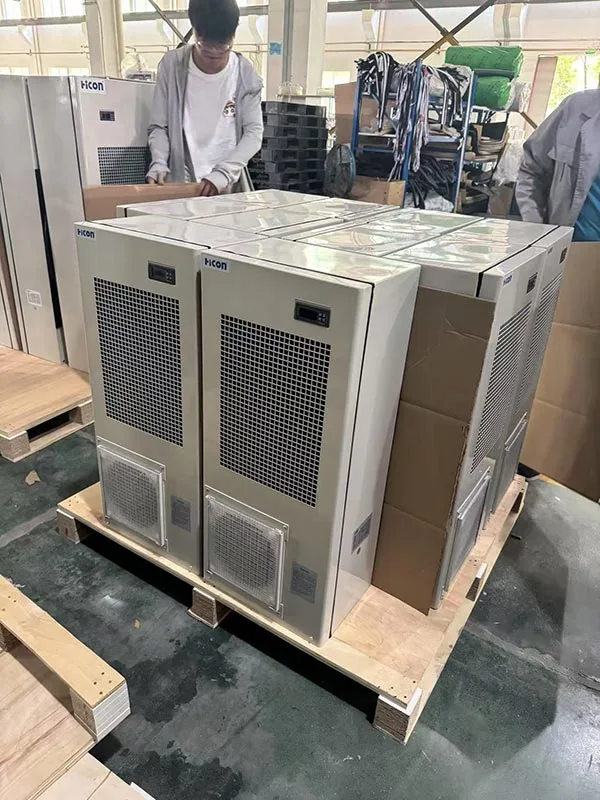

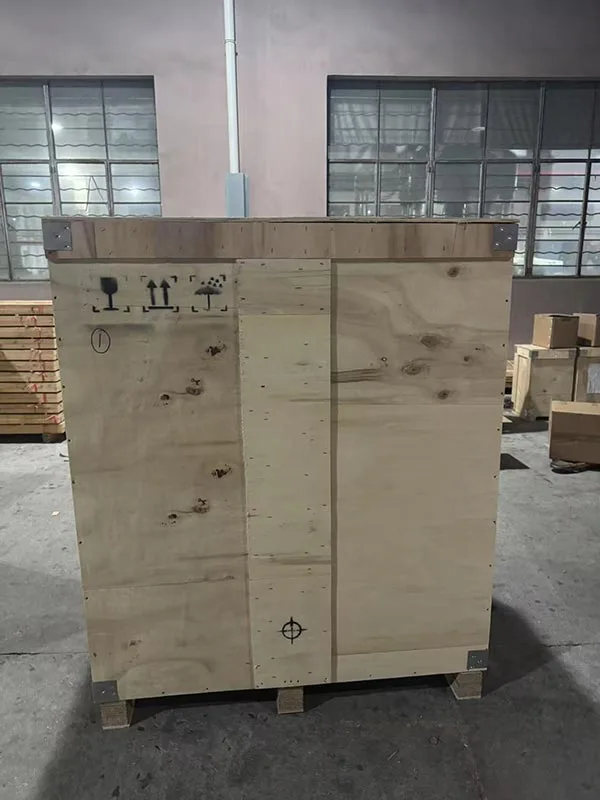

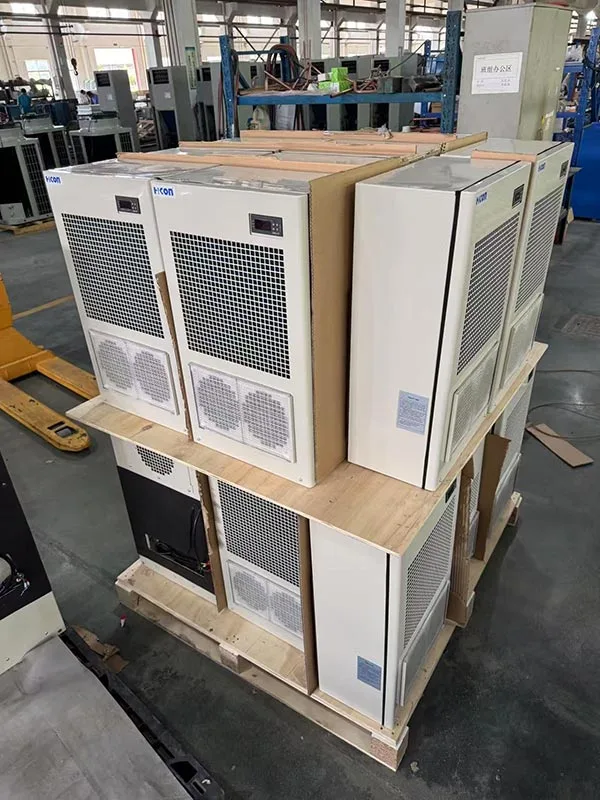

Packing Pictures
