Customized High Efficiency Chiller from China Factory Direct

HISURP Chiller Manufacturer & Supplier for Air Cooled Scroll, Air Cooled Screw, Water Cooled Scroll and Water Cooled Screw Chiller solutions.

HISURP Chiller for Commercial HVAC, Industrial Process Cooling and Energy-Efficient Temperature Control

A Chiller is one of the most important core machines in modern central air conditioning and industrial process cooling systems. It produces chilled water or low-temperature fluid, then sends it to fan coil units, air handling units, production equipment, molds, electroplating tanks, reactors, laboratories, data centers, hospitals, shopping malls, factories and other applications that require stable cooling. HISURP provides a complete Chiller product range, including Air Cooled Scroll Chiller, Air Cooled Screw Chiller, Water Cooled Scroll Chiller and Water Cooled Screw Chiller, helping global buyers choose the right cooling solution according to capacity, energy efficiency, water availability, installation space and working temperature.

As a professional Chiller Manufacturer and Chiller Supplier in China, HISURP is a large-scale industrial air conditioning and refrigeration manufacturer with industrial cooling experience dating back to 1972. The company owns a 150,000㎡ manufacturing base, more than 400 employees, over 123 patents, complete production lines, and national-class CNAS laboratories and testing rooms.

What Is a Chiller and Why Is It Important?

A Chiller is a refrigeration unit that removes heat from water or a secondary cooling medium through a vapor-compression refrigeration cycle. The chilled water is then circulated through the building or industrial process to absorb heat and maintain the required temperature.

In commercial HVAC, chillers are used for:

shopping malls

hotels

hospitals

office buildings

apartments

schools

restaurants

commercial complexes

In industrial process cooling, chillers are used for:

plastic injection molding

electroplating

electronics manufacturing

chemical processing

food and beverage

pharmaceutical production

mechanical processing

data centers and communication rooms

laboratories and precision manufacturing

A correctly selected Chiller improves product quality, stabilizes process temperature, reduces equipment failure and helps lower long-term operating costs.

HISURP Chiller Product Family

HISURP provides four major chiller categories to match different project needs:

[Air Cooled Scroll Chiller] Suitable for small and medium commercial HVAC, modular cooling/heating systems, water-limited areas and projects requiring easy installation without cooling towers.

[Air Cooled Screw Chiller] Suitable for larger buildings, factories, data centers, process cooling and projects needing high-capacity outdoor cooling. Optional free cooling is available for year-round cooling applications.

[Water Cooled Scroll Chiller] Suitable for compact industrial process cooling, plastic molds, electroplating tanks, electronics, food preservation and medium/small capacity production cooling.

[Water Cooled Screw Chiller] Suitable for large commercial buildings and heavy industrial cooling projects requiring high efficiency, stable chilled water and large cooling capacity.

How to Choose a Chiller?

1. How to choose a Chiller for my project?

To select the correct Chiller, buyers should confirm the following information:

Required cooling capacity

Chilled water inlet and outlet temperature

Cooling water temperature if water cooled

Ambient temperature if air cooled

Cooling medium: water, glycol solution or brine solution

Application: comfort cooling or process cooling

Installation location: indoor, outdoor, rooftop, equipment room

Power supply: voltage, phase and frequency

Noise requirement

Water availability

Need for heating or hot water

Need for remote control or BMS communication

Special requirements such as low temperature, anti-corrosion, free cooling or modular combination

If the project lacks cooling tower water, an Air Cooled Scroll Chiller or Air Cooled Screw Chiller is usually easier to install. If the project has cooling water available and prioritizes high energy efficiency, a Water Cooled Scroll Chiller or Water Cooled Screw Chiller may be a better choice.

2. What is the difference between air cooled and water cooled chillers?

An air cooled chiller rejects heat to outdoor air through condenser fans. It does not require a cooling tower, cooling water pump or complicated cooling water system. It is simple to install and especially suitable for water-scarce areas.

A water cooled chiller rejects heat through cooling water and usually works with a cooling tower. It can achieve higher energy efficiency in many projects, especially large-capacity systems, but requires more water-side equipment and regular water treatment.

3. What is the difference between scroll chiller and screw chiller?

A scroll chiller is usually compact, low noise, easy to operate and suitable for small to medium cooling capacity. It is commonly used in light commercial HVAC and industrial process cooling.

A screw chiller uses screw compressors and is better suited for medium to large cooling capacity, continuous operation and applications requiring capacity regulation. Screw chillers are widely used in hotels, hospitals, factories, shopping malls, office buildings, data centers and industrial cooling plants.

4. Which Chiller is best for industrial process cooling?

For small and medium process loads, such as plastic molds, electroplating tanks, electronics equipment and food cooling, a Water Cooled Scroll Chiller or air cooled scroll industrial chiller is often suitable. For larger process cooling systems in chemical, pharmaceutical, semiconductor, data center or industrial plants, an Air Cooled Screw Chiller or Water Cooled Screw Chiller is recommended.

HISURP Chiller Selection Guide

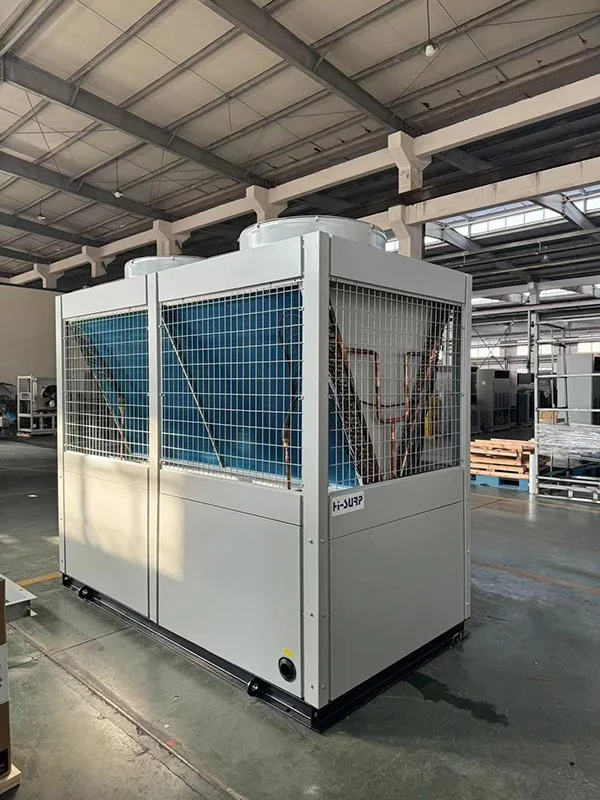

Air Cooled Scroll Chiller: Flexible Cooling and Heating Without Cooling Tower

The Air Cooled Scroll Chiller uses air as the cooling or heating source and water as the heat transfer medium. Its biggest advantage is system simplicity. Compared with water cooled chillers, the air cooled scroll unit eliminates the cooling tower, cooling water pump, boiler and related piping system. This reduces installation space, project complexity and maintenance workload.

HISURP air cooled scroll systems can feature:

cooling and heating functions

optional domestic hot water

special subcooling circuit for improved defrosting performance

stable heating at ultra-low ambient temperature down to -25°C depending on model

multiple environmentally friendly refrigerant options

modular free combination

remote controller relocation up to 1000 meters

optional RS-485 and RS-232 communication interfaces

This type is commonly used in shopping malls, hospitals, apartments, factories, office buildings and commercial projects where water resources are limited or installation convenience is important.

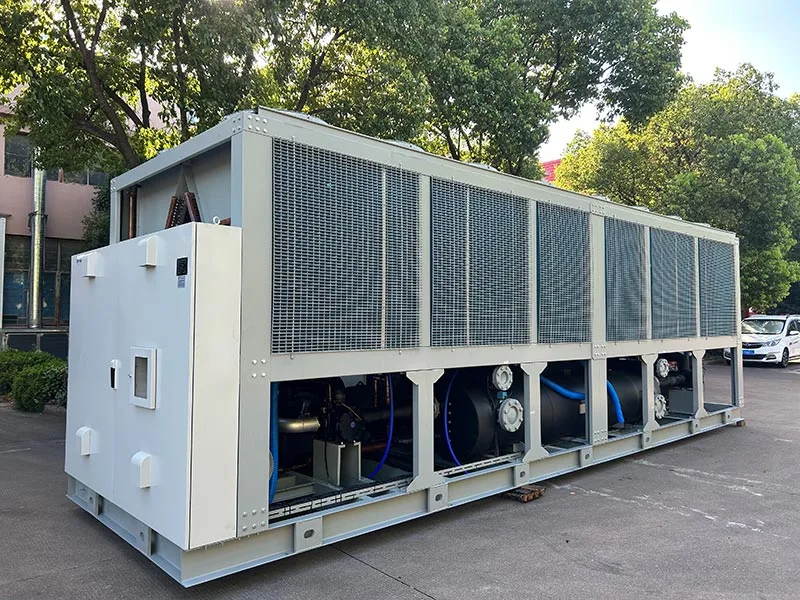

Air Cooled Screw Chiller: High-Capacity Outdoor Cooling with Optional Free Cooling

The Air Cooled Screw Chiller is designed for larger cooling loads. It uses air as the heat rejection medium and water as the chilled water carrier. It is widely used in shopping malls, hospitals, hotels, apartments, factories, office buildings, laboratories, data centers and process cooling systems.

HISURP HCSA series air cooled screw units are designed and manufactured according to GB/T18430.1. The unit adopts a semi-hermetic screw compressor, high-efficiency condenser coil, shell-and-tube evaporator, intelligent controller and multiple protection systems.

Core advantages include:

stainless steel fasteners for better anti-rust performance

electrostatic phosphating and powder-coated sheet metal for outdoor durability

low-speed high-efficiency fans for quieter operation

semi-hermetic screw compressor with low vibration and stable performance

intelligent capacity regulation according to real load

intelligent defrosting to reduce heat loss

high and low pressure protection

anti-freezing protection

overload and phase protection

compressor overheat protection

water flow protection

optional RS-485 communication and remote monitoring

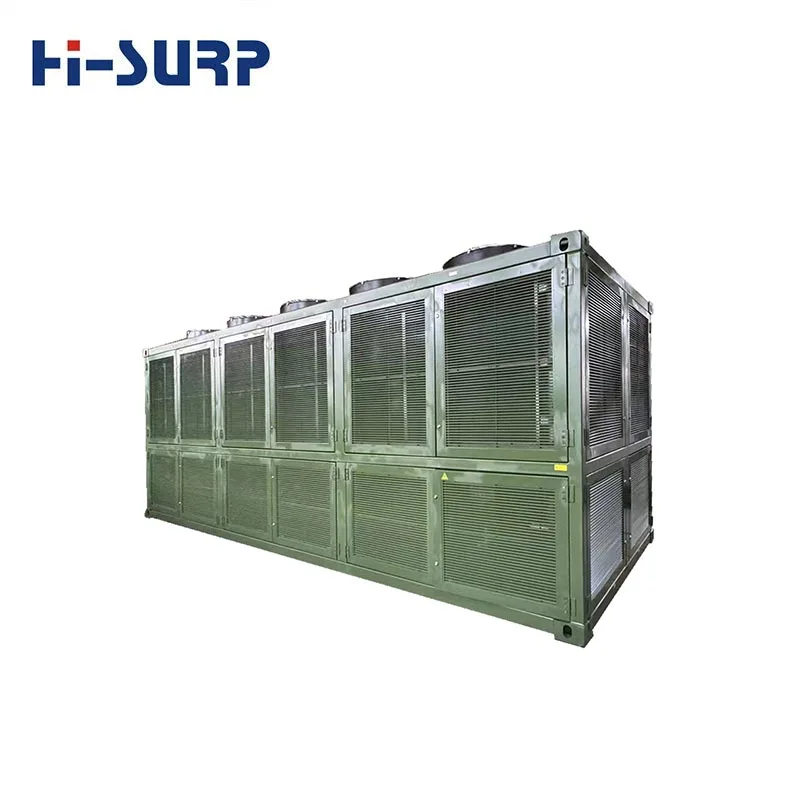

Optional Free Cooling Function

For data centers, communication rooms, semiconductor plants, laboratories and industrial process cooling systems that need chilled water all year, HISURP can provide an air cooled screw chiller with free cooling.

Summer mode: compressor refrigeration works as a conventional chiller.

Transition season mode: when outdoor air is lower than chilled water return temperature by about 2°C or more, outdoor air pre-cools the chilled water.

Winter mode: when outdoor air is lower than chilled water return temperature by about 10°C or more, the system can provide full free cooling with almost no compressor power consumption.

This design can reduce annual energy cost significantly in suitable climates.

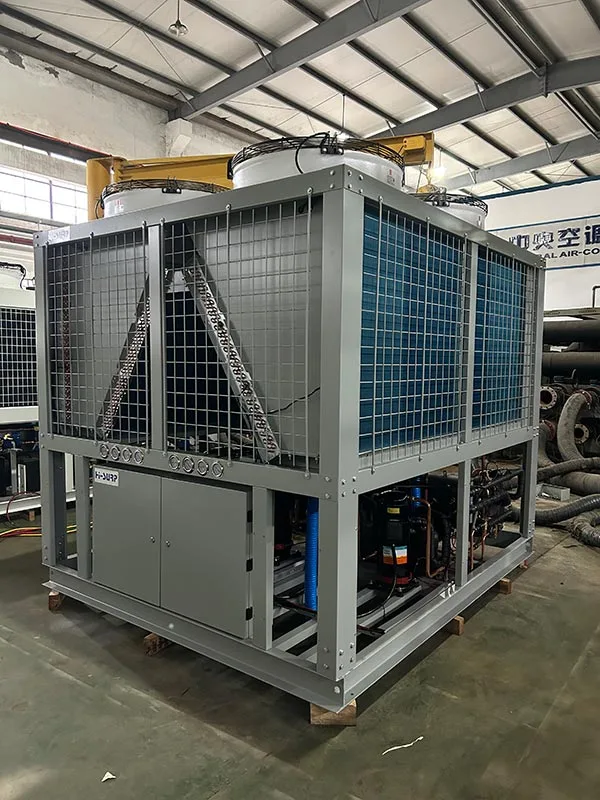

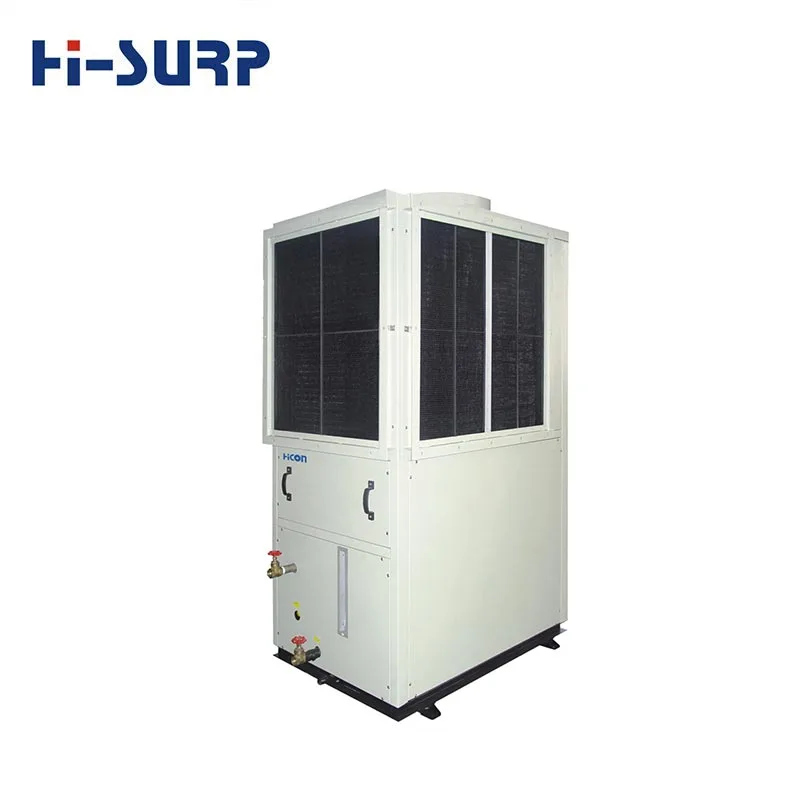

Water Cooled Scroll Chiller: Compact Industrial Process Cooling

The Water Cooled Scroll Chiller is widely used in plastic mold cooling, electroplating bath cooling, electronics cooling, chemical liquid cooling, food preservation, mechanical processing and low-temperature applications.

HISURP industrial chiller series covers:

normal temperature units: 4°C to +25°C

scroll compressor capacity: 3HP to 50HP

refrigerants: R410A, R407C, R404A, R134a

customized special working conditions available

For applications requiring outlet water below 0°C, HISURP can design the unit to use glycol solution or brine solution as the secondary cooling medium.

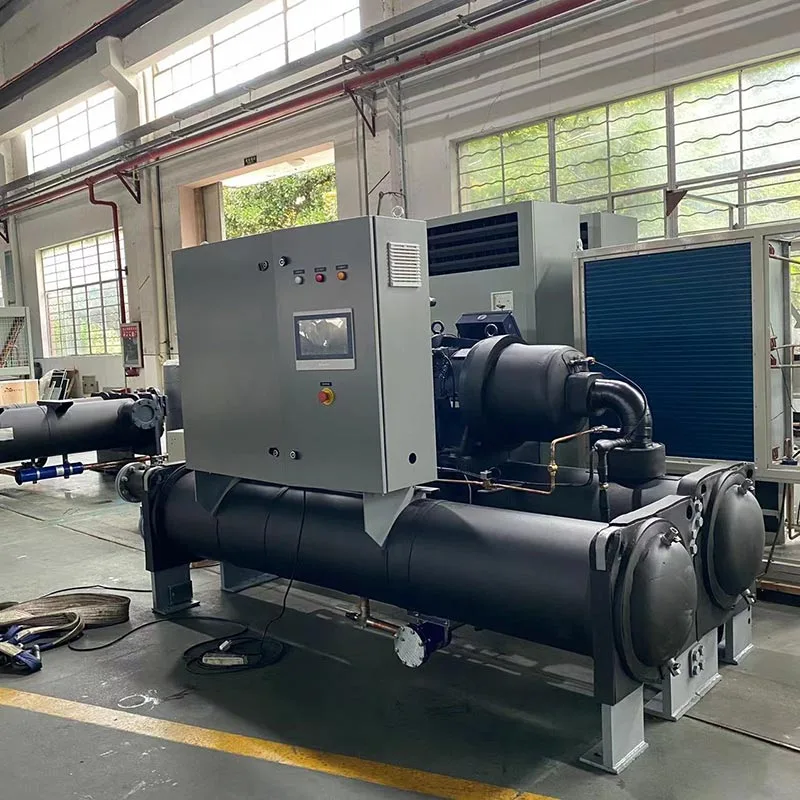

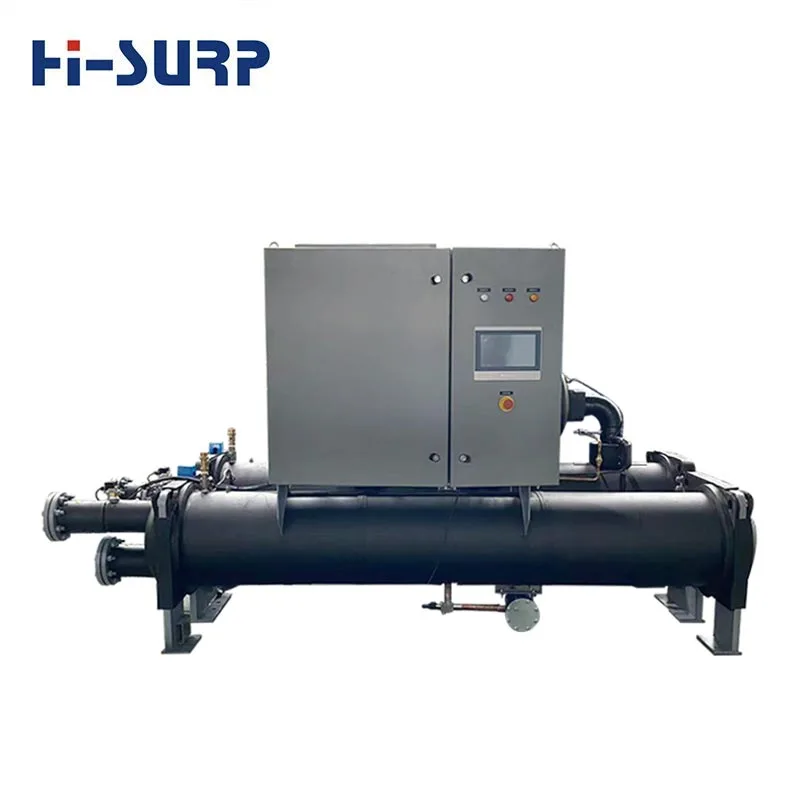

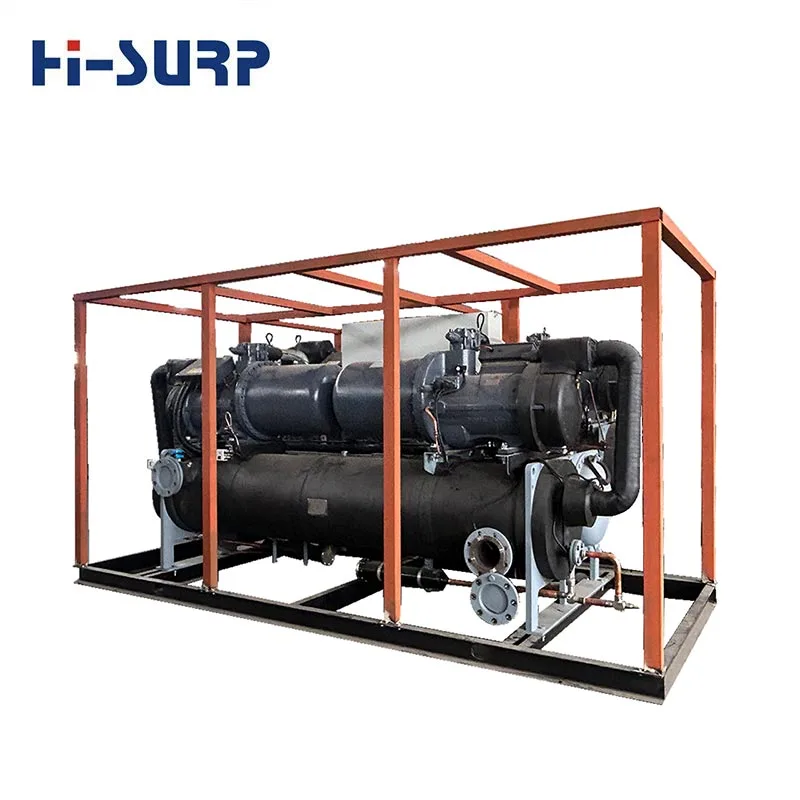

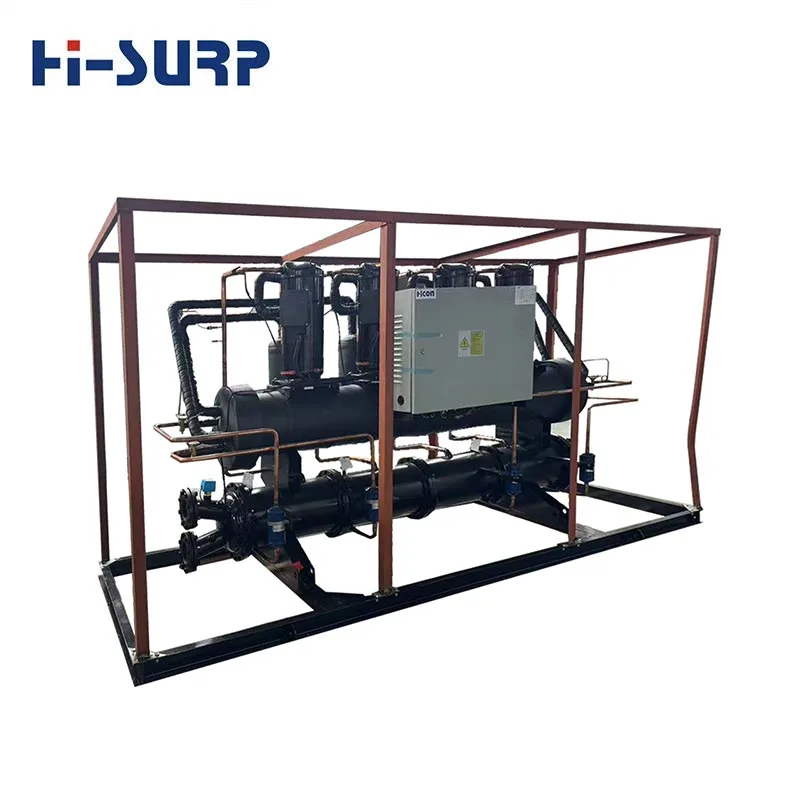

Water Cooled Screw Chiller: Large-Capacity High-Efficiency Cooling

The Water Cooled Screw Chiller is suitable for hotels, restaurants, schools, shopping malls, office buildings, residential buildings, hospitals, plastics, chemical plants and large industrial process cooling. HISURP water cooled screw units are designed according to GB/T18430.1 and provide reliable large-capacity chilled water.

Typical specifications include:

cooling capacity range: approximately 230kW to 4600kW

chilled water outlet: approximately 5°C to 15°C

twin-screw compressor

high-efficiency shell-and-tube evaporator

high-efficiency shell-and-tube condenser

microcomputer intelligent control

multi-level energy regulation

low noise

simple operation

The components are optimally matched so the unit can achieve excellent energy-saving performance during partial load operation. For models with two or more compressors, the controller can balance operating hours between compressors, helping extend the total service life of the chiller.

Why Choose HISURP as Your Chiller Supplier?

HISURP is not just a product trader. It is backed by a professional manufacturing and engineering system. It has been deeply involved in refrigeration technology for decades and has developed solutions for special industrial environments, including high-temperature crane cab air conditioners, E-house air conditioners, marine ACUs, base station air conditioners, grain coolers, industrial chillers, rooftop units, oil coolers and precision air conditioners.

Key company strengths include:

refrigeration experience dating back to 1972

focus on industrial HVAC and chillers since 2003

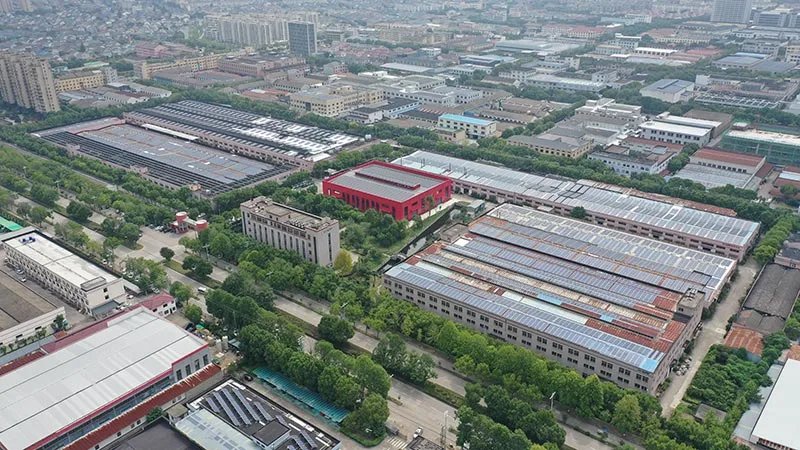

150,000㎡ production base

400+ employees

more than 123 patents

CNAS national-class labs and testing rooms

advanced enthalpy difference test rooms

noise and vibration testing capability

thermal balance testing rooms

ISO9001, ISO14001, ISO45001, CE, UL, CB, CRAA and other certifications

participation in national standards such as GB/T17758-2023 and GB/T18430.1-2024

experience with well-known partners and projects including ABB, Schneider, Toyota, COFCO, Novenco, Toray and multiple domestic and overseas engineering projects

HISURP also actively expands overseas markets through exhibitions such as HVACR Vietnam, Philconstruct 2024, ISH Frankfurt, FEBRAVA 2025, ISK SODEX 2025 and AHR Vegas 2026. Customers from Vietnam, Russia, South Korea, Mexico, Malaysia, Thailand, Belarus and Romania have visited the company for factory inspection and technical communication.

Project cases of chillers:

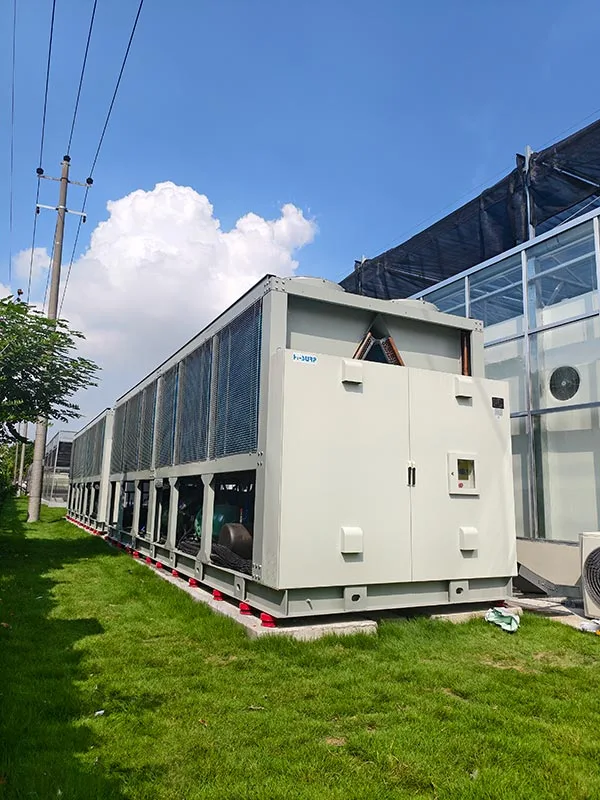

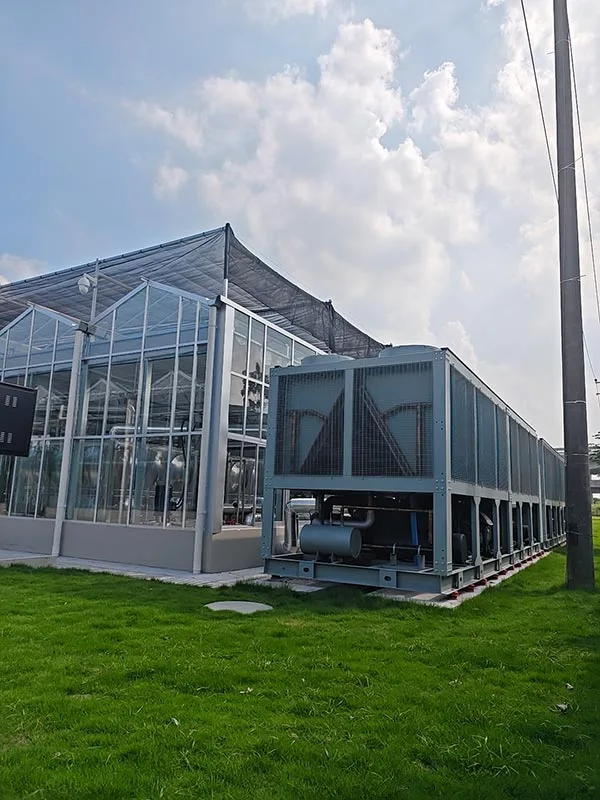

Air cooled screw chiller in Xiang Lake, Hangzhou, China

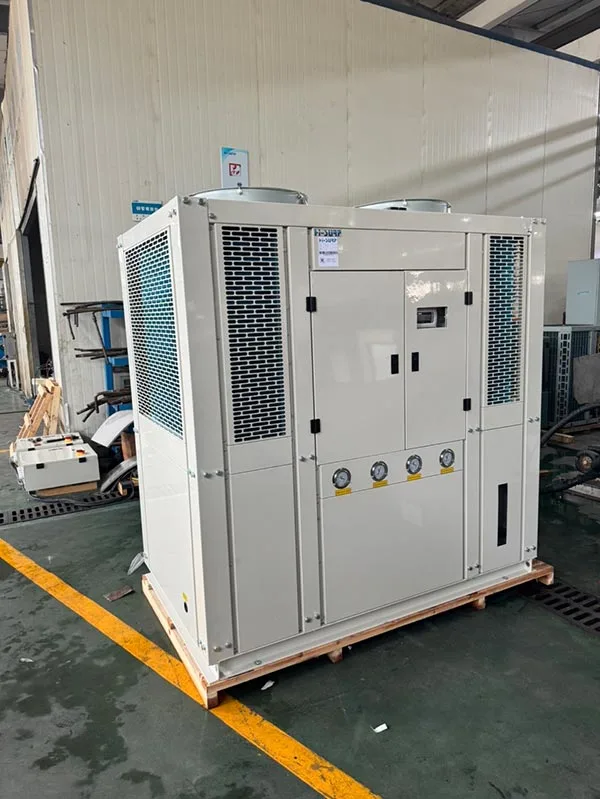

Air cooled scroll chiller exported to Korea

Water cooled scroll chiller exported to Italy
