High-Efficiency Telecom Air Conditioner for Reliable Network Cooling

Why is Telecom Air Conditioner needed?

The unit is designed for automatic cooling and heating control in unattended IoT and communication equipment rooms along high-speed railway lines. It can remotely collect temperature and humidity data via RS485 communication protocol, monitoring and managing the air conditioning operation and status. High energy efficiency and quality requirements ensure the unattended equipment rooms offer excellent stability, security, and economy, saving energy while ensuring the normal operation of communication equipment.

What are the key features of Telecom Air Conditioners?

*High EER -- For energy saving and consumption reduction.

*High SHR -- Rapidly cool the environment while keeping the room from becoming too dry.

*Dual Cooling & Heating System -- The control temperatures for cooling and heating can be set separately.

*Year-round Cooling -- Stable and reliable cooling even in transitional seasons and winter environments.

*Dual Switch -- Suitable for unattended base stations in some remote areas, it can achieve dual-unit rotation operation.

*Automatically Start Again After Power-down -- The unit remembers and retains the operating status of the air conditioner before the power outage and automatically starts running.

*Microcomputer Control -- The large-screen text controller enables remote centralized monitoring and data exchange capabilities across multiple networked devices.

*Fully Automatic Fault Diagnosis -- It has multiple automatic fault diagnosis and code display functions, and can transmit data to a remote monitoring unit via the communication port.

Can HISURP Telecom Air Conditioners be remote monitored ?

Yes. The unit provides an RS-485 communication interface, enabling full-parameter communication with a remote monitoring computer. It features both local and remote control modes and three remote functions:

1. Remote Measurement: Remotely monitors temperature and humidity in the machine room.

2. Remote Signaling: Remotely reads unit operating status parameters and fault information.

3. Remote Control: Remotely controls the unit's on/off state and sets relevant parameters.

Types of HISURP Telecom Air Conditioners?

According to installation method, there are wall-mounted, floor standing, ceiling, rooftop, door-mounted types;

According to outline, there are packaged, split types.

Can HISURP Telecom Air Conditioners be customized ?

Yes. Hisurp is a leading manufacturer of industrial air conditioners in China, who’s offering customization for even 1 set..

Besides the features mentioned above, the unit can also add following functions if needed:

Dehumidification

When the base station is located in the south, southeast Asia or near the river and sea area, the surrounding environment has high humidity, and high humidity will inevitably occur in the station. The unit has a professional-level deep dehumidification function, and the optional installation of a humidity sensor and an electric Heat er can realize the high-humidity dehumidification function.

Fresh Air Cooling

The environmental temperature control of the base station can be equipped with an energy-saving operation mode. When the air-conditioning system is equipped with a low-temperature fresh air refrigeration system or equipment, the unit control can perform automatic switching management, and take into account humidity management to achieve energy-saving, safe, and reliable systematic operation.

Emergency Ventilation Function

If a single air conditioner is installed in the base station, if there is an optional fresh air refrigeration system, when the air conditioner fails to repair itself, the unit can link the fresh air equipment to provide emergency ventilation function to realize emergency safety treatment.

Lightning Protection Function

Units can be equipped with lightning protection measures, which meet the requirements of YD 5098-2005 for lightning protection and overvoltage protection capabilities;

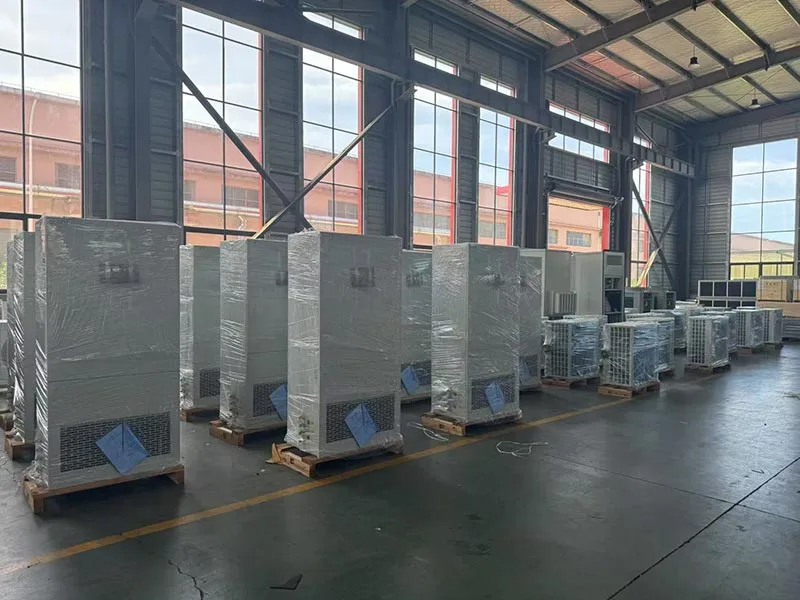

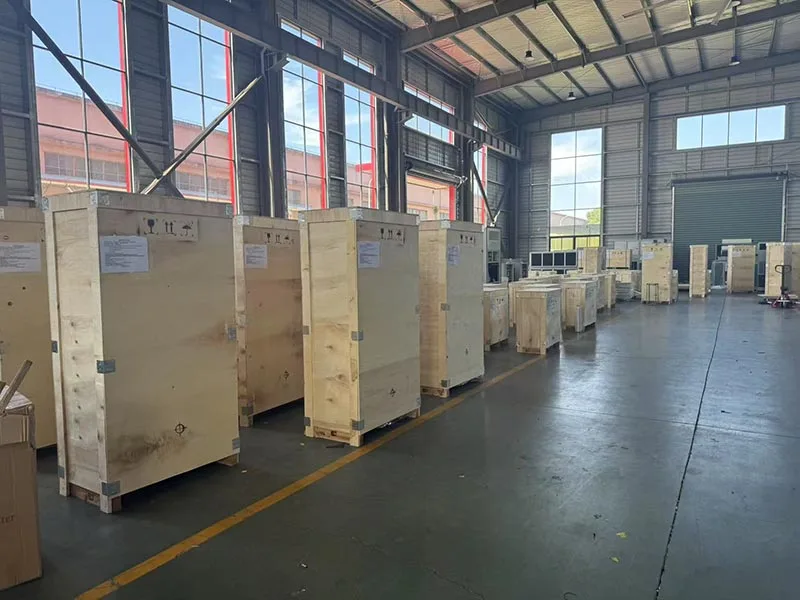

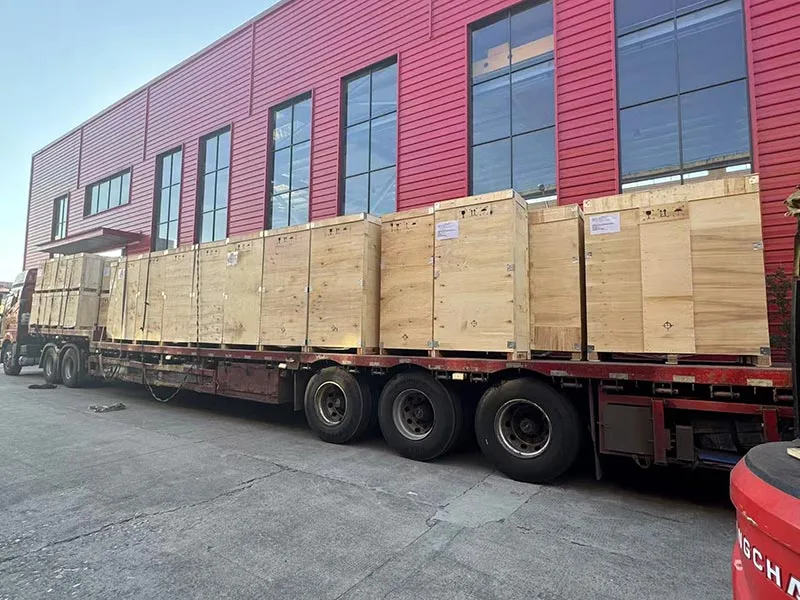

Delivery of HISURP Telecom Air Conditioners

To ensure safe transportation and reliable delivery, every unit is carefully prepared before shipment. The unit base is reinforced to improve stability and protect the equipment during handling and long-distance transportation. Each unit is packed in strong wooden cases to prevent damage from vibration, moisture, and external impact. During container loading, professional loading plans are applied to maximize space utilization while ensuring the units are securely fixed and protected throughout sea and land transportation. Our strict delivery standards guarantee that every unit arrives at the project site in excellent condition and ready for installation.
