Professional Air Cooled Precision Air Conditioner for Data Centers

Product Overview

An Air Cooled Precision Air Conditioner is a specialized cooling system designed to maintain constant temperature and humidity for sensitive electronic equipment in data centers, server rooms, telecommunications facilities, and other mission-critical environments.

Unlike standard comfort air conditioners, an Air Cooled Precision Air Conditioner operates 24/7/365 with high sensible heat ratio (typically ≥0.9) and large airflow volume to handle concentrated heat loads from IT equipment. The "air cooled" designation means the Air Cooled Precision Air Conditioner rejects heat to the ambient air through an outdoor condenser, eliminating the need for cooling towers or chilled water systems.

Technical Advantages

Precision Environmental Control

An Air Cooled Precision Air Conditioner maintains room temperature at 22-24°C and relative humidity at 35-50% – the ideal environment for IT equipment operation. Temperature and humidity sensors provide continuous feedback to the controller, which adjusts cooling output and humidification accordingly.

High Sensible Heat Ratio

In data center environments, over 90% of the heat load is sensible heat generated by servers, storage, and network equipment. An Air Cooled Precision Air Conditioner achieves a sensible heat ratio of 0.9 or higher, meaning at least 90% of cooling capacity is used for temperature reduction – not wasted on unnecessary dehumidification.

Energy-Efficient Components

Component	Technology	Benefit
Compressor	Copeland / High-efficiency scroll	Reliable performance with low power consumption
Fan	EC centrifugal	Speed control, reduced noise, lower energy use
Expansion Valve	Electronic (EEV)	Faster response, tighter temperature control
Condenser	AC axial fan with speed regulator	Stable operation at low ambient temperatures

Flexible Air Distribution

Upflow (Top Supply) : Ideal for drop-ceiling environments with overhead ductwork

Downflow (Bottom Supply) : Perfect for raised floor data centers with floor plenum

Wide Operating Envelope

Standard ambient range: -15°C to +45°C

With low-temperature kit: -35°C for severe cold climates

Maximum ambient cooling: Up to +47°C for high-temperature regions

Intelligent Control System

LCD touchscreen display for local operation

Password protection prevents unauthorized changes

Alarm logging stores up to 400 historical events

RS485 communication enables group control (up to 32 units)

Applications of Air Cooled Precision Air Conditioner

An Air Cooled Precision Air Conditioner is essential in environments where environmental stability is critical:

Application	Why Air Cooled Precision Air Conditioner is Required
Data Centers	Prevents server overheating and costly downtime
Server Rooms	Eliminates hot spots; protects expensive IT equipment
Telecom / Equipment Rooms	Provides 24/7 reliability for continuous heat loads
UPS Rooms	Maintains battery life and safety through temperature control
Computer Rooms / IT Closets	Large airflow prevents localized overheating in small spaces
Laboratories	Protects sensitive instruments and test results
Medical Equipment Rooms (MRI/CT)	Prevents equipment malfunction and image artifacts
Clean Rooms	Combines particulate control with precision cooling

Air Cooled Precision Air Conditioner – Quick Selection

Step	What You Need
1. Heat Load	IT load × 1.2 = Required kW
2. Airflow	Raised floor → Downflow / Drop ceiling → Upflow
3. Capacity	<20m²: 7-15kW / 20-80m²: 20-60kW / >80m²: 60-150kW
4. Redundancy	N+1 recommended
5. Options	Heater / Humidifier / Low/High ambient kit

Quality & Certifications for Air Cooled Precision Air Conditioner

Certification	Description
CCC	China Compulsory Certification (safety)
CQC	China Quality Certification (energy efficiency)
CE	European Conformity
CRAA	Refrigeration and Air Conditioning Association certification
Energy Efficiency	CQC Level 1 / AEER National Level 1
ISO9001	Quality Management System
ISO14001	Environmental Management System

All Air Cooled Precision Air Conditioner units are 100% factory tested in CNAS-accredited laboratories before shipment.

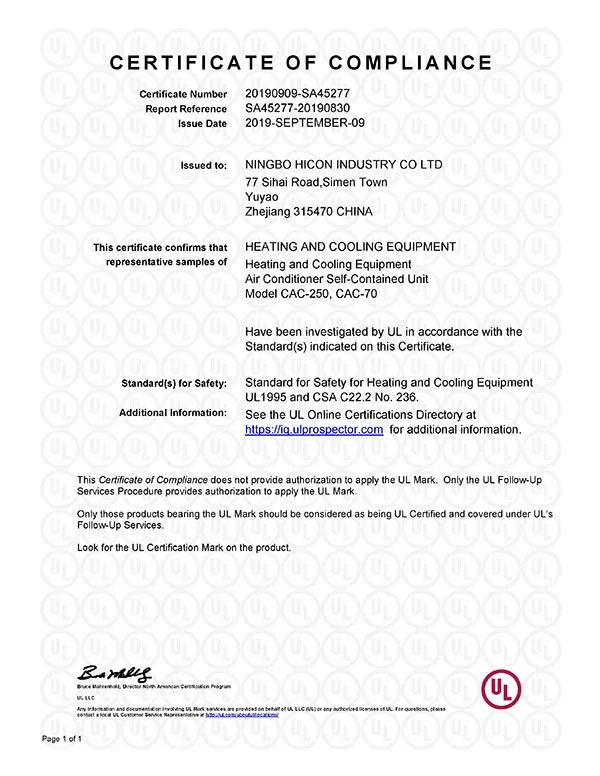

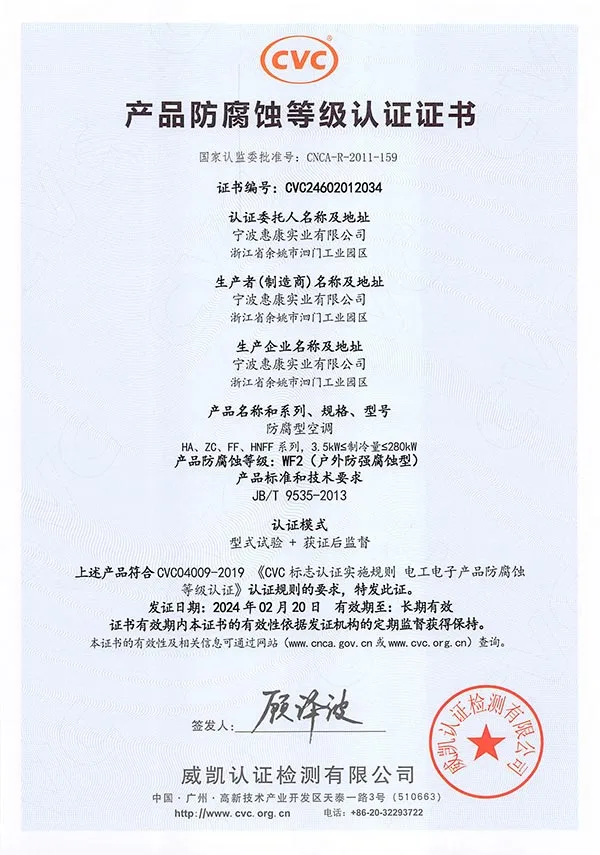

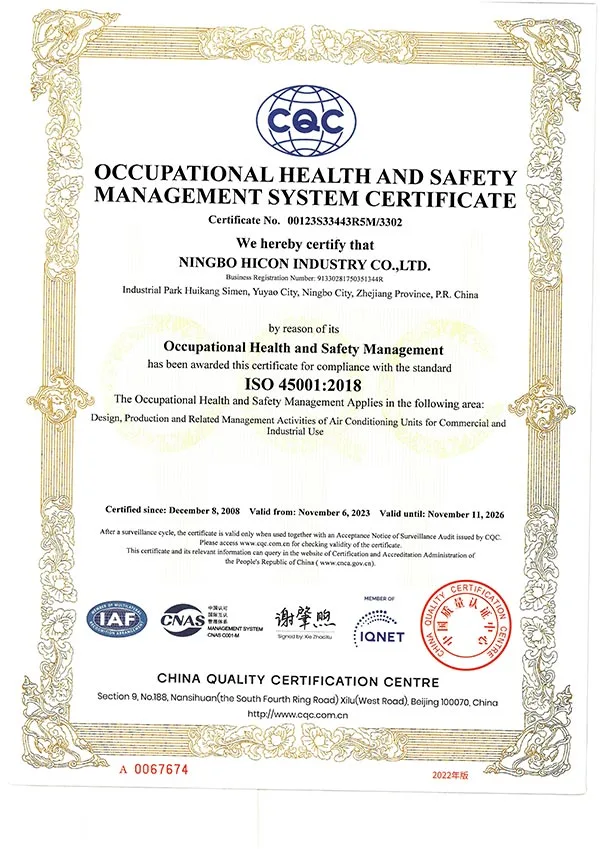

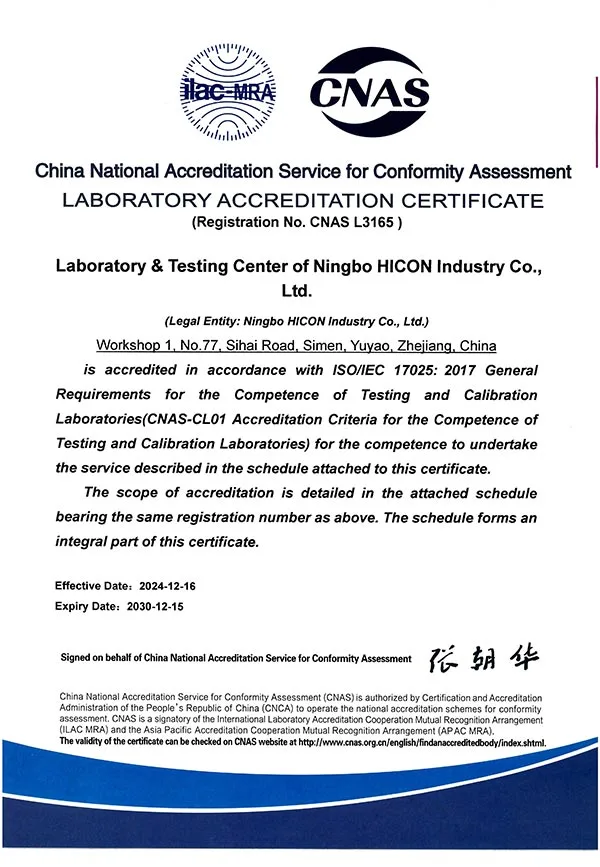

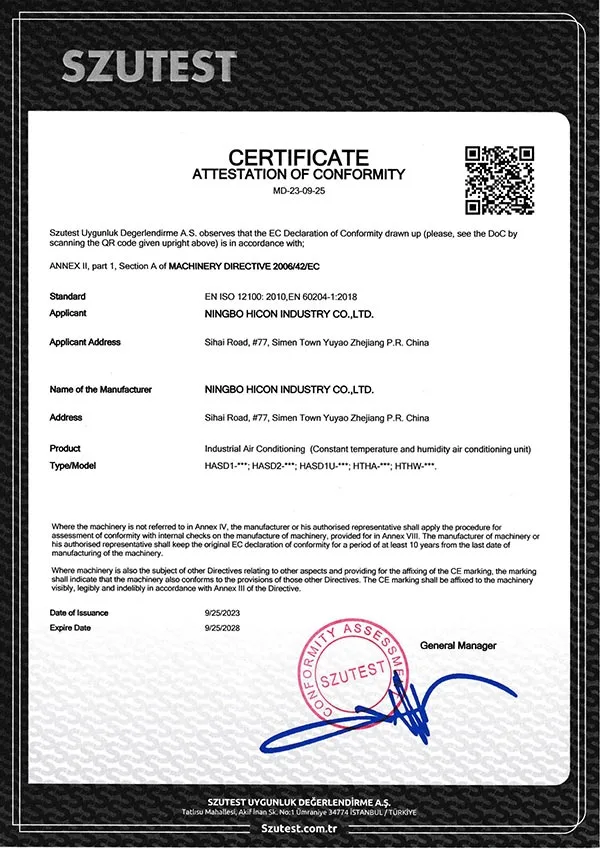

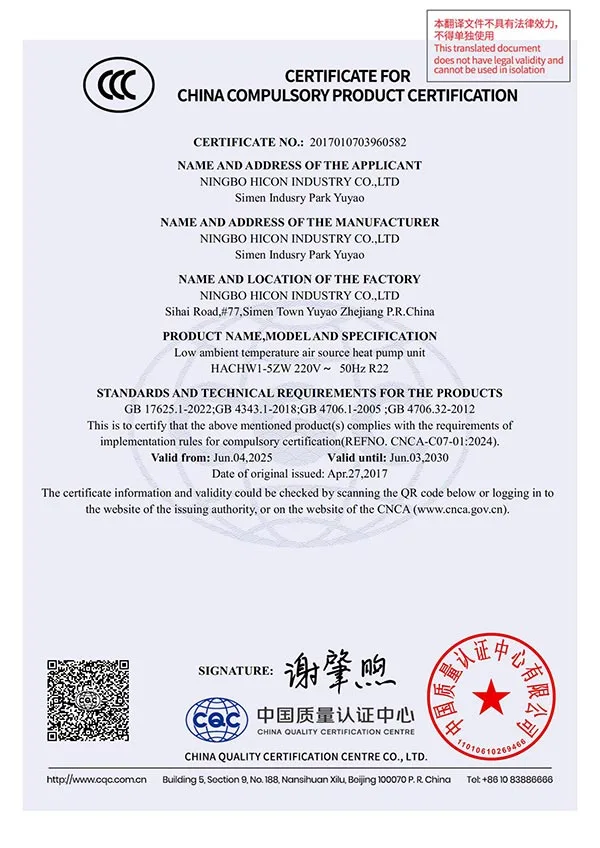

Air Cooled Precision Air Conditioner Certificates

View as

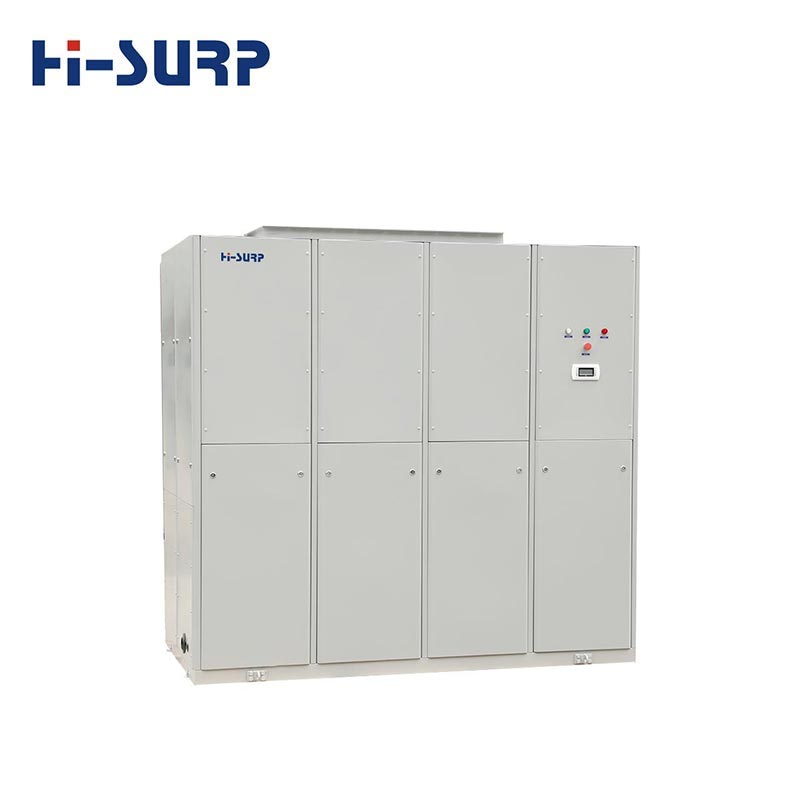

Close Control Unit Air Conditioner

Hisurp Close Control Unit Air Conditioner, also: precision air conditioner, close control unit, is a high-quality product that fully considers the requirements for temperature, humidity, and cleanliness. Compared with modular air conditioners, CCR unit is hygienic, space-saving, and easy to install, thus having a lower initial investment.

View More >> Send Inquiry >>

Fan Wall Array Air Conditioner

The Fan Wall Array Air Conditioner is a next-generation ventilation wall system engineered specifically for heat dissipation and temperature & humidity control in computer room environments. It replaces the traditional raised-floor air supply method with a side wall air supply structure powered by a fan wall matrix, offering a more efficient and energy-saving airflow organization model.

View More >> Send Inquiry >>

Free Cooling Air Conditioner

Free Cooling Precision Air Conditioner for Energy-Efficient Year-Round Temperature Control
Hisurp's Free Cooling Air Conditioner is designed for technical rooms and process environments that require stable temperature control, continuous operation, and lower energy consumption. It is suitable for data-related equipment rooms, communication rooms, control rooms, laboratories, electrical rooms, and other spaces where heat is generated throughout the year and indoor conditions must remain stable.

View More >> Send Inquiry >>

In-row Cooling Units

Hisurp's In-row Cooling Units are designed for equipment-intensive environments where localized heat removal, stable airflow management, and precise cooling control are required. It is suitable for data rooms, equipment cabinets, control areas, electrical rooms, communication rooms, and other technical spaces where heat loads are concentrated and traditional room-level air conditioning may not provide the most efficient cooling path.
Installed close to the heat source, an in-row air conditioner helps shorten airflow distance, improve cooling effectiveness, and reduce hot spots in high-density equipment layouts. Compared with conventional perimeter cooling methods, this approach supports more targeted air delivery and better temperature uniformity in cabinet-row arrangements.

View More >> Send Inquiry >>

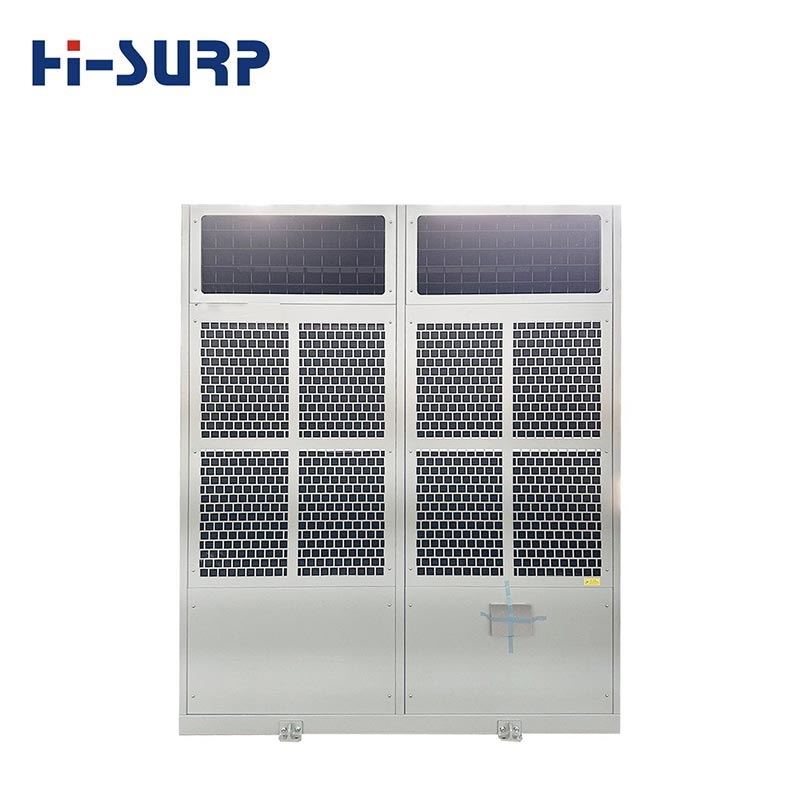

PAC Precision Air Conditioner

Hisurp PAC Precision Air Conditioner is also known as precision air conditioner, close control unit. For many buyers, a precision air conditioner is attractive because it reduces dependence on building water infrastructure and simplifies installation in retrofit projects. As the professional manufacturer, Hisurp offers air-cooled precision air conditioning systems developed for facilities that require stable temperature and humidity control, but also value compact design, practical service access, and reliable controls.

View More >> Send Inquiry >>

Control Room Air Conditioner

A Control Room Air Conditioner is an ideal solution for spaces that require constant temperature, controlled humidity, and dependable air cleanliness without relying on a cooling water system. Hisurp's control room air conditioners are designed for laboratories, metrology rooms, archives, control rooms, food workshops, pharmaceutical areas, and precision machining environments where environmental consistency directly affects product quality and operational stability.
Compared with general comfort air conditioning, this unit focuses on process air control. It integrates refrigeration, dehumidification, humidification, reheating, and air circulation in one compact structure. For facilities where floor space is valuable, the unit offers a practical alternative to larger built-up systems, with simpler installation and lower initial project complexity.

View More >> Send Inquiry >>

Temperature And Humidity Control Air Conditioner

Hisurp's Marine Temperature And Humidity Control Air Conditioner is designed for offshore platforms, marine technical rooms, control spaces, equipment rooms, laboratories, and other enclosed environments that require stable temperature and humidity control under demanding sea conditions. Based on Hisurp’s long experience in industrial and special air conditioning, this unit is developed to meet the practical needs of marine applications where environmental stability, durability, and equipment protection are essential.
In offshore and marine projects, indoor air conditions often affect not only personnel comfort, but also instrument reliability, process stability, material preservation, and the service life of electrical and control equipment. Compared with general air conditioning products, a marine constant temperature and humidity unit is built to handle stricter operational requirements and more complex environmental challenges.

View More >> Send Inquiry >>

Centralized Control Room Air Conditioner

Hisurp Centralized Control Room Air Conditioner is also known as precision air conditioner, close control unit. For buyers in Southeast Asia, controlling humidity is often as important as controlling temperature. In tropical climates, laboratories, electronics support rooms, food workshops, pharmaceutical areas, and archives may suffer from condensation risk, mold, product inconsistency, and equipment instability if indoor RH is not properly managed. Hisurp’s Air Cooled Precision Air Conditioner is designed to solve these problems in a compact, standalone format.
The system combines refrigeration, dehumidification, humidification, reheating, and filtration in one unit. This integrated design is highly useful in projects where space is limited and a separate chilled water plant is not available or not preferred.

View More >> Send Inquiry >>

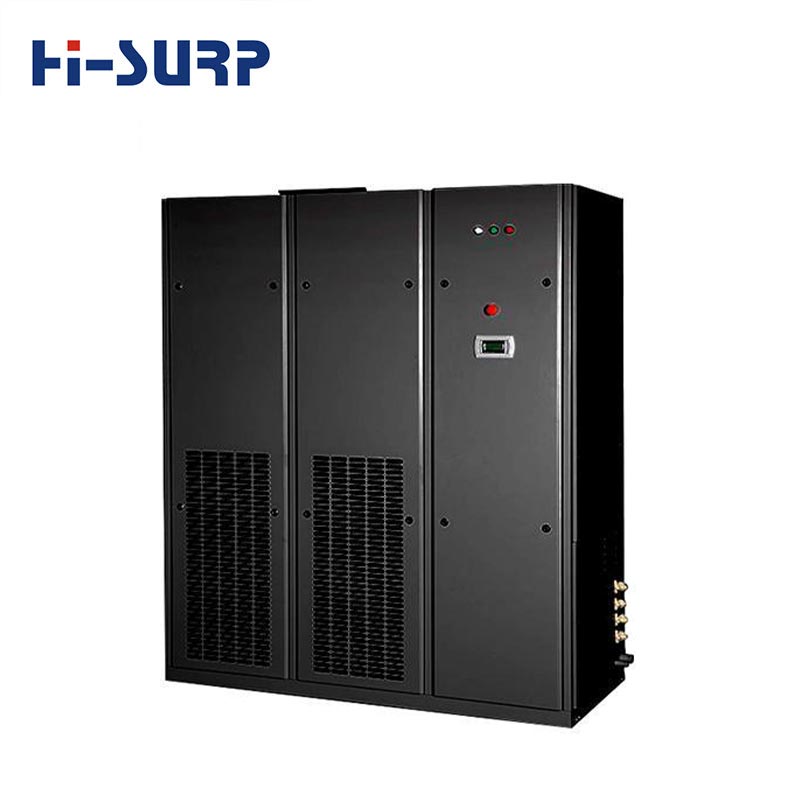

Close Control Unit
