Professional Energy Storage Air Conditioner Manufacturer for Efficient Climate Control

What is Energy Storage Air Conditioner ?

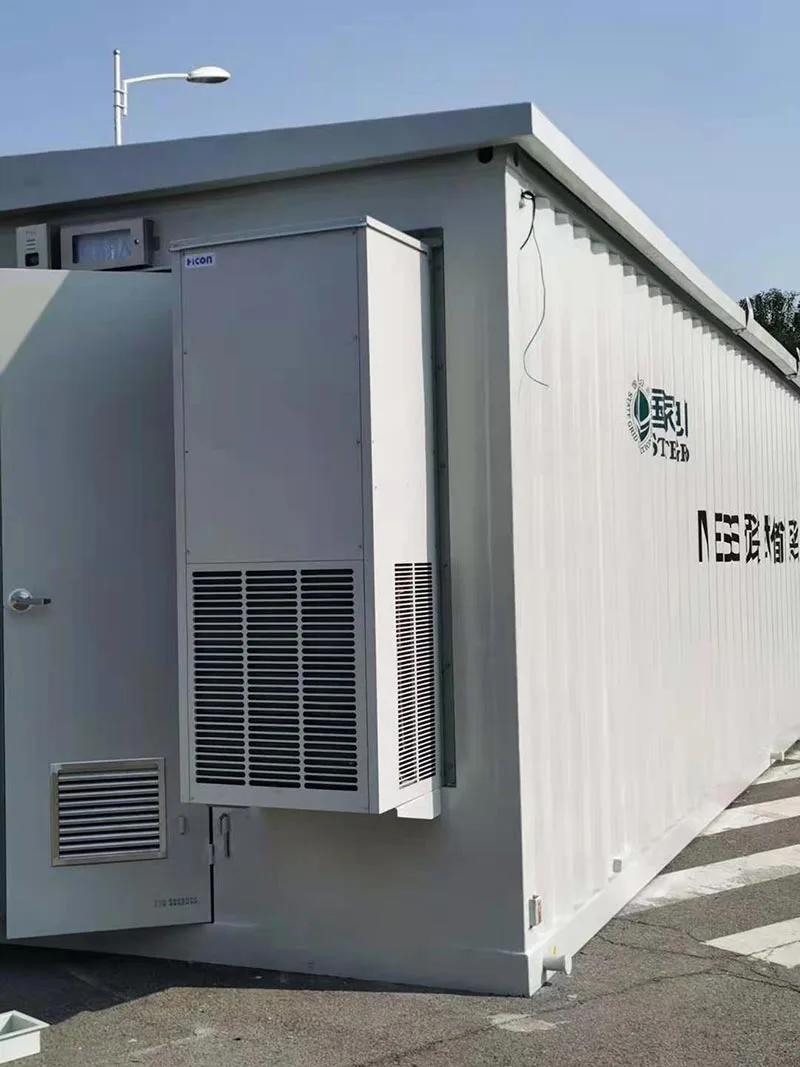

Energy Storage Air Conditioner is designed specially for containerized energy storage system, which is a complete, self-contained battery solution for large scale outdoor energy storage. The batteries and all control, interface, and auxiliary equipment are installed inside the container or outdoor cabinets and shelters. Energy Storage Air Conditioner is the equipment to assure the components inside can work in a stable and high efficient environment.

Energy-Storage-Air-Conditioner-Application-

Where is Energy Storage Air Conditioner used to ?

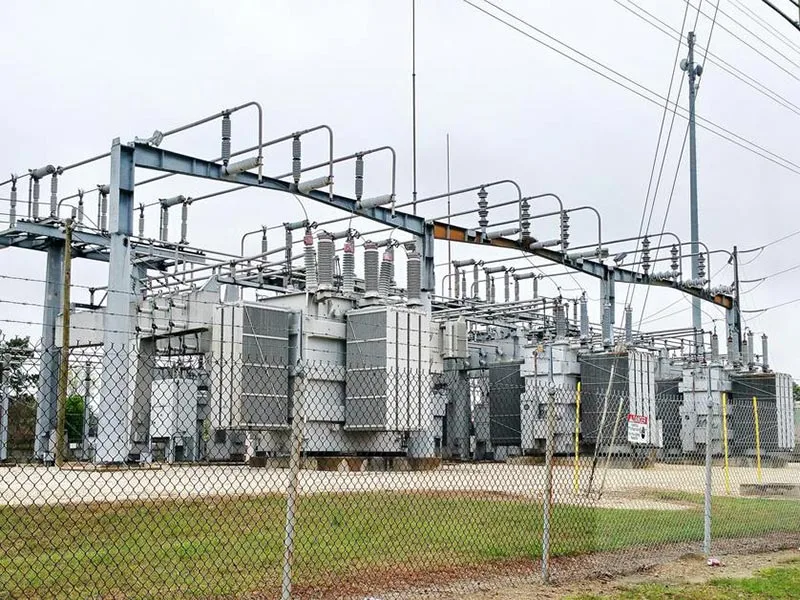

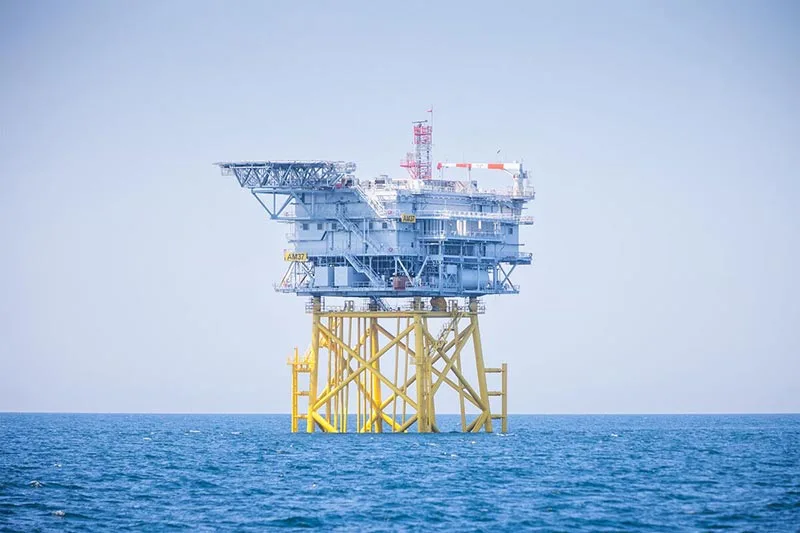

Energy Storage Air Conditioners are used in electrical rooms of the new energy transformer, oil exploration and transmission, offshore platforms or coastal terminals; and battery storage compartments, railway and highway communication IoT base stations, military square compartments and other electrical facilities carried in containers or similar modular standardised designs.

Energy-Storage-Air-Conditioner-Application

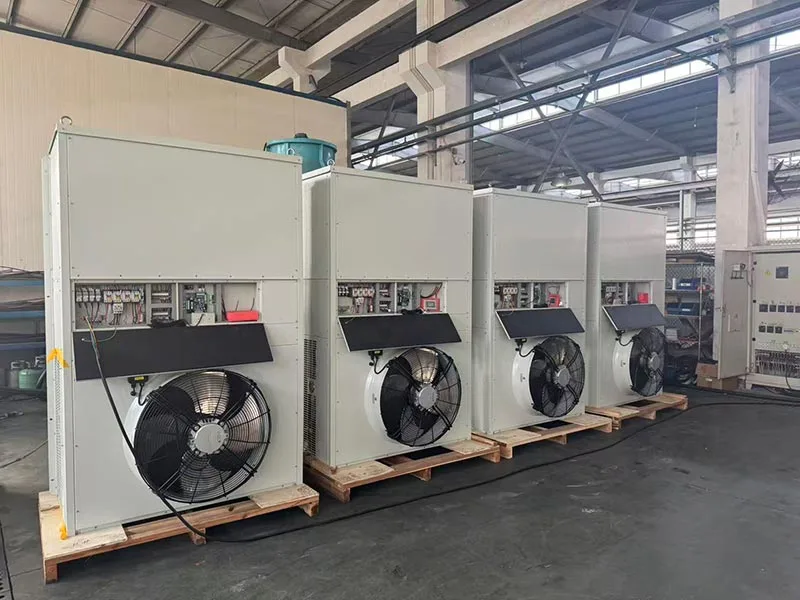

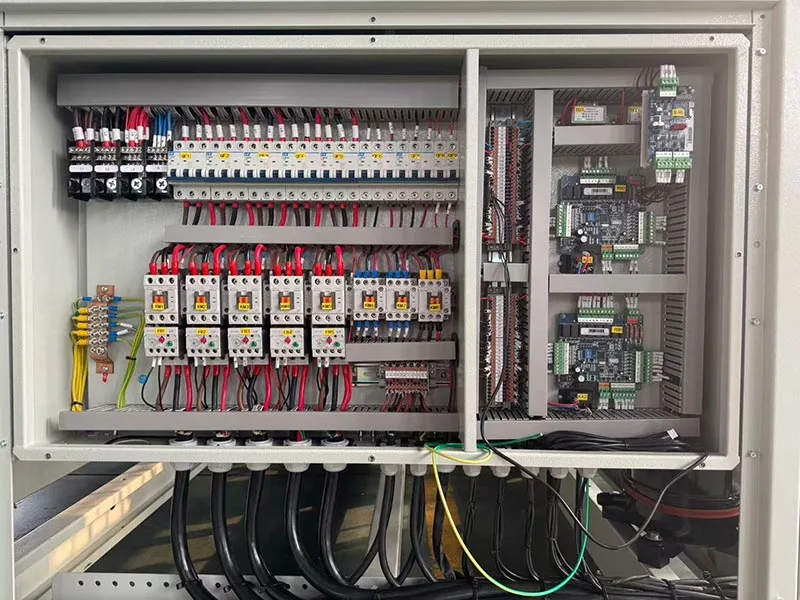

What are test items for Energy Storage Air Conditioners before shipping to customers ?

①Appearance

a) The black metal parts of air conditioner shall undergo anti-corrosion treatment;

b) The surface of electroplated parts should be smooth with uniform color, and free of defects such as peeling, exposed base, pinholes, obvious spots and scratches;

c) The surface of painted parts should be smooth with uniform coating and color, and free of obvious defects or damages such as bubbles, flow marks and wrinkles, as well as holidays and exposed primer;

d) The decorative plastic parts shall have flat and smooth surface in uniform color, and be free of defects such as cracks, bubbles, and visible holes.

②Electrical strength

Apply a test voltage of 1,250V between live parts and accessible parts of the air-conditioner for 1min, and there shall be no breakdown or flashover.

③Leakage current

For stationary-mounted air conditioner, the leakage current shall not be greater than 2mA/kW rated input power.

For air conditioner easily accessible to the public, the maximum leakage current shall not be greater than 10mA. For air conditioner not easily accessible to the public, the maximum leakage current shall not be greater than 30mA.

④Grounding device

Air-conditioner shall be equipped with the protective grounding device that meets the specified requirements. Except the purpose of grounding protection, the protective grounding terminal shall not be used for other purposes. The grounding resistance for testing shall not exceed 0.1 Ω.

⑤Cooling system sealing

When testing, each part of cooling system shall be free of refrigerant leakage.

⑥Test running

There shall be no abnormality during the test run of air conditioner, and the safety protection device shall not act.

⑦Nominal air flow

The measured nominal air flow of air-conditioner shall not be lower than 90% of explicit value (6500 m3/h), i.e. ≥5850 m3/h.

⑧External static pressure

Measured value of the unit.

⑨Nominal cooling capacity

The measured nominal cooling capacity of air-conditioner shall not be lower than 95% of explicit value (26.00 kW), i.e. ≥24.7 kW.

⑩Nominal cooling power consumption

The measured nominal cooling power consumption of air-conditioner shall not be higher than 110% of explicit value (10.6kW), i.e. ≤11.66kW.

Tests-of-energy-storage-air-conditioners-

View as

Liquid Cooling Unit

Liquid cooling unit enables higher energy density, as they can dissipate heat more efficiently. This allows for the installation of more battery modules within the same space, maximizing the energy storage capacity of the BESS container. The use of liquid coolant allows for precise temperature control, preventing overheating and ensuring consistent battery performance.
This product is fully functional, integrating host computer communication, alarm and other functions, with high reliability, simple and convenient installation, and simple debugging.

View More >> Send Inquiry >>

ESS Cooling Solutions

What Is an ESS Cooling Solutions?
An ESS Cooling Solutions is a specialized cooling unit developed for battery energy storage systems and electrical enclosures. Unlike comfort air conditioners, it is designed to handle continuous internal heat loads, maintain stable operating conditions, and withstand outdoor environmental challenges.

These units are commonly installed in:
battery energy storage containers
BESS cabins
E-Houses
electrical control rooms
inverter and converter enclosures
transformer auxiliary rooms
prefabricated substations

View More >> Send Inquiry >>

ESS Cooling System

A high-performance ESS Cooling System is a critical component in modern battery energy storage systems. Whether installed in a utility-scale BESS container, a renewable energy control room, or a modular E-House, the air conditioning system must keep sensitive electrical and battery equipment within a safe operating temperature range.
Hisurp provides industrial-grade ESS Cooling Systems designed for demanding outdoor applications. Our systems help protect lithium battery racks, PCS equipment, inverters, switchgear, and control panels from overheating, moisture, and environmental stress.

View More >> Send Inquiry >>

BESS Cooling Solutions

The container based air conditioner for BESS Cooling Solutions enables battery energy storage and cooling systems to work seamlessly together, thereby optimizing energy use and reducing energy consumption.
Our air conditioner for battery energy storage is designed eco-friendly and sustainably. We utilize environmental friendly refrigerants and optimized system designs that reduce the impact on the environment while enhancing the thermal performance and lifespan of the battery.

View More >> Send Inquiry >>

BESS Air Conditioner

Safe, Efficient, and Custom Cooling for Battery Storage Applications
The BESS air conditioner from Hisurp is built for one mission: protecting energy storage equipment with reliable thermal control. In battery storage systems, internal heat accumulation can directly affect safety, energy efficiency, and equipment stability. That is why industrial-grade climate control is essential for ESS and BESS installations.

View More >> Send Inquiry >>

Energy Storage System Cooler

The cooling system is designed to precisely regulate temperature and humidity for battery energy storage applications, ensuring stable and efficient operation under demanding conditions. With high energy efficiency and strong cooling performance, it helps maintain optimal system performance while minimizing energy consumption.
Hisurp is a trusted supplier serving global energy storage and industrial projects across the Middle East, Southeast Asia, West Asia, Europe, Africa, Russia, Mongolia, and South America. Our solutions are widely applied in battery energy storage containers, E-Houses, electrical rooms, and other modular power facilities that require reliable environmental control.
In harsh environments such as high temperatures, sand, salt fog, humidity, and unstable power grids, conventional cooling systems are often insufficient. Hisurp's Energy Storage System Cooler is engineered for industrial-grade reliability and customized performance to meet project-specific requirements.

View More >> Send Inquiry >>

Battery Energy Storage System Cooling Solutions

Hisurp high SHR Battery Energy Storage System Cooling Solutions is designed for battery storage containers and electrical enclosures, offering precise temperature control, energy efficiency, and reliable industrial performance.

View More >> Send Inquiry >>

Battery Storage System Air Conditioner

With its advanced EER (energy efficiency ratio), this battery storage system air conditioner is capable of producing powerful cooling capacity without excessively using electricity. We provide customized solutions to fit variable requirements.
Our air conditioner for battery energy storage system is designed eco-friendly and sustainably. We utilize environmental friendly refrigerants and optimized system designs that reduce the impact on the environment while enhancing the thermal performance and lifespan of the battery.

View More >> Send Inquiry >>

ESS Air Conditioner

Reliable Cooling Solution for Energy Storage Systems
The ESS air conditioner is engineered to provide stable and efficient climate control for energy storage system containers, battery rooms, prefabricated electrical houses, and other temperature-sensitive power facilities. As energy storage projects continue to expand in utility-scale, commercial, and industrial sectors, maintaining the right internal temperature is essential for battery safety, system efficiency, and equipment lifespan.

Hisurp develops and manufactures industrial cooling solutions for demanding environments. With decades of experience in temperature and humidity control, we provide customized ESS air conditioning systems for battery energy storage containers, inverter rooms, transformer stations, and modular E-House applications.

View More >> Send Inquiry >>

Hisurp is a professional Professional Energy Storage Air Conditioner Manufacturer for Efficient Climate Control manufacturer and supplier in China. We warmly welcome you to customized high-quality products at competitive prices from our factory.
