Energy-Efficient Packaged Crane Air Conditioner for Industrial Cooling

Air Supply and Return Types of Packaged Crane Air Conditioners ?

As all components are placed inside one unit, there are many options of air supply and return types of packaged crane air conditioners as below:

A: The indoor evaporation side is at the bottom, the air is supplied from the left side of the bottom, and the return air is returned from the right side of the bottom

B: The indoor evaporation side is at the bottom, the air is supplied from the right side of the bottom, and the return air is returned from the left side of the bottom

C: The indoor evaporation side is on the upper part, the air is supplied from the left side of the top, and the return air is returned from the right side of the top

D: The indoor evaporation side is at the upper part, the air is supplied from the right side of the top, and the return air is returned from the left side of the top

E: The indoor evaporating side is on the right side, with upper air supply and lower return air

F: The indoor evaporation side is on the right side, the air is supplied from the bottom and the air is returned from the top

G: The indoor evaporating side is on the left side, the upper air supply and the lower return air

H: The indoor evaporation side is on the left side, the air is supplied from the bottom, and the air is returned from the top

K: The indoor evaporation side is at the lower part, the air is supplied from the left side of the front, and the air is returned from the right side of the front

L: The indoor evaporating side is at the bottom, the air is supplied from the front right side, and the air is returned from the front left side

M: The indoor evaporation side is at the bottom, the air is supplied from the left side and the air is returned from the right side

N: The indoor evaporation side is at the bottom, the air is supplied from the right and the return air is from the left

P: The indoor evaporation side is on the upper part, (backpack machine, facing the electrical operation panel, the indoor side, the return air is on the right side)

Q: The indoor evaporation side is on the upper part, (backpack machine, facing the electrical operation panel, the indoor side, the return air is on the left)

S: The indoor evaporating side is at the upper part, the air is supplied from the rear left, and the air is returned from the rear right

T: The indoor evaporation side is at the upper part, the air is supplied from the rear right side, and the air is returned from the rear left side

U: The indoor evaporating side is at the bottom, the air is supplied from the rear left, and the air is returned from the rear right

V: The indoor evaporating side is at the lower part, the air is supplied from the rear right side, and the air is returned from the rear left side

X: The indoor evaporation side is on the left side, the air is returned from the side, and the air is supplied from the top

Y: The indoor evaporation side is on the right side, the air is returned from the side, and the air is supplied from the top

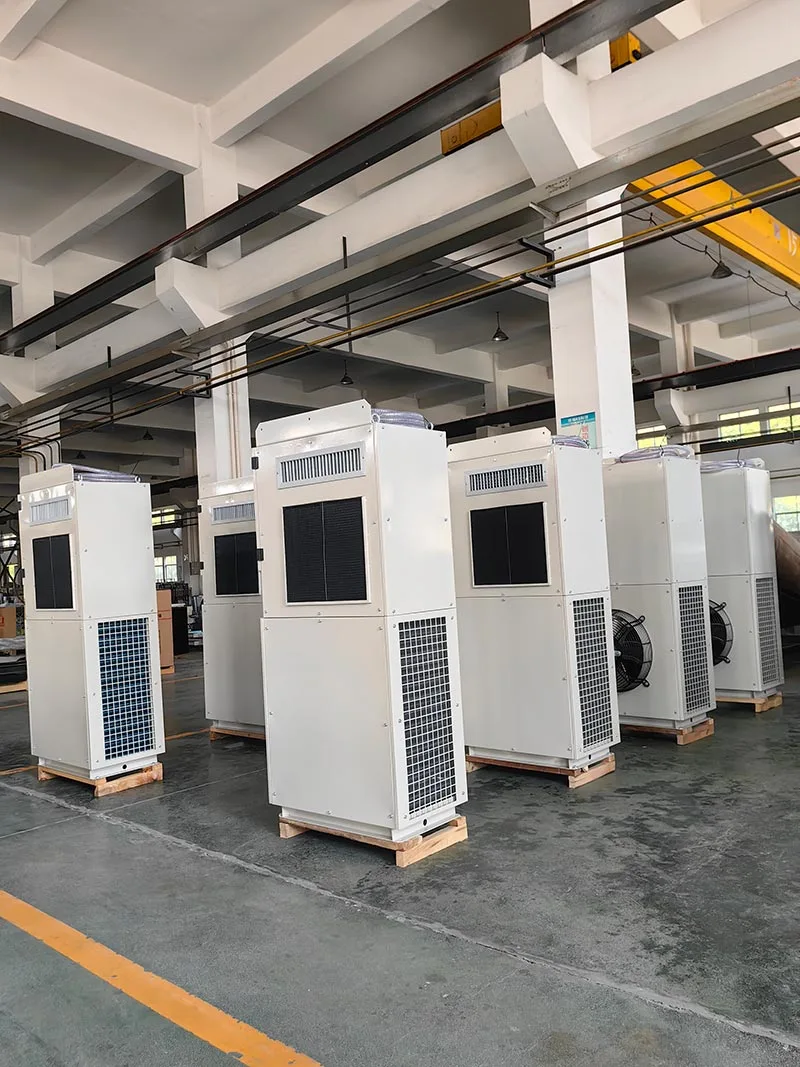

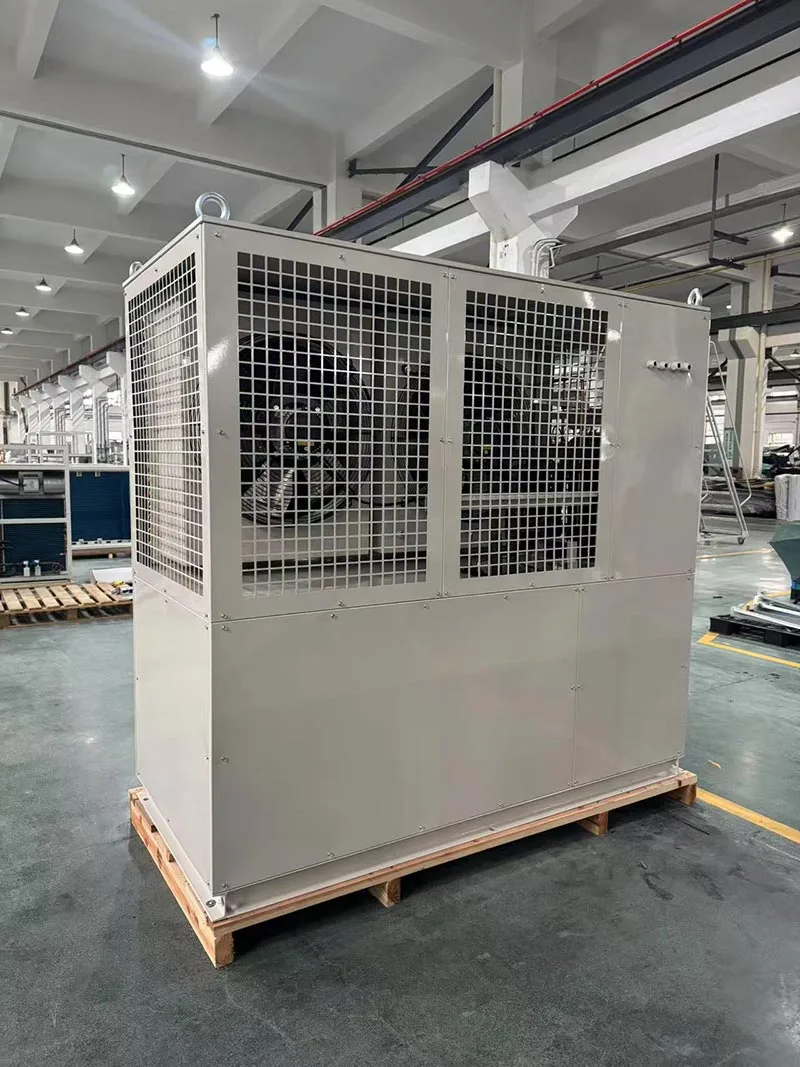

Types of Packaged Crane Air Conditioner ?

For packaged crane air conditioners, HISURP has BT series, all components are in one unit, easy to install.

There is also a backpack type packaged crane air conditioner, which can be attached to an electrical cabinet and moved around on the floor.

Overview of Packaged Crane Air Conditioner

Cooling Capacity: 4~16kW

Heating Capacity: 3~10kW

Refrigerant: R134a, R142b, R227ea, R515B, R236fa

Power Supply: AC380/400/440-3PH-50Hz/60Hz

Working Condition of Cooling: ambient DB temperature: 45°C; indoor DB/WB are 30/24°C

Copper Pipes: not needed

Components of Packaged Crane Air Conditioner

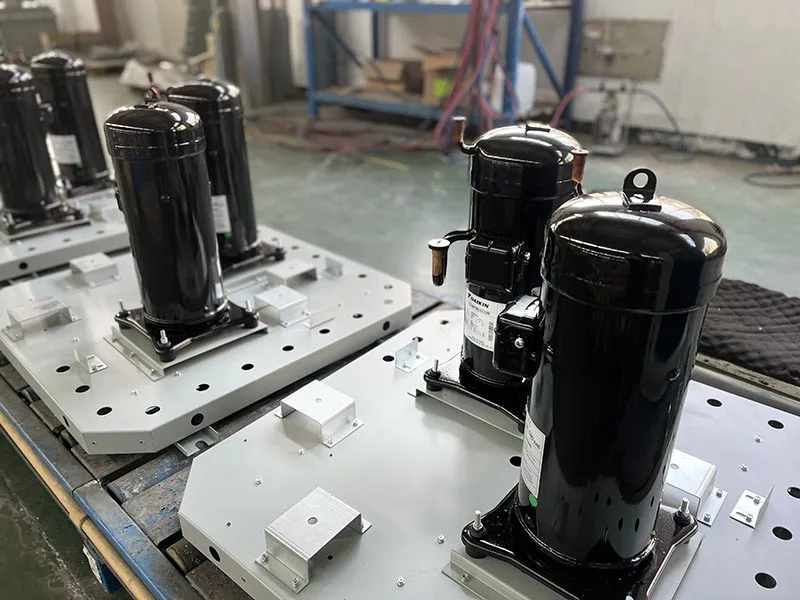

*compressor*

All the Packaged Crane Air Conditioners are equipped the enclosed scroll compressor of internationally famous brands and matched with excellent cooling system, so they can function efficiently and stably under various severe atmospheres.

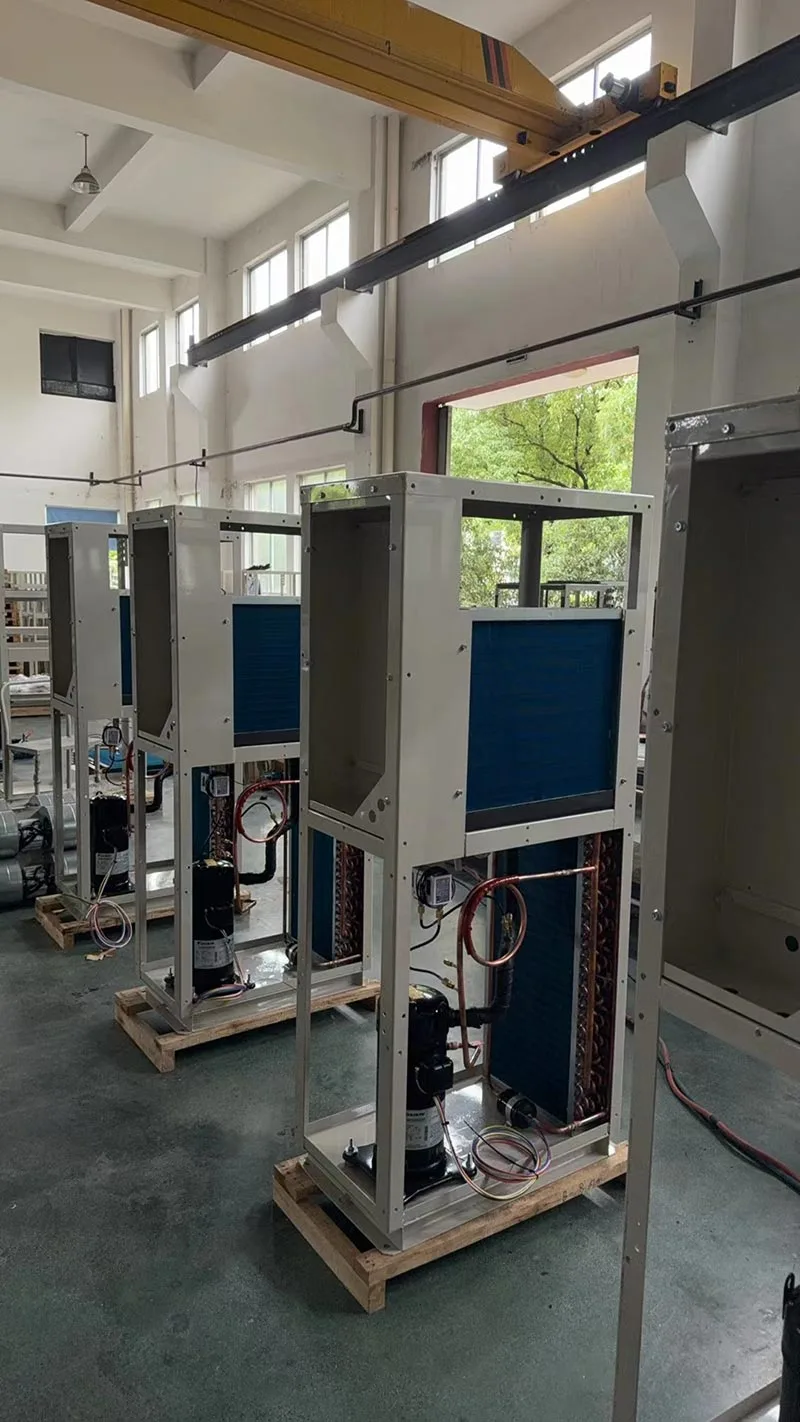

*Heat exchanger*

Heat exchanger is made of high-performance heat exchanging copper tube and aluminum straight fin with strong resistance to dust in the technique of mechanical tube expansion, so it can still maintain excellent performance of heat exchanging and strong shake proof even there is large clearance between fins. The copper heat exchanging fins(strong corrosion resistance) can be applied as required by customer.

*shell & internal walls*

The Packaged Crane Air Conditioner has the shell made of high-quality CRS panel with polyester powder coating, which is characteristic of strong resistance to corrosion. Packaged Crane Air Conditioner has nice appearance and design of framework structure. On the internal walls of the panels are lined with high-quality soundproof and heat-insulation rubber so as to reduce the loss of coldness to the maximum. Its open structure facilitates removal, maintenance and care.

*fans*

The Packaged Crane Air Conditioner is equipped with high-performance centrifugal fan and axial-flow radiating fan and at the insulation grade F. Its specially designed high-temperature motor is equipped with high-temperature ball bearings to enable it to endure severely high temperature and remain stable and reliable.

*electrical spare parts*

The Packaged Crane Air Conditioner is provided with electrical spare parts of domestic and foreign famous brands for mechanical control, and equipped with optimized control logic as well as the protection functions of anti-phase and phase failure, over/under voltage, high/low pressure, overcurrent and overheat, etc.. It is designed with sufficient dustproof, resistance to high temperature and shake proof so as to ensure the reasonableness and completeness of its controlling function and guarantee high stability of controlling system.
