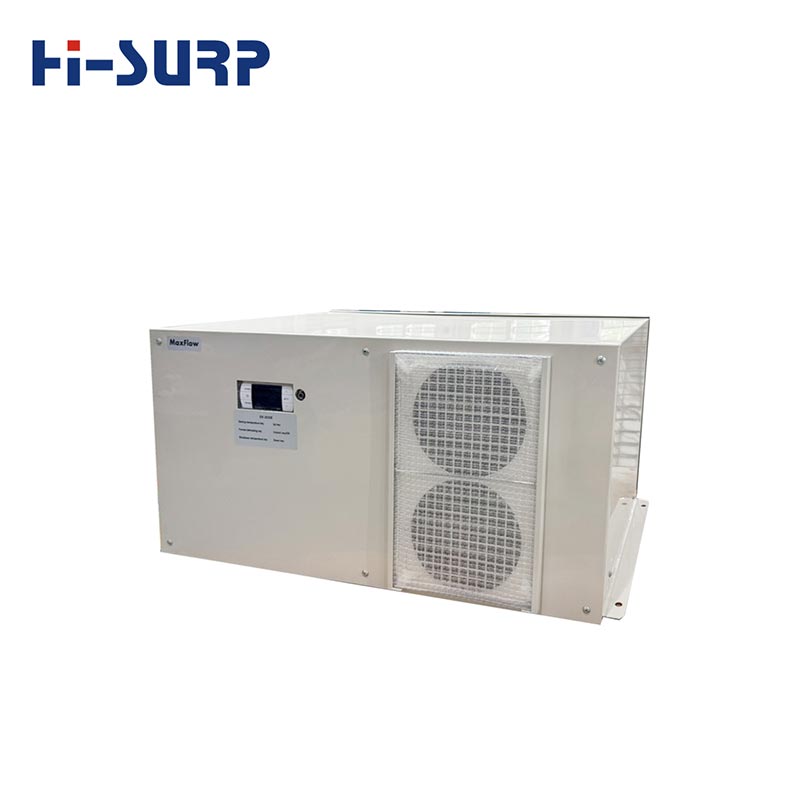

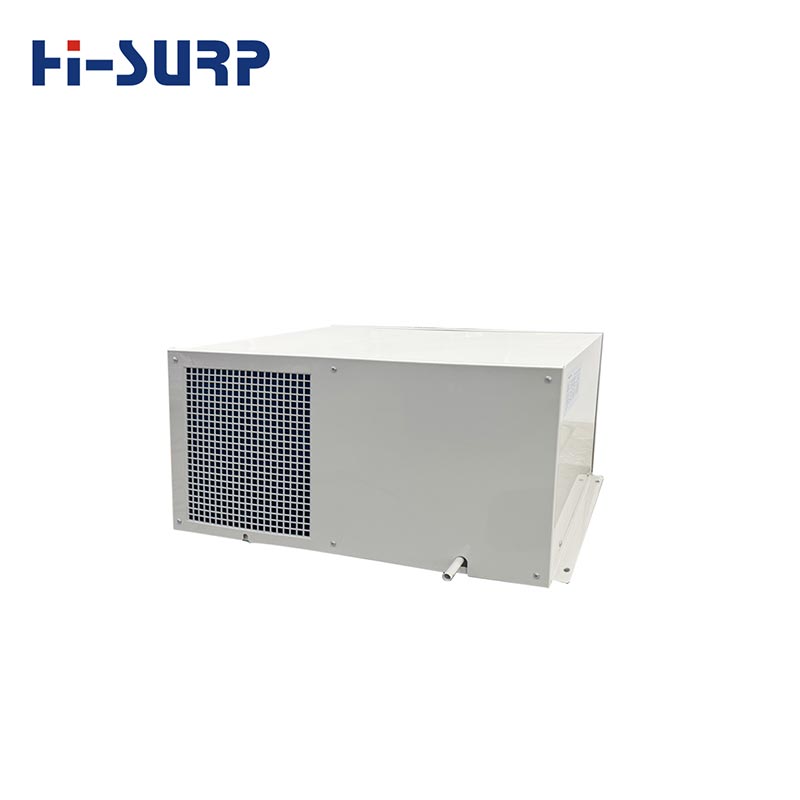

1500W Electrical Cabinet Cooler

Hisurp 1500W Electrical Cabinet Cooler is specifically designed to maintain the temperature and humidity levels within an enclosure. They are typically mounted on the side or top of the enclosure, with cool air being ducted into the enclosure. Electrical Cabinet Coolers, which is CE certificated, can be used in a variety of applications, including telecommunication, food processing plants, transportation systems, and many more.

Application

Application
Application

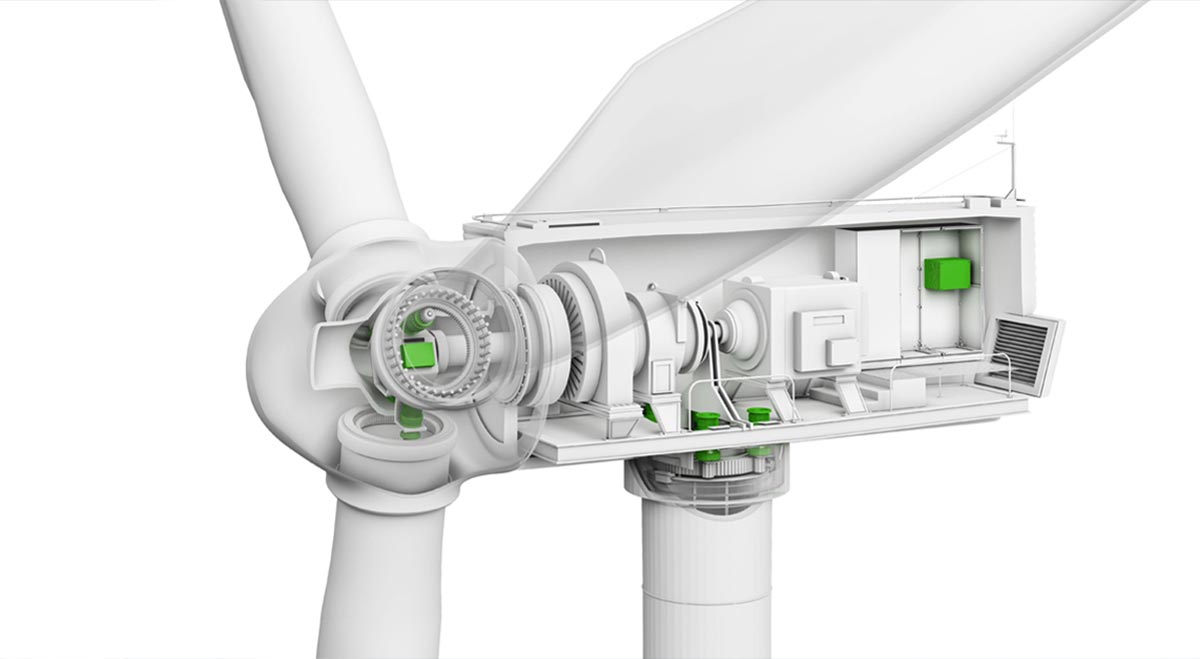

In outdoor control cabinets, smart city equipment cabinets, charging pile control cabinets, wind power pitch control cabinets, and photovoltaic inverter control cabinets, durable 1500W Electrical Cabinet Coolers can effectively cope with high temperatures, direct sunlight, and environmental changes, ensuring stable operation of the equipment throughout the year.

Specification

Model HT-1500
Fixing type Top-mountedtype
Cooling capacity W 1500
Power supply AC220V/50Hz
Runningcurrent Rating A 2.7
Max A 3.3
Starting current A 8.2
Running power consumption Rating W 580
Max W 700
Working temperature 20℃~50℃
Refrigerant R22
Noise dB(A) 65
Ingress protection rating IP54(Inner)
Temperature setting range 29℃~34℃
Paintedcolor Beige
Dimensions mm W716 x H345 x D352
Weight kg 38

Testing condition: Condensing side: 35℃(DB),evaporating side:35℃(DB),26℃(WB)

Features

- The cold air outlet of advanced 1500W Electrical Cabinet Cooler is equipped with a corresponding air outlet baffle, which can change the airflow direction of the unit, resulting in better uniform temperature control within the electrical control box;
- The unit has a separate condensate drain channel, preventing excessive condensate accumulation within the unit;
- Flexible installation, simple structure, and convenient maintenance;
- The product's exterior uses a plastic panel, making the unit more aesthetically pleasing, and its compact size and light weight contribute to its appeal.

Why HISURP

- Over 50 years of industry experience, with long-term in-depth cooperation with numerous state-owned enterprises/groups (such as CNPC, Sinopec, and China Grain Reserves Corporation), Schneider Electric, ABB, etc.

- Customization available for special environments; designs can be tailored to specific needs, including special refrigerants, high corrosiveness, high altitude, high temperature, ultra-low temperature, explosion-proof, anti-magnetic, and control requirements.
