Battery Storage System Air Conditioner

With its advanced EER (energy efficiency ratio), this battery storage system air conditioner is capable of producing powerful cooling capacity without excessively using electricity. We provide customized solutions to fit variable requirements.
Our air conditioner for battery energy storage system is designed eco-friendly and sustainably. We utilize environmental friendly refrigerants and optimized system designs that reduce the impact on the environment while enhancing the thermal performance and lifespan of the battery.

Application

Battery storage system air conditioner is widely used in:

  • Battery energy storage power station
  • Photovoltaic, wind power generation voltage regulating rectifier box
  • Power transmission and transformation, sewage treatment
  • Data center, communication base station
  • Explosion-proof boxes for drilling, oil fields, and refueling
  • Offshore platforms or coastal terminals
  • Oil exploration and transmission
Application
Application
Application

Products Parameters

Cooling Capacity Self-contained:3.5~50kW;
Splittype:8~70kW
Heating Capacity 1.0~30kW(PTCelectricalheating)
Refrigerant R134A/R407C/R410A
PowerSupply 3P-AC380V-50Hz,3P-AC460V-60Hz,3P-AC400V- 60Hz
Types1 singlecooling,coldair&electricalheating,dehumidifying,freshaircooling,micropositivepressure,plateautype
Types2: insetcabinet/ceilingtype,externalcabinet/horizontal/wall-mounted/toptypes
Performance Cooling capacity/AirVolume<4.2,SHR>8.5,COP>2.5
Workingtemperature -25°C~+55°C,hightemperaturetypecanbe up to70°C

Product Pics

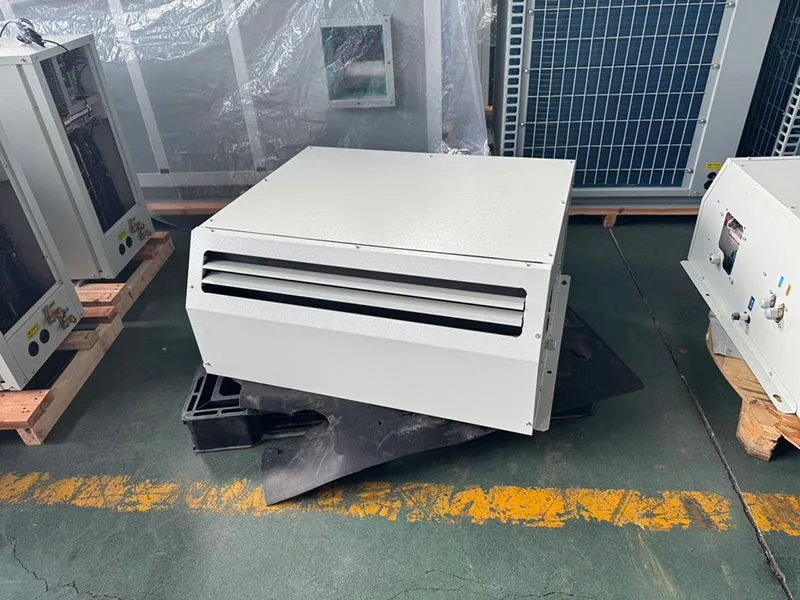

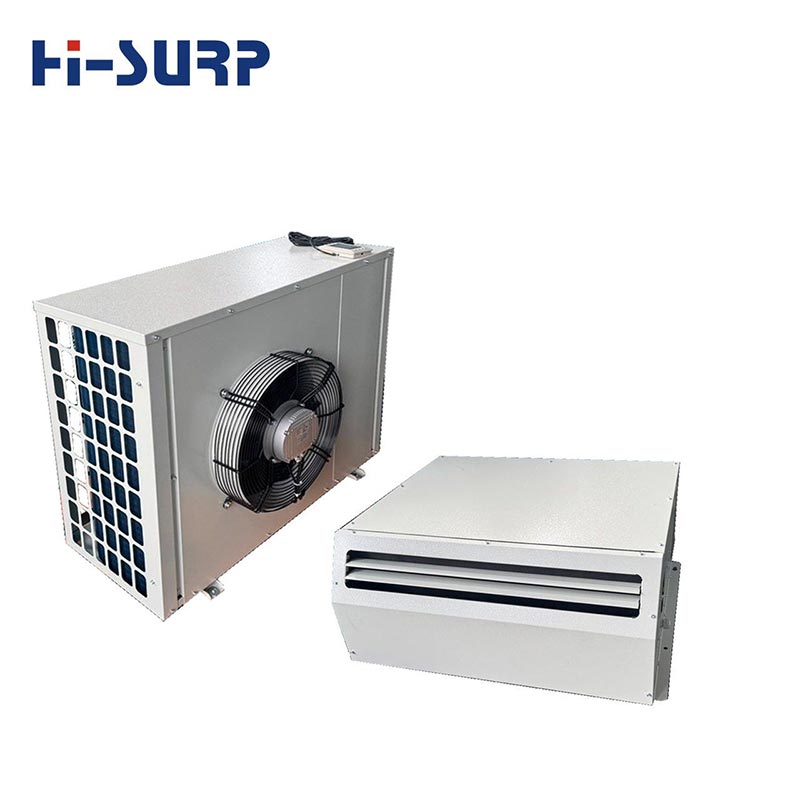

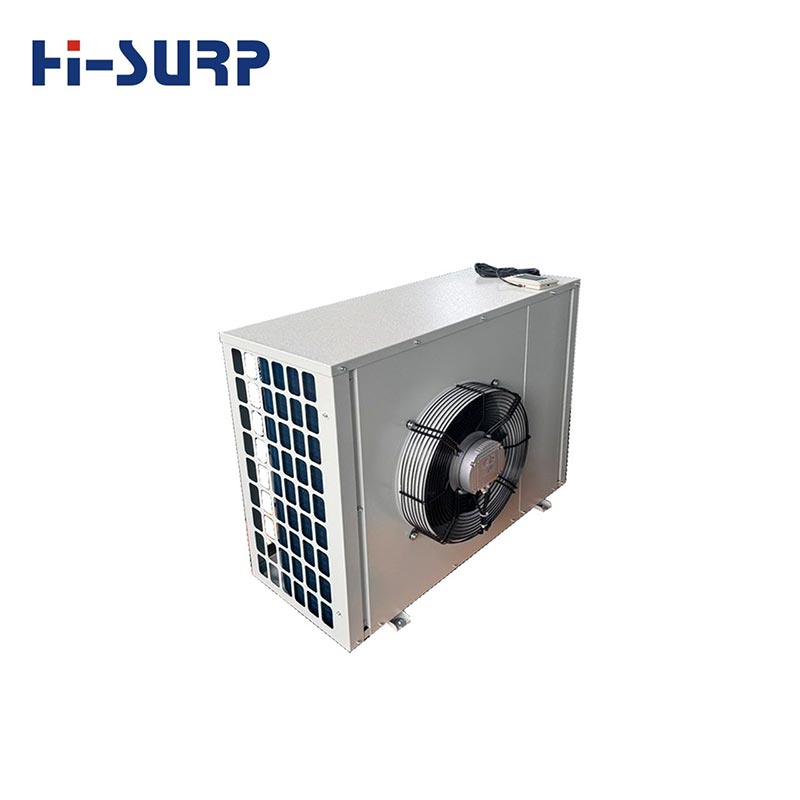

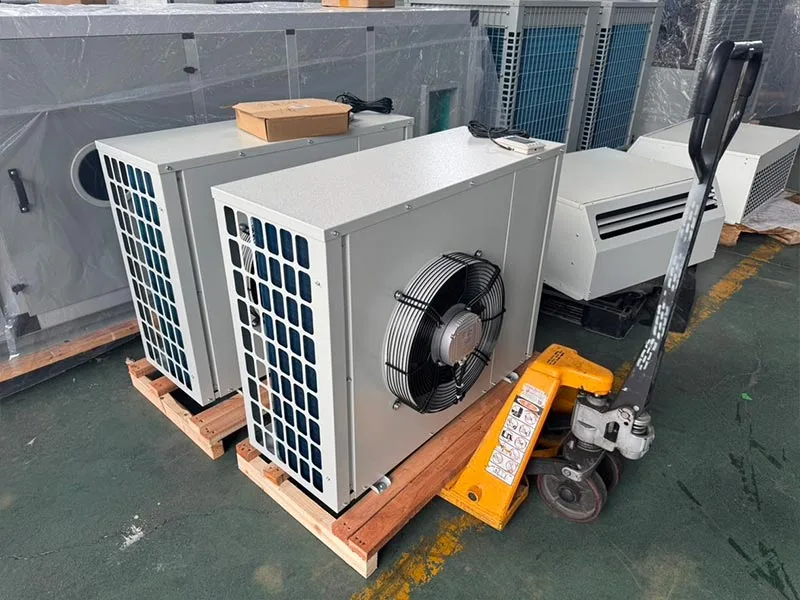

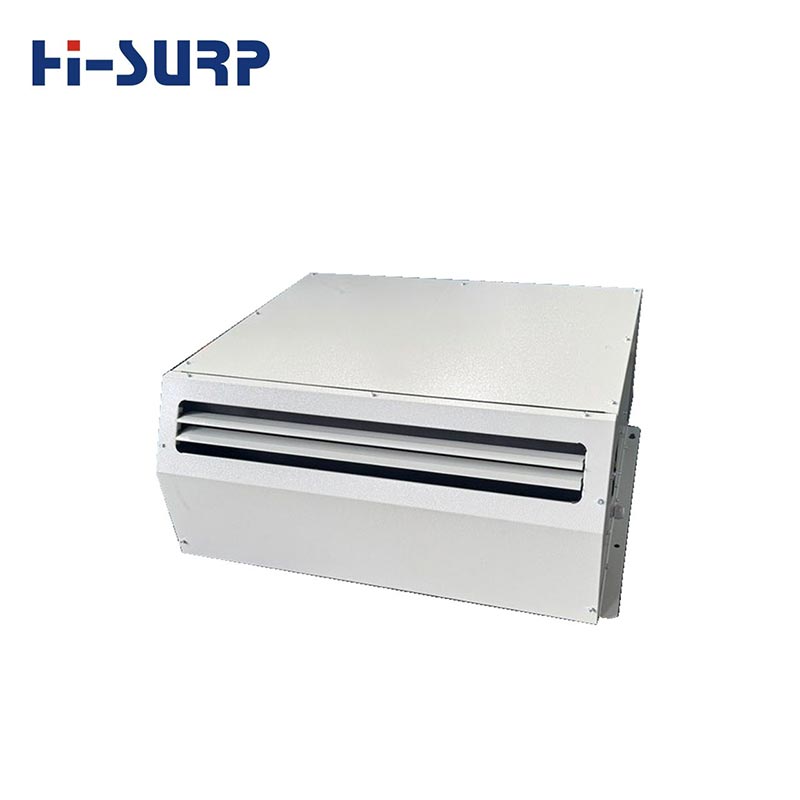

Energy Storage System Air ConditionerEnergy Storage System Air Conditioner

Product Features

Efficient Heat Removal

Efficient Heat Removal

Hisurp systems are optimized for high sensible cooling demand, making them suitable for electrical and battery applications where most of the load is dry heat.

Intelligent Climate Control

Intelligent Climate Control

The built-in microcomputer controller uses digital sensors and adaptive logic to monitor and regulate operating conditions in real time.

Low-Energy Operation

Low-Energy Operation

Optional inverter technology and EC fans help improve efficiency and reduce energy consumption, particularly in variable-load conditions.

Heating Function Available

Heating Function Available

In cold-weather regions, the unit can also include heating capability, enabling one system to manage both summer and winter operation.

Corrosion and Sand Resistance

Corrosion and Sand Resistance

For coastal projects, desert installations, and offshore platforms, anti-corrosion coatings and anti-sand designs can be integrated to increase durability.

Reliable Backup Options

Reliable Backup Options

For critical energy infrastructure, dual-unit and redundant operation strategies are available to maintain cooling continuity.

R&D

Hicon keeps acquiring cutting-edge machinery and technology. It now has domestically advanced industrial air conditioner manufacturing lines, commercial air conditioner production lines, an enthalpy difference test room, a noise vibration test room, and a heat balance test room. The company's laboratory testing centre has also obtained the laboratory accreditation certificate from the China National Accreditation Service for Conformity Assessment (CNAS). As a result of its strict supervision and administration, the company has certifications from China CCC, ISO9001 international quality system, ISO14001 environmental management system, ISO45001 occupational health and safety management system, intellectual property management system, EU CE, etc.

Hot Tags: Battery Storage System Air Conditioner
