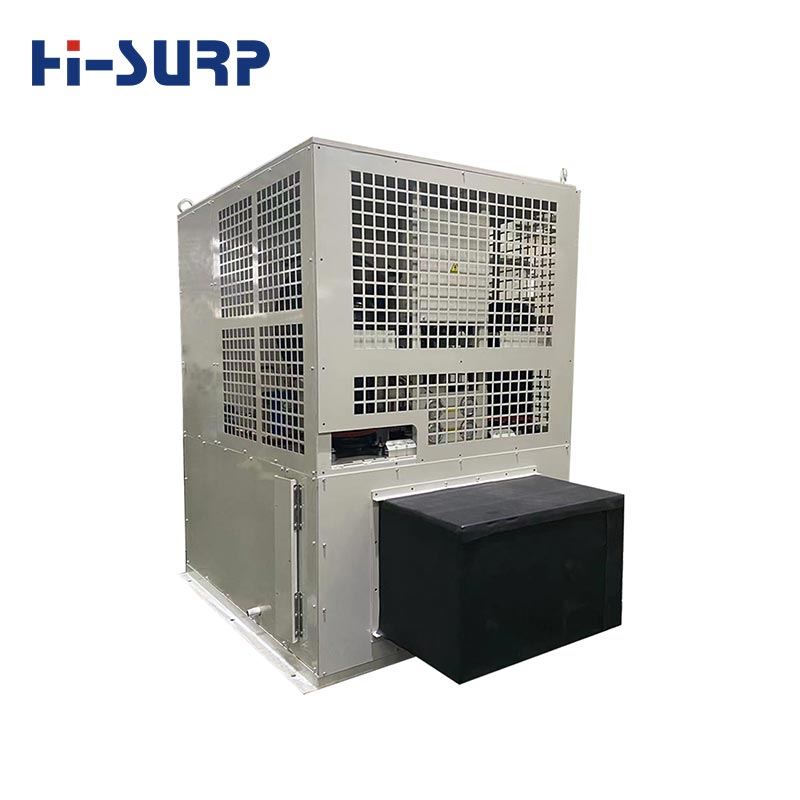

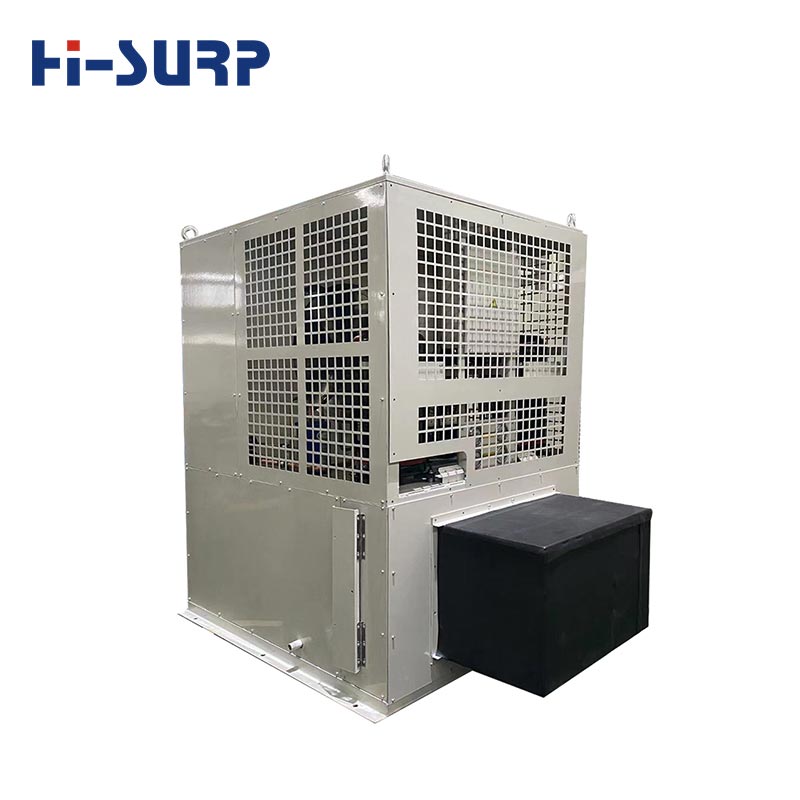

Crane Cabin Air Conditioner

Hisurp Crane Cabin Air Conditioner supplier. Bulk buy rugged, newest design overhead crane AC. Built with durable copper-aluminum fins & EC fans for high ambient operation (up to 60°C). Customized bulk orders, free sample & CE standard. Classy Hisurp crane cab cooler offers low price pricelist. Factory direct with fast delivery!

What is?

A crane air conditioner is a special type of air conditioning equipment designed specifically for crane cabs, overhead crane cabs, gantry crane operator cabs, port machinery operator cabs, and industrial lifting equipment. It provides operators with a comfortable temperature and humidity environment.Unlike ordinary comfort air conditioners, crane air conditioners are designed for harsh industrial environments. They can operate stably under extreme conditions such as high temperature, high vibration, high dust, and high corrosiveness, and are widely used in steel mills, foundries, heavy industrial workshops, ports, mines, and other similar locations.

Features

Efficient refrigeration

Efficient refrigeration

High sensible heat ratio design, fast and accurate cooling, wide working range, adaptable to harsh low temperature environment.

Super heat resistance

Super heat resistance

Made of special high temperature resistant materials, it can work in steel mills at 70 or 90 degrees.

Long-term anti-corrosion

Long-term anti-corrosion

Professional anti-corrosion treatment process, effectively resist acid and alkali corrosion, and extend the service life of the equipment.

Silent and environmentally friendly

Silent and environmentally friendly

Running in low noise mode, using environmentally friendly refrigerant, green energy saving and more environmentally friendly

Technical Parameters

Item Specifications
Product Type Integral Type (BT Series) / Split Ceiling (Wall-Mounted) Type (BD/BG Series)
Cooling Capacity 4000 W – 16000 W
Heating Capacity 3000 W – 10000 W
Refrigerant Options R134a / R142b / R227ea
Refrigerant Charge 1.6 kg – 9.6 kg (single / dual compressor configuration)
Power Supply AC220V-1PH-50Hz (Single-phase three-wire) / AC380V-3PH-50Hz (Three-phase four-wire)
Throttling Mode Capillary tube throttling
Compressor Quantity 1 – 2 units
Indoor Air Volume 800 m³/h – 5500 m³/h
Static Air Pressure 50 Pa – 100 Pa
Max. Ambient Temperature ≤ 75 ℃ (R134a) / ≤ 90 ℃ (R142b/R227ea)
Nominal Working Condition Ambient dry-bulb temperature: 45 ℃; Indoor wet-bulb temperature: 30 ℃ / 24 ℃
Unit Weight Integral type: 180 kg – 450 kgSplit type: Indoor unit 22 kg – 48 kg; Outdoor unit 90 kg – 205 kg
Air Supply Mode (Split Type) BD: Down-supply & down-returnBG: Down-supply & up-return

Installation and Use

Q

How to install a Crane Cabin Air Conditioner?

A

There are three main installation methods for Crane Cabin Air Conditioner:

  • Roof-mounted: Installed on the roof of the cab, ensuring the roof's load-bearing capacity and waterproof sealing.
  • Split-type: The indoor unit is installed inside the cab, and the outdoor unit is mounted on the outside of the cab or on the cable tray.
  • Wall-mounted: Directly mounted on the wall of the cab, suitable for small cabs.

Why Choose Hisurp Crane Cabin Air Conditioner?

Compared to ordinary truck air conditioning systems, Hisurp truck air conditioning systems offer significant advantages: High-temperature models can operate stably at 60℃ without cooling degradation; vibration-resistant compressors with flexible piping are specifically designed for crane vibration conditions; marine-grade anti-corrosion coatings (C5-M grade) have undergone over 1000 hours of salt spray testing, suitable for corrosive environments such as steel mills and ports; DC inverter rotor compressor + EC fan achieves energy savings of over 30% and temperature control accuracy of ±0.5℃; low-noise centrifugal fans ensure a quiet operating environment; and it supports multiple installation methods including top-mounted, split, and wall-mounted, adapting to different cab structures. Hisurp specializes in industrial special air conditioning, and every product undergoes rigorous testing for high temperature, vibration, salt spray, and leakage, offering a 2-year warranty and 24-hour rapid response service. Choosing Hisurp means choosing reliable assurance: high-temperature stability, vibration resistance, durability, excellent corrosion resistance, and energy efficiency.
