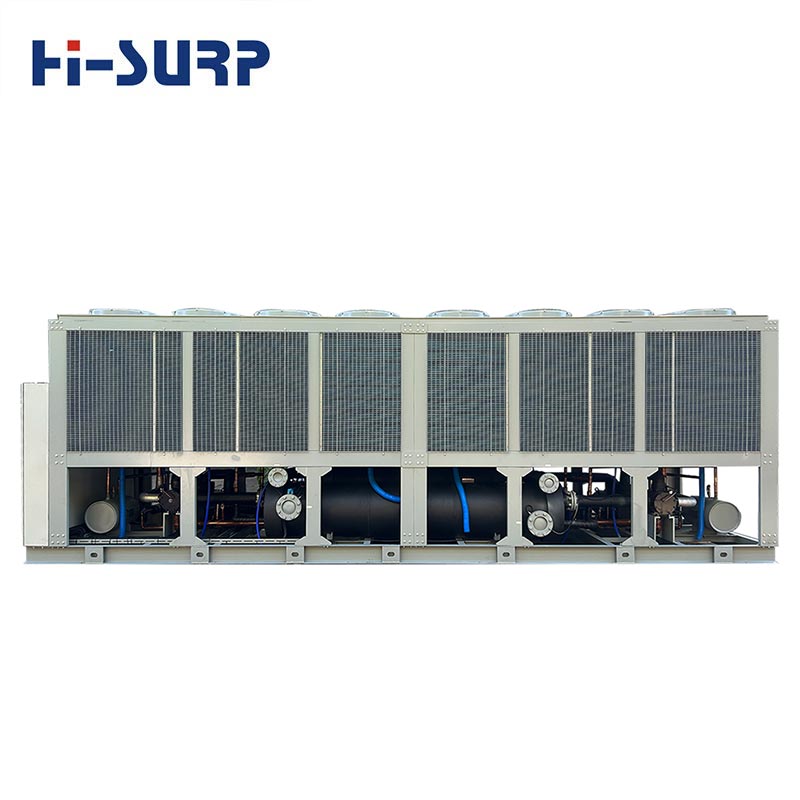

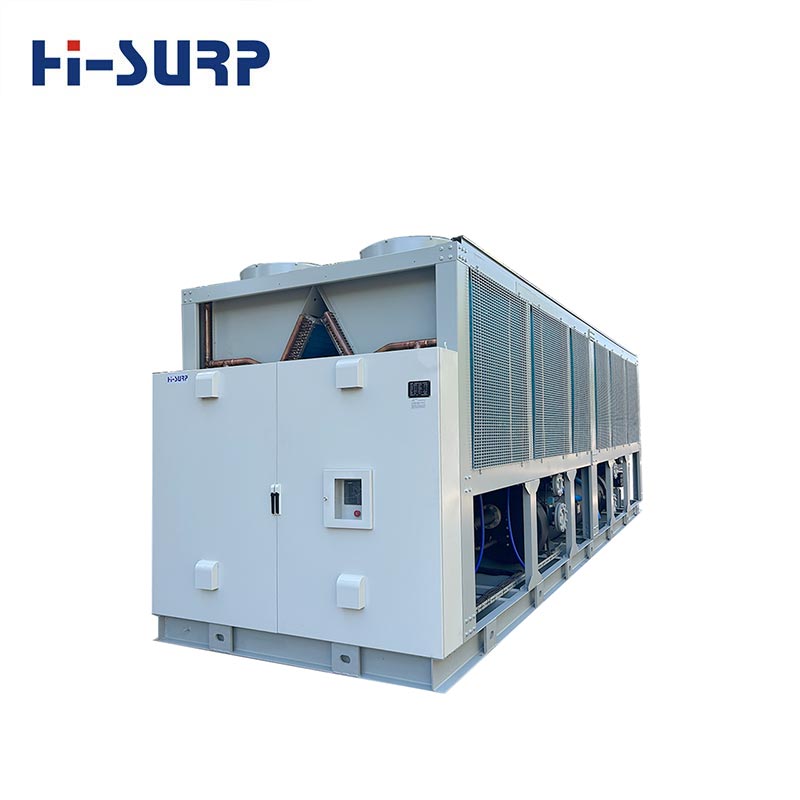

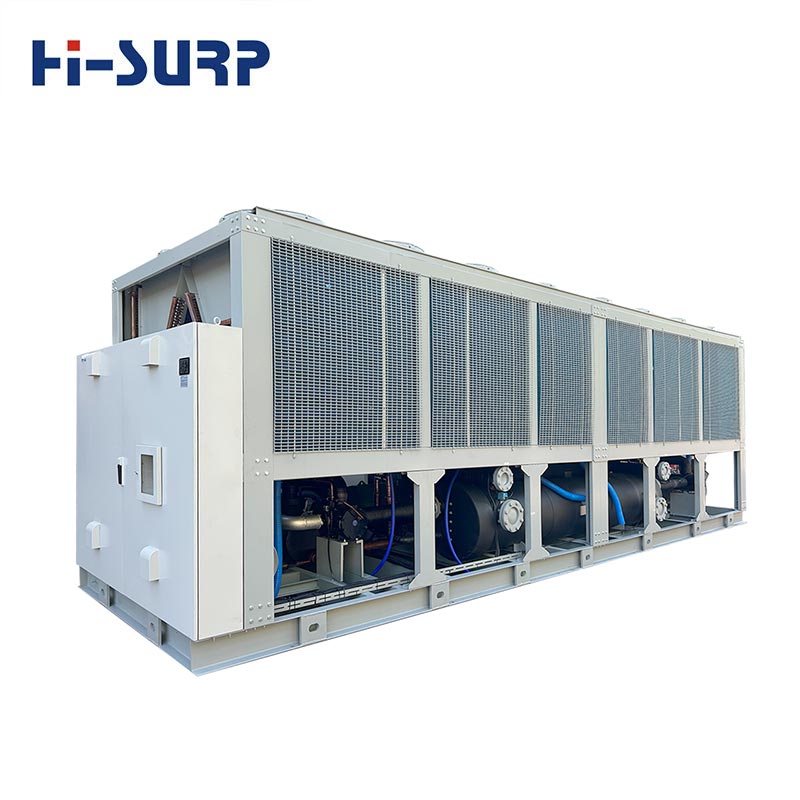

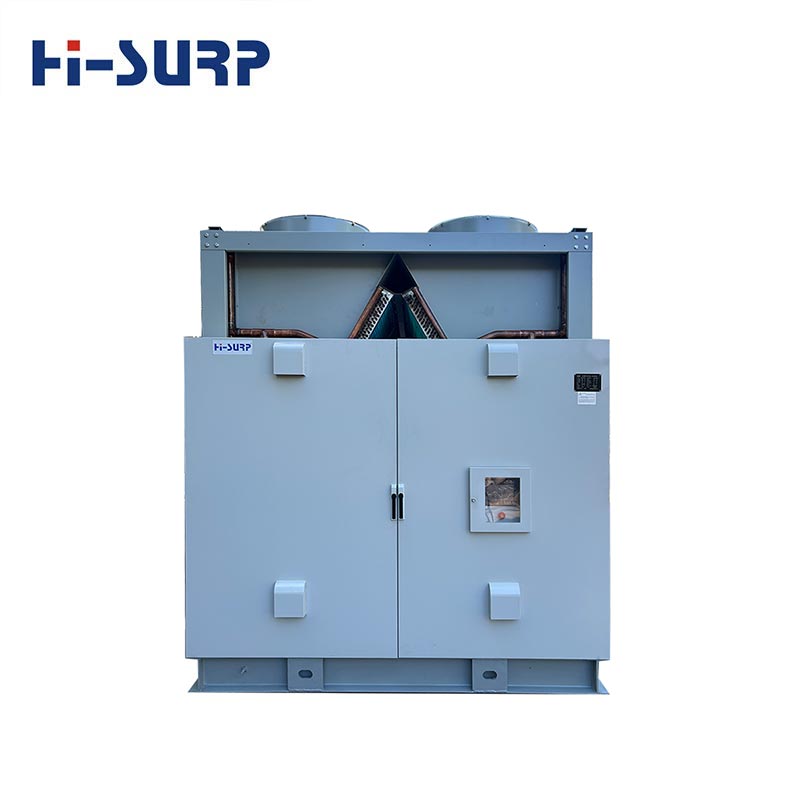

Heat Recovery Air Cooled Screw Chiller

Hisurp Heat Recovery Air Cooled Screw Chiller is an advanced high-efficiency and energy-saving device that, based on a conventional air-cooled screw chiller, adds a heat recovery device to recover and utilize some or all of the heat that would otherwise be discharged into the air through the condenser, thereby achieving simultaneous output of "cooling + heating (hot water)".

Send Inquiry

Features

Heat Recovery Air Cooled Screw Chillers, manufactured by Hisurp, are typically integrated with fan coil units, air handling units, and other terminal devices to form centralized or semi-centralized central air conditioning systems, with following features:

  • Employs the latest high-efficiency screw compressor, ensuring reliable and stable operation.
  • The Heat Recovery Air Cooled Screw Chiller's energy is intelligently adjusted using PID control based on load conditions, matching the operating capacity to the actual load to improve compressor efficiency and reduce power consumption. It features a self-adjusting intelligent defrosting mode for accurate and effective defrosting, minimizing heat loss.
  • The Heat Recovery Air Cooled Screw Chiller uses a low-speed, high-volume, low-noise fan.
  • The compressor is protected by a soundproof cover with sound-absorbing cotton to reduce noise.
  • Uses valves from world-class brands to ensure Heat Recovery Air Cooled Screw Chiller’s quality and grade.
  • Large-capacity Heat Recovery Air Cooled Screw Chillers utilize a multi-compressor system design, resulting in low starting current, excellent backup capability, and superior part-load performance.

Application

Application
Application

Features above offer advantages such as flexible layout and diverse control methods, making Heat Recovery Air Cooled Screw Chillers particularly suitable for shopping malls, hospitals, hotels, apartments, factories, office buildings, and other similar settings.

Configuration List

Hisurp uses component from world-class brands to ensure Heat Recovery Air Cooled Screw Chiller’s quality and grade.

No. Component Name Origin Manufacturer
1 Compressor Shanghai,China Fusheng/Hanbell
2 Expansion Valve Suzhou,China Emerson
3 Dry Filter Cartridge Usd Emerson
4 Sight Glass Suzhou,China Danfoss
5 Temperature Switch Japan Saginomiya
6 High And Low Voltage Switch Jiangsu,China Match-Well
7 Safety Valves Italy Castel
8 Condensing Fan Zhejiang,China Kemao
9 Water Flow Switch Shanghai,China Kaobo
10 Programmable Controller Suzhou,China Siemens
11 Hand Manipulator Suzhou,China Siemens
12 Thermal Relay Wuxi,China Ls
13 Alternating Current Contactor Wuxi,China Ls
14 Air-Side Heat Exchanger Zhejiang,China Hicon
