High Static Pressure Ducted Air Conditioner
  • High Static Pressure Ducted Air ConditionerHigh Static Pressure Ducted Air Conditioner
  • High Static Pressure Ducted Air ConditionerHigh Static Pressure Ducted Air Conditioner

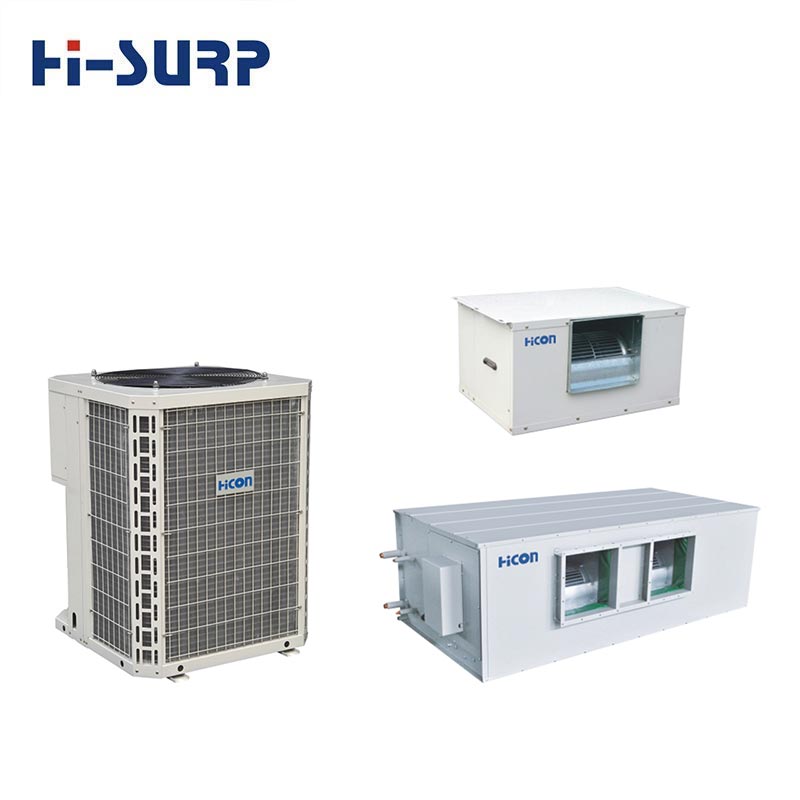

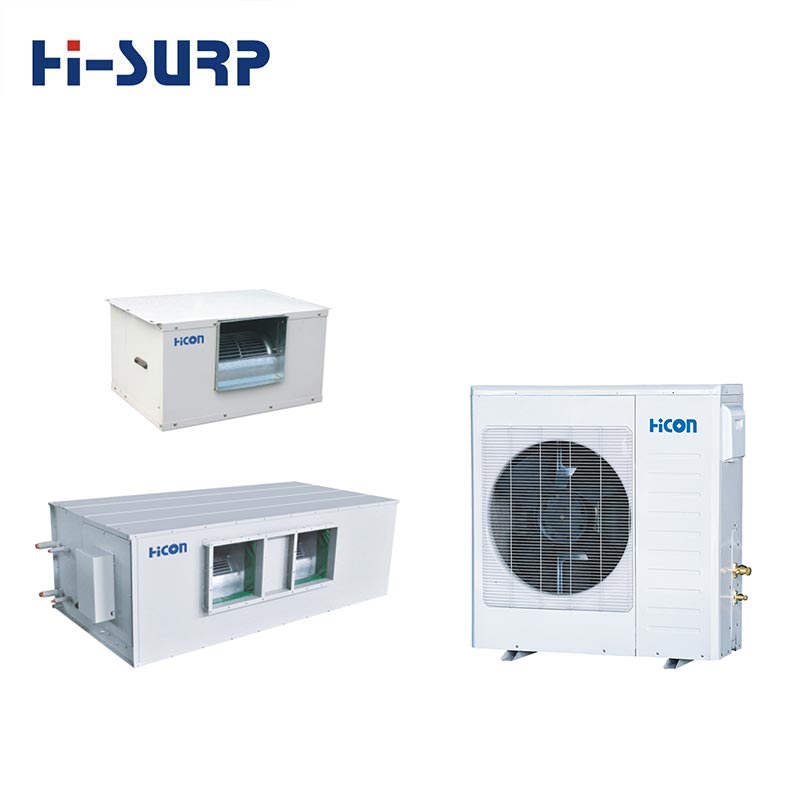

High Static Pressure Ducted Air Conditioner

Hisurp High Static Pressure Ducted Air Conditioner adopts imported high-quality parts and components, stable performance, reliable, high energy efficiency ratio, low noise, simple structure, easy installation, compact size, long service life and many other advantages, is the ideal choice for users.

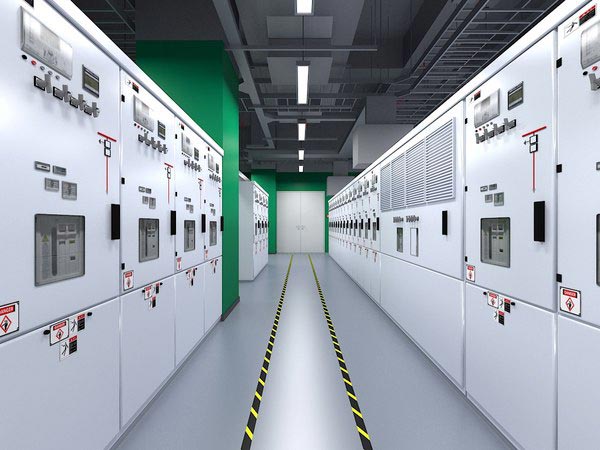

Application

Hisurp High Static Pressure Ducted Air Conditioner is widely used in:

  • Villas
  • Flats
  • Restaurants
  • Office building
  • Shopping Mall
  • Factory workshop
  • etc. industrial, commercial and civil buildings
Application

Specification

Cooling Capacity 8~140 kW
Heating Capacity (Heat Pump, optional) 6~147 kW
Refrigerant R410A, R134A, R407C, R22
Type Return Air Type, Fresh Air Type
Temperature Control 18℃~30℃ ± 1℃
Air Volume 720~26000 m³/h
ESP 60~650 Pa

Features

Ultra-quiet operation

Ultra-quiet operation

High Static Pressure Ducted Air Conditioner is equipped with flexible scroll compressor
high-quality double-side inlet forward tilting low- noise centrifugal fan
high-quality sound-absorbing and heat-insulating rubber-plastic materials on the inner wall

Reduced engineering costs

Reduced engineering costs

outdoor unit of High Static Pressure Ducted Air Conditioner can be installed on the roof, balcony, ground or hung on the wall
users only need to use copper pipe to connect the indoor and outdoor unit refrigeration system interface
shorten the construction period

Convenient maintenance

Convenient maintenance

simple, functional structural design
removable washable filter

Microcomputer control

Microcomputer control

LED large LCD screen display, with five operating modes to choose from (cooling / dehumidification / ventilation / heating / automatic operation)
timer switch-off function, power-down memory function, real-time clock display, etc

Meet the requirements of users

Meet the requirements of users

year-round refrigeration operation, large air volume and small enthalpy difference, anti- corrosion coating, long joint piping etc. can be added

When Choosing A High Static Pressure Ducted Air Conditioner Model

Key considerations when selecting a model:

External Static Pressure (ESP)

* Core performance indicators (e.g., 200Pa / 500Pa / 800Pa)
* Requires calculation based on duct resistance

Air Volume (m³/h)

* Determined based on load and air change rate

Cooling/Heating Capacity

* Matching with space load

Noise Control

* Different requirements for industrial vs. office environments

Installation Space

* Ceiling height / Equipment room dimensions

Project Cases

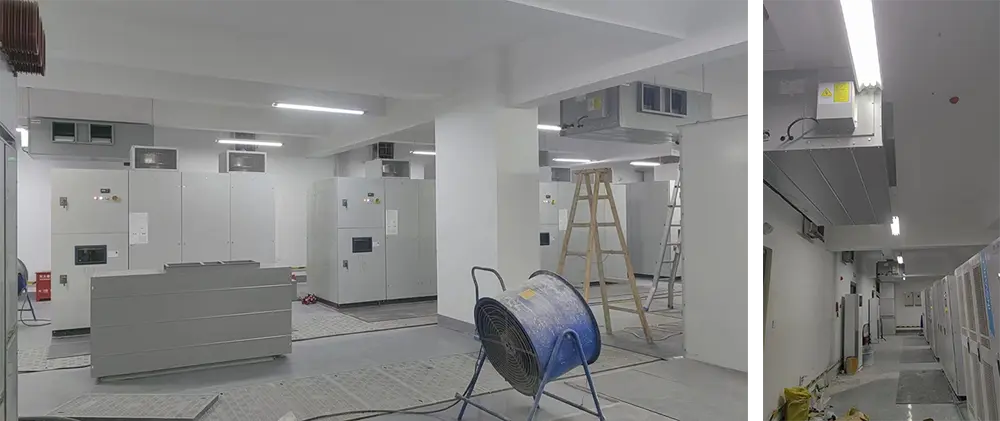

The High Static Pressure Ducted Air Conditioner is installed in the high-voltage frequency converter room of the power plant.

Project Cases

Energy Efficiency and Environmental Protection

Using environmentally friendly refrigerants, energy efficiency meets national standards. The High Static Pressure Ducted Air Conditioner manufacturing process optimizes energy consumption and carbon emissions. Some models have obtained carbon emission verification certificates, contributing to the national 2030 carbon reduction target.

Hot Tags: High Static Pressure Ducted Air Conditioner Manufacturer
