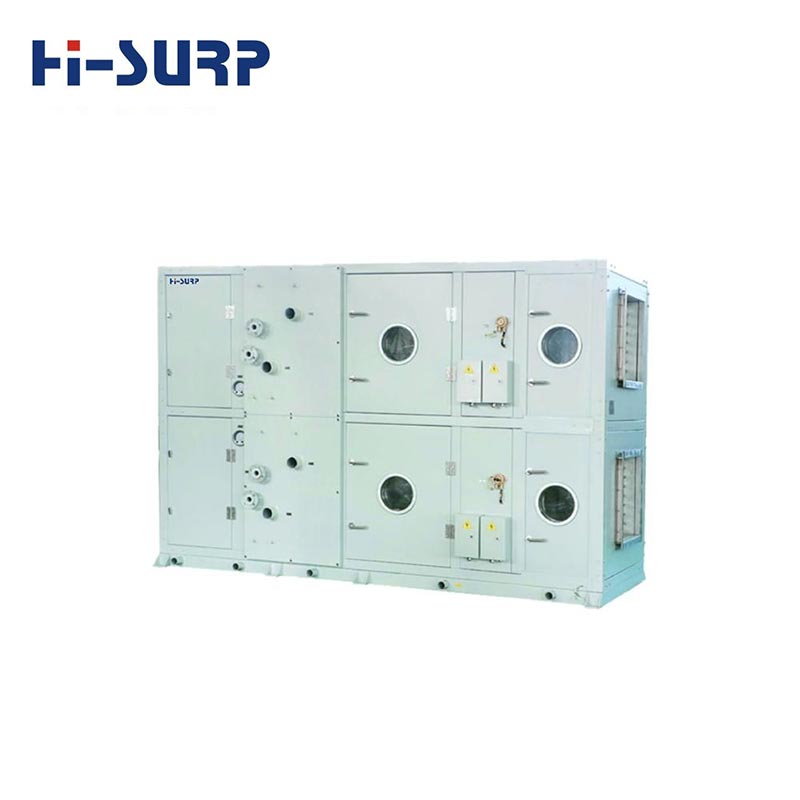

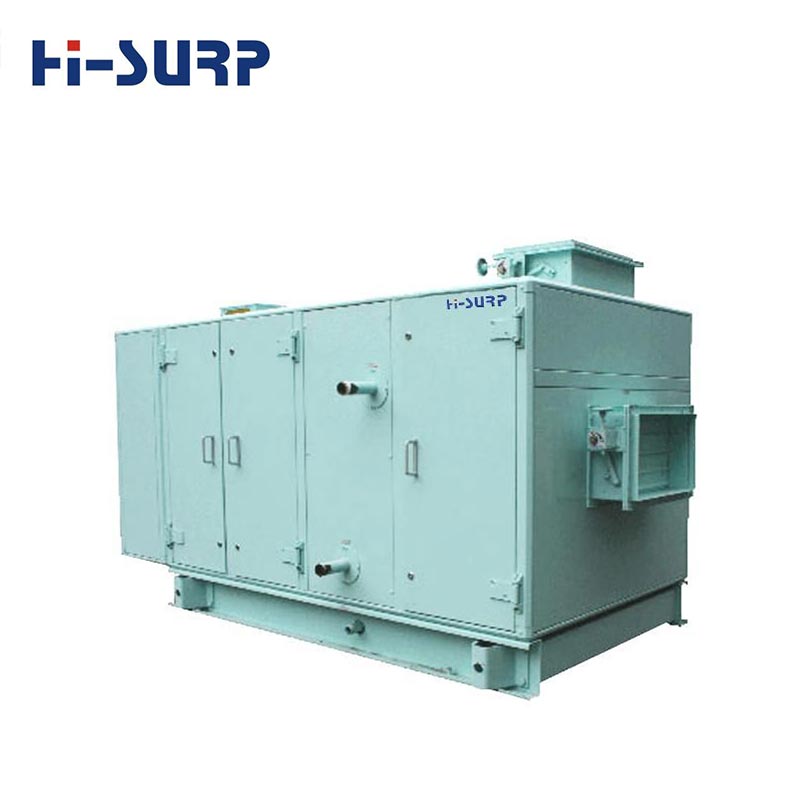

Marine Ahu

HISURP is a China manufacturer offering Customized Marine AHU solutions with energy-efficient multi-source heating/cooling, corrosion-resistant C5-M structure, and vibration-proof design for harsh ship environments. Key advantages include ±0.5℃ precision control, RS485 smart monitoring, and 1000h salt spray resistance, ensuring reliable HVAC performance for marine applications and bulk procurement.

Send Inquiry

Marine AHU Core Features

Multi-source heating and cooling configuration, energy-efficient

Supports chilled water (central chilled water), direct expansion (DX with built-in compressor) and heat recovery functions, utilizing waste heat from the main engine cylinder liner for energy-saving heating. Flexible selection of heating and cooling sources adapts to different ship energy configurations.

Designed specifically for marine environments, vibration-resistant and corrosion-resistant

Vibration-resistant and anti-sway design (vibration-damping base + flexible connection) adapts to vibration, roll, and pitch conditions during ship navigation; marine-grade anti-corrosion coating, salt spray test ≥1000 hours; key components are made of 316L stainless steel, offering excellent corrosion resistance. Superior Precision Control, Comfort and Energy Saving: The microcomputer controller supports Modbus/RS485 communication and can be connected to the Integrated Ship Management System (IAS); temperature control accuracy is ±0.5℃, humidity control accuracy is ±5%, achieving precise adjustment of the cabin environment; optional EC fans, saving more than 30% in energy.

Compact Structure and Convenient Maintenance

Modular design, compact size, and multiple installation methods including horizontal, vertical, and ceiling-mounted, adapting to the confined space of the ship's cabin; easy-to-clean filter + access door design + self-diagnosis of faults, simplifying maintenance and reducing downtime.

Application Scenarios

Ocean-going Merchant Ships: Crew living quarters, restaurants, and entertainment areas on cargo ships, container ships, and oil tankers.
Passenger Ships and Yachts: Passenger cabins and public areas on luxury yachts, ferries, and cruise ships.
Offshore Platforms: Living quarters and control rooms on drilling platforms and oil production platforms.
Engineering Vessels: Crew cabins on tugboats, dredgers, and pipelaying vessels.
Warships: Air conditioning systems for cabins on warships and supply ships.

Marine AHU Technical Specifications

Category	Parameter	Specification
Basic Information	Airflow Range	1,000 ~ 50,000 m³/h
	Cooling Capacity	5KW ~ 300KW
	Heating Capacity	3KW ~ 200KW
Structure	Casing Material	Galvanized steel + marine-grade coating / Stainless steel
Structure	Access Door	Hinged access door with observation window
Fan	Fan Type	Backward-inclined centrifugal fan / EC fan
	External Static Pressure (ESP)	100 ~ 800 Pa (adjustable)
	Noise Level	≤55 ~ 70 dB(A)
Filtration	Pre-filter	G3 / G4
	Medium Filter	F7 / F8 / F9
	HEPA Filter	H13 / H14 (optional)
Heat Exchanger	Type	Copper tube-aluminum fin / Copper-nickel alloy / Titanium alloy
Heat Exchanger	Fin Type	Hydrophilic louvered fin
Cooling & Heating	Chilled Water	7℃ inlet / 12℃ outlet
	Hot Water	60℃ inlet / 50℃ outlet
	Direct Expansion (DX)	R134a / R410A / R407C
	Heat Recovery	Engine jacket water (60-90℃)
	Electric Heater	PTC ceramic (optional)
Humidifier	Type	Electrode steam humidifier
Humidifier	Capacity	5 ~ 100 kg/h (optional)
Control	Power Supply	220V/1Ph/50Hz or 380V/3Ph/50Hz (60Hz optional)
	Controller	Microprocessor controller / PLC + touch screen
	Communication	Modbus RTU / RS485
	Temp. Control Range	18℃ ~ 30℃
	Temp. Accuracy	±0.5℃
	Humidity Accuracy	±5%
	Protection Rating	IP44 / IP54
Anti-Vibration & Anti-Corrosion	Vibration Isolation	Vibration-absorbing base + flexible connection
	Tilting Adaptability	15° heel, 5° trim
	Salt Spray Test	≥1,000 hours
	Corrosion Protection	C5-M / Marine grade
Dimensions & Weight	Dimensions	Customized based on airflow
Dimensions & Weight	Net Weight	200 ~ 3,000 kg
Certification	Safety Certification	CE / RoHS / ISO9001
Certification	Classification Society	DNV / BV / ABS / CCS / LR (optional)

After-Sales Service

We provide comprehensive after-sales support for Marine AHU:

1. 18-month extended after-sales support (standard warranty 12 months), worry-free use
2. Online remote guidance: Technicians quickly assist in troubleshooting via video and text/images
3. Installation support: Provides installation guidance videos and text/image instructions; on-site guidance service is optional
4. Parts guarantee: Sufficient stock of commonly used parts for fast delivery
5. Self-diagnosis: The controller displays fault codes for quick problem location
6. Service response: 24-hour technical response and 48-hour remote solution provision.

Certifications

CE, RoHS, ISO9001 Certification
Optional Classification Society Certifications (DNV, BV, ABS, CCS, LR)

Quality Control:

Incoming raw material inspection; self-inspection, mutual inspection, and specialized inspection during production.

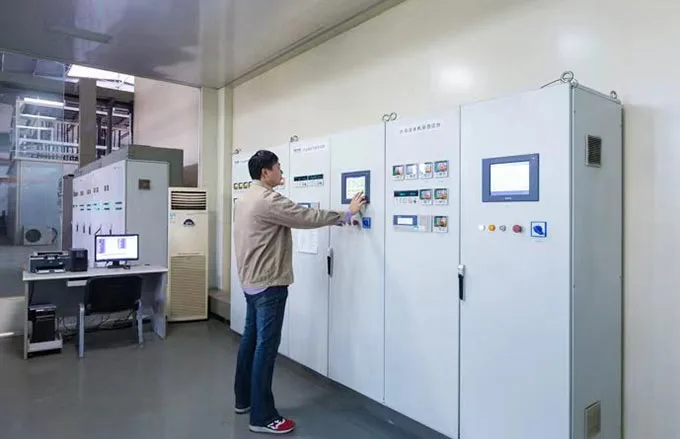

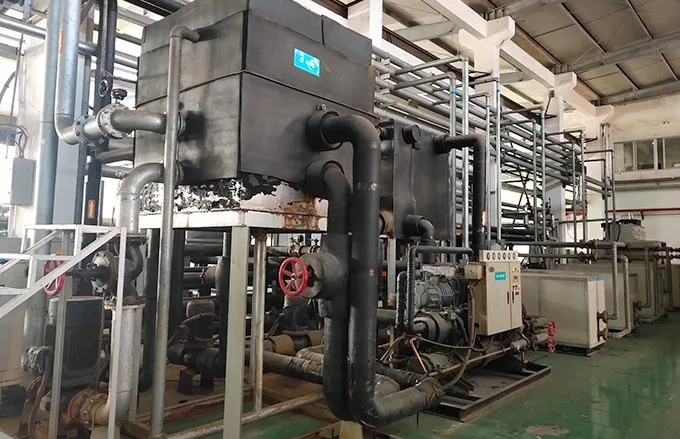

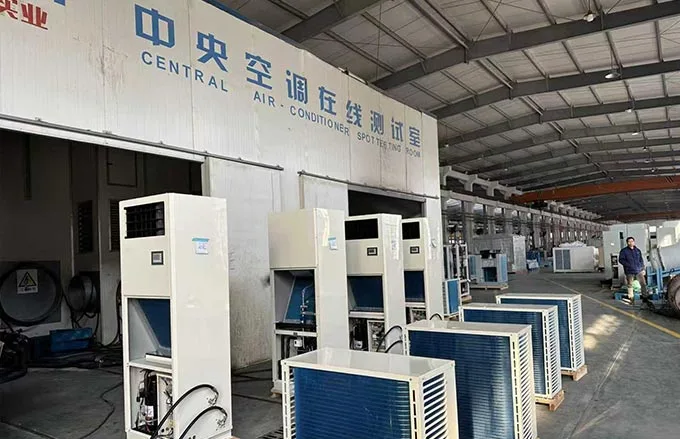

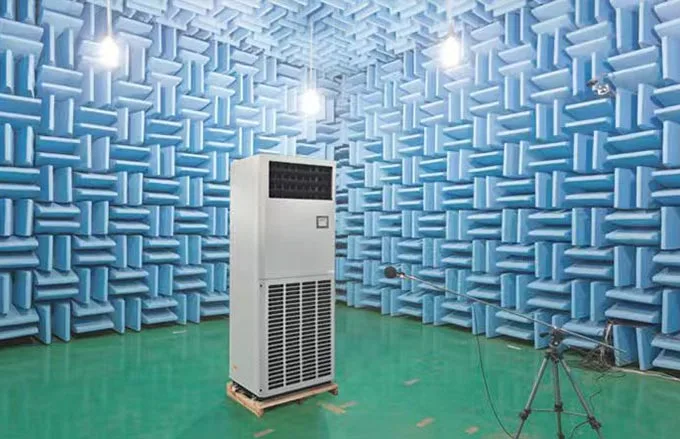

Each piece of equipment undergoes comprehensive testing including high temperature, salt spray, vibration, tilting, leakage, and electrical safety.
Unique equipment serial number for full traceability.
