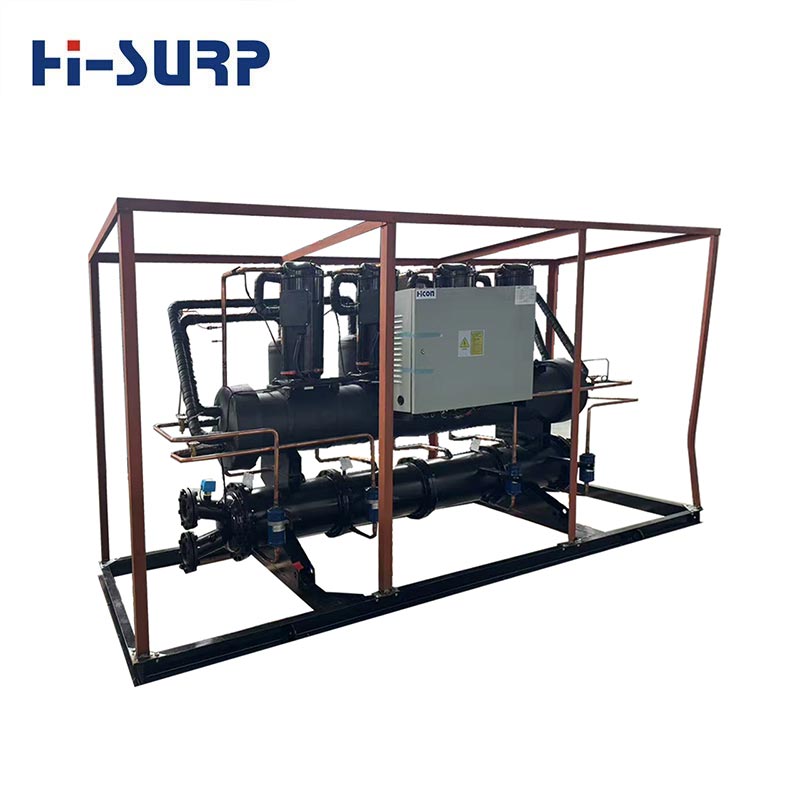

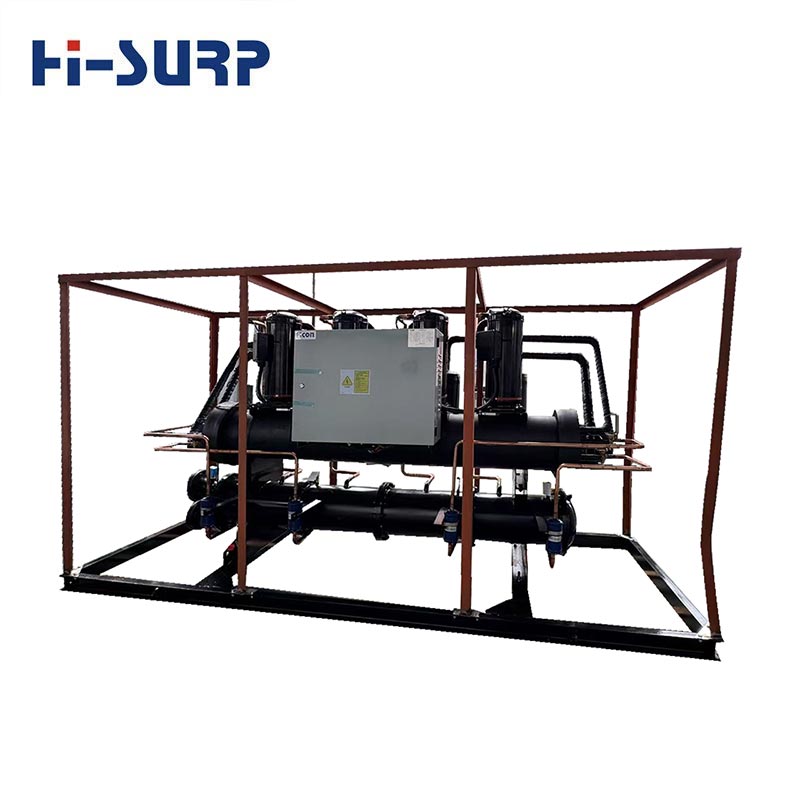

Water-Cooled Screw Chiller

A water-cooled screw chiller is a central refrigeration unit that uses water as the cooling medium and employs a screw compressor. It is widely used in industrial and large-scale commercial applications. Hisurp, a leading manufacturer in China, can customize it.

Send Inquiry

Application

Hisurp advanced Water-Cooled Screw Chiller is suitable for hotels, restaurants, schools, shopping malls, office buildings, residential buildings, hospitals and other air -conditioned places, but also for plastics, chemicals and other process cooling.

Application
Application

How It Works

  • The screw compressor compresses refrigerant in a continuous rotary process
  • Heat is transferred from the refrigerant to cooling water via the condenser
  • The cooling water carries heat to a cooling tower for heat rejection
  • Chilled water is circulated back to industrial equipment or processes

Advantages Compared to Other Chillers

  • Higher energy efficiency than air-cooled systems
  • Better stability in high-temperature environments
  • Suitable for large-scale continuous production
  • Lower operating noise levels

Features

1. Twin-screw compressor with high efficiency, low noise, simple operation and long service life.

2. The evaporator and condenser adopt high-efficiency shell-and-tube heat exchanger, equipped with famous brand expansion valve, filter drier and other durable refrigeration accessories to ensure excellent performance of the whole Water-Cooled Screw Chiller.

3. The advanced unit is controlled by microcomputer, and the electrical components are selected from famous brands at domestic and abroad.

4. The components of the Water-Cooled Screw Chiller are optimally matched, and can be adjusted in multiple levels, which can bring about excellent energy-saving effects during partial loads and save users' maintenance and operating costs.

Control System

1. With advanced intelligent control, the operation is very convenient.
The manual operator is equipped with the start and stop key, parameter setting, alarm display and information query key, etc. Can directly start and stop the Water-Cooled Screw Chiller; Set and modify parameters; Display and query of alarm data; Chilled water, cooling water temperature, temperature difference inquiry and adjustment. In addition, if the user needs remote control or requires line length control, the control of the machine can be easily realized.

2. In order to facilitate the regular maintenance of the Water-Cooled Screw Chiller, the unit control is equipped with a running timer, which is used to calculate the total running hours of the compressor and the cause and time of the failure of each compressor.

3. With more than 2 compressors, the operation hours of each compressor can be balanced to achieve the purpose of extending the service life of the Water-Cooled Screw Chiller.


Protection Device

The Water-Cooled Screw Chiller is equipped with several advanced protection devices to assure the unit can run smoothly.

  • 1. Motor missing item protection: Protection against reverse compressor operation and missing items.
  • 2. Oil heaters: Heating of the lubricating oil in the tank when the compressor is not in operation to avoid lubricating oil foaming during start-up.
  • 3. Motor overheating protection: Stops compressor operation when the compressor temperature is greater than the maximum permissible temperature of the compressor machine.
  • 4. Discharge Temperature Overheat Protection: Prevents the compressor from overheating the discharge temperature.
  • 5. High and low differential pressure switches: When the discharge pressure is higher than the set value, or the return pressure is lower than the set value, the high and low differential pressure switches can stop the compressor.
  • 6. Safety valve: This valve is installed on the condenser, when the exhaust pressure or condensing pressure is higher than the preset value of the valve, the safety valve will open and discharge part of the refrigerant to ensure the safety of the unit operation.
  • 7. Anti-freeze switch: Prevents evaporator and condenser steaming.
  • 8. Overload protection: When the current of the external power supply fluctuates or the current in the circuit exceeds the set value, the thermal relay acts to stop the compressor.
  • 9. Water pump and water flow switch chain control, the electric control box for empty households reserved water pump and water flow switch chain contact, the user only need to connect the control line according to the circuit diagram.
