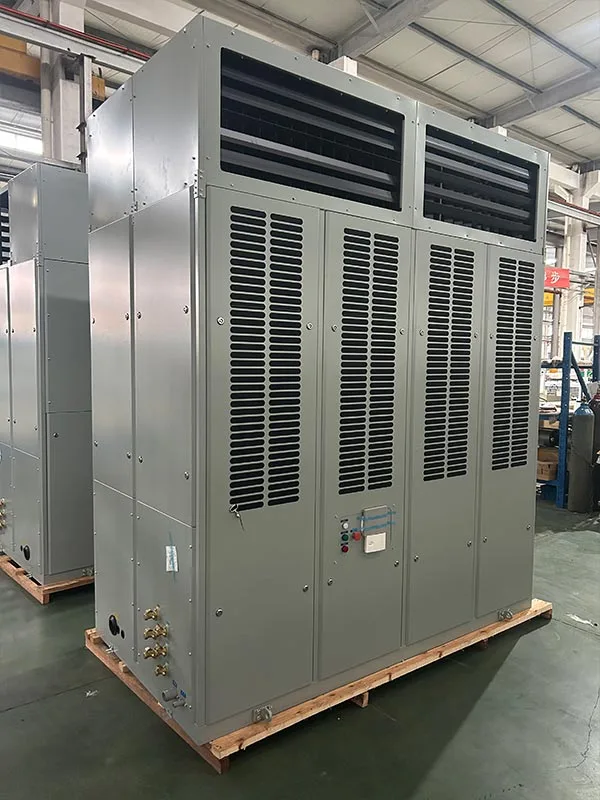

  • Control Room Air ConditionerControl Room Air Conditioner
  • Control Room Air ConditionerControl Room Air Conditioner
  • Control Room Air ConditionerControl Room Air Conditioner

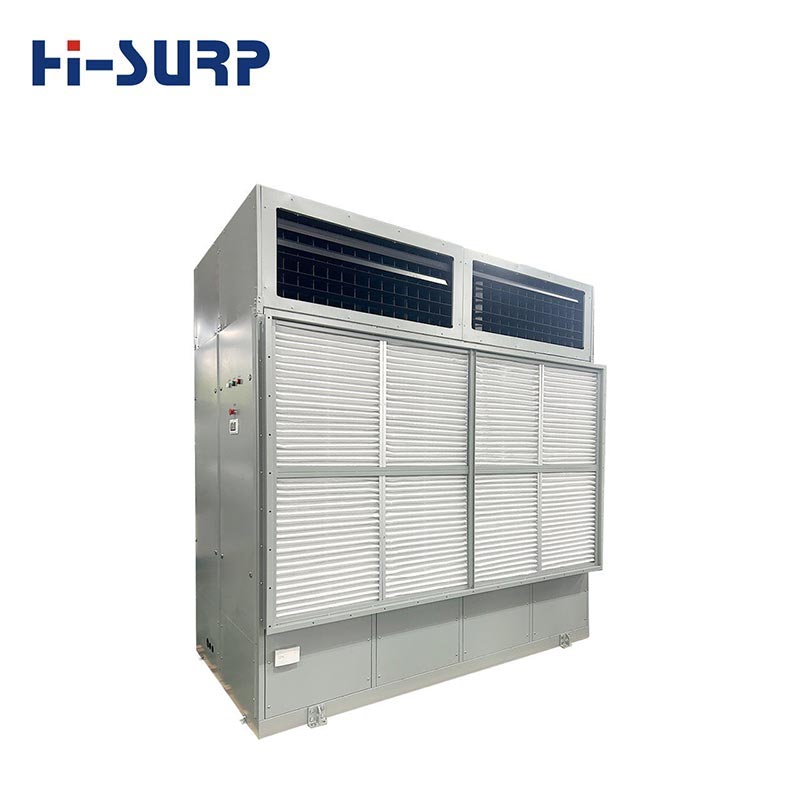

Control Room Air Conditioner

A Control Room Air Conditioner is an ideal solution for spaces that require constant temperature, controlled humidity, and dependable air cleanliness without relying on a cooling water system. Hisurp's control room air conditioners are designed for laboratories, metrology rooms, archives, control rooms, food workshops, pharmaceutical areas, and precision machining environments where environmental consistency directly affects product quality and operational stability.
Compared with general comfort air conditioning, this unit focuses on process air control. It integrates refrigeration, dehumidification, humidification, reheating, and air circulation in one compact structure. For facilities where floor space is valuable, the unit offers a practical alternative to larger built-up systems, with simpler installation and lower initial project complexity.

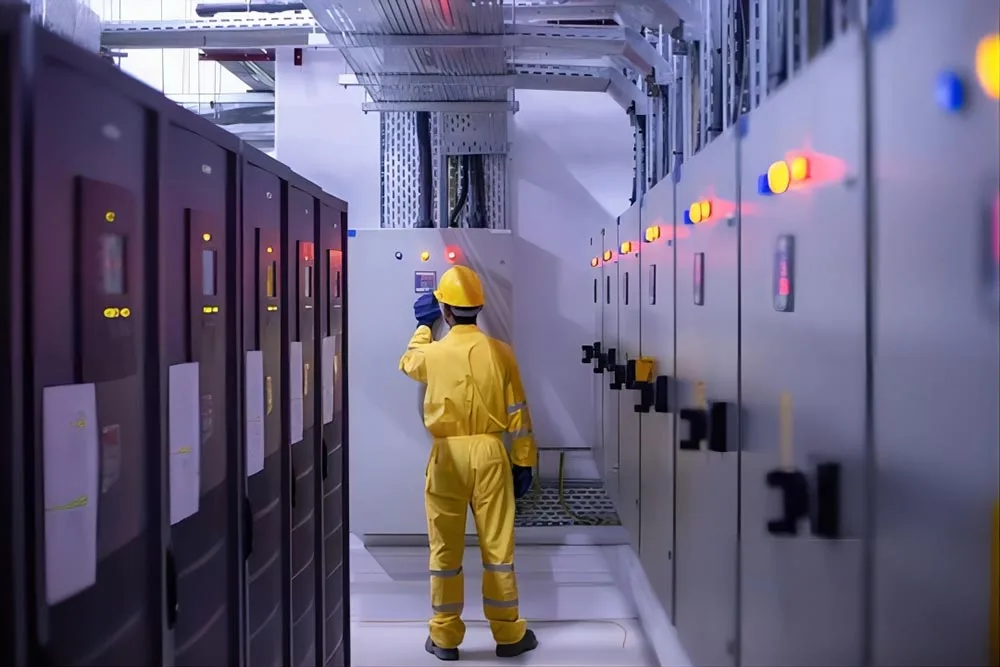

About Control Room Air Conditioner

The control range is suitable for many industrial and technical environments:

Temperature range: 18°C to 28°C
Temperature accuracy: ±1°C
Humidity range: 50% to 70% RH
Humidity accuracy: ±5% to ±10% RH

About Control Room Air Conditioner

Products Parameters of Control Room Air Conditioner

Cooling Capacity 8~132kW (water-cooled type)
7~280kW (air-cooled type)
Heating Capacity 6~68 kW (with electrical heating or hot water coils, proportion choices)
Variations fixed frequency and VRF
Refrigerant R407C, R410A, R134A
Cooling System air-cooled, water-cooled, free cooling (chilled water), twin sources
AmbientTemperatureRange
PurifyLevel
-15℃~+45℃
300,000~1,000
Temp.AdjustmentRange +18℃~+28℃(standard), +15℃~+33℃(setting temp. range)
Temp.AdjustmentAccuracy ±1℃, up to ±0.1℃
HumidityAdjustmentRange 50 % ~ 70 % RH
HumidityAdjustmentAccuracy ±5 % ~ 10 % RH, up to ±1%

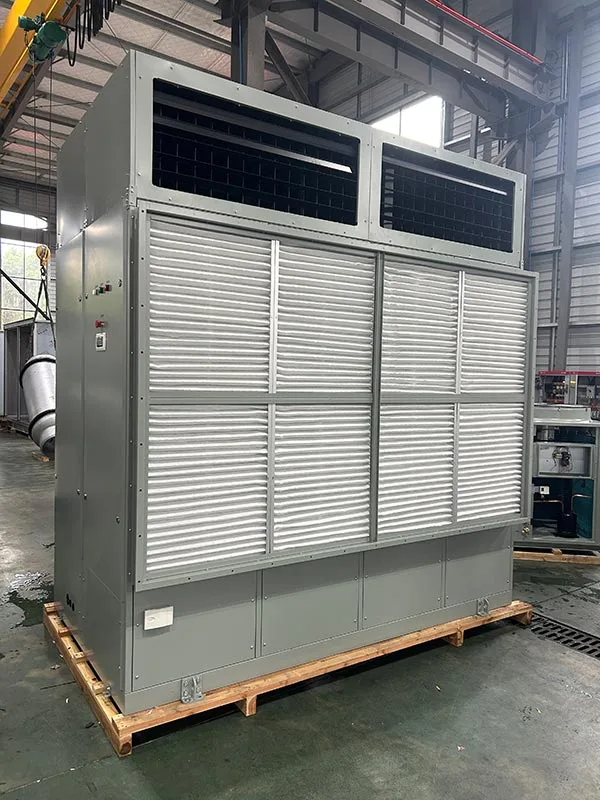

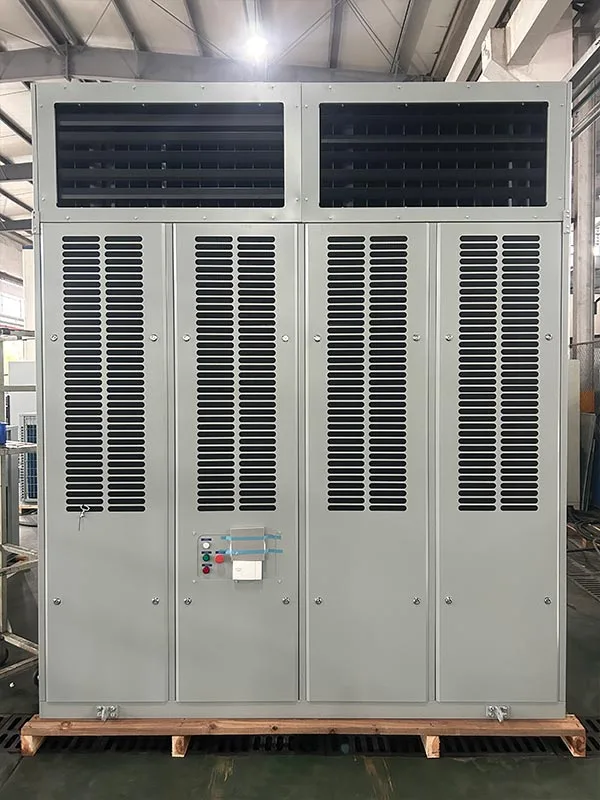

Product Pics

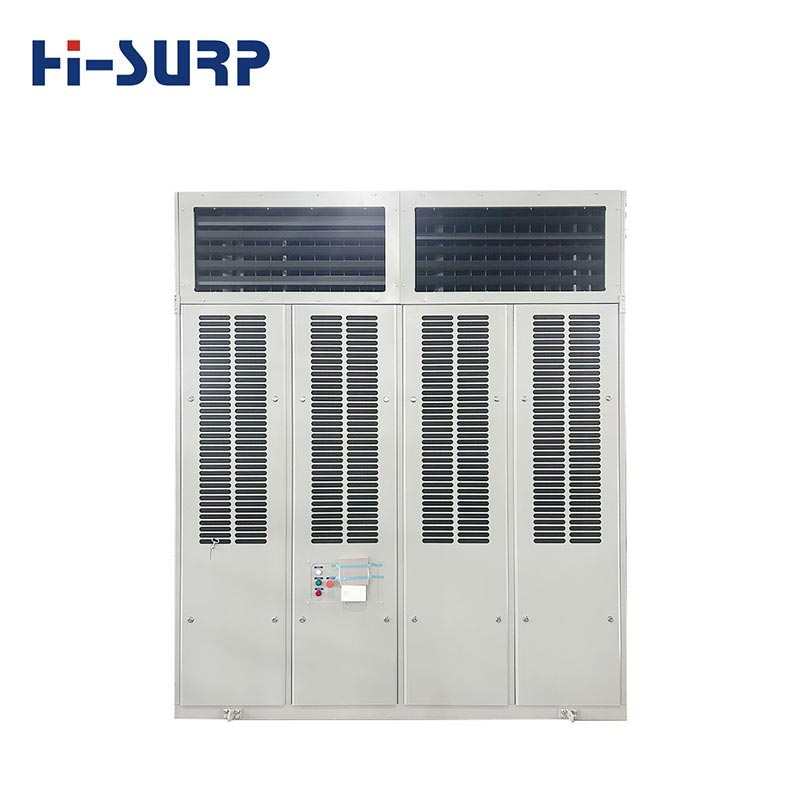

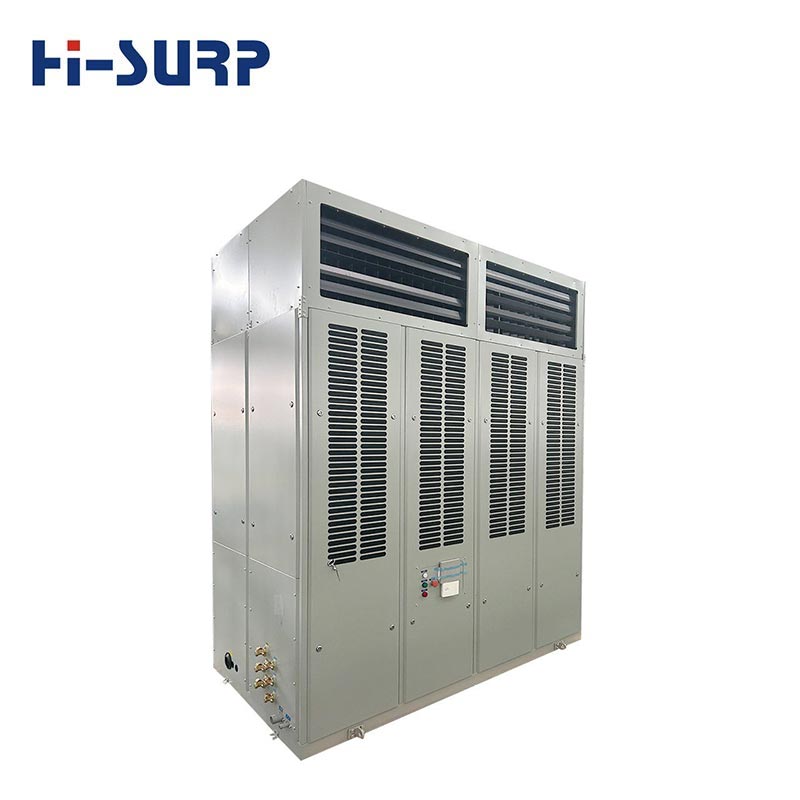

Control Room Air ConditionerControl Room Air ConditionerControl Room Air Conditioner

Features

  • Optional electrical heating and hot water coils
  • Optional electrode humidifier and steam humidifier
  • Multi air supply & return method
  • Direct evaporation, easy installation
  • Carel, Wellthinker etc. controller
  • Low starting current
  • High torque
  • Wide speed range

DX Series of Precision Air Conditioner

Air-cooled and water-cooled type, which includes six modes: top supply & bottom return, bottom supply & top return, top supply & front return, top supply. and front direct return, top supply & back return ducted, front supply & direct return and celling type. With inverter & non-inverter types for choices.

Some Data Center Projects

  • Zhongce Rubber (Thailand) Co., Ltd. Air conditioning computer room chiller equipment (Thailand Rayong Industrial Park, Amata Industrial City, Thailand, 2020)
  • Precision Air Conditioner Water Cooled DX Units for Tianjin-Qinhuangdao High-speed Railway Station
  • Precision Air Conditioner Air Cooled DX Unit for Zhengzhou-Xinzheng Airport Intercity Railway dispatching station
  • Chilled Water Close Control Unit Twin- Sources Series for Fuzhou Cloud Computing Data Center Project

Packing & Delivery

Multiple packaging options are available: film packaging/plywood case/fumigated solid wood packaging (all include wooden pallets).

To ensure goods arrive at the customer's hands intact, we take the following measures:

1. Before packaging, our quality department personnel will inspect each item. Once no quality issues are found, a QC label will be affixed. This ensures the goods are of good quality before shipment.
2. During packaging, we will assess the product's dimensions and weight and select a suitable packaging method. The unit will be secured to the base frame with screws to prevent movement during transport. Cardboard boxes, foam, and bubble wrap will be used for filling to prevent surface scratches caused by significant shaking during transport.
3. If container shipping is chosen, we will design a reasonable container loading plan, communicate with the customer in advance, and ensure full utilization of the container during on-site loading. Empty spaces will be secured with fumigated triangles to prevent movement during transport.

If logistics shipping is chosen, Hisurp has a dedicated logistics team providing one-stop tracking service, allowing real-time tracking of the goods' status.
