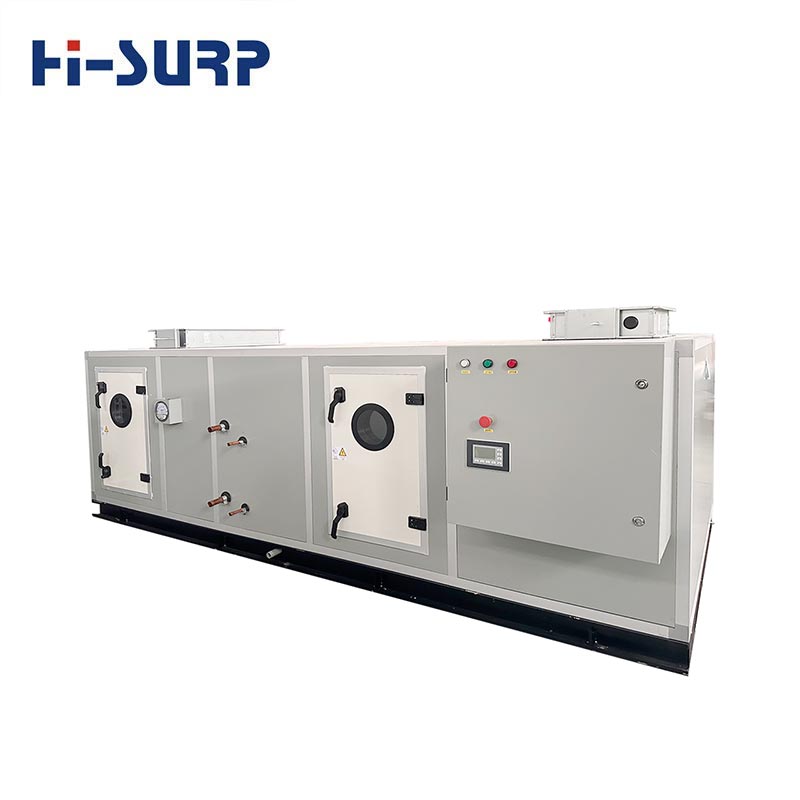

Combined Air Conditioner

Hisurp advanced Combined Air Conditioner features comprehensive functions and flexible and convenient selection and combination. It can be widely used in general air conditioning system projects such as hotels, stadiums, exhibition centers, office buildings, subways, and airports, as well as air conditioning system projects with special requirements in industries such as pharmaceuticals, electronics, textiles, tobacco, food, and chemicals.

Basic Functional Segments

Normally, a Combined Air Conditioner has following basic functional segments: air mixing, filtration, cooling, heating, humidification, silencing, airflow equalization, air supply, air exhaust, heat recovery, electrostatic dust removal, etc.

Example Of Functional Section Layout Of a Combined Air Conditioner

Example Of Functional Section Layout Of a Combined Air Conditioner

Features

Aesthetically Pleasing, Sleek Design

The Combined Air Conditioner's outer panel is made of high-quality color steel plate, possessing highly effective corrosion resistance. A protective film is applied to the surface to prevent scratches during assembly and transportation.

Beautiful Appearance, Sleek Design

After panel assembly, the right-angle joints are rounded, resulting in a clean and smooth appearance.

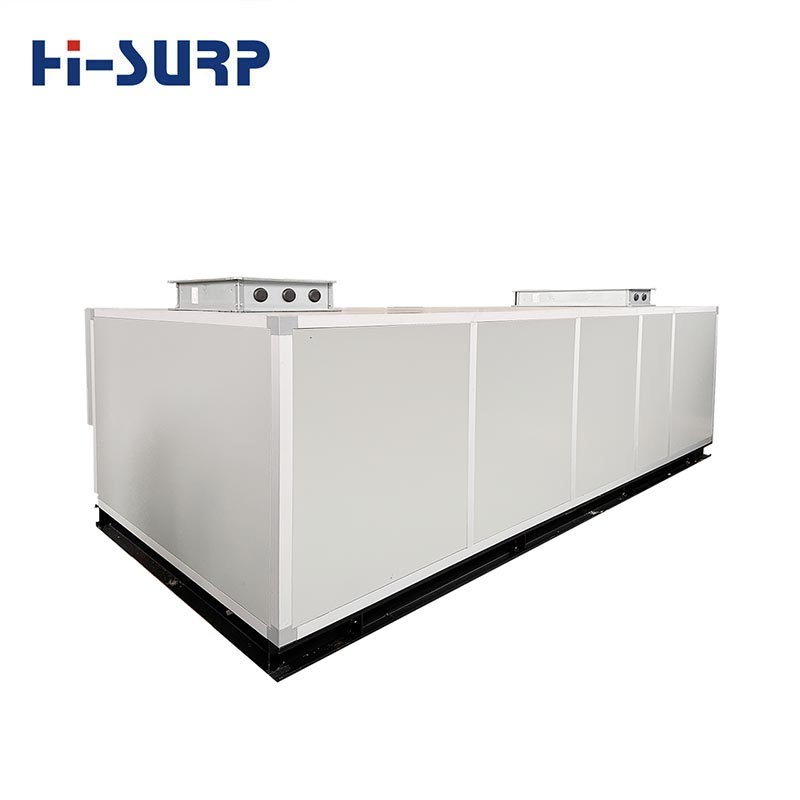

Convenient and Quick On-Site Assembly/Disassembly

All panels can be easily assembled and disassembled on-site. Multiple assembly/disassembly does not affect the enclosure's sealing and strength. Whole unit or component shipments are available upon request.

Intelligent Control, High Efficiency and Energy Saving

Hisurp can provide professional Combined Air Conditioner automation solutions according to user requirements, ensuring each unit operates economically, efficiently, and reliably, meeting comfort or process requirements.

Unique Craftsmanship, Superior Performance

Utilizing high-quality copper tubing and specially designed corrugated aluminum fins, manufactured with OAK heat exchanger equipment from the USA, ensuring high heat transfer efficiency and minimal contact thermal resistance.

Installation

* Ensure the Combined Air Conditioner's installation foundation is level.

* Sufficient space (recommended at least 1 meter) should be left around the Combined Air Conditioner, especially around the piping and maintenance access, to facilitate routine maintenance.

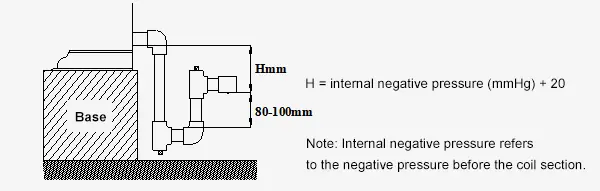

* A water seal must be installed at the condensate outlet (see diagram) before connecting to external piping.

Water seal diagram

* Follow the instructions on the Combined Air Conditioner's nameplate for correct piping. When connecting water pipes, apply force evenly and avoid excessive force to prevent damage to the unit's internal structure.

* The standard power supply is a three-phase, four-wire system (380V, 50Hz AC). Before connecting the power, verify the voltage and ensure there is no phase loss and that the three phases are balanced. After connecting the power, jog the motor to check that the fan rotates in the correct direction.

* The unit's motor must be connected to a power supply equipped with overload protection.

* Flexible connections should be used for external air ducts and water pipes to prevent the transmission of vibration.
