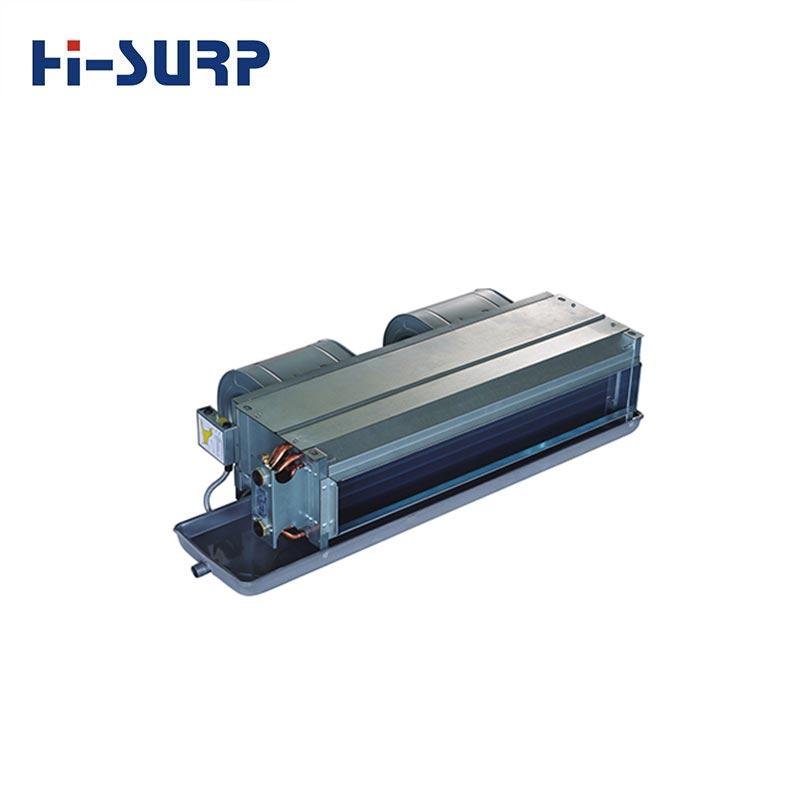

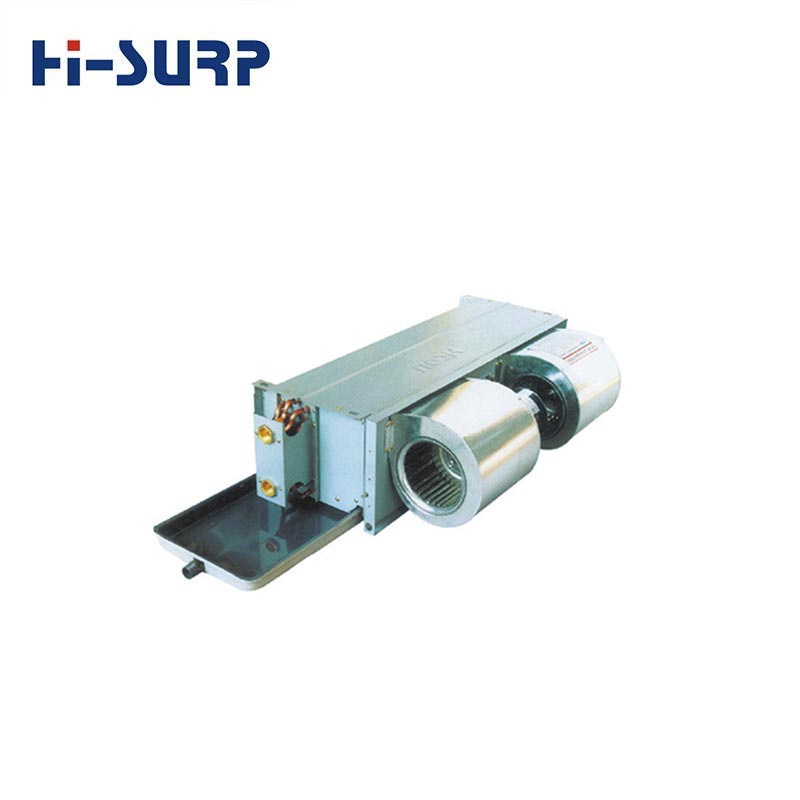

Concealed Fan Coil Unit

Hisurps Concealed Fan Coil Units can be widely used in semi-centralized air conditioning systems, such as hotels, hospitals, apartments, villas, office buildings, etc. This product has absorbed the essence of similar products at domestic and abroad, and focuses on the future development of air conditioning. It is a high-quality air conditioning product for the new century.

Types

Fan coil unit series includes several types: horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, cassette exposed, wall-mounted, and column-mounted, with over one hundred specifications. Users can choose appropriately according to different project conditions (generally, horizontal concealed fan coil units are the main type, but high static pressure units and units with return air boxes can also be configured according to user needs).

Components

Regardless of type or specification, Concealed Fan Coil Units mainly consist of components such as a fan (impeller, volute), motor, heat exchanger (coil), air filter, and electrical regulator.

Specification

model MFP-34KM-(Q)M1 MFP-51KM-(Q)M1 MFP-68KM-(Q)M1 MFP-85KM-(Q)M2 MFP-102KM-(Q)M2 MFP-136KM-(Q)M3 MFP-170KM-(Q)M3 MFP-204KM-(Q)M3 MFP-238KM-(Q)M3 MFP-255KM-(Q)M4 MFP-272KM-(Q)M4
model of panel MB-SD11M1 MB-SD11M2 MB-SD11M3 MB-SD11M4
power supply 220V,50Hz,1Ph
air volume H m3/h 380 550 680 880 1050 1380 1750 2050 2200 2500 2720
M 300 440 540 700 840 1100 1400 1640 1760 2000 2040
L 230 330 410 530 630 830 1050 1230 1320 1500 1360
static pressure Pa 0 0 0 0 0 0 0 0 0 0 0
cooling capacity TH H W 2000 3000 3800 4900 5800 7500 9800 11000 12000 13400 15000
BTU/h 6824 10236 12966 16719 19790 25590 33438 37532 40944 45721 51180
SH W 1400 2200 2850 3500 4250 5500 7150 8250 9100 10100 11175
BTU/h 4777 7506 9724 11942 14501 18766 24396 28149 31049 34461 38129
TH M W 1700 2550 3250 4150 4950 6400 8350 9350 10200 11100 12450
SH W 1150 1800 2350 2850 3500 4550 5950 6850 7650 8350 9560
TH L W 1400 2050 2600 3400 4000 5200 6750 7600 8300 9200 10300
SH W 950 1400 1850 2300 2800 3600 4700 5450 6000 6700 8400
heating capacity H W 3100 4700 5900 7600 9000 11600 15200 17100 18600 21400 24000
M W 2650 4000 5000 6450 7650 9850 12900 14550 15800 17200 19900
L W 2100 3150 3950 5100 6050 7750 10200 11450 12450 12900 15200
noise H 0Pa dB(A) 37 39 44 42 45 46 48 50 52 52 53
power input H 0Pa W 30 37 50 63 80 125 150 190 210 220 240
waterflow volume m3/h 0.34 0.51 0.65 0.83 0.99 1.28 1.67 1.87 2.04 2.28 2.55
water pressure dropping kPa 23 27 26 28 27 26 35 36 42 43 45
FCEER 61 71 68 68 65 55 57 51 50 52 53
FCCOP 94 112 105 106 100 84 89 80 77 83 85
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26
drained by pump net dimension(mm) unit L×W×H mm 592*592*242 750*750*242 840*840*242 840*840*292 946*946*292
panel 650*650*40 850*850*40 950*950*40 950*950*40 1050*1050*40
net weight unit kg 15.4 16.3 16.5 21.2 21.6 24.9 27.8 28.1 28.3 31.5 33.1
panel 2.2 4.5 5.4 5.9
drained by nature net dimension(mm) unit L×W×H mm 592*592*340 750*750*340 840*840*340 840*840*390 946*946*390
panel 650*650*40 850*850*40 950*950*40 1050*1050*40
net weight unit kg 17 17.3 17.5 22.4 22.8 26 29.1 30 30 33.2 34.8
panel 2.2 4.5 5.4 5.9 5.9

Quality Control

1. The design, production, and sales of each Concealed Fan Coil Unit are strictly carried out in accordance with the ISO9001:2000 quality assurance system to ensure product reliability.

2.Each Concealed Fan Coil Unit undergoes rigorous testing according to national standards, passing through a full-performance testing platform accredited by the National Compressor and Refrigeration Equipment Quality Supervision Center. All performance indicators meet or exceed the requirements of national standards. The product quality is stable and the operation is reliable, earning unanimous praise from users both domestically and internationally.
