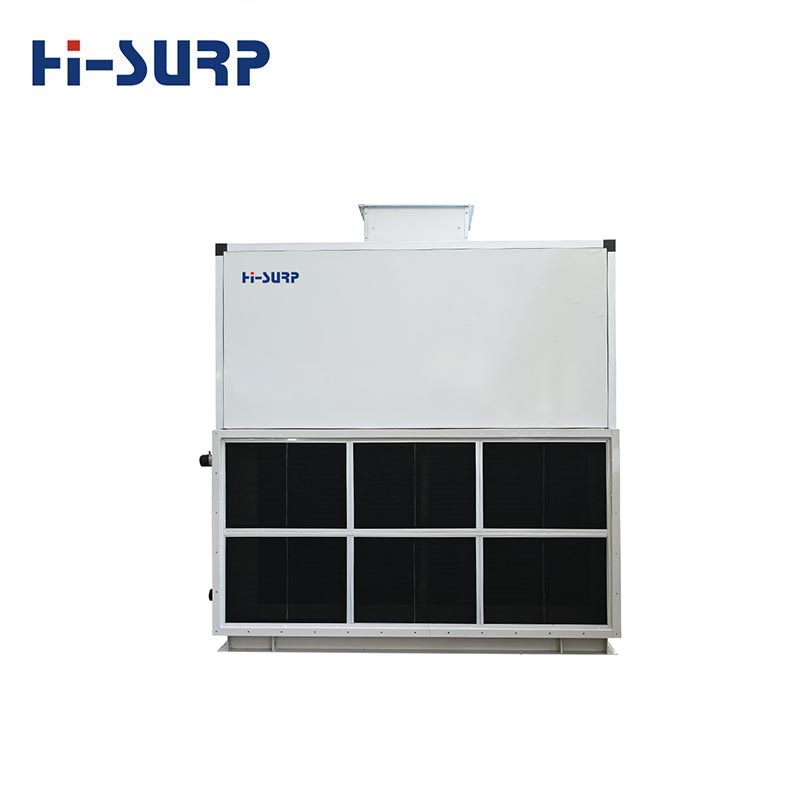

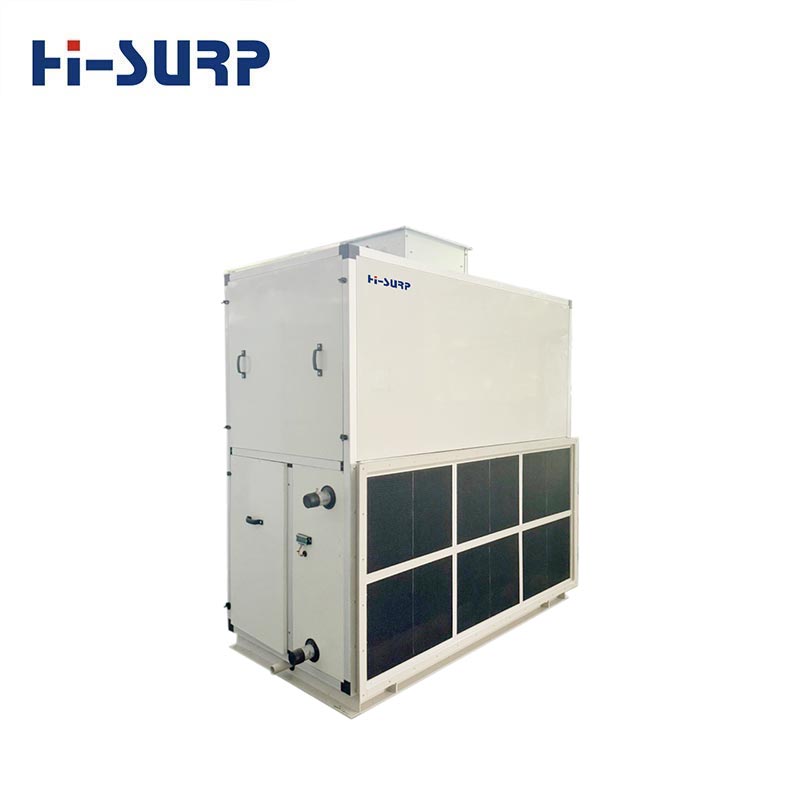

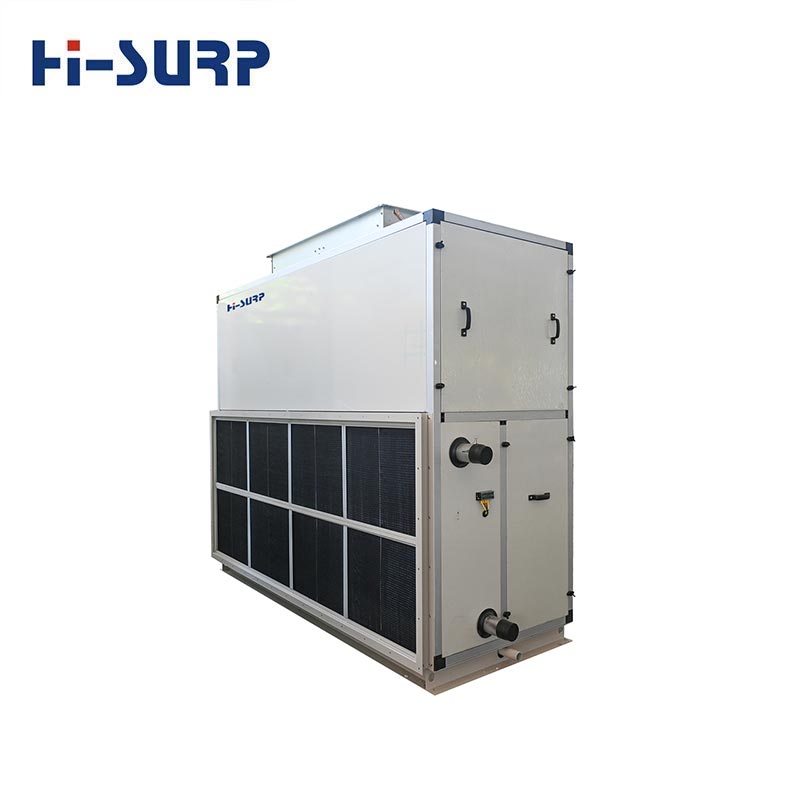

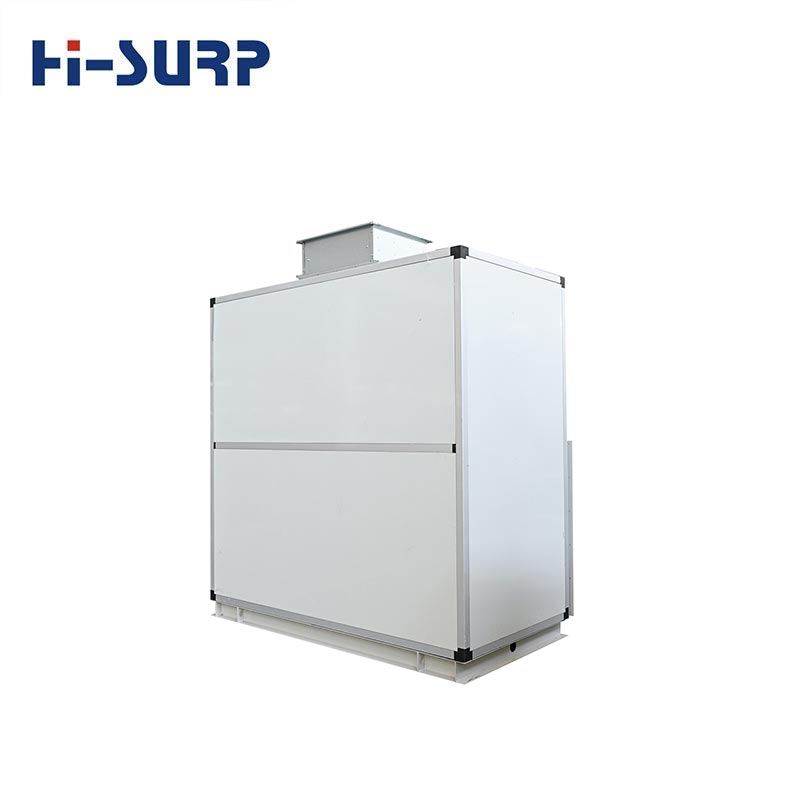

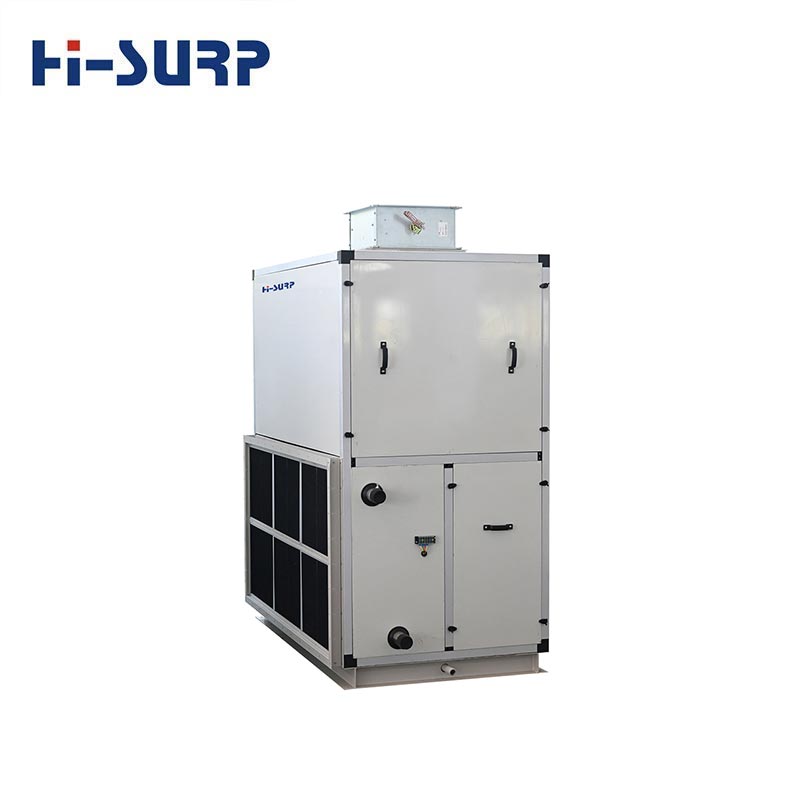

Hisurp Floor Standing Fan Coil Unit, which is made-in-China, can fully realize various functions such as cooling, heating, humidification, dehumidification, and purification, meeting the diverse requirements of different users for indoor climate environment temperature, humidity, airflow, cleanliness, and freshness.
As a comfort air conditioner, Floor Standing Fan Coil Unit can be widely used in hotels, theaters, shopping malls,
office buildings, and other occasions; as an industrial workshop air conditioner, it can also meet the needs of various
industries such as electronics, chemical fibers, tobacco, pharmaceuticals, medical, food, and light industry.
Working Principle
Floor Standing Fan Coil Units are connected to a central heat source (such as a chiller or boiler) via a circulating
water system:
Cooling mode: Chilled water flows through the coil → The fan draws in indoor air → The air is cooled and dehumidified by the cooling coil → Cool air is output.
Heating mode: Hot water flows through the coil → The air is heated → Warm air is output.
The core principle is to utilize water-air heat exchange to achieve temperature regulation.

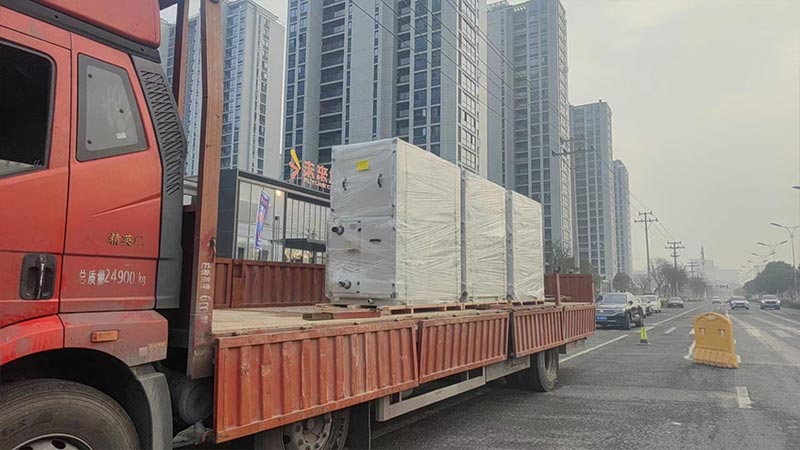

Project Cases

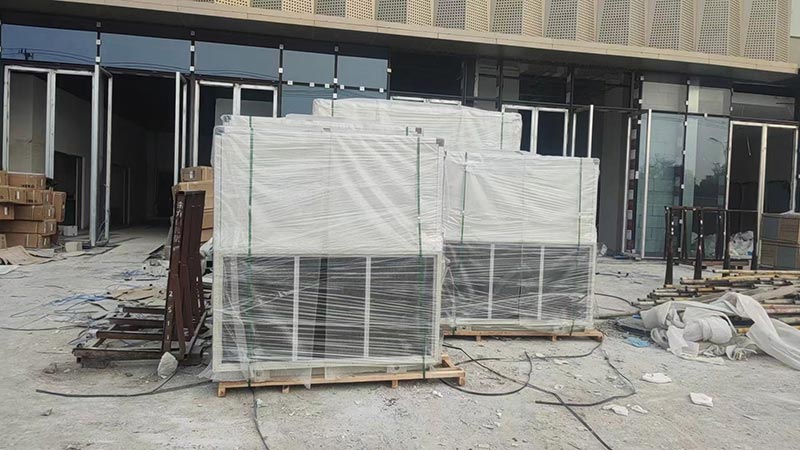

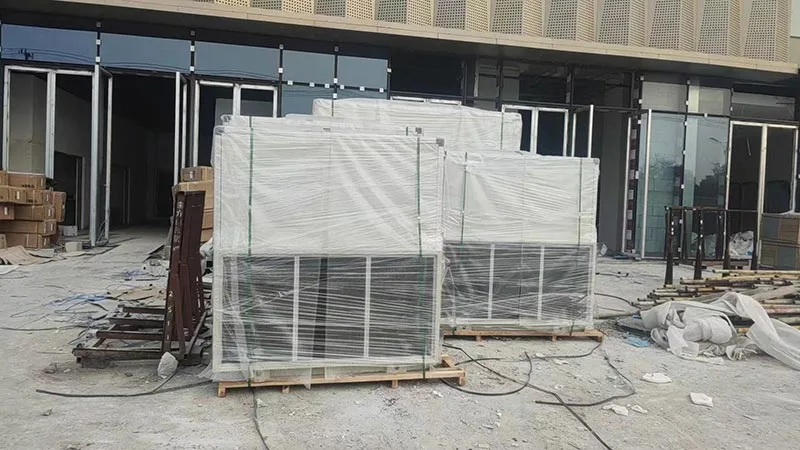

Floor Standing Fan Coil Unit will be installed at a cinema.
Installation
1. Before installation, check the Floor Standing Fan Coil Unit's exterior for damage. Manually rotate the fan blades
to check for smooth operation and any grinding noises. If any abnormalities are found, address them.
2. Ensure the unit is level after installation. Avoid routing condensate to a distant drainage point, as this increases the required depth of the drain pan and impairs proper drainage; a U-trap should be installed on the unit's condensate drain line.
3. The weight of the air ducts and water pipes connected to the unit must not be borne by the unit itself.
4. The unit operates on a three-phase 380V, 50Hz AC power supply. Before starting the fan, verify that the wiring is correct; after starting, check that the fan rotates in the correct direction.
5. Valves should be installed on the inlet and outlet water pipes for water flow regulation and easy maintenance.
Installation
Standard Floor Standing Fan Coil Unit models ship within 30-45 work days; customized models (including
function/appearance/interface adaptation) are delivered within 60-90 days. Multiple trade terms such as FOB/CIF/DDP are
supported, and adjustments can be made flexibly according to customer needs.
