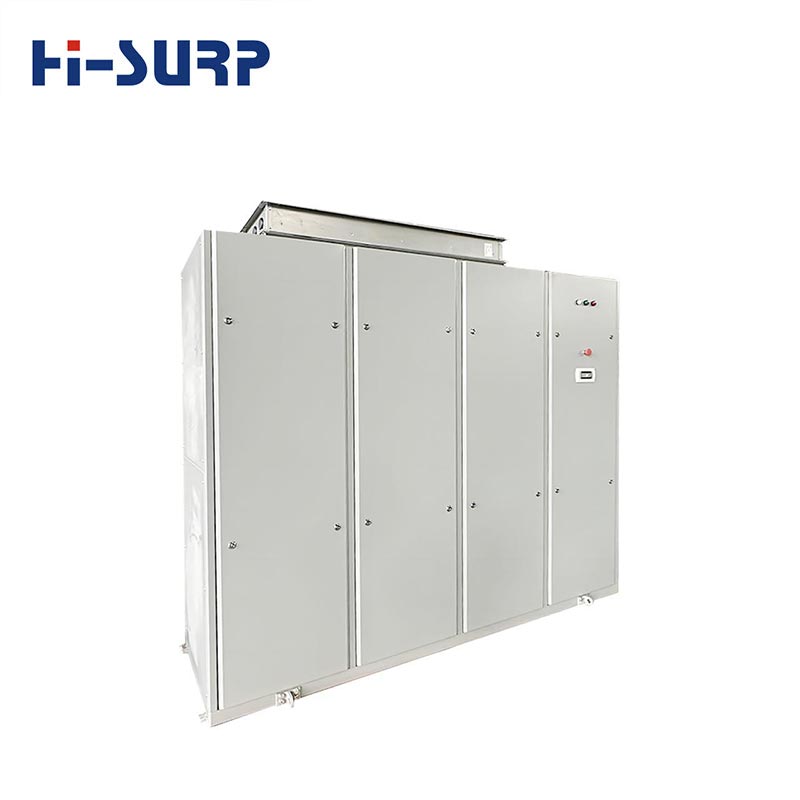

CRAC Unit

CRAC Unit is a high-quality product independently developed and designed by Hisurp based on the introduction of advanced technology. It fully considers the industrial requirements for temperature, humidity, and cleanliness, and compared with modular air conditioners, it has advantages such as small installation space, easy installation, diverse forms, high cleanliness, and low initial investment.

Application

Application
Application

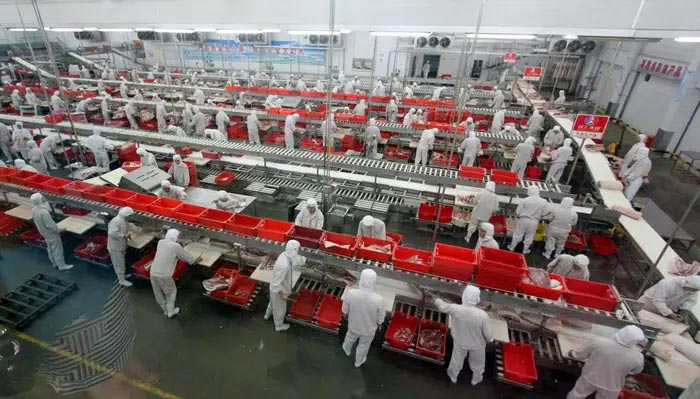

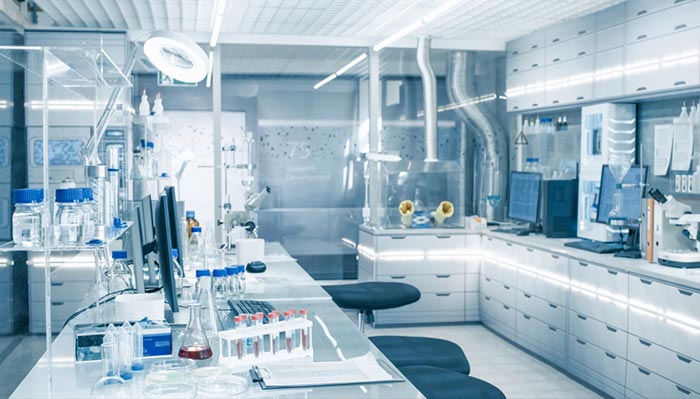

CRAC Unit has been widely used in laboratories, control rooms, archives, metrology rooms, food workshops, textile workshops, pharmaceutical workshops, precision machining workshops, and other places.

Specification

Cooling Capacity 8~132kW (water-cooled type)
7~280kW (air-cooled type)
Heating Capacity 6~68 kW (with electrical heating or hot water coils, proportion choices)
Variations fixed frequency and VRF
Refrigerant R407C, R410A, R134A
Cooling System air-cooled, water-cooled, free cooling (chilled water), twin sources
AmbientTemperatureRange
PurifyLevel
-15℃~+45℃
300,000~1,000
Temp.AdjustmentRange +18℃~+28℃(standard), +15℃~+33℃(setting temp. range)
Temp.AdjustmentAccuracy ±1℃, up to ±0.1℃
HumidityAdjustmentRange 50 % ~ 70 % RH
HumidityAdjustmentAccuracy ±5 % ~ 10 % RH, up to ±1%

Features

1. Fuzzy intelligent control, with control accuracy reaching ±1℃ and ±5%RH~10%RH
2. Optional electric heating or hot water coil
3. Centralized control of multiple units
4. Multi-functional human-machine interface

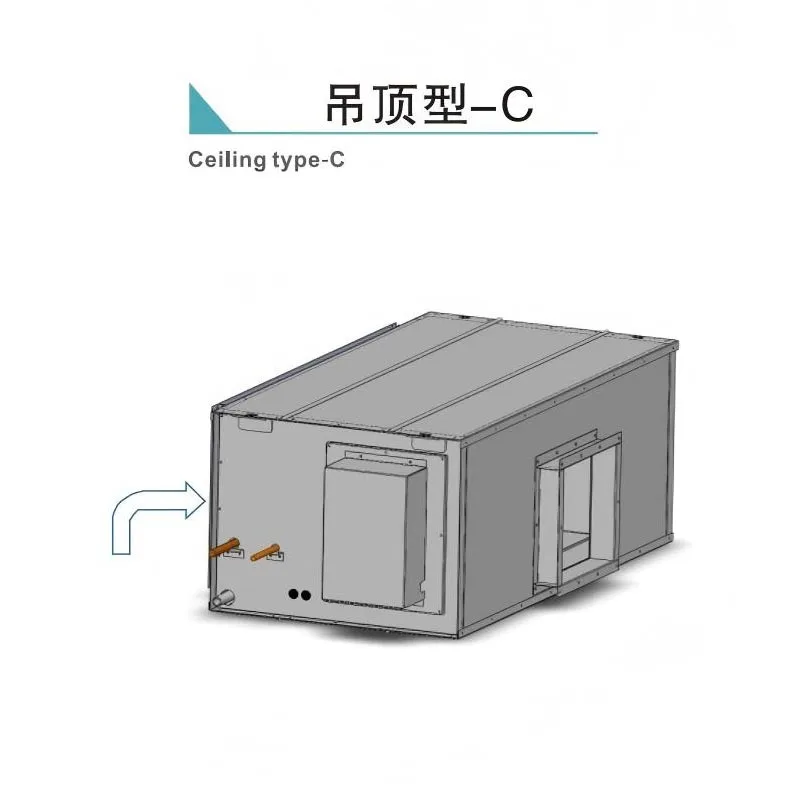

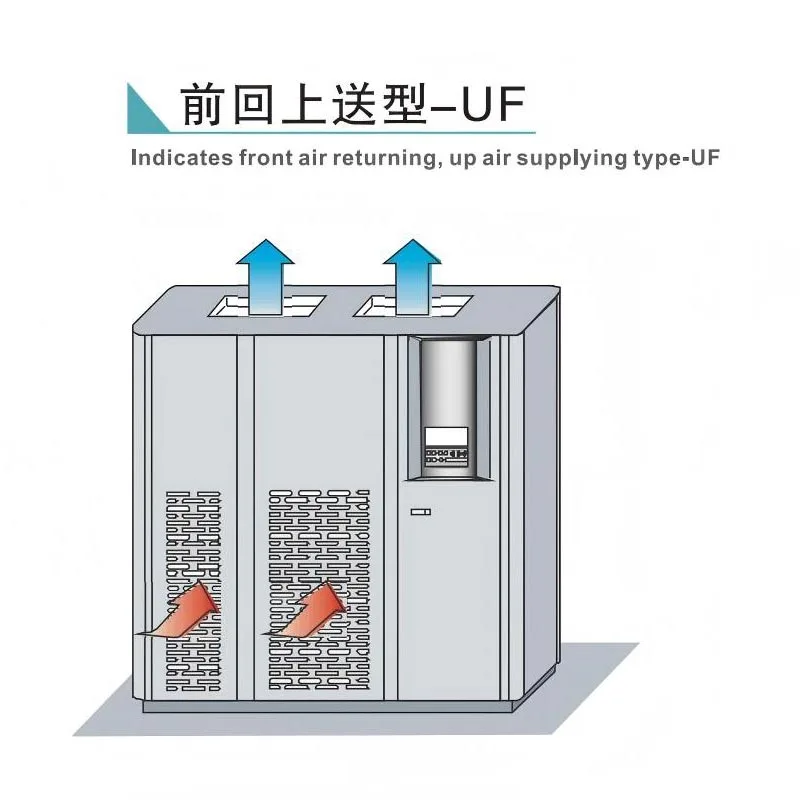

Air Supply & Return Types

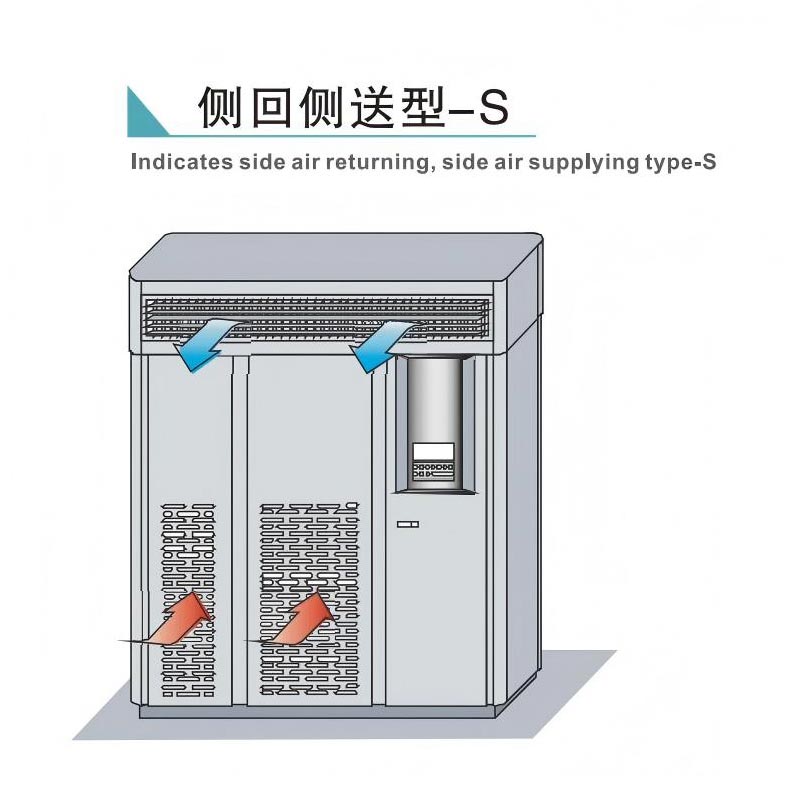

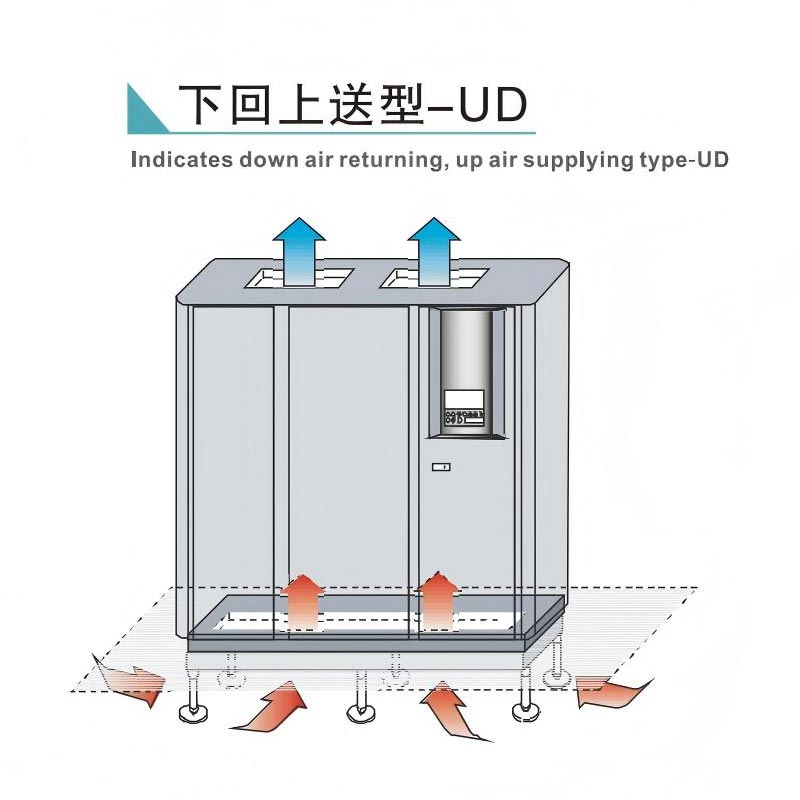

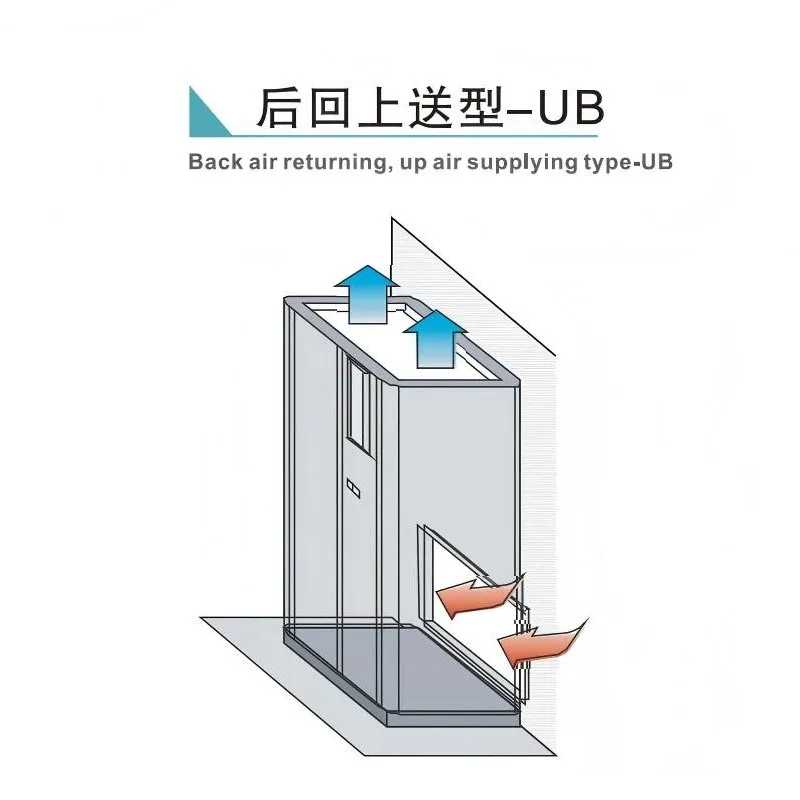

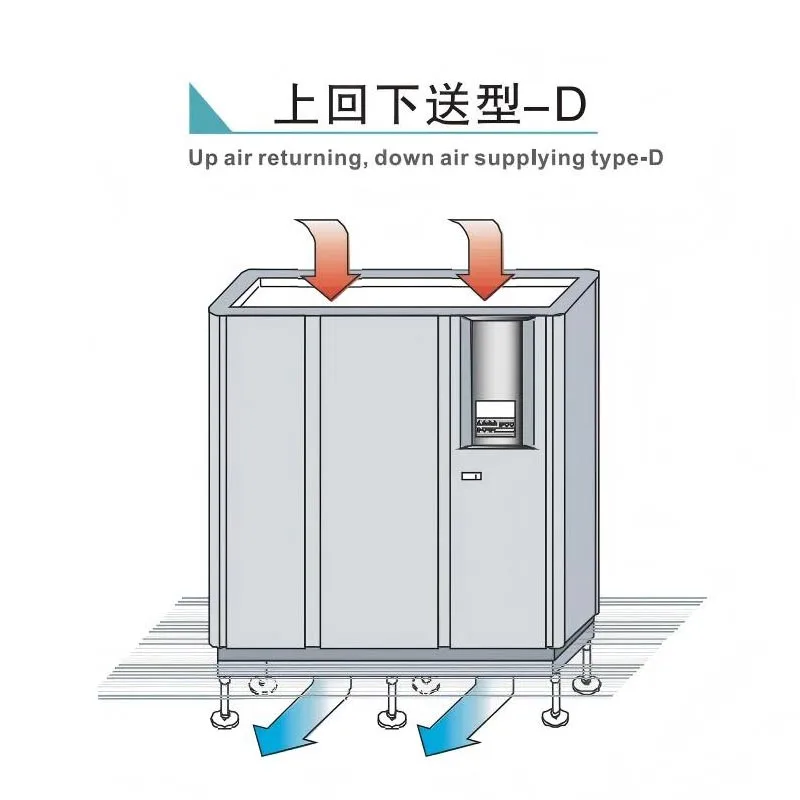

There are various air supply and return types of CRAC Unit, as following pic shows. It can also be customized as required.

Air Supply & Return TypesAir Supply & Return TypesAir Supply & Return TypesAir Supply & Return TypesAir Supply & Return TypesAir Supply & Return Types
