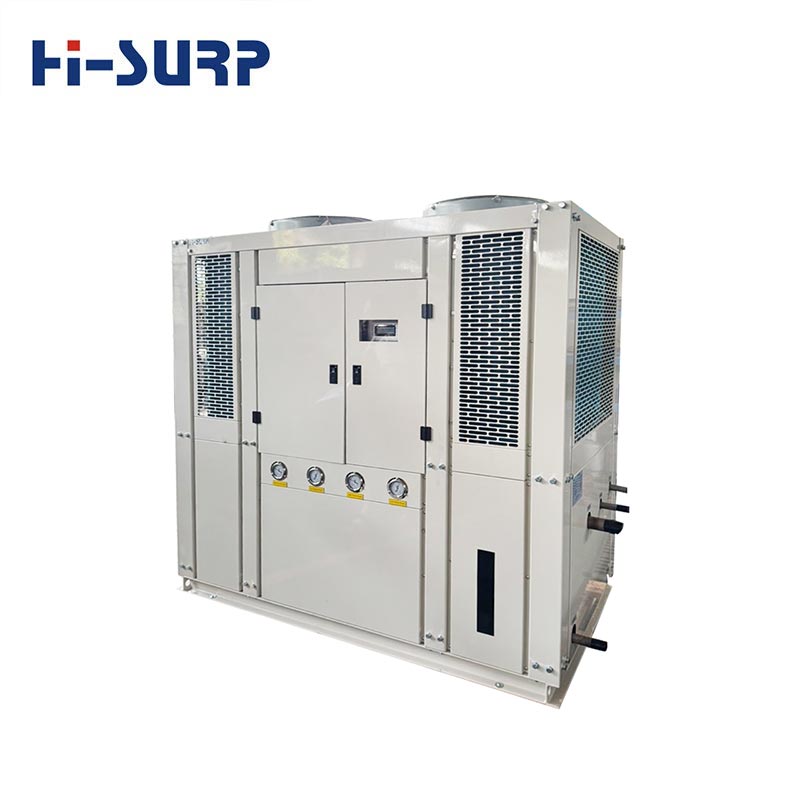

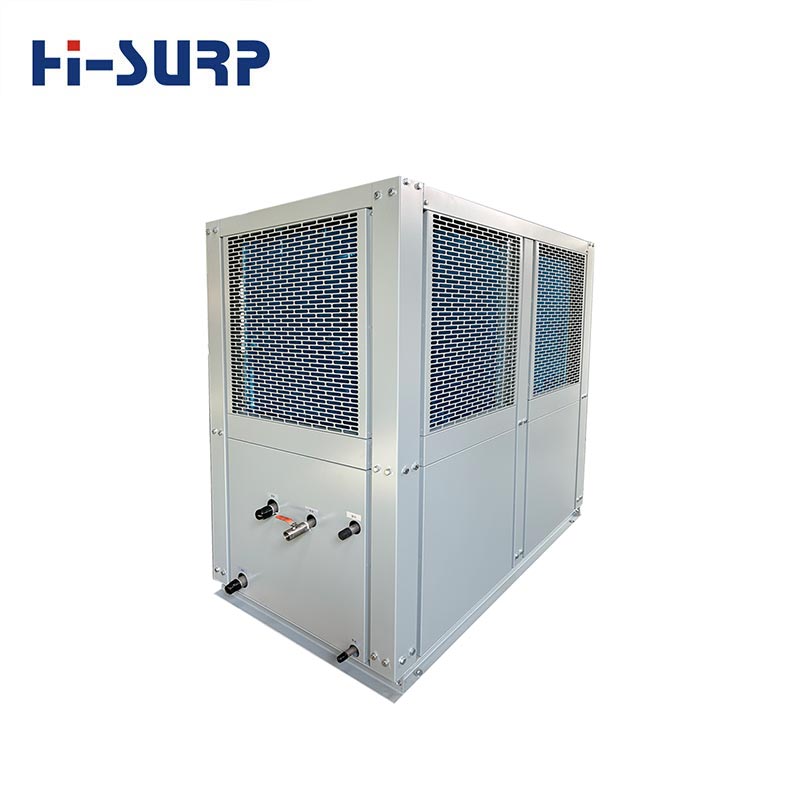

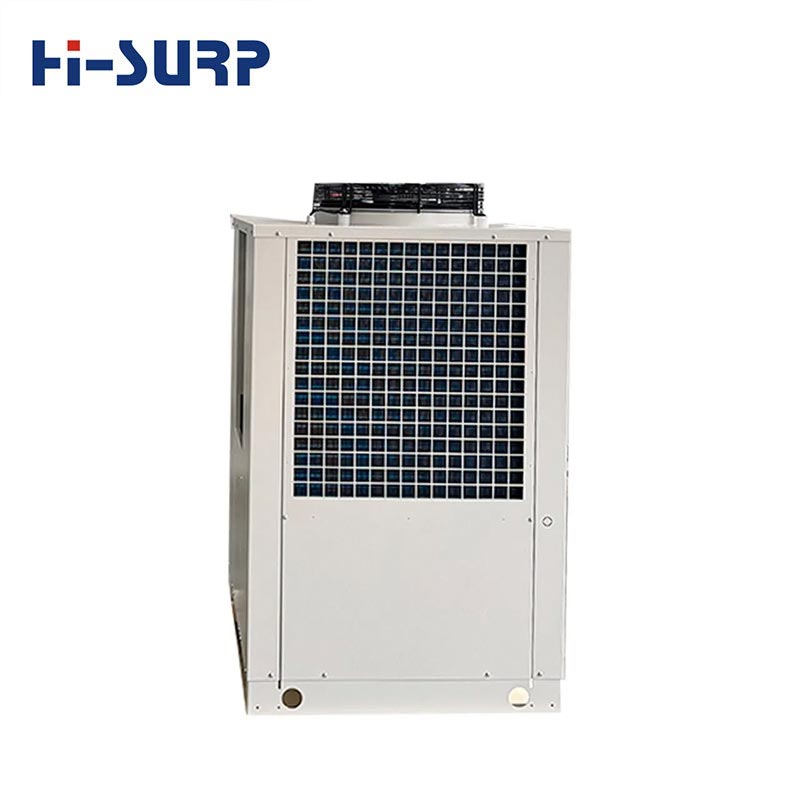

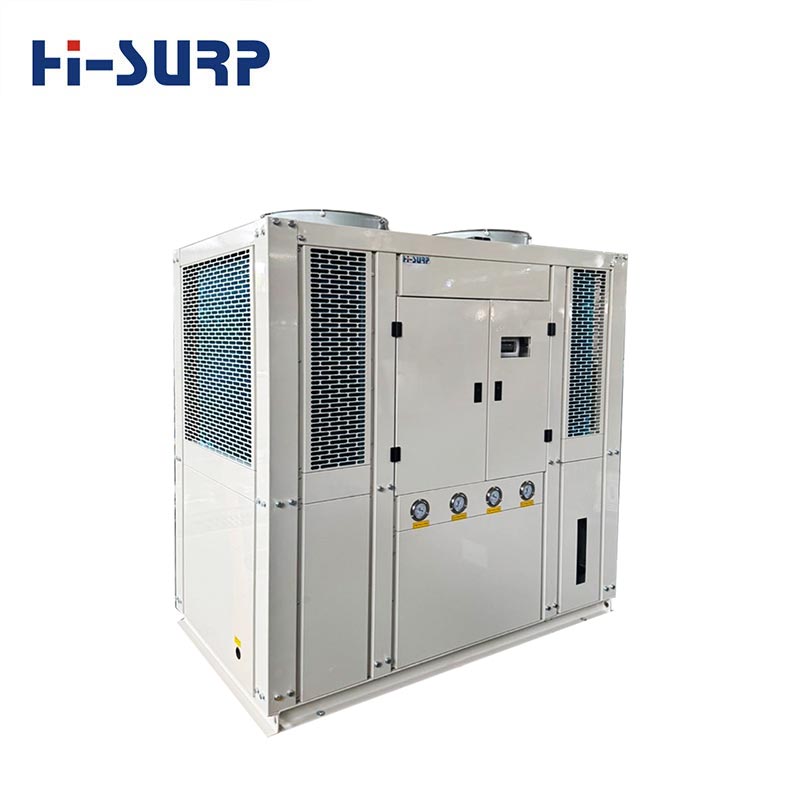

Industrial Chiller

Hisurp industrial chiller is a refrigeration device used to provide a stable supply of low-temperature cooling water (or coolant). With stable and reliable performance, high energy efficiency, low noise, simple and beautiful appearance, and compact and flexible installation, it is an ideal choice for production.

Product Introduction

Hisurp is a China-based manufacturer with many years of experience in Industrial Chiller; we offer a stable supply. For pricing details, please contact us directly.

How It Works

The chiller removes heat from a process fluid through a heat exchanger
A refrigeration cycle (compressor → condenser → expansion valve → evaporator) transfers heat outside the system
The cooled liquid is then circulated back to equipment or production lines
Heat is continuously rejected through air-cooled or water-cooled systems

Application

Application
Application

Industrial Chillers are high-quality product developed and designed by China factory Hisurp based on the best practices of others and the introduction of advanced design concepts. They are widely used in places :

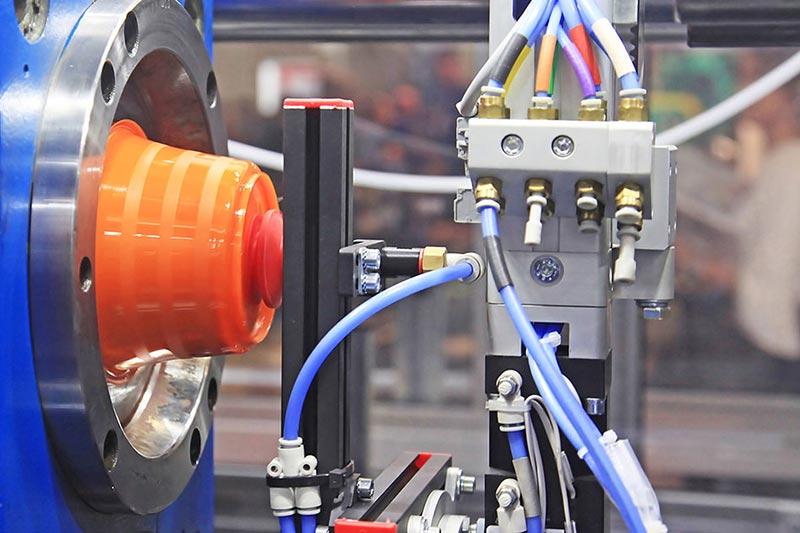

  • Mold cooling in the plastic industry

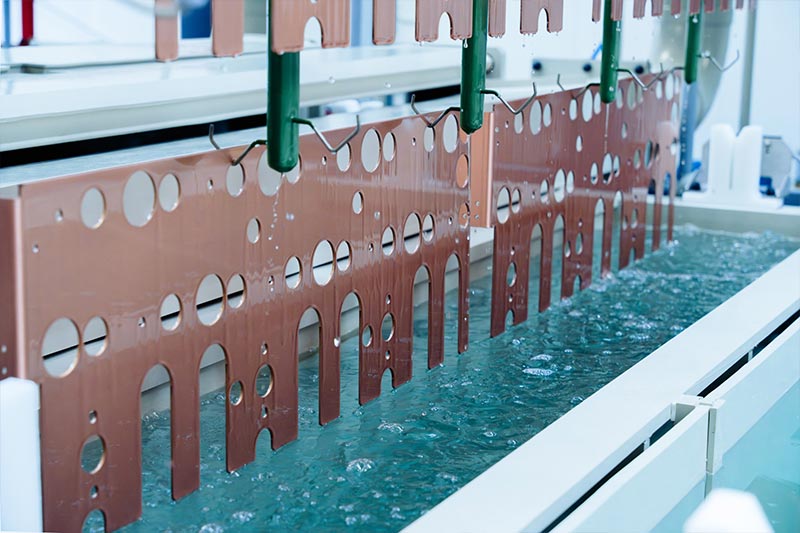

  • The cooling pool in the electroplating industry and the electronics industry
  • Mechanical and construction industry

Features

◆ refrigeration system components from ALCO, SPORLAN, DANFOSS, etc. for standard units
◆ SIEMENS microcomputer electrical control for standard units, clear and easy operation procedures;
◆ stainless steel water tank is installed in the unit
◆ high-quality screw or piston compressors, from well-known international brands
◆ stainless steel water tank is installed in the unit

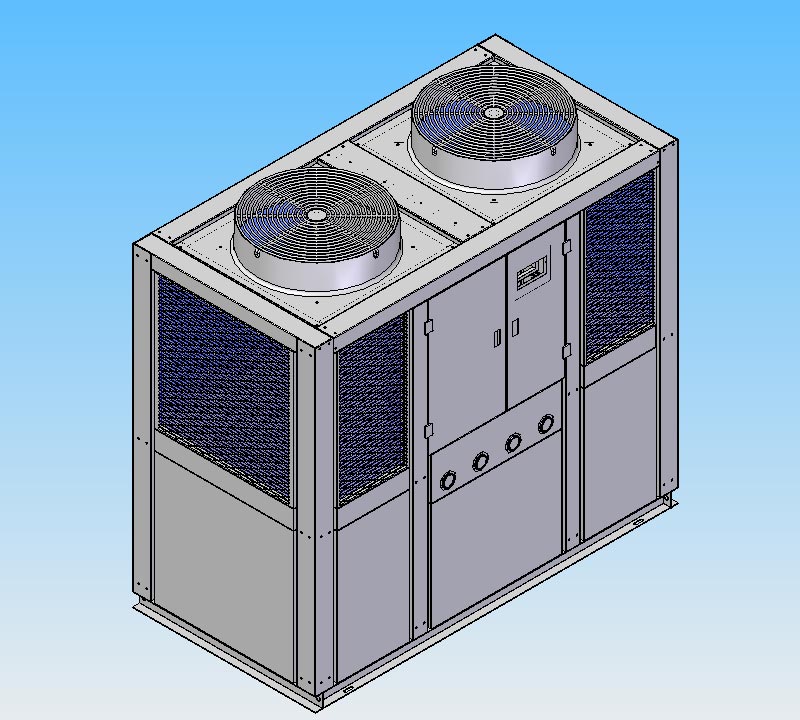

Project Cases

The Industrial Chiller is used for cooling during the assembly process of motor rotors and stators, with following customized requirements:

a. Supply air temperature 0~5℃, inlet air temperature 35℃
b. Chilled water outlet temperature -5℃, chilled water return temperature 0℃; ambient temperature 35℃

Project Cases

How to choose a right model of industrial chiller?

If you can make sure the cooling capacity need, can find the suitable model according to our parameter data, or inform us, we choose for you. If you are not sure the cooling capacity, can inform us:

(1) Your process line description, such as where the machine is used, the production capacity, the power supply etc;
(2) What's the water flow in your system?
(3) What's the inlet and outlet temperature need?
(4) Or any more information you can share us, we will calculate and suggest, even customize a suitable industrial chiller proposal for you.

Key Components and Types of Industrial Chiller

Air-Cooled Chillers

Air-cooled chillers use ambient air to remove heat from the refrigerant, making them easier to install without the need for a cooling tower or additional water system.

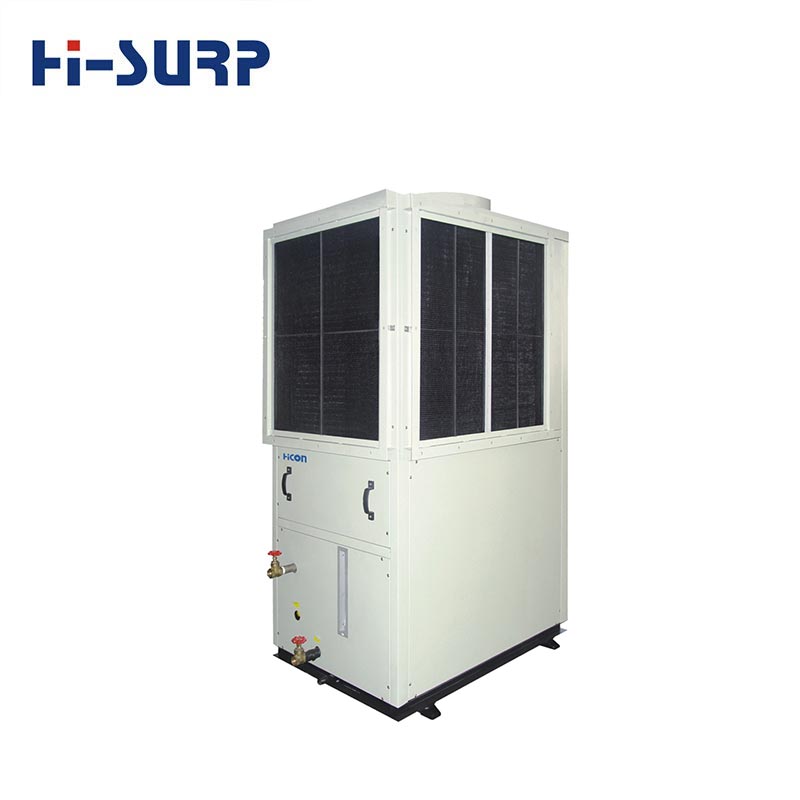

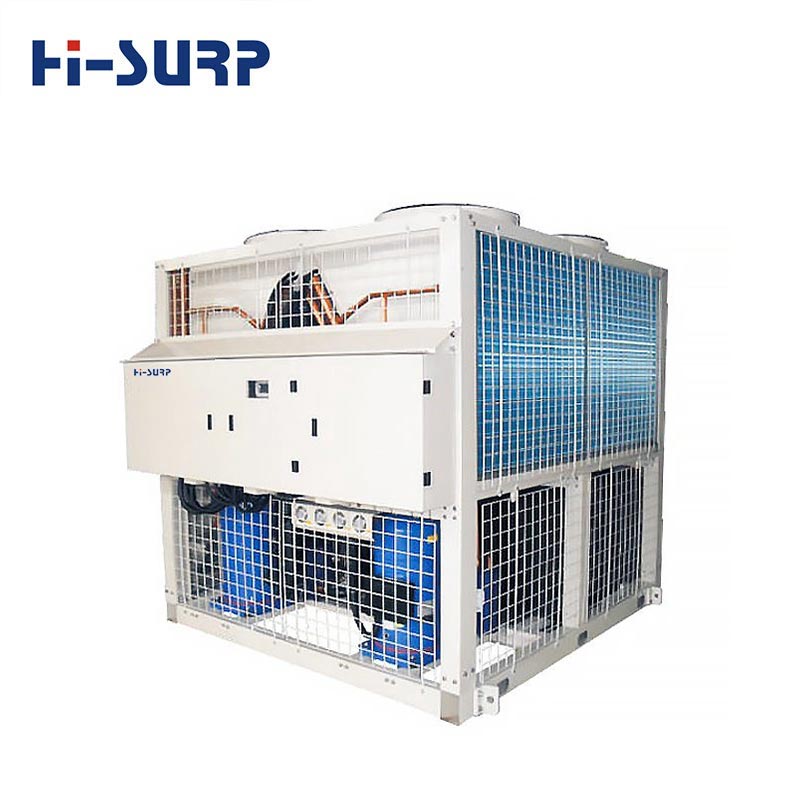

Water-Cooled Chillers

Water-cooled chillers use a cooling tower or water loop to reject heat, offering higher efficiency and better performance in large-scale or high-load industrial applications.

Comparison Item Air-Cooled Chiller Water-Cooled Chiller
Heat Rejection Method Uses ambient air to remove heat Uses cooling water and cooling tower
Installation Requirement No cooling tower needed Requires cooling tower and water system
Initial Cost Lower investment cost Higher initial system cost
Energy Efficiency Lower efficiency in high ambient temperature Higher efficiency in large-scale systems
Maintenance Simpler, fewer components More complex, requires water treatment
Space Requirement More outdoor space needed for airflow Less outdoor space, but needs water infrastructure
Performance in Hot Climate Efficiency decreases in high temperatures Stable performance even in high heat
Typical Applications Small to medium industrial systems Large factories, data centers, heavy industry

Main Components

  • Compressor: Drives the refrigeration cycle
  • Evaporator: Absorbs heat from the process fluid
  • Condenser: Releases heat to air or water
  • Expansion Valve: Controls refrigerant flow
  • Pump & Control System: Circulates fluid and manages operation

Fluid Types

  • Chilled Water: Most common for general industrial cooling
  • Glycol-Water Mixture: Used in low-temperature or anti-freeze applications
  • Specialized Fluids: Used in chemical or precision process cooling systems
