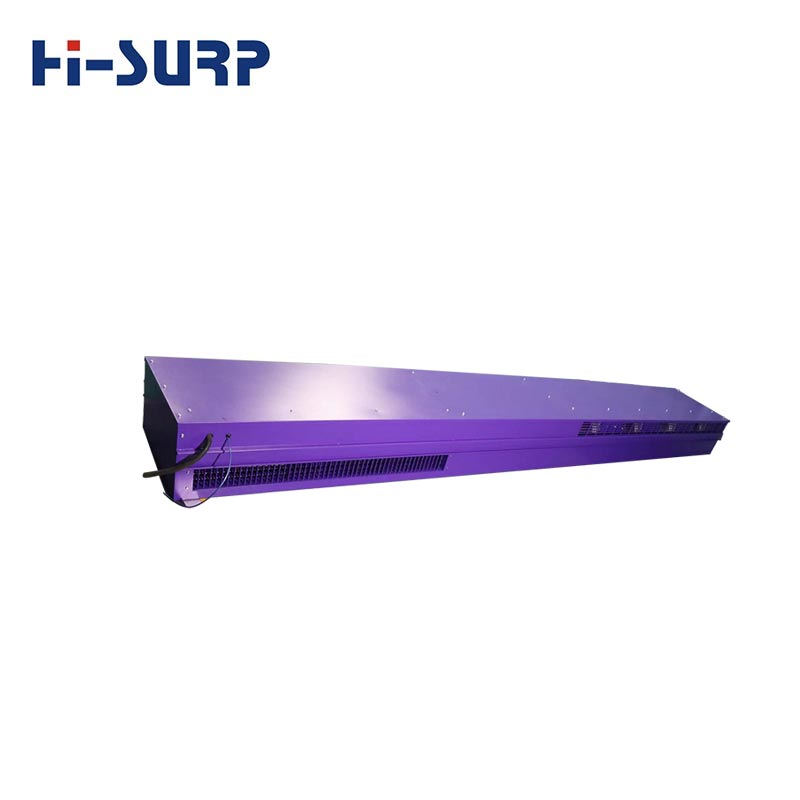

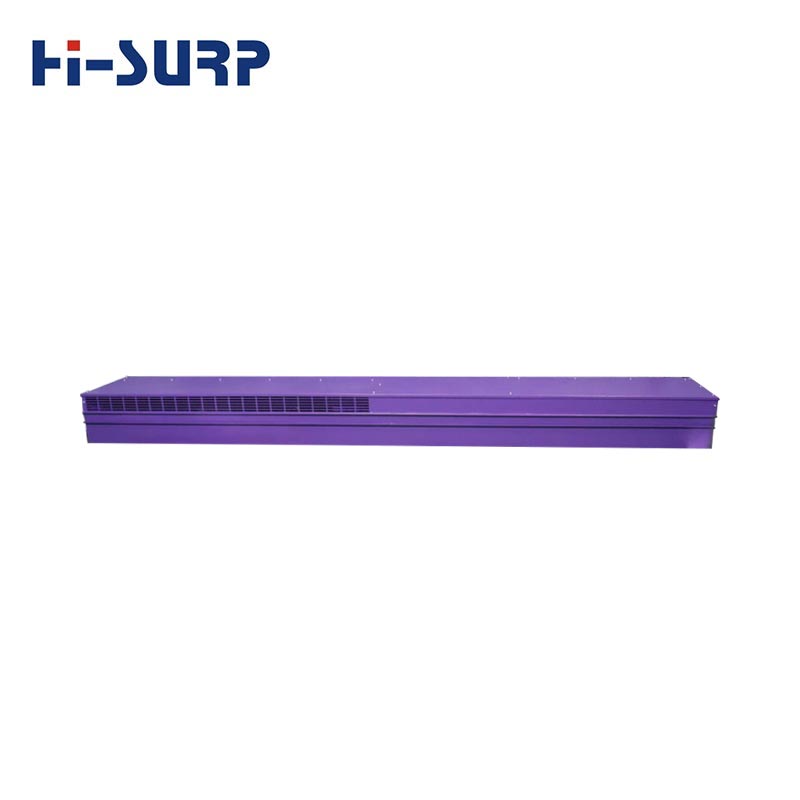

Hisurp Sunroom Air Conditioner is a specialized customized air conditioning solution for semi-outdoor, high-sunlight environments, which is closer in the industry to the "sports stadium + sunroof (glass/membrane structure) environmental control system".
Hisurp manufactured high-performance Heat Exchanger with aluminum fins
Specification
Unit Parameter
Cooling Capacity
KW
7.4
Heating Capacity
KW
7.7
Circulation Air Volume
m³/h
1350
Cooling Power
KW
2.7
Heating Power
KW
2.85
External Residual Pressure
Pa
0
Refrigerant
type
R134A
Power Supply
1P/220V/50HZ
Compressor
type
Inverter Compressor
Qty
1
power(KW)
0.15*2
Outdoor Side
Condenser
type
Copper Tube String Sleeve Type
fin type
high efficient hydrophilic film aluminum fins
Fan
type
Double inlet centrifugal fan
power(KW)
0.08
Indoor Side
Evaporator
type
internal threaded copper tube series casing fin type
fin type
high efficient hydrophilic film aluminum fins
Fan
type
Double inlet centrifugal fan
power(KW)
0.08
Unit Weight
kg
178
Notes:
1.Cooling T1 working condition: outdoor temperature DB=35℃; indoor temperature DB=27℃.
2.Heating working condition: outdoor temperature DB=7℃; indoor temperature DB=20℃.

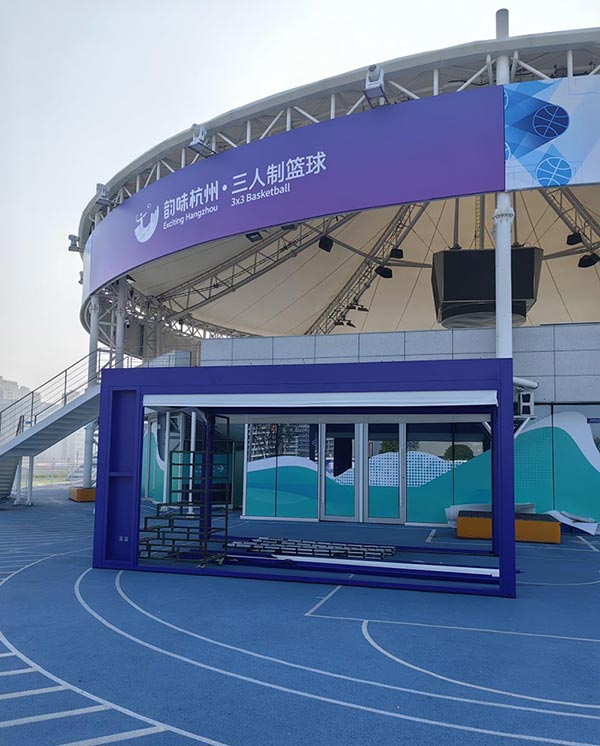

Project Cases
This Sunroom Air Conditioner is customized for--
Hangzhou 2022 19th Asian Games, for 3x3 Basketball Sports Center (Deqing Geographic Information Park
Basketball Court)
Sunroom.
Company Introduction
Hisurp has complete industrial and commercial air conditioner manufacturing lines, an enthalpy difference
test room, a
noise vibration test room, and a heat balance test room. Our laboratory testing centre has also
accreditation
certification from the China National Accreditation Service for Conformity Assessment (CNAS). Our products
also reach
criteria from China CCC, ISO9001, ISO14001, ISO45001, OHSAS certified company, intellectual property
management system,
CE, UL,CCS, CB, CNEX etc. A total of 123 patents were obtained, including 3 invention patents, 91 utility
model patents,
and 29 design patents.
