Water Cooled Air Conditioner

Hisurp, a factory located in China, its Water Cooled Air Conditioners are self-contained, high-efficiency cooling units that use water rather than air to reject heat, making them ideal for high-ambient temperature areas or buildings without space for exterior air-cooled condensers.

Product Introduction

As a professional HVAC manufacturer based in China, Hisurp develops Water Cooled Air Conditioner designed for stable performance, high efficiency, and long-term operation in demanding industrial applications.

How It Works

The system transfers heat through a water-based cooling process instead of relying on outdoor air:

  • Indoor heat is absorbed by the evaporator
  • Refrigerant carries the heat to the condenser
  • Cooling water removes heat from the system
  • Heat is discharged through cooling towers or centralized water systems

This closed-loop structure ensures stable cooling performance even in extreme outdoor conditions.

Why It Is Suitable for Industrial Use

  • Designed specifically for continuous operation in factories and control rooms.
  • Operates stably and reliably in high-temperature, high-load environments.
  • Supports a wide range of cooling capacities (from 10 kW to over 200 kW).
  • Features a modular design, ensuring easy maintenance and a long service life.

Application

Water Cooled Air Conditioner has various scenarios such as electrical control rooms and factories in chemical, paper-making, printing, power, energy, food, garment, micro-electronical, steel-making and other industries.

Application

Specification

Cooling Capacity Range (kW) 10,14,17,20,25,30,35,40,45,55,60 70,80,95,105,120,135,150,170,190,210,230
Air Supply Method Direct / Top Air Supply
Compressor Standard options: 1. Daikin; 2. Sanyo; Optional: Copeland (Emerson)
Supply Fan External-rotor direct-drive centrifugal fan Parallel pulley drive
Condenser Fully submerged high-efficiency tank or shell-and-tube type Dry shell-and-tube
Refrigeration Components Thermostatic expansion valve, gas-liquid separator, receiver
Water Pipe Connection Internal threaded couplings and internal threaded connectors Internal threaded connection
Flow Switch Standard specification: Differential pressure flow switch
Low-temperature Refrigeration Standard configuration: cooling tower type (contact points only);
Optional configuration: centralised piping system
Electrical Components LS Electric (optional: ABB, Schneider)

Features

Evaporator

The heat exchanger of Water Cooled Air Conditioner uses high-performance internally threaded copper tubes and hydrophilic louvered aluminum fins for airflow deflection, processed using advanced mechanical tube expansion technology to achieve optimal heat exchange efficiency.

Water-Cooled Condenser

Water Cooled Air Conditioners below 60kW utilize the latest generation of flooded high-efficiency tank condensers from Europe and America. These condensers offer advantages such as small size, high heat exchange efficiency, strong fouling resistance, low water resistance, and high pressure resistance, establishing a high-quality foundation for the product.
Water Cooled Air Conditioners above 60kW employ optimized and improved shell-and-tube condensers with multi-section modular design, offering high heat exchange capacity. In addition to the aforementioned advantages, they also feature convenient maintenance and cleaning, and a long service life.

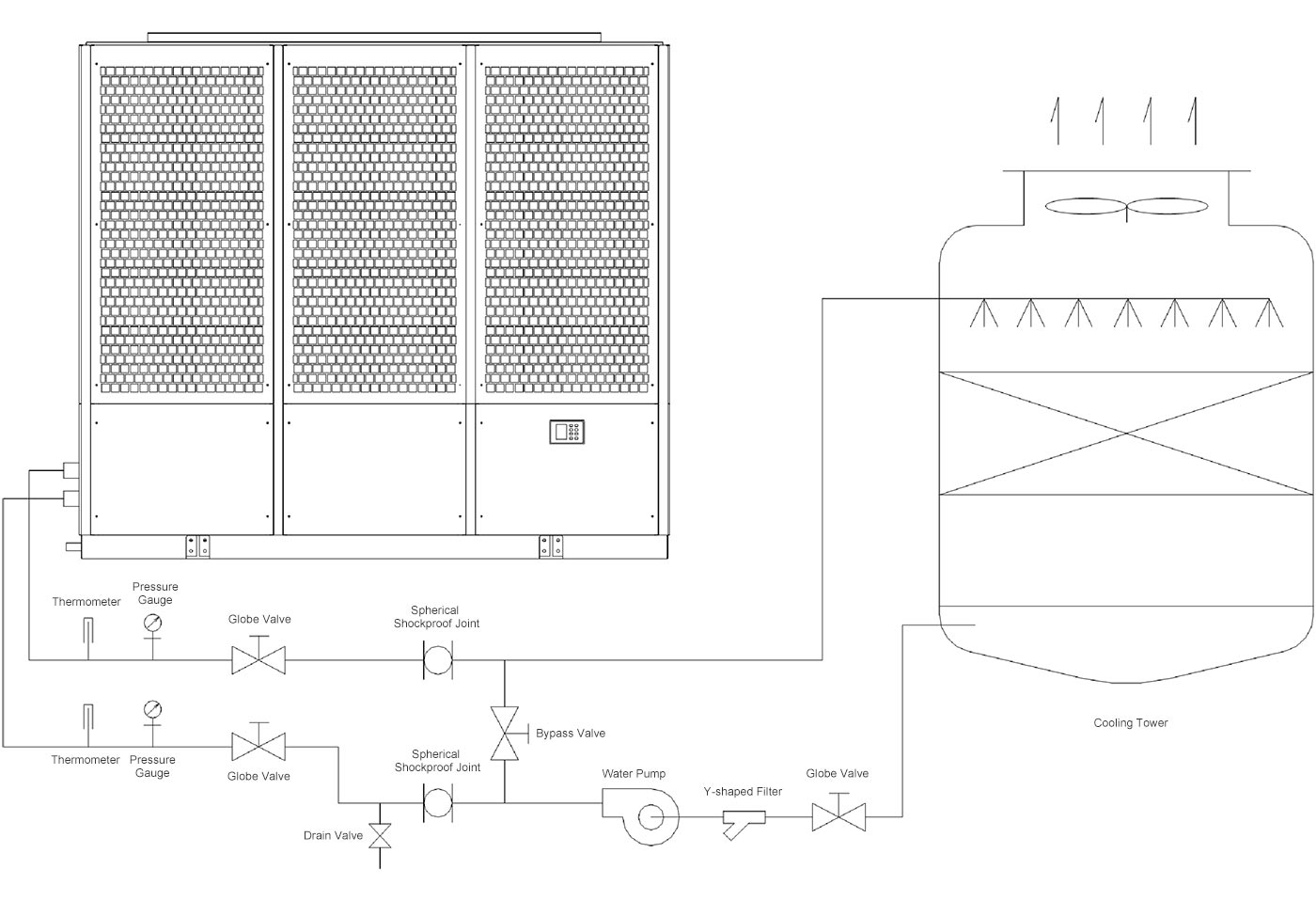

Installation

For Packaged Type Water Cooled Air Conditioner

Installation
