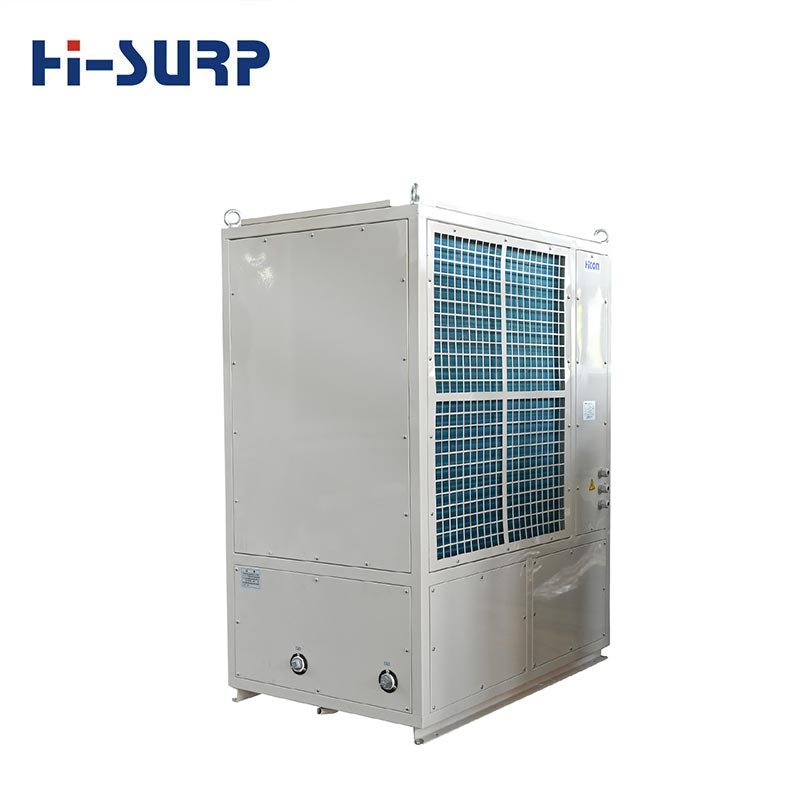

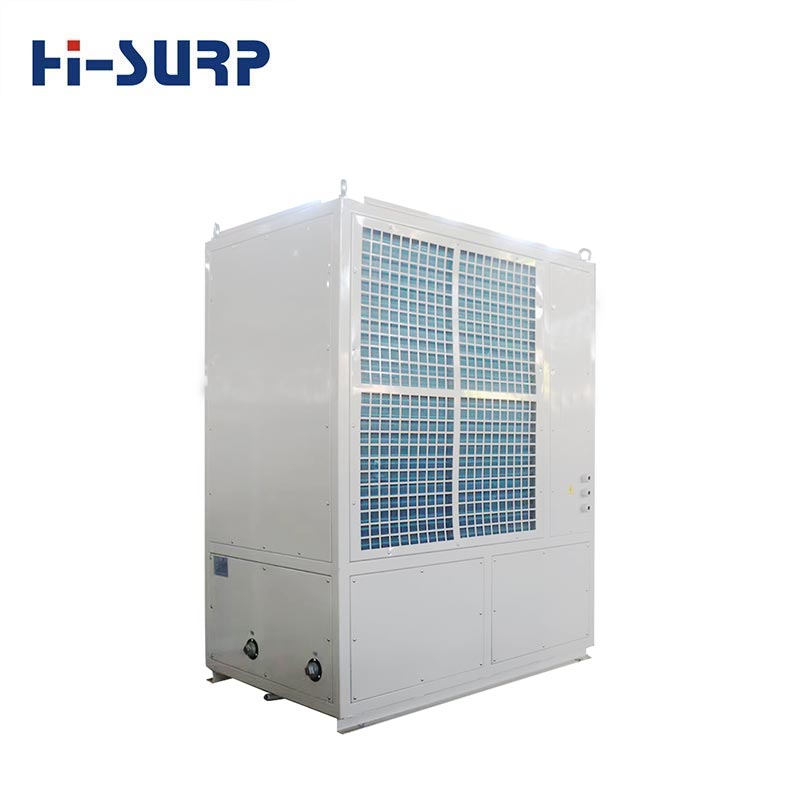

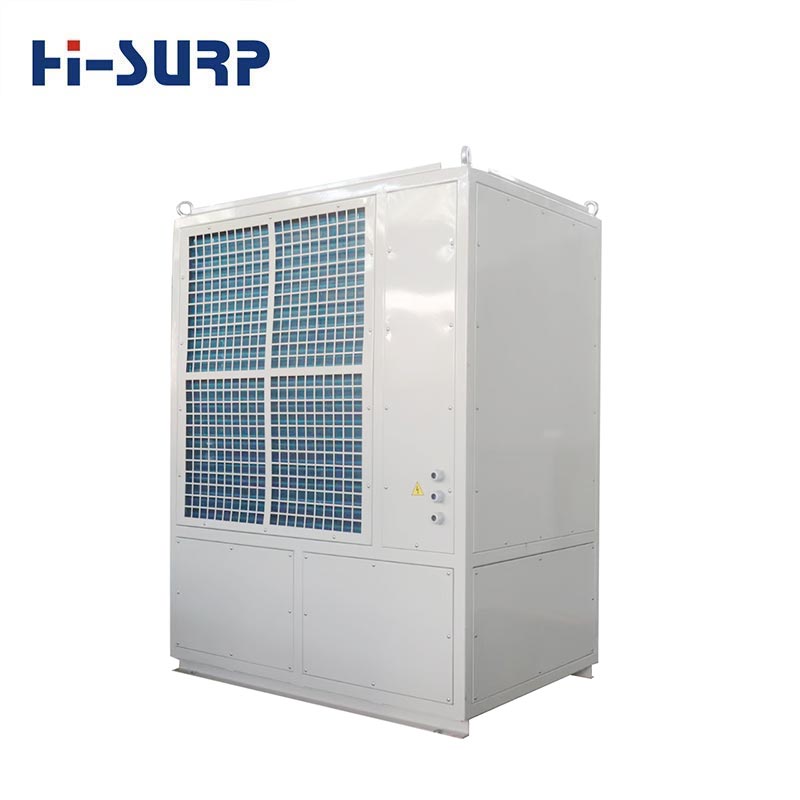

CNC High Temperature Oil Cooler

Hisurp advanced CNC High Temperature Oil Coolers is specifically designed for controlling the temperature of hydraulic power units. It can be used in applications with high ambient and high fluid temperatures, such as steel mills, metallurgical plants, and coking plants.

Application

Hisurp CNC High Temperature Oil Cooler is
applicable ambient temperature: 5-65℃; Extreme ambient temperature: 75℃;
applicable liquid temperature: 5-75℃; Extreme liquid temperature: 90℃;
applicable liquids: Common mineral oils, water, ethylene glycol, etc.

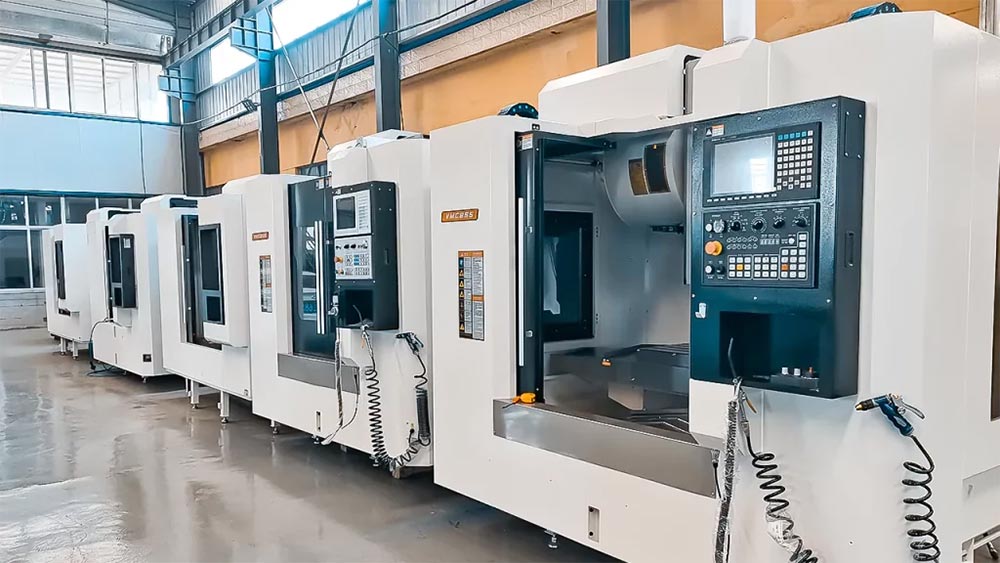

Application

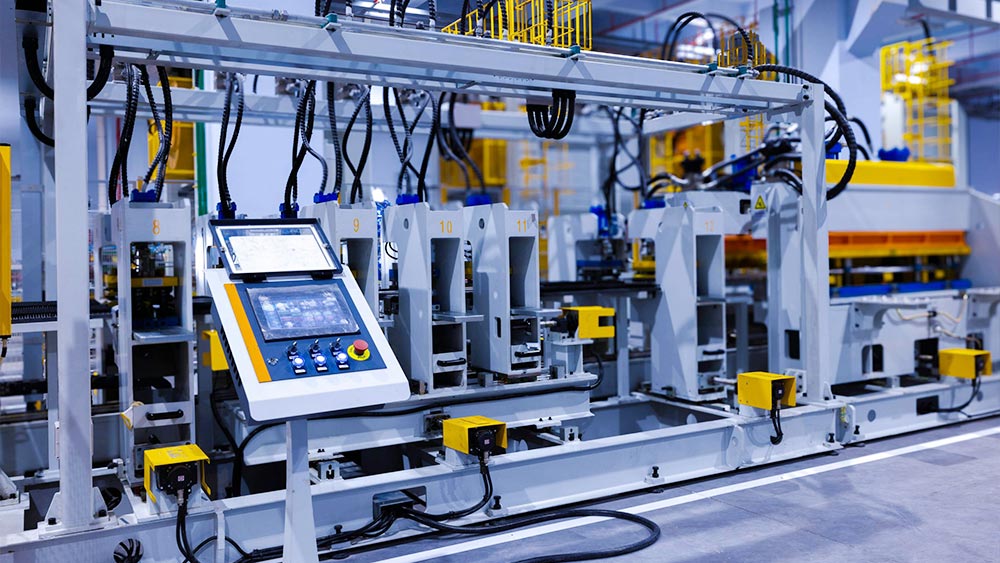

Application

Specification

BY-8BS BY-10BS BY-12BS BY-15BS
Refrigerating Capacity W 8000 10000 12000 15000
Power Supply The Major Loop 3P~50HZ~380V
The Control Circuit 1P~50HZ~220V
Input Power W 4500 5600 6500 8500
Temperature Control Range Refrigeration mode 15~75 ℃ differential temperature mode (room temperature ± T)
Fluid Pump Flow L/min 50 50 70 70
Applicable Oil Ordinary mineral oil and water glycol, etc
Refrigerant R142b
Outline Dimension L mm 1180 1180 1500 1500
W mm 660 660 650 650
H mm 1350 1350 1610 1610
Inlet and Outlet Pipes Inlet Rc1 ″ Rc1 1/2″
Outlet Rc1 ″ Rc1 1/2″

Note:

1. Refrigeration mode: when the oil temperature is equal to or greater than "set refrigeration temperature+temperature return difference", the compressor starts in a delayed manner (the starting mode is the same as that of differential temperature control). When the oil temperature is equal to or less than "set refrigeration temperature - temperature return difference", the compressor stops.
2. Differential temperature mode: under the differential temperature control state, when the oil temperature is greater than or equal to "room temperature+temperature deviation (T)", the compressor starts in a delayed manner; when the oil temperature is less than or equal to "room temperature - temperature deviation (T)", the compressor stops.
3. Our company accepts orders with special specifications.
4. Performance parameters and structural parameters are subject to change without prior notice due to product improvement or upgrading

Features

  • No cooling water (cooling tower required) required
  • Increases the operational reliability of machining equipment and extends its service life
  • Prevents machining accuracy from being affected by spindle temperature fluctuations
  • Selectable differential temperature mode maintains synchronized deformation and ensures machining accuracy
  • Fault alarm, self-test, and signal output; can be linked with the host machine
  • Prevents excessively high oil temperature, which can lead to evaporation, oil deterioration, and viscosity reduction
  • Stable oil pressure and prevents oil sloshing

Functions

  • Prevents machine tool thermal deformation
  • Prevents machine tool spindle center misalignment
  • Prevents oil oxidation and evaporation
  • Stabilizes oil pressure and prevents oil vibration
  • Improves machine tool machining accuracy
  • Extends equipment and tool life
