Machine Oil Cooler
  • Machine Oil CoolerMachine Oil Cooler

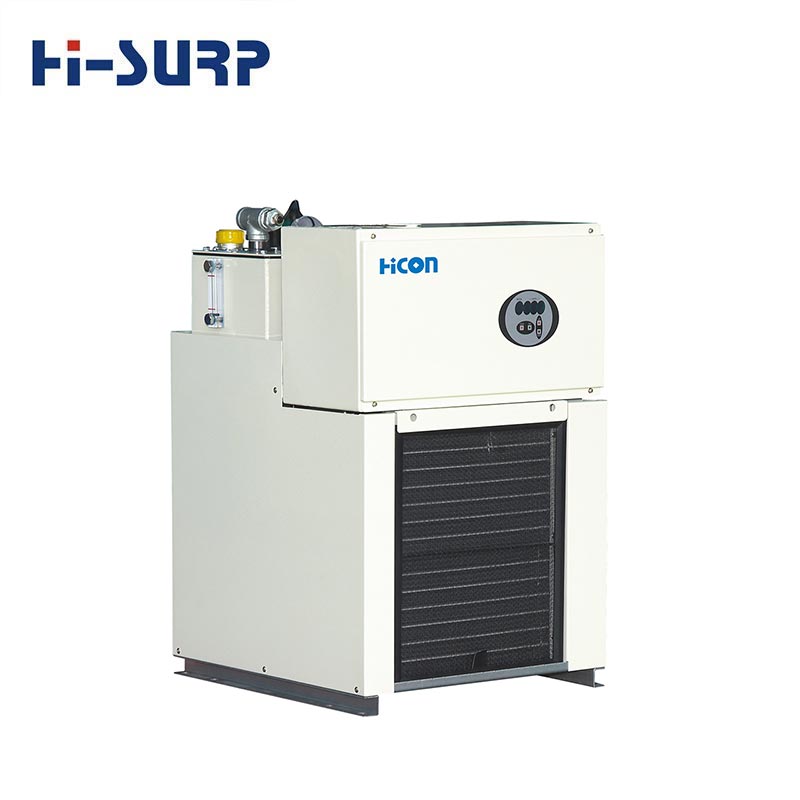

Machine Oil Cooler

HIsurp Machine Oil Coolers play a vital role in maintaining optimal machinery performance and preventing costly repairs caused by overheating. By keeping equipment running smoothly and efficiently, they help to improve the accuracy and quality of products as well as reduce the overall operating costs of industrial processes.

Send Inquiry

Application

Hisurp Machine Oil Cooler is applicable to all kinds of equipment and devices that need to reduce and maintain the temperature of lubricating oil or hydraulic pressure, such as

  • Precision grinding machines,
  • CNC machine tools,
  • Machining centers,
  • Hydrostatic bearings, etc.
  • etc.

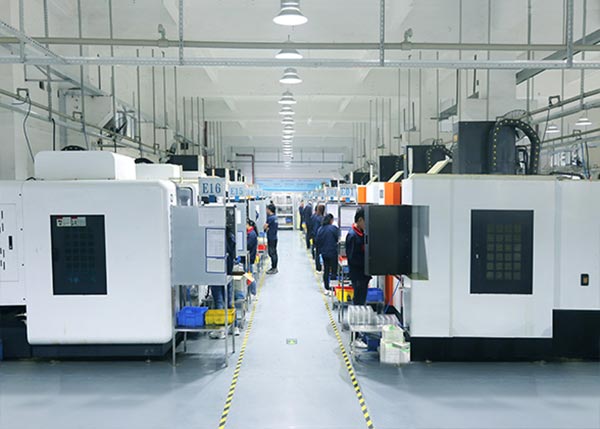

Application

Working Principle

Machine Oil Coolers cool oil through a refrigeration and heat exchange system:

  • Oil flows from equipment (such as a hydraulic system) into the oil cooler.
  • The oil passes through an oil-refrigerant or oil-water heat exchanger.
  • The refrigeration system (compressor + condenser + evaporator) removes the heat.
  • The cooled oil is returned to the equipment for reuse.

Essentially, it's a closed-loop oil temperature control system.

Specification

Cooling Capacity 1200~40000 W
Refrigerant R410A, R134A, R407C, R22
Type Normal ambient temp. type, High ambient temp. type
Applicable Oil Mineral hydraulic oil and lubricating oil (excluding flammable mineral oil, aqueous solution of ethylene glycol, chemical liquid and food oil, cutting oil, grinding

Features

◆ Prevent CNC machinery from affecting processing due to changes in oil temperature

◆ Prevent oil shock and oil quality deterioration, and keep the viscosity of lubricating oil unchanged to stabilize the spindle action

◆ The machine adopts the body synchronous temperature control panel to keep the oil temperature synchronized with the room temperature, so as to prevent the mechanical structure from thermal expansion and cold contraction.

◆ This machine is equipped with automatic fault detection function, which can inform the CNC computer of the fault point in time through the computer connection, so as to avoid damage to the machine parts.

◆ The design can be changed in this series of products according to different requirements of users, and various accessories are available to meet the needs of different users.

When Choosing A Model of Machine Oil Cooler

Key considerations for Machine Oil Cooler selection:

  • Cooling Capacity (kW) :Calculated based on oil calorific value
  • Flow Rate (L/min) :Matches system circulation requirements
  • Inlet/Outlet Oil Temperature :E.g., Inlet 45℃ → Outlet 35℃
  • Environmental Conditions :High-temperature environments (e.g., Middle East), High humidity/salt spray (requires corrosion protection)
  • Oil Type :Viscosity, corrosiveness, flammability
  • Control Precision Requirements :General industrial vs. precision machining
Hot Tags: Machine Oil Cooler Manufacturer
Related Category
Send Inquiry
Related Products
CNC High Temperature Oil Cooler
CNC High Temperature Oil Cooler View More >>

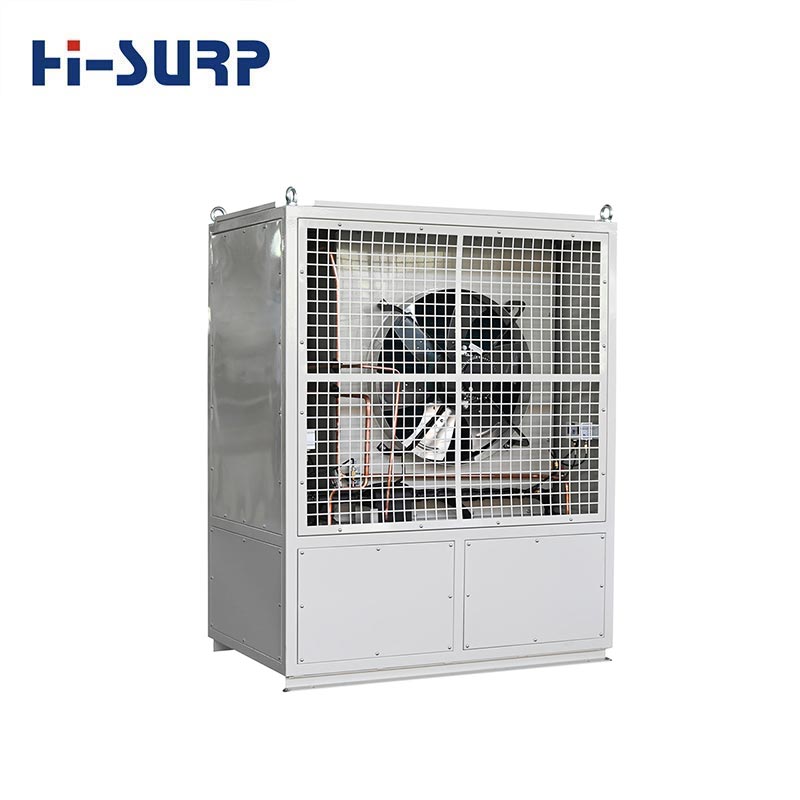

Oil Cooler
