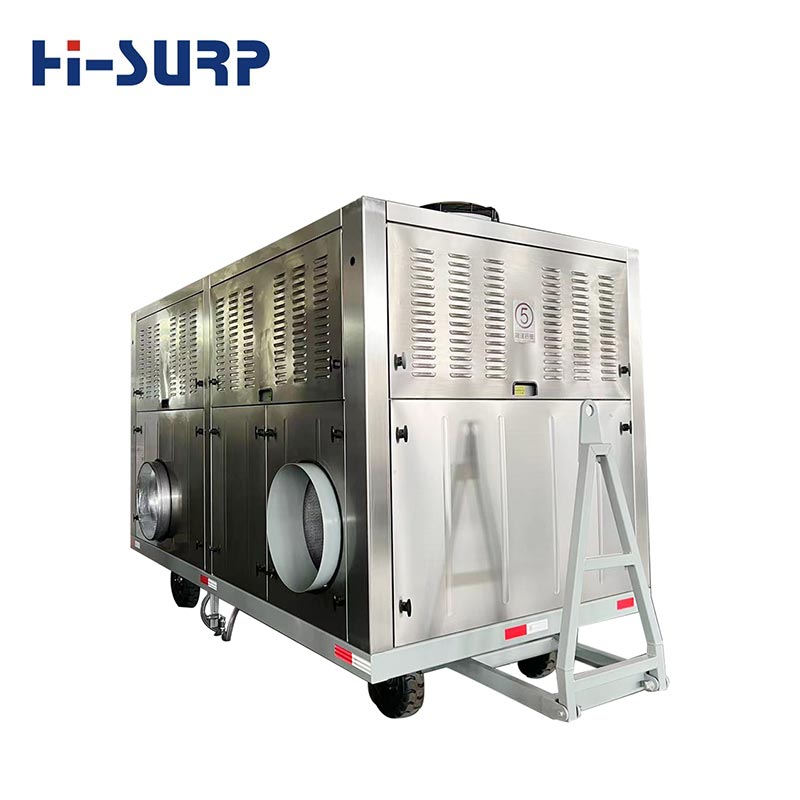

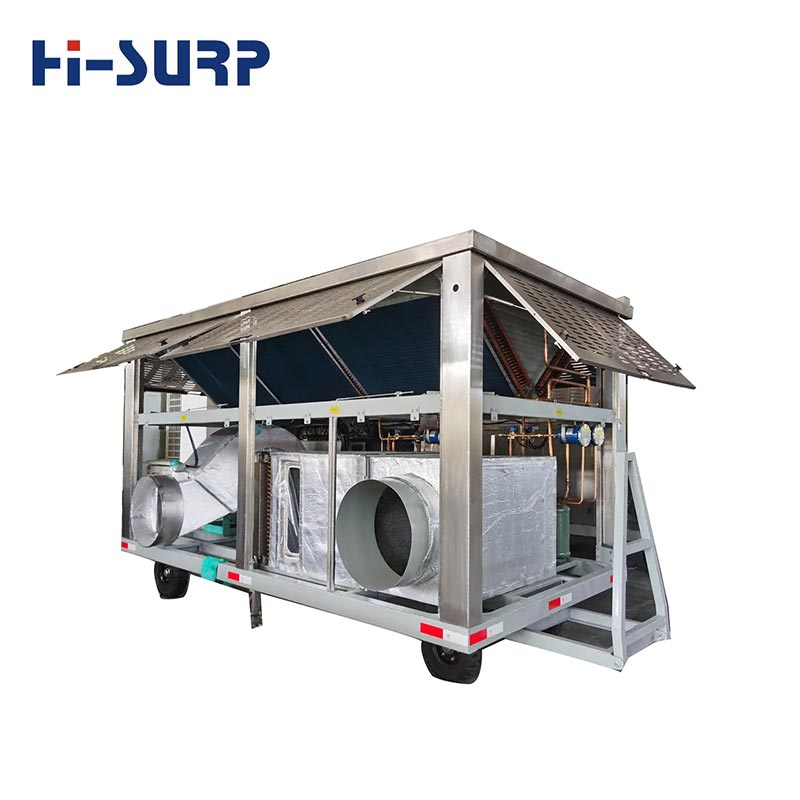

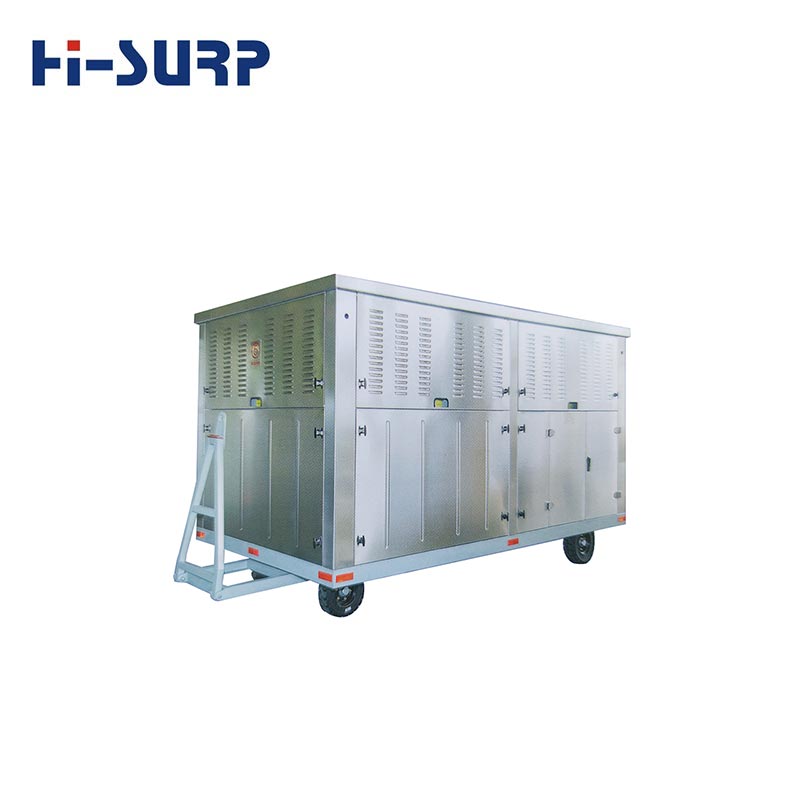

Grain Air Conditioner

Hisurp customized Grain Air Conditioners are key equipment for achieving green, low-temperature grain storage. After the air is cooled and the humidity is adjusted, air with specific temp and humidity suitable for the stored grains, is blown into the warehouse to meet the requirements for cooling the entire warehouse grain pile and realize the low-temp storage of grains.

Send Inquiry

Product Introduction

The Grain Air Conditioner is produced by Ningbo Hicon Industry Co., Ltd.; we are one of the leading manufacturers and suppliers in China. A grain air conditioner (also known as a grain cooler or grain refrigeration unit) is a specialized industrial cooling system designed to preserve the quality of bulk-stored agricultural products, such as corn, wheat, soybeans, and rice.

Why Is a Grain Air Conditioner Necessary?

Stored grain is a living organism that generates heat and moisture. Without intervention, this leads to:

  • Insect Infestation: Most grain-damaging insects become dormant and stop breeding at temperatures below 15°C.
  • Mold & Mycotoxins: High temperatures and humidity promote the growth of fungi, which can ruin an entire silo and create toxic byproducts.
  • Mass Loss: Through "cellular respiration," grain literally burns off its own weight (carbohydrates) when warm. Cooling significantly slows this process.

Feature

Feature Aeration Fans Grain Air Conditioner
Weather Dependency Can only run in cool, dry weather. Operates 24/7 in rain, fog, or heat.
Chemical Use Often requires fumigants to stop pests. Natural protection; minimizes chemical needs.
Storage Time Limited by seasonal temperatures. Extends storage for up to a year or more.
Grain Quality High risk of moisture migration. Uniform temperature throughout the bulk.

Application

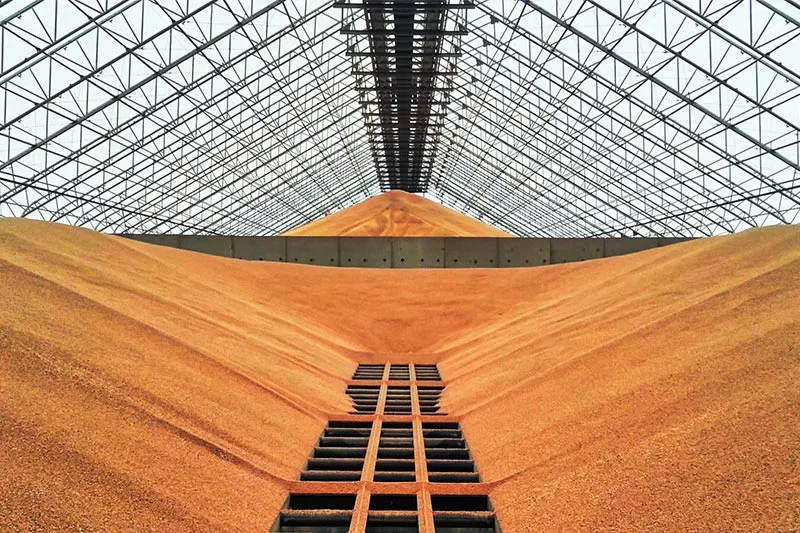

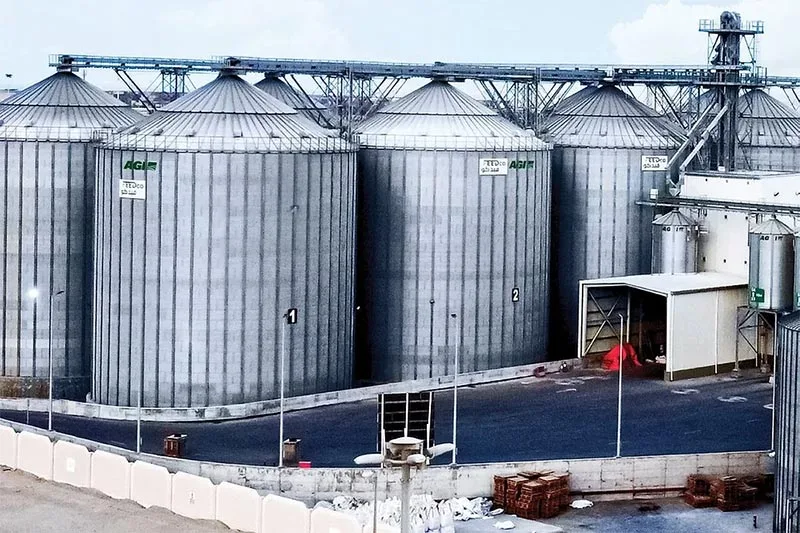

Grain Air Conditioner is suitable for low-temp ventilation of various types of grain and oil in different types of warehouses such as vertical silos, shallow round silos, and flat warehouses. It is also suitable for horizontal grain cooling and ventilation of flat warehouses such as rice, wheat, and corn.

Application
Application

Working Principle

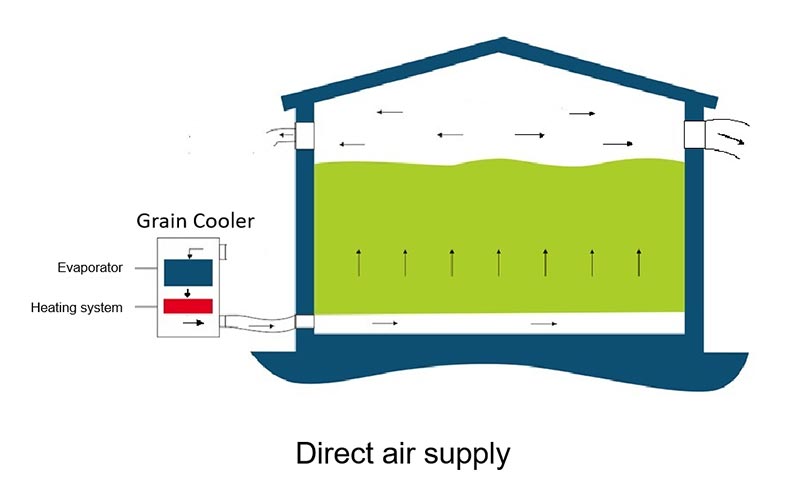

The ambient air after filtration enters the evaporator to be cooled, and the air temperature decreases and the humidity increases. The cold humid air is heated by the heating system and then dried, and then the centrifugal fan (frequency conversion speed control) will send the air with temperature and humidity in line with the set value into the warehouse. The temperature and humidity of the air supply are automatically controlled and regulated by the PLC system.

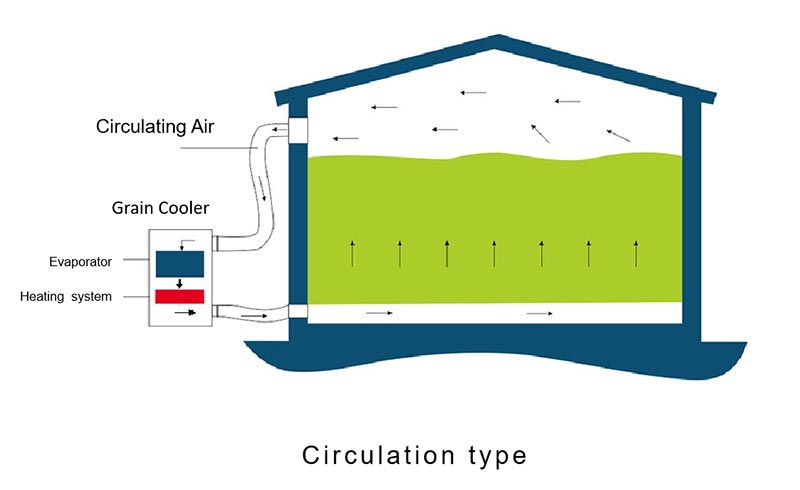

There are two working types of Grain Air Conditioner, which are shown as below:

Working Principle Working Principle

Features

  • Maintain the quality of stored grain, delay grain aging, and achieve fresh grain storage
  • Inhibit pests and diseases, avoid chemical fumigation pollution, green grain storage
  • Cut losses due to pests and microbial growth and maintains food hygiene
  • Slow down the metabolism, ageing and deterioration of the grain, and ensures the edible quality of the grain.
  • Reduce the loss due to grain respiration, insect damage, high temperature and heat, mildew and warehouse dumping, and greatly reduce the cost of grain storage
  • High efficiency design, low operating cost
  • Energy saving, intelligent and easy to use
  • Stainless steel housing, good corrosion resistance
  • Intelligent control, safe and reliable

Packing & Delivery

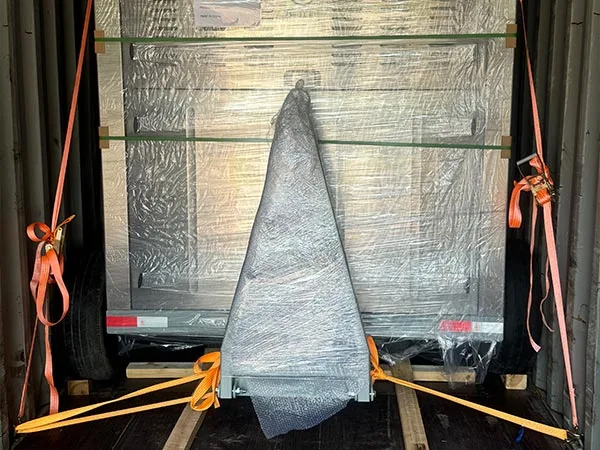

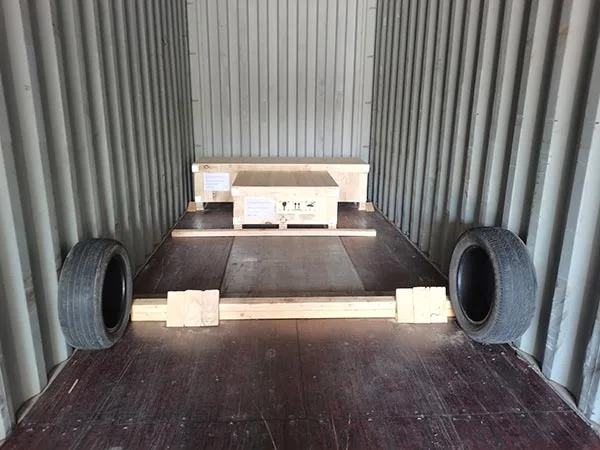

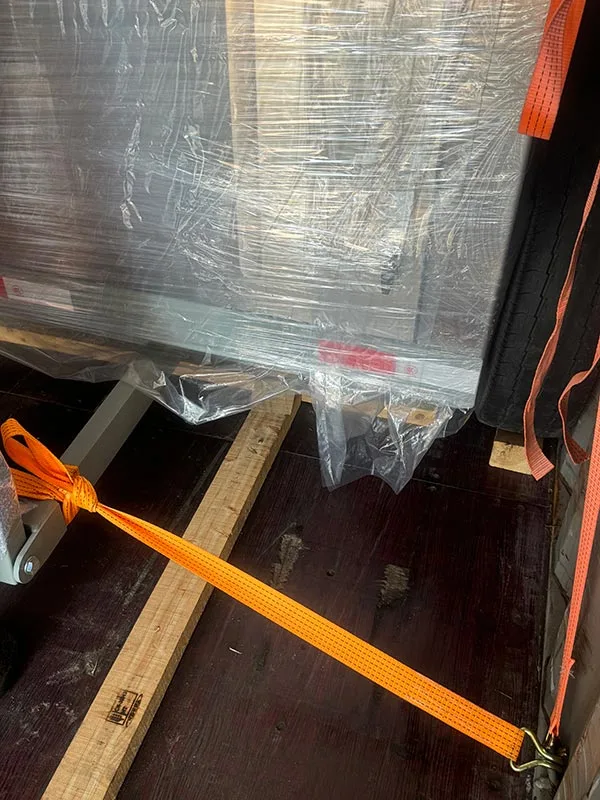

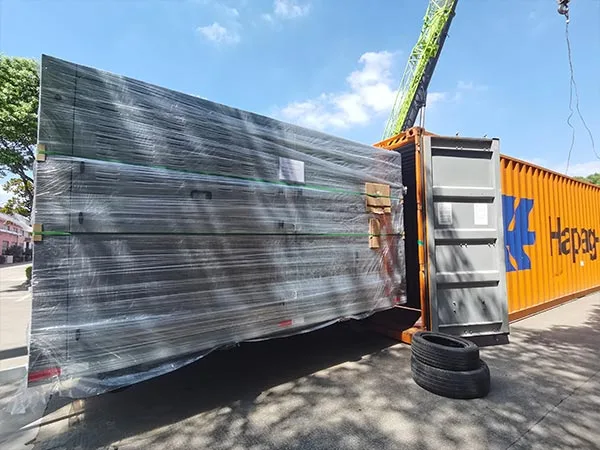

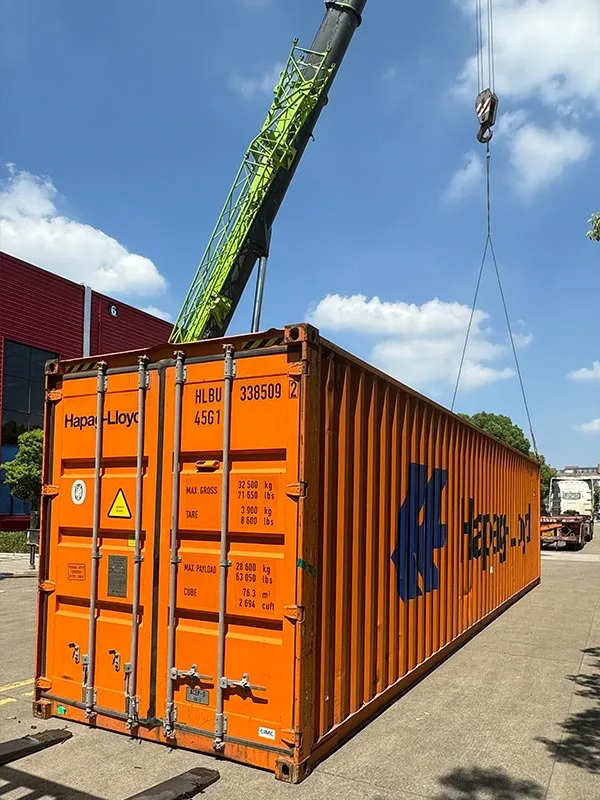

To ensure the Grain Air Conditioner can be loaded into the container and remains intact during transport, the factory will remove the wheels after the unit has been tested and wrapped with plastic film to prevent scratches. Before loading, fixed supports, wooden strips, and foot pads will be placed inside the container to prevent the unit from moving during transport. After the unit is loaded into the container, additional reinforcing straps will be added for secondary securing.

Packing & DeliveryPacking & DeliveryPacking & DeliveryPacking & DeliveryPacking & DeliveryPacking & Delivery
Hot Tags: Grain Air Conditioner Manufacturer
Related Category
Send Inquiry
Related Products

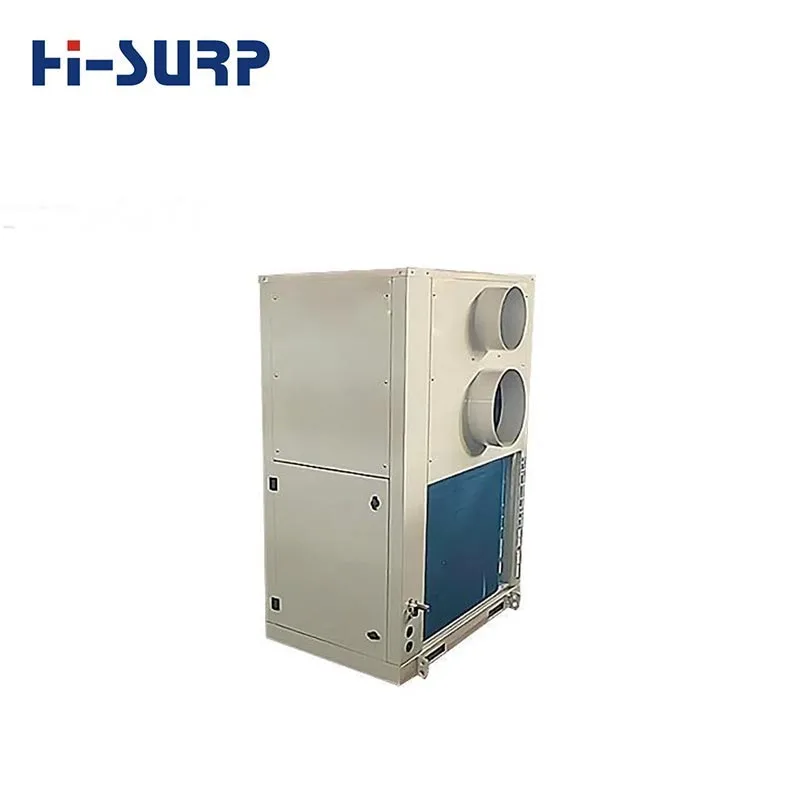

Grain Dryers Units
Grain Dryers Units View More >>
Grain Drying Equipment
Grain Drying Equipment View More >>
Grain Cooling Solution
Grain Cooling Solution View More >>
Silo Granary Storage Cooler
Silo Granary Storage Cooler View More >>

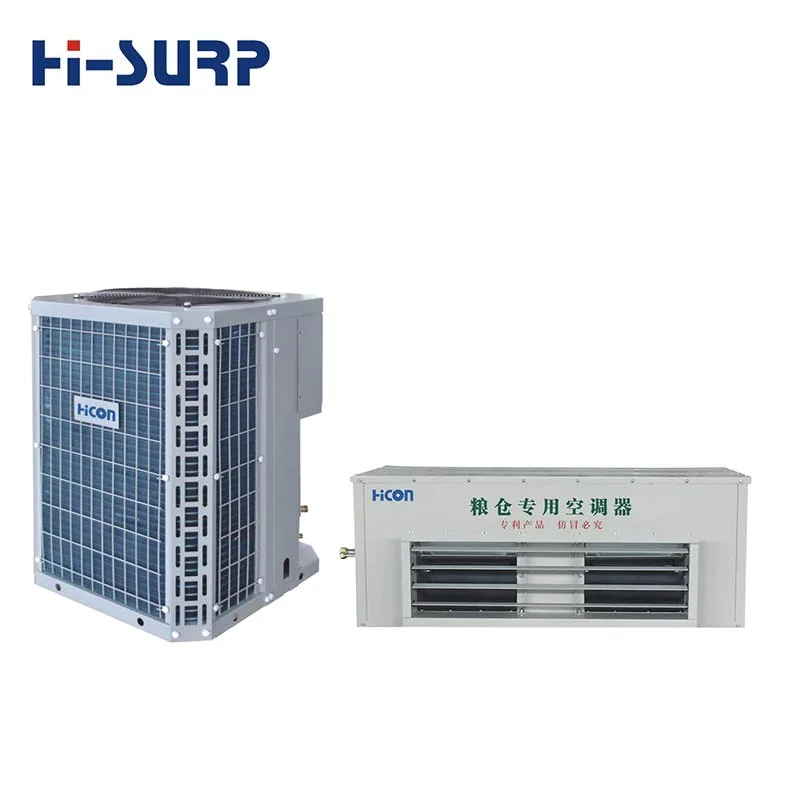

Grain Cooling Devices
