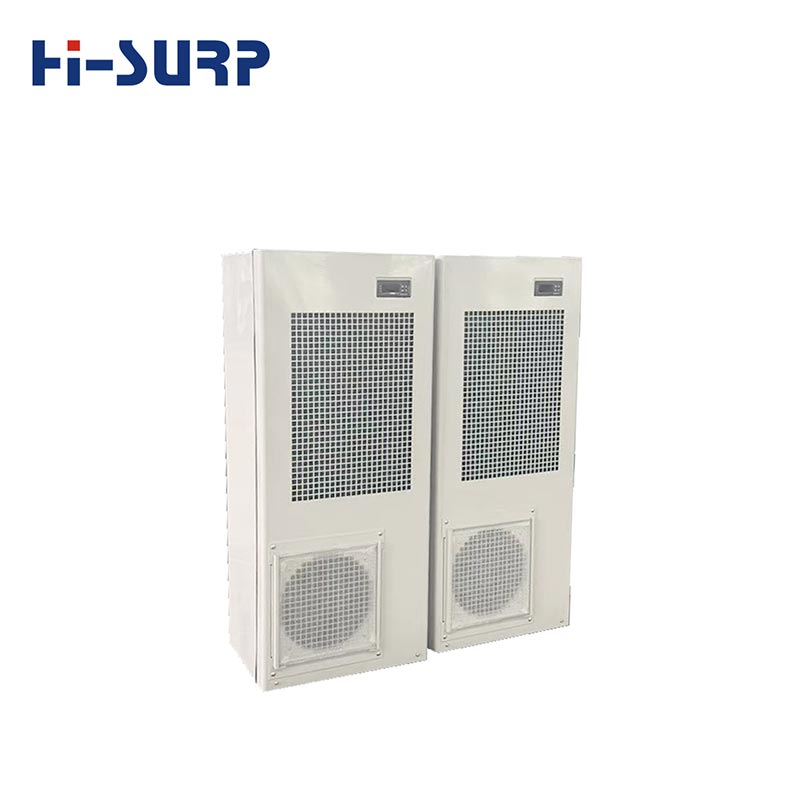

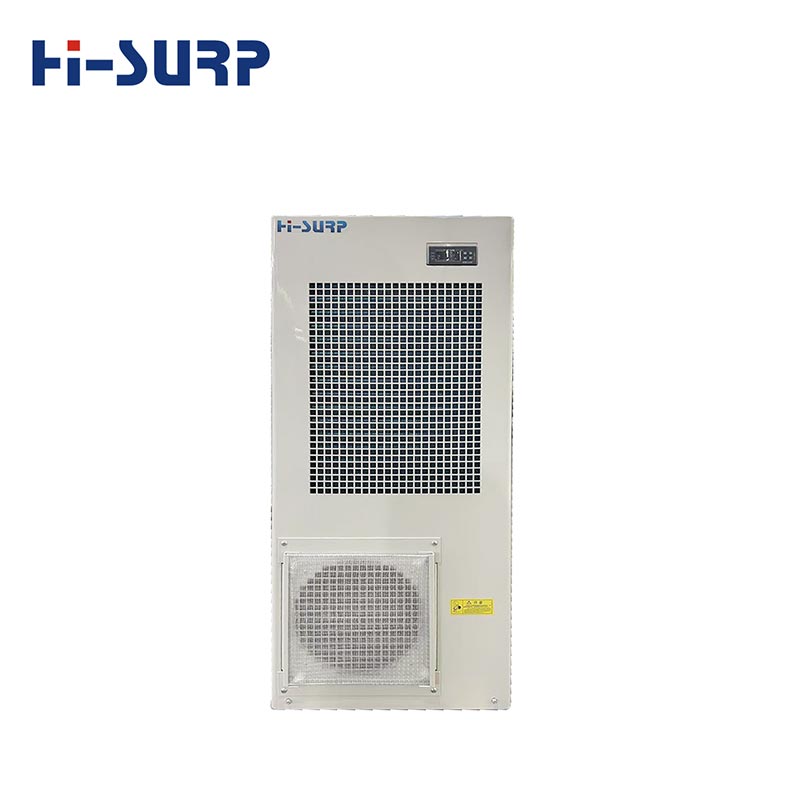

1000W Electrical Air Conditioner

High temperature and dust are the two biggest causes of destabilization of electrical components. Hisurp 1000W Electrical Air Conditioner made-in-China is designed to solve these problems.

Why Electrical Air Conditioner is needed

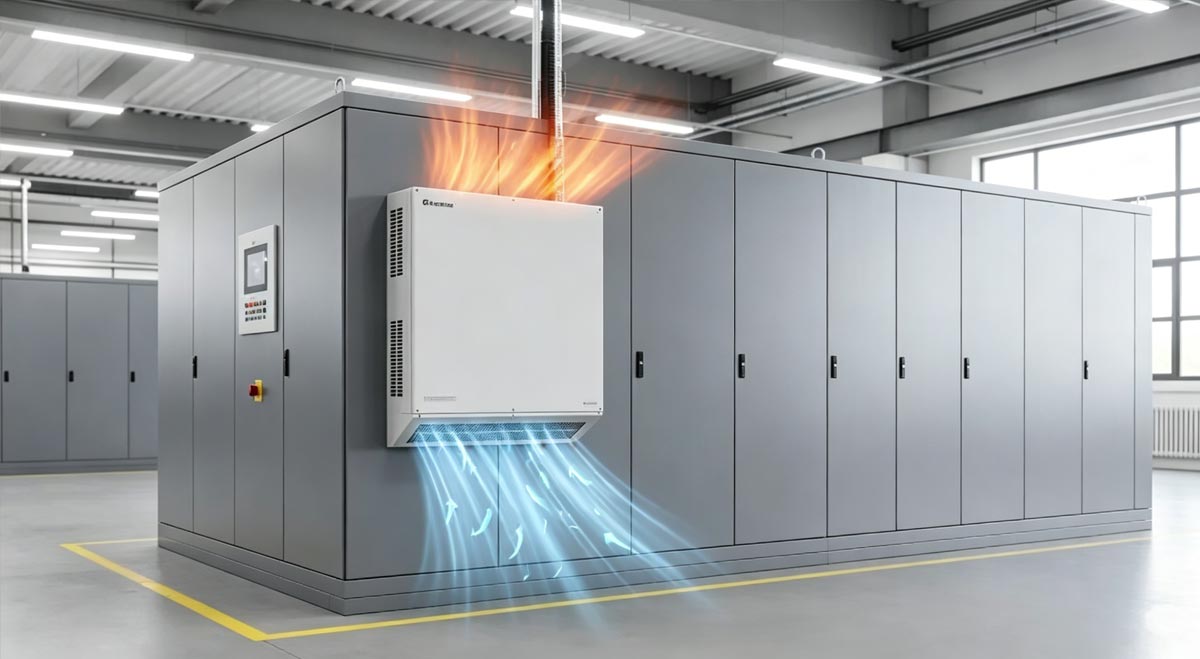

High Temperature

At present, many equipment electrical control box internal electrical components belong to high-precision devices, semiconductors, micro-computerization degree, high density, heat generation is also large. The use of traditional natural heat dissipation, exhaust fan cooling is increasingly unable to control the temperature inside the box, coupled with the high temperature of the outside world in the summer, so that the electrical components in a long-term high-temperature environment, it is easy to have line aging, local short circuit, leakage and other kinds of failure. 1000W Electrical Air Conditioner can cool down it.

Application
Application

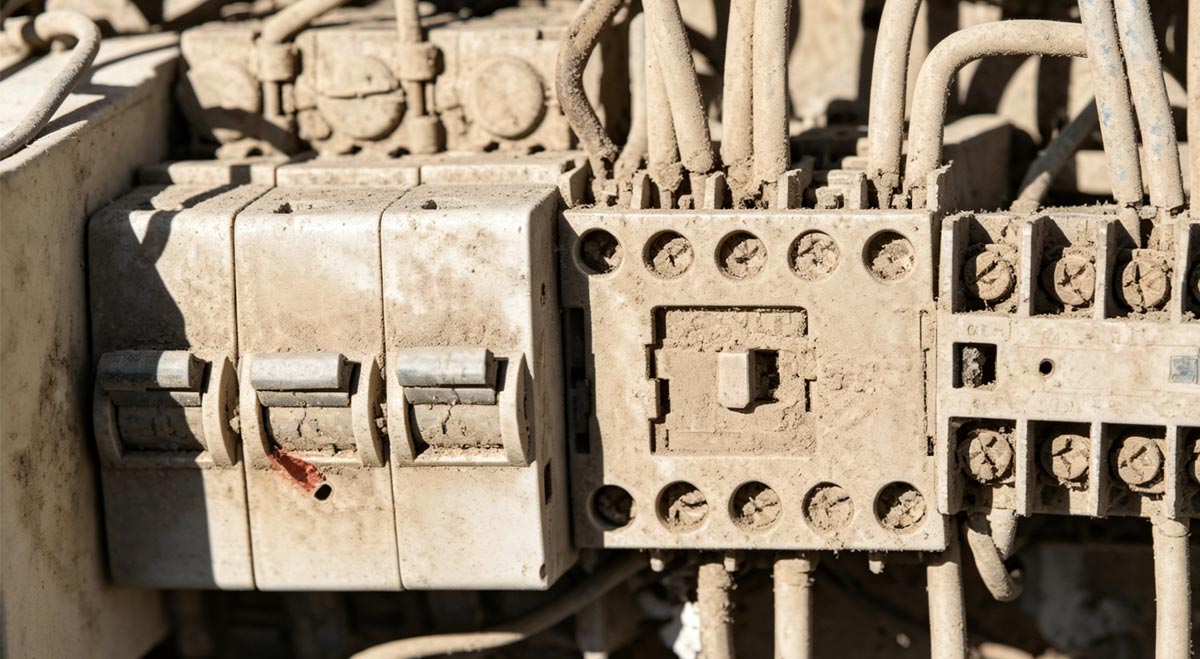

Dust

The use of traditional natural cooling, exhaust fan cooling are unable to eliminate the intrusion of dust and corrosive gases, excessive accumulation of dust, it is easy to cause a local short circuit, leakage, poor heat dissipation of heating components caused by a variety of failures. 1000W Electrical Air Conditioner can prevent it.

Specification

Cooling Capacity 300~4000W
Refrigerant R134a, R142b, R1234ze
Fixing Type Top-mounted Type, Door Mounted Type, Side-mounted Type
Working Temperature 25℃~60℃ ( for R134a)
40℃~80℃ (for R142b)
IP Grade IP54, IP55

Features

- 1000W Electrical Air Conditioner features a fully enclosed rotary compressor with high COP;
- Standard-equipped with low-noise centrifugal fan delivering substantial airflow and minimal vibration.
- Condenser-side primary filter is washable, capturing fibrous dust to maintain efficient heat exchanger performance.
- Unit undergoes 48-hour cyclic ageing tests at 60°C high and -10°C low temperatures, achieving MTBF ≥ 50,000 hours.

How to choose a model of cabinet air conditioner

Effective heat transfer surface area of electrical cabinets
Body size (mm)
W= H= D=
A= Calculation of effective surface area (floor standing type)
Negligible bottom surface (5 sides)
Average temperature around the electrical cabinet℃ T0 Calculation of temperature difference
ΔT=T0-T1
Desired temperature inside the electrical cabinet℃ T1
Coefficient of thermal conductivity
Plain steel plate: 5.5W/㎡k
Plastic sheet: 3.5W/㎡k
K=
Heat absorbed by the effective surface of the electrical cabinet (W)
Qs=K x A x ΔT
Qs When T0>T1, heat absorbed by the cabinet from outside,Qs>0
When T0<T1, heat discharged by the cabinet, Qs<0
Total heat generated by the devices inside the electrical cabinet (W) Qi Heat generated by the inverter (W) = capacity (kw) x 60
Safety factor 1.2
Calculation of the necessary cooling capacity
Q0=1.2 x (Qs+Qi)
Q0

Example

There is an electrical cabinet box made of ordinary steel plate material with the external dimensions of 1 m long, 2 m high and 0.5 m thick. The heat generated by the internal heating elements of the box is 400 W. The temperature to be controlled inside the box is 30°C and the average temperature outside the box is 40°C. How much cooling capacity should be selected for the electric cabinet air conditioner?

Calculation

1.A=2x1x2+2x0.5x2+0.5x1=6.5㎡
2.ΔT=T0-T1=40-30=10℃
3.Qs=K x A x ΔT=5.5x6.5x10=357.5W
4.Q0=1.2 x (Qs+Qi)=1.2x(357.3+400)=909W
So, 1000W electrical cabinet air conditioner is recommended.

Why HICON

  • Customized parameter, outlook, color etc.
  • Low temperature kits optional
  • Environmentally friendly refrigerant
  • Fix frequency & variable frequency optional
  • The Belt and Road co-operation partners
  • National-class (CNAS) labs and testing rooms
