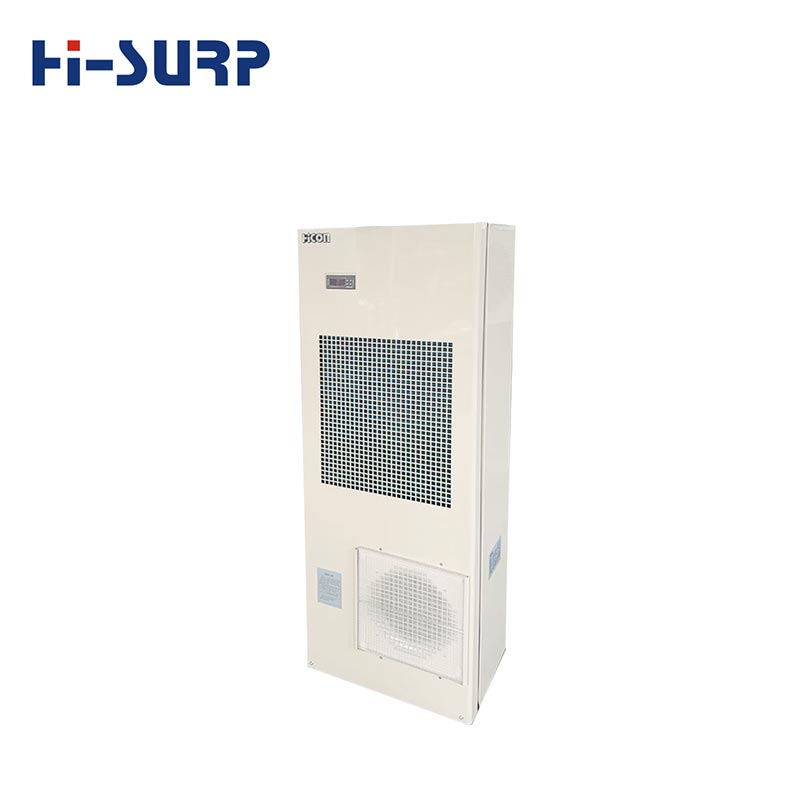

2500W Cabinet Air Conditioner

Looking for a reliable China manufacturer and supplier? Ningbo Hicon Industry Co., Ltd. is a leading factory offering high-quality 2500W Cabinet Air Conditioner. These units protect the electronic equipment housed inside various electrical control cabinets—such as PLCs, servo systems, frequency converters, precision instruments, and more.

Send Inquiry

What is Cabinet Air Conditioner

As a professional manufacturer and supplier in China, Hisurp 2500W Cabinet air conditioners are devices used in control cabinets, machine tools, industrial assembly lines, and other industrial environments that require stable temperatures. The reason to buy 2500W Cabinet air conditioner is -- The electrical cabinet is full of electrical appliances, motion control and motor control equipment, which cannot work properly under high temperature or overheating conditions. High temperatures can cause electrical components to deteriorate, which in turn affects the life and performance of equipment. The electric cabinet air conditioner can ensure that the electric cabinet can run continuously and stably.

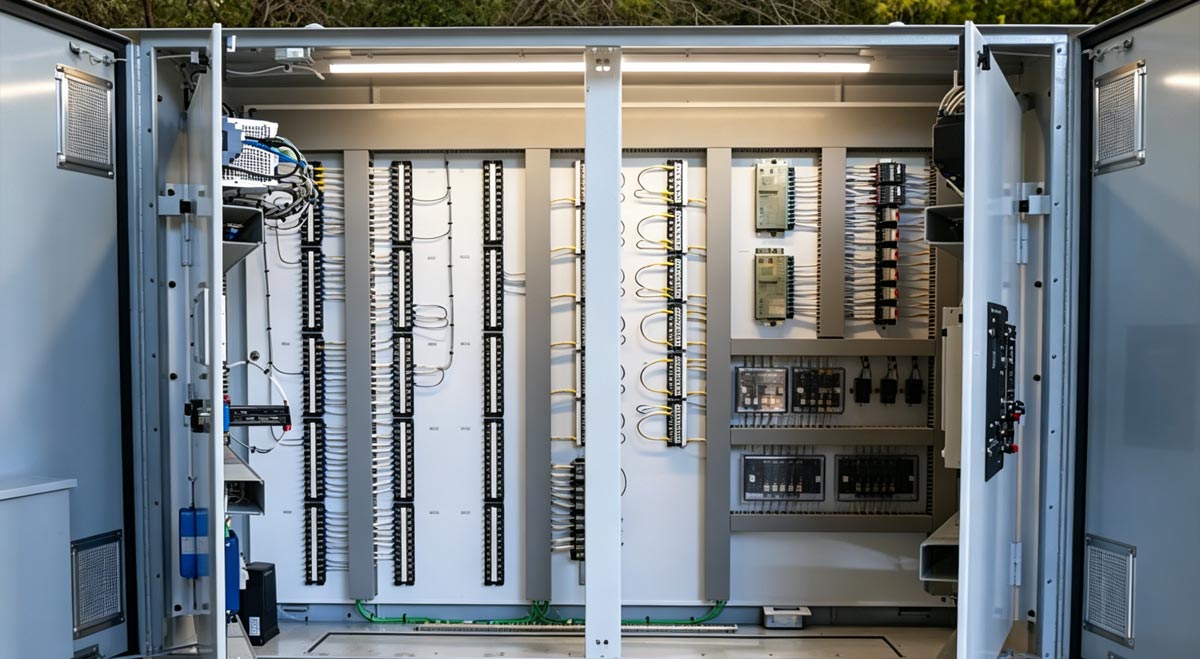

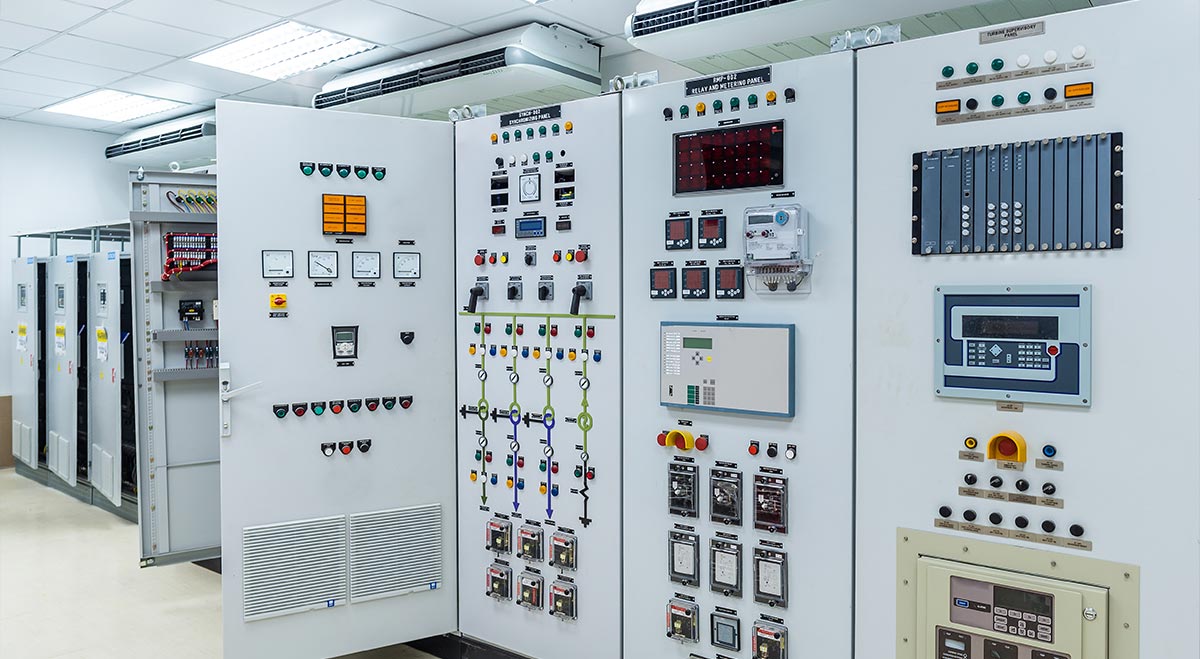

Application

Hisurp 2500W Cabinet Air Conditioner is widely used in:

electrical cabinets
panel
switchgear enclosures
control cabinets
machine tools
industrial assembly lines

in telecom, CNC machining etc.

Core Specifications

The 2500W Cabinet Air Conditioner is designed by Hisurp for industrial electrical enclosures that require stable and continuous thermal control.

Cooling Capacity

Rated cooling capacity: typically around 2500W (2.5kW class)
Designed for medium to high heat-load electrical cabinets
Suitable for equipment such as PLCs, servo drives, and frequency converters
Maintains stable internal temperature to prevent overheating and performance degradation
Optimized for continuous 24/7 industrial operation

Operating Voltage

Standard configuration: AC 220V, single-phase
Optional configurations available for industrial systems:
AC 380–460V, three-phase
DC 48V for telecom or special power systems
Wide voltage tolerance design helps adapt to unstable industrial power environments
Supports safe operation in global engineering projects with different power standards

Environmental Protection

Enclosure protection levels: IP54 / IP55 (depending on configuration)
Fully sealed structure separates internal and external air flow
Prevents dust, oil mist, and moisture from entering electrical cabinet
Suitable for harsh industrial environments such as:
CNC workshops
Telecom base stations
Outdoor control cabinets
Enhances equipment lifespan and system reliability

Operational Range/h3>

Working ambient temperature range: -25°C to +60°C (standard models)

High-temperature customized versions can support up to 80°C

Designed for year-round operation, including extreme climates

Stable performance under continuous industrial load conditions

Ensures reliable cooling even in high-heat or outdoor installations

Cooling Capacity	300~4000W
Refrigerant	R134a, R142b, R1234ze
Working Temperature	25℃～60℃ ( for R134a) 40℃～80℃ (for R142b)
IP Grade	IP54, IP55
Power Supply	Standard: 220V,1Ph Customized: 460V, 3Ph or 48V DC

Features

- The 2500W Cabinet Air Conditioner uses a general-purpose microcomputer controller for management and an easily identifiable LED display, making it possible to change and confirm the set temperature, thereby ensuring that the set temperature inside the cabinet is not affected by the outside temperature.
- The temperature difference between the cold air inlet and the air outlet is small, and the air volume is large. It slowly cools down while dehumidifying, and condensation occurs on the electrical components.
- The independent, sealed electrical cabinet completely isolates the air inside and outside the cabinet, achieving a dust-proof effect.

How to choose a model of cabinet air conditioner

Effective heat transfer surface area of electrical cabinets Body size (mm) W= H= D=	A=	Calculation of effective surface area (floor standing type) Negligible bottom surface (5 sides)
Average temperature around the electrical cabinet℃	T0	Calculation of temperature difference ΔT=T0-T1
Desired temperature inside the electrical cabinet℃	T1	Calculation of temperature difference ΔT=T0-T1
Coefficient of thermal conductivity Plain steel plate: 5.5W/㎡k Plastic sheet: 3.5W/㎡k	K=
Heat absorbed by the effective surface of the electrical cabinet (W) Qs=K x A x ΔT	Qs	When T0>T1, heat absorbed by the cabinet from outside,Qs>0 When T0<T1, heat discharged by the cabinet, Qs<0
Total heat generated by the devices inside the electrical cabinet (W)	Qi	Heat generated by the inverter (W) = capacity (kw) x 60
Safety factor	1.2
Calculation of the necessary cooling capacity Q0=1.2 x (Qs+Qi)	Q0

Example

There is an electrical cabinet box made of ordinary steel plate material with the external dimensions of 1 m long, 2 m high and 0.5 m thick. The heat generated by the internal heating elements of the box is 400 W. The temperature to be controlled inside the box is 30°C and the average temperature outside the box is 40°C. How much cooling capacity should be selected for the electric cabinet air conditioner?

Calculation

1.A=2x1x2+2x0.5x2+0.5x1=6.5㎡
2.ΔT=T0-T1=40-30=10℃
3.Qs=K x A x ΔT=5.5x6.5x10=357.5W
4.Q0=1.2 x (Qs+Qi)=1.2x(357.3+400)=909W
So, 1000W electrical cabinet air conditioner is recommended.
