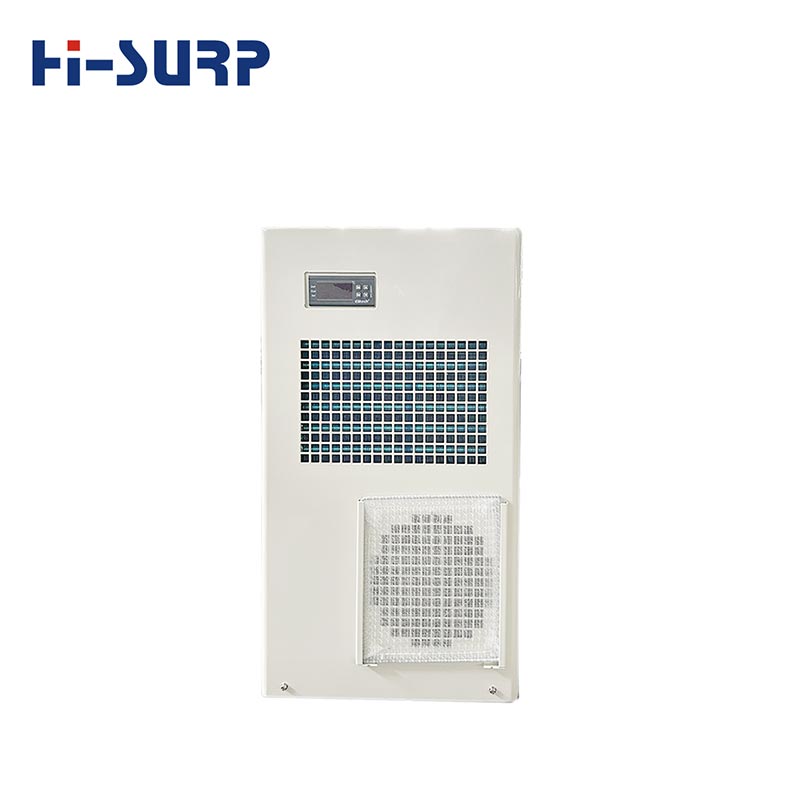

300W Panel Cooler
  • 300W Panel Cooler300W Panel Cooler
  • 300W Panel Cooler300W Panel Cooler
  • 300W Panel Cooler300W Panel Cooler

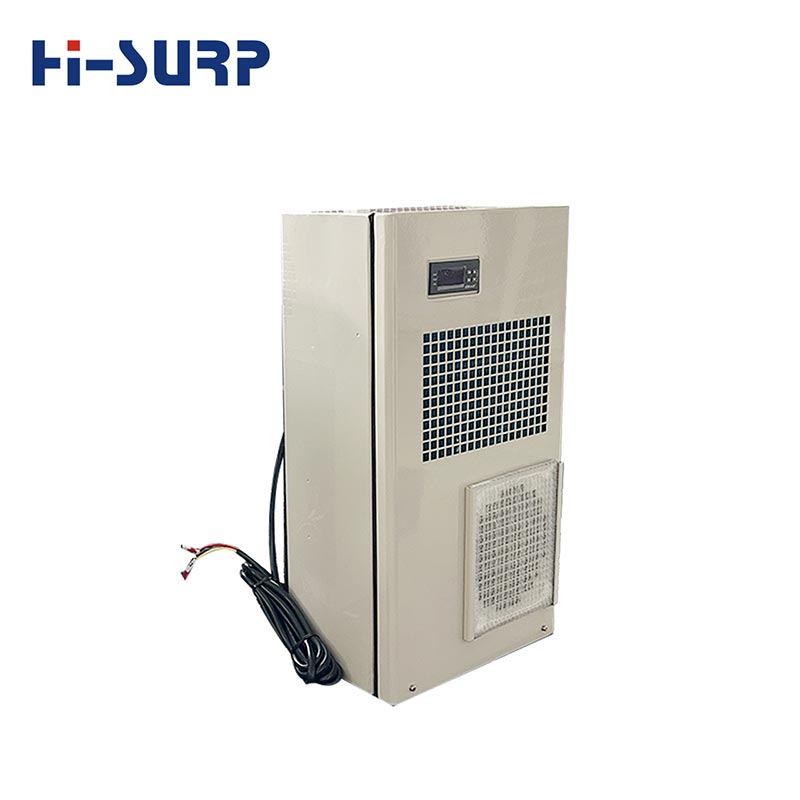

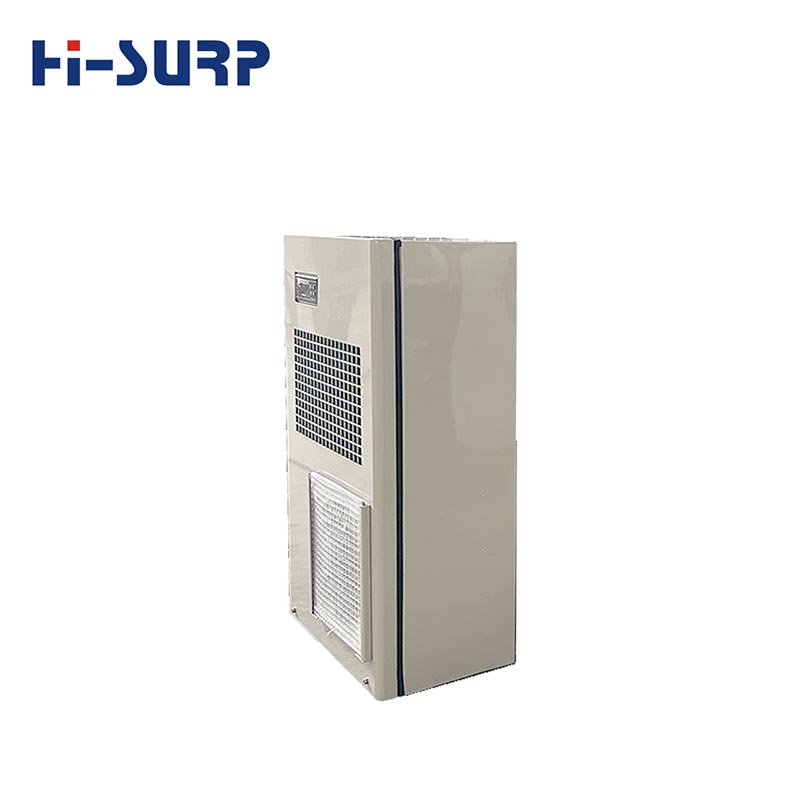

300W Panel Cooler

As the professional China manufacturer and supplier, when it comes to industrial applications, it's essential to keep electronics cool to avoid overheating, which could lead to malfunction or even a fire hazard. This is where 300W Panel Cooler comes into play. Panel coolers are essential cooling solutions designed to keep electrical enclosures, control panels, and cabinets cool. They help extend the lifespan of electronics while maintaining optimum performance.

Product Introduction

As a professional HVAC manufacturer in China with strong R&D and testing capabilities, Hisurp develops panel cooling solutions that combine precision refrigeration, sealed protection, and energy-efficient operation for demanding industrial applications.

What is a 300W Panel Cooler?

A 300W Panel Cooler is a compact industrial cooling device designed to regulate the internal temperature of electrical enclosures, control panels, and industrial cabinets. It is widely used in automation systems, telecom cabinets, and industrial control environments where stable thermal management is critical to prevent overheating and equipment failure.

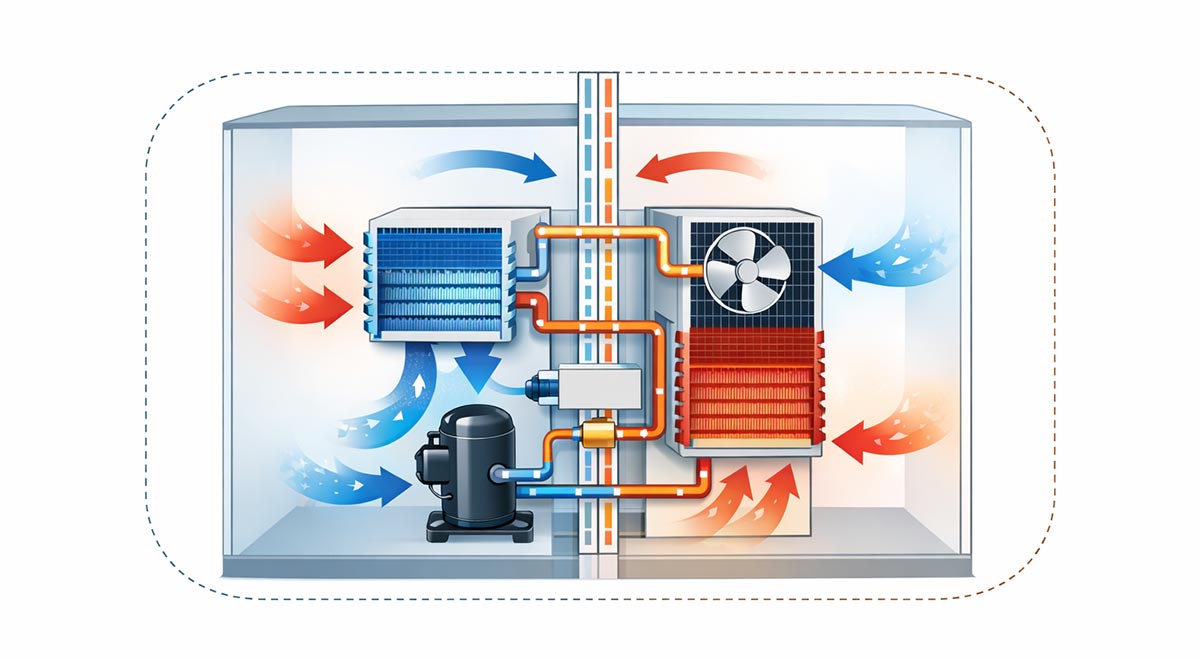

How does Panel Cooler work

Internal Circulation Cooling: This 300W panel cooler is an integrated miniature precision air conditioner. Internal circulation draws hot air from inside the cabinet into the evaporator, cools it, and then returns it to the cabinet, forming a closed-loop cooling system to maintain a constant temperature inside the cabinet.

External Circulation Heat Dissipation: External circulation draws cool outside air into the condenser, carries away the refrigerant's heat, and then exhausts it outside the cabinet, achieving heat transfer and ensuring efficient operation of the air conditioner.

Isolation Design: The two air paths never intersect, preventing both dust and moisture, keeping the cabinet clean, and extending the lifespan of components.

How does Panel Cooler work

Specification

Model H-300
Fixing type Side-mounted type
Cooling capacity W 300
Power supply AC220V/50Hz
Runningcurrent Rating A 0.96
Max A 1.16
Starting current A 2.9
Running power consumption Rating W 215
Max W 260
Working temperature 25℃~60℃
Refrigerant R134a
Noise dB(A) 63
Ingress protection rating IP54(Inner)
Temperature setting range 29℃~34℃
Paintedcolor Beige
Dimensions mm W300 x H545 x D180
Weight kg 18

Testing condition: Condensing side: 35℃(DB),evaporating side:35℃(DB),26℃(WB)

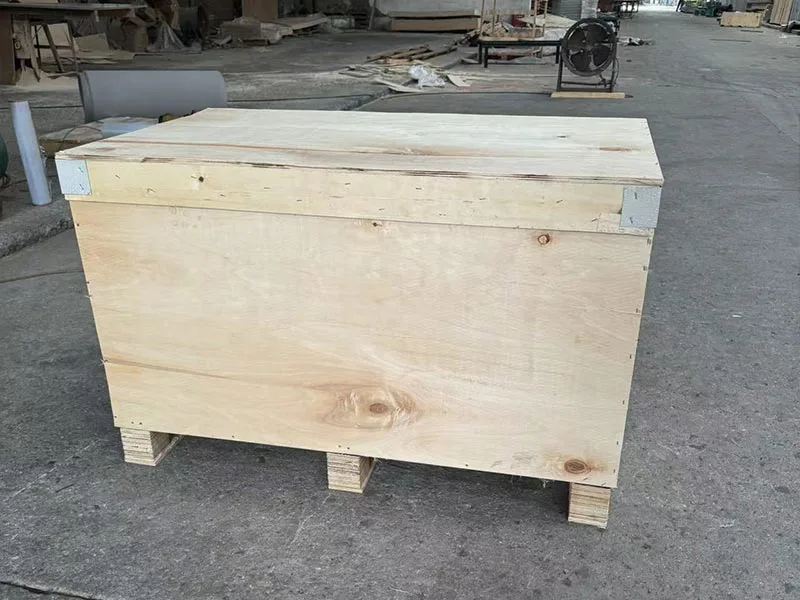

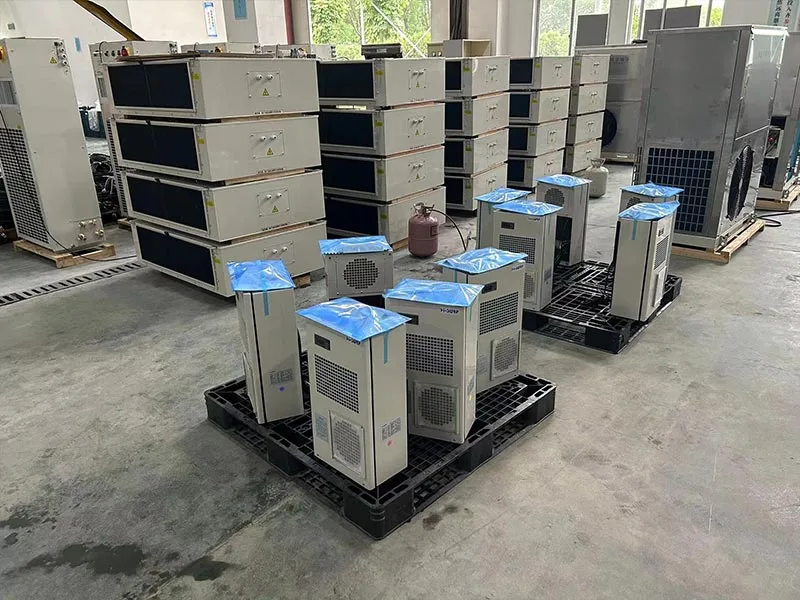

Packing & Delivery

Packaging options include: film packaging, plywood packaging, and fumigated solid wood packaging (all include wooden pallets).

Packing & DeliveryPacking & DeliveryPacking & Delivery

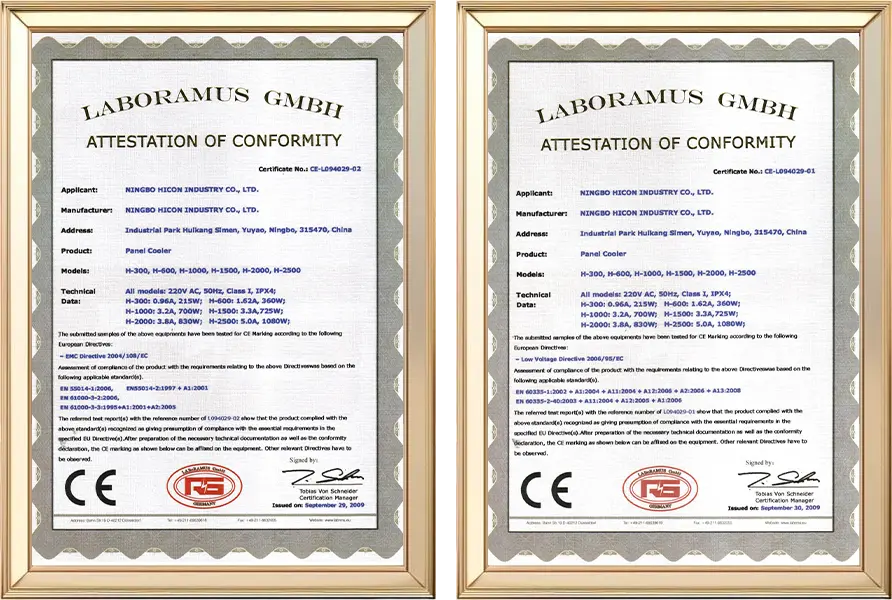

Certification

Certification

This series of 600W Air Conditioner For Electrical Cabinet has obtained CE certification and complies with relevant EU safety, health, and environmental directives. The products are designed, manufactured, and quality controlled in strict accordance with relevant European standards, meeting EU market access requirements and ensuring that the equipment meets international standards in terms of electrical safety, electromagnetic compatibility, and mechanical safety.

Why Choose the Hisurp 300W Cabinet Cooler?

Robust Manufacturing and R&D Capabilities

Specializing in the field of 300W cabinet coolers since 1972, we operate a massive manufacturing base in China spanning 150,000 square meters and hold over 123 patents.

High Reliability Engineered for Industrial Environments

Designed specifically for continuous 24/7 operation under harsh working conditions; maintains stable performance even under standard test conditions (35°C ambient temperature); developed for applications in telecommunications, industrial automation, and power control cabinets.

Advanced Engineering and Quality Control

Features a CNAS-accredited laboratory; complies with ISO, CE, and various other international regulatory standards; utilizes precision manufacturing equipment imported from Germany, Japan, and Italy.

Extensive Global Project Experience

Widely deployed in a diverse range of projects across telecommunications, energy, rail transit, and industrial automation sectors; trusted by international partners such as ABB and Schneider.

Flexible Customization Support

Offers flexible design adjustments tailored to specific cabinet dimensions and thermal load requirements; provides a wide range of optional configurations, including voltage, refrigerant type, and mounting arrangements.
