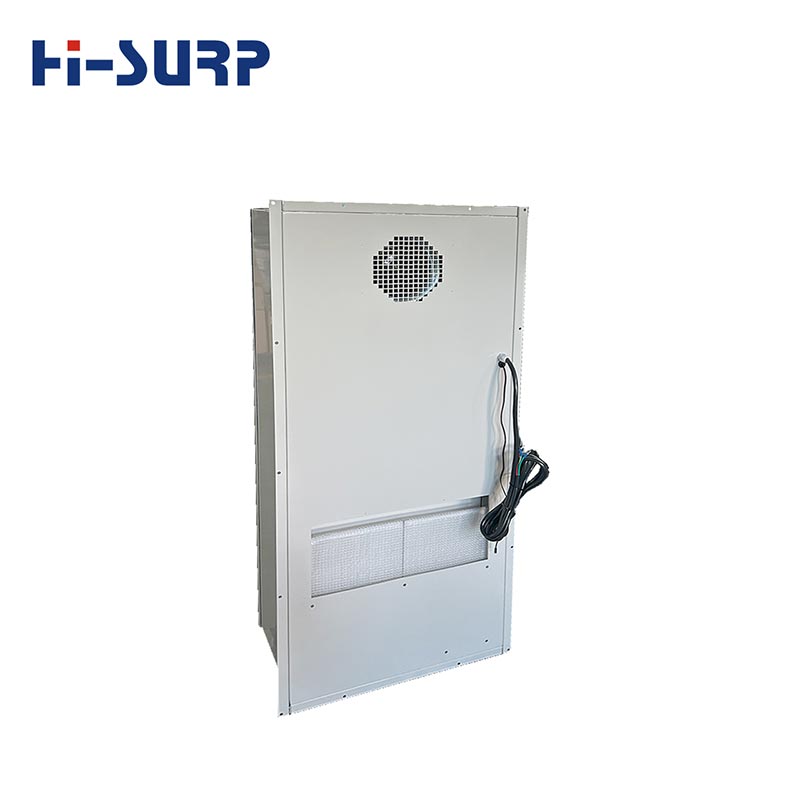

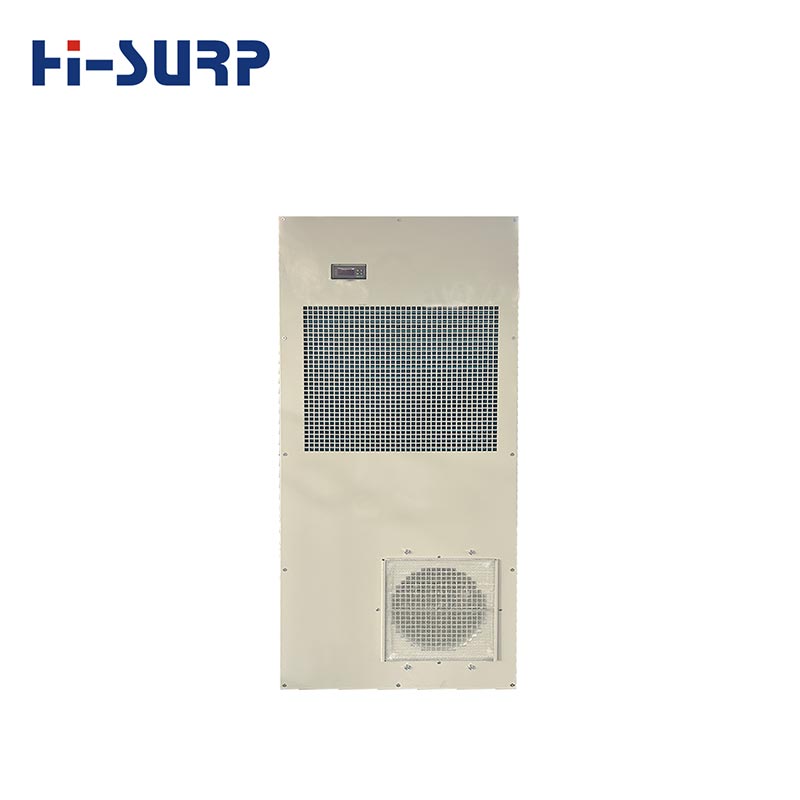

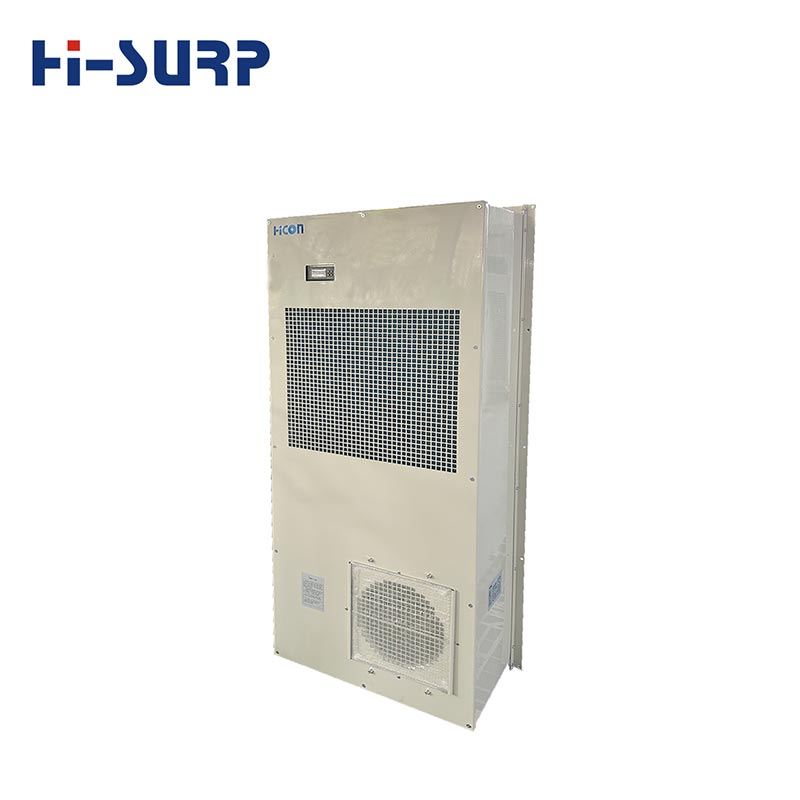

3500W Panel Air Conditioner

Hisurp 3500W Panel Air Conditioner realizes heat absorption and cooling through compression refrigeration. The conventional input voltage is 220V, 50 / 60Hz. The cooling capacity can be selected from 300W to 3500W. High quality 3500W Panel Air Conditioner is widely used in outdoor communication cabinet, electrical cabinet and industrial control cabinet.

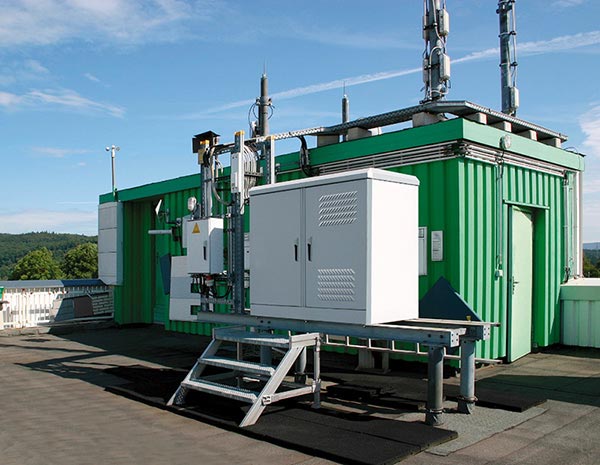

Application

Application

In scenarios such as communication base station control cabinets, network equipment cabinets, and data center distribution cabinets, where equipment is densely packed and generates significant heat, 3500W Panel Air Conditioners provide a stable cooling environment, ensuring the long-term reliable operation of communication equipment, switches, power modules, and other equipment.

Specification

Model H-3500M
Fixing type Side-mounted type
Cooling capacity W 3500
Power supply AC220V/50Hz
Running current Rating A 8.0
Max A 9.6
Starting current A 24.0
Running power consumption Rating W 1750
Max W 2100
Working temperature 25℃~60℃
Refrigerant R134a
Noise dB(A) 73
Ingress protection rating IP54 (Inner)
Temperature setting range 29℃~34℃
Painted color Beige
Dimensions mm W605 x H1335 x D300
Weight kg 70

Testing condition: Condensing side: 35℃(DB),evaporating side:35℃(DB),26℃(WB)

Features

- This 3500W Panel Air Conditioner employs a fully enclosed rotary compressor, offering high energy efficiency and low power consumption. Unique vibration reduction measures ensure that compressor movement is virtually imperceptible during operation;
- The unit uses a high-efficiency internally threaded tube-sleeved aluminum fin heat exchanger, enhancing heat exchanger capacity while improving unit energy efficiency. Compared to other units, the following features are included:
- The condenser side of the unit is equipped with a standard pre-filter, effectively preventing the intake of dust, oil, and debris, thus avoiding impact on the heat exchanger and fan operation and improving system stability and lifespan;

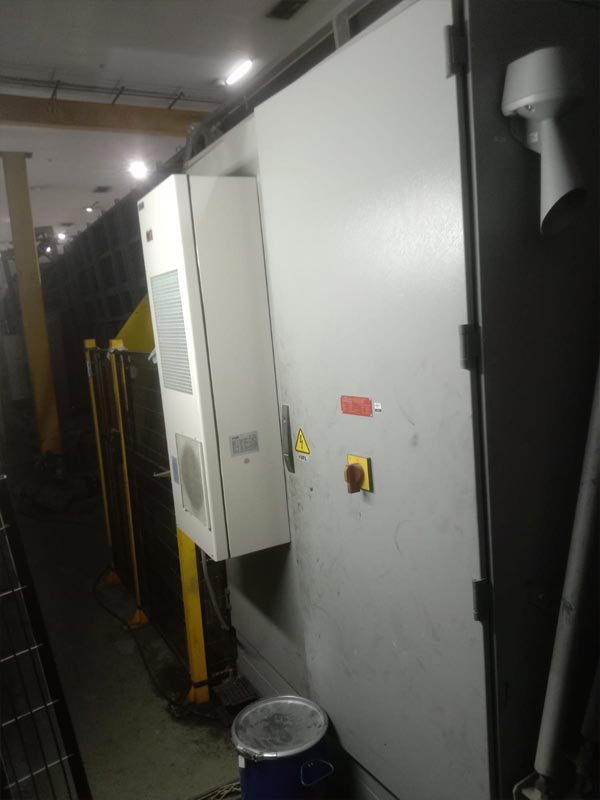

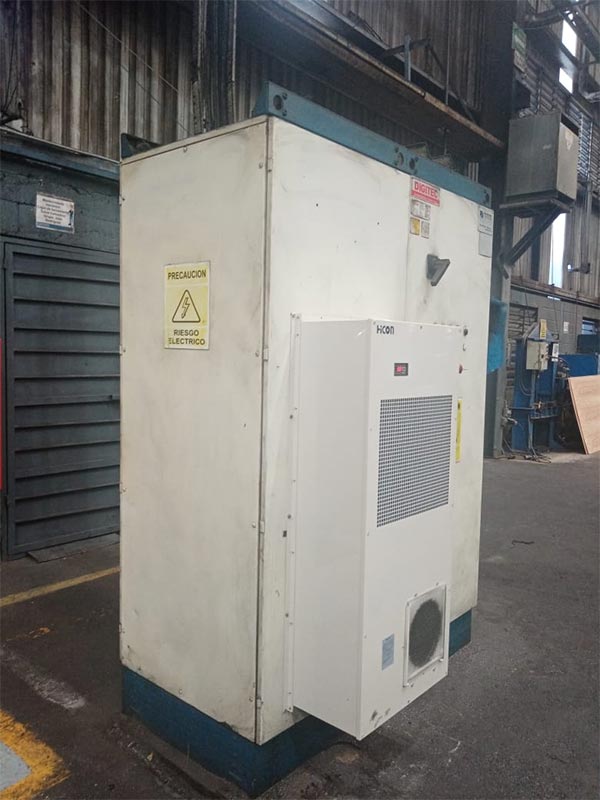

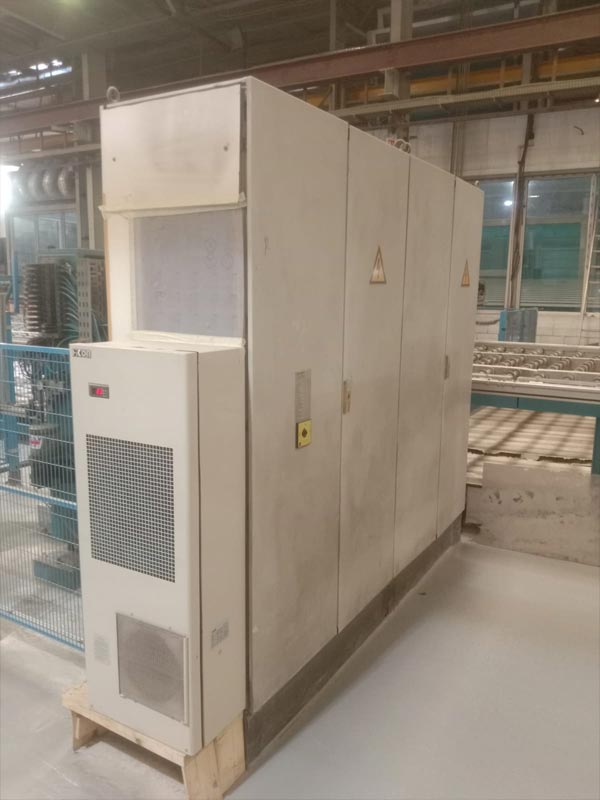

Project Cases

As a leading manufacturer of industrial air conditioners , Hisurp supplies advanced 3500W Panel Air Conditioners and exported to countries all over the world to meet various requirements.

Project CasesProject CasesProject Cases
Hot Tags: 3500W Panel Air Conditioner
