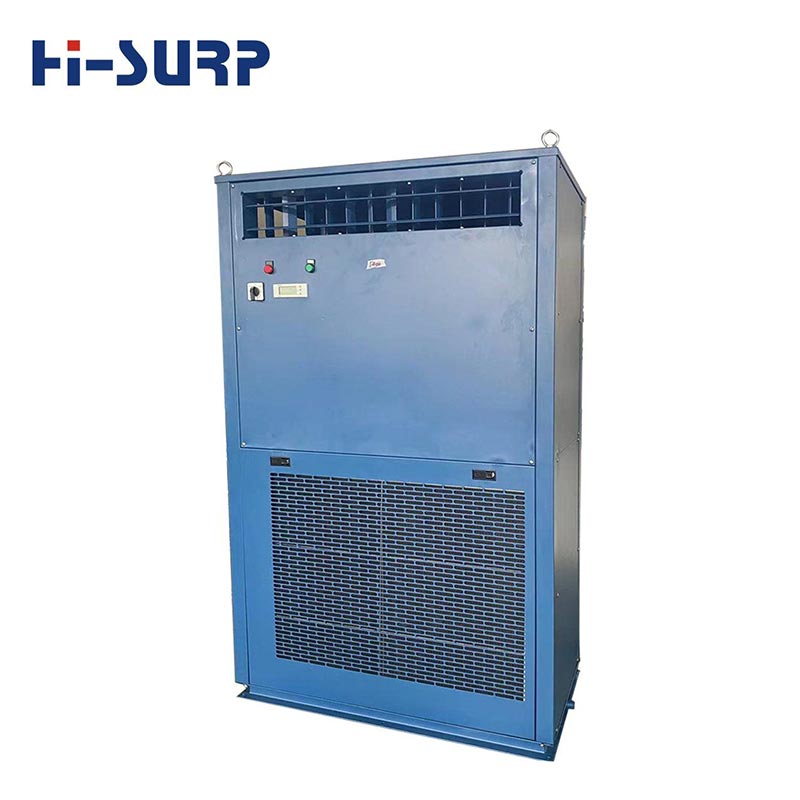

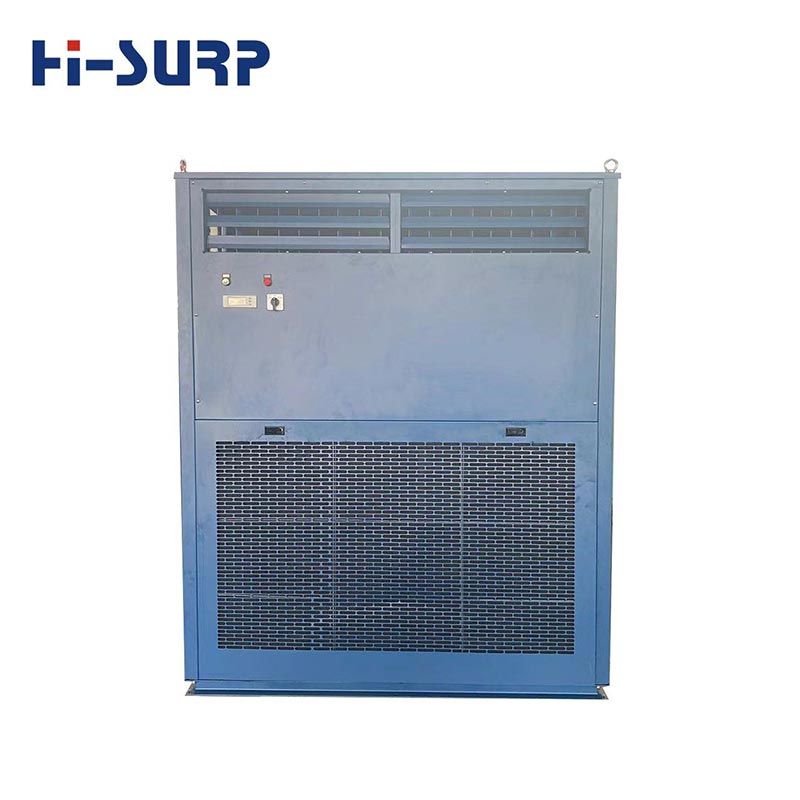

LNG Air Conditioner

HISURP provides specialized cooling solutions designed for liquefied natural gas carrier applications. As a leading China manufacturer, our explosion-proof systems are engineered to meet strict safety requirements for hazardous marine environments, ensuring stable and reliable operation. The LNG Air Conditioner is built with spark-proof components, corrosion-resistant materials, and precise temperature control to protect sensitive onboard equipment. Contact professional suppliers for CE-certified quality, customized configurations, competitive factory pricing, and fast global delivery for bulk orders from HISURP.

Send Inquiry

What is?

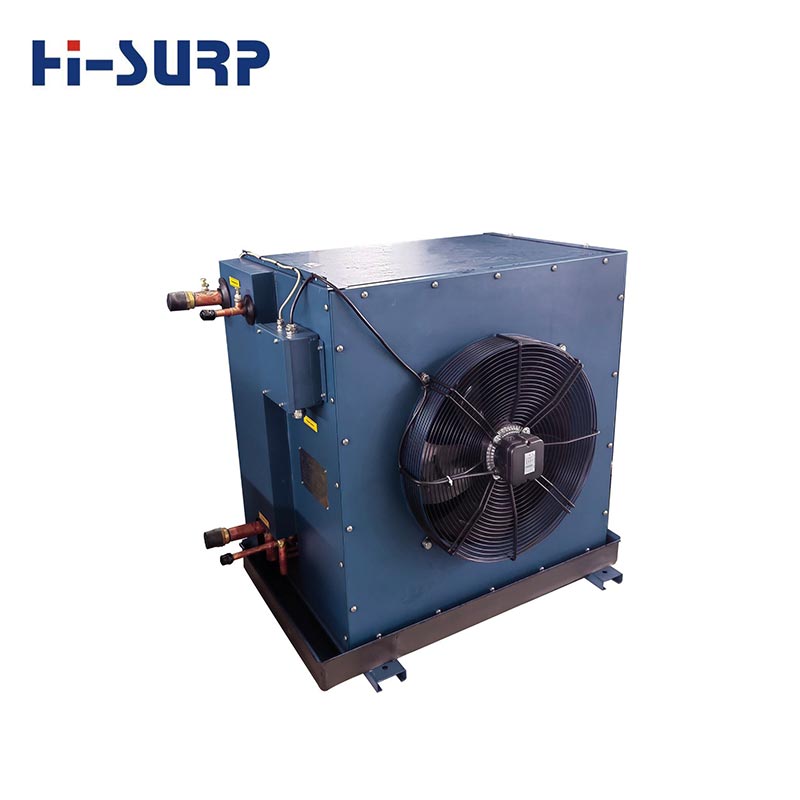

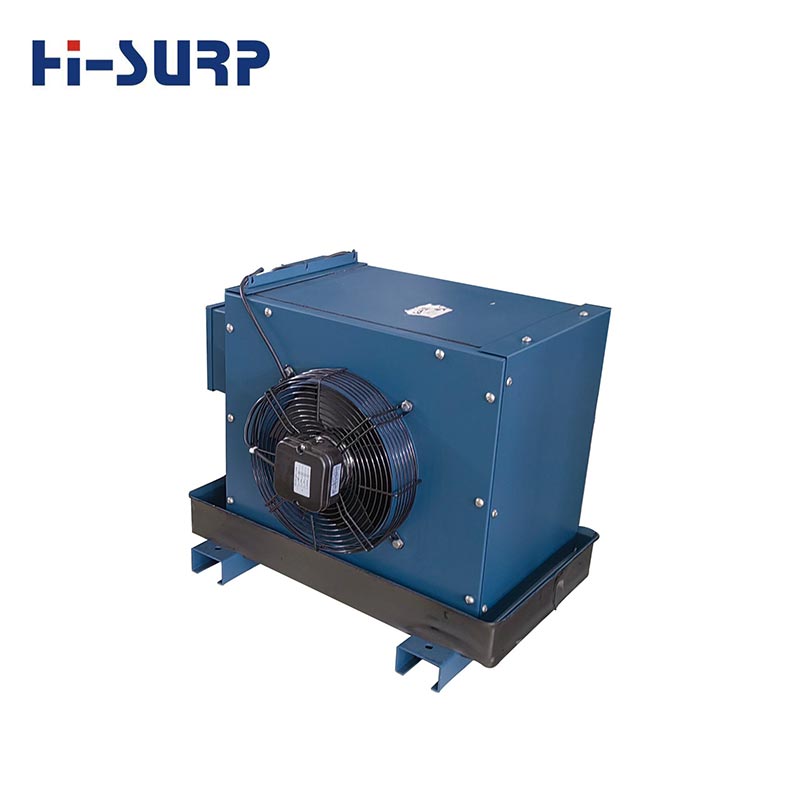

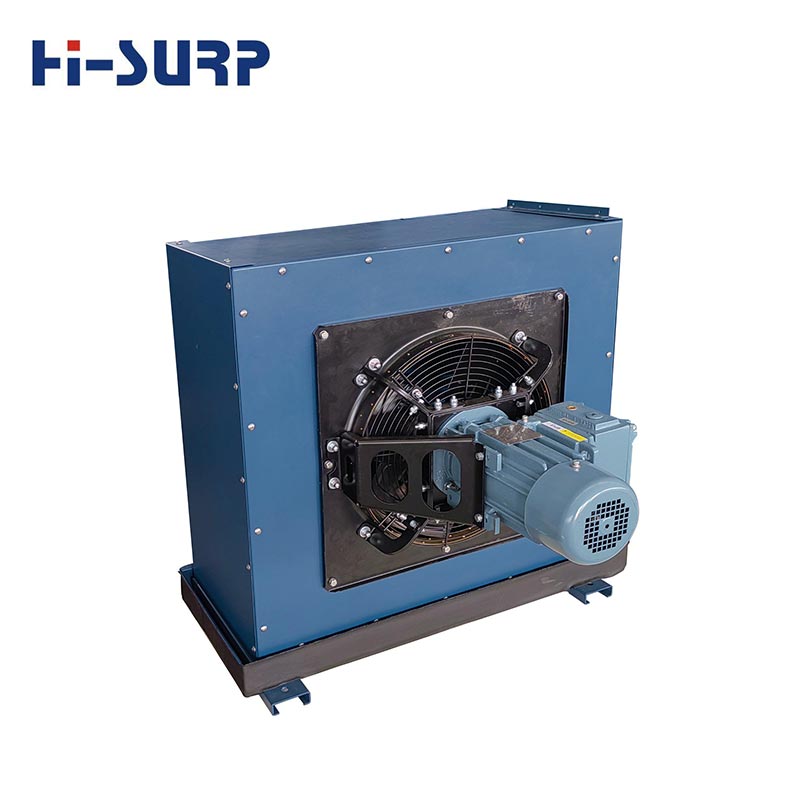

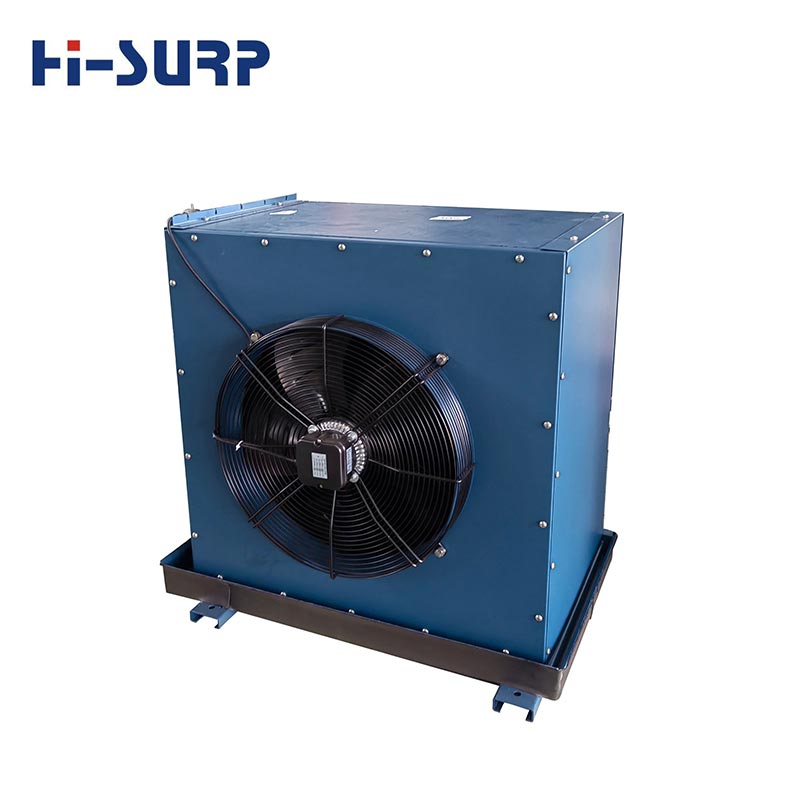

The LNG Air Conditioner is a high-safety air conditioning system designed by Hisurp specifically for LNG carriers, LNG bunkering vessels, and LNG-powered ships. LNG ships transport liquefied natural gas at -162°C, and their deck areas and some compartments are considered hazardous areas with a risk of gas leakage. Therefore, the LNG Air Conditioner must possess explosion-proof, anti-static, cryogenic resistance, and highly reliable operating characteristics to provide a safe and stable temperature and humidity environment for crew living areas, control rooms, and equipment rooms.

Unlike ordinary marine air conditioners, the LNG Air Conditioner is designed according to ATEX or IECEx standards in terms of electrical explosion protection, enclosure protection, and refrigeration system isolation, ensuring safe operation in potentially hazardous environments. It is an indispensable environmental protection device for LNG ships.

Feature

Hisurp's LNG Air Conditioner is specifically designed for the unique operating conditions of LNG ships, featuring comprehensive improvements in explosion-proof safety, structural corrosion protection, and system reliability:

Explosion-proof Safety Design

The entire unit is designed according to ATEX/IECEx standards, with explosion-proof electrical components and an anti-static casing, ensuring safe operation in potentially hazardous gas environments.

Cryogenic Start-up and Operation Capability

Designed for the low-temperature environment of LNG ship decks, it employs a dedicated cryogenic compressor and refrigerant system, ensuring normal start-up and stable operation in temperatures ranging from -25°C to -30°C.

High-Level Corrosion Protection

The casing is made of 316L stainless steel or marine-grade aluminum alloy, with a marine-grade anti-corrosion coating, resisting the salt spray and the corrosive environment unique to LNG ships.

Independent Dual-Loop Design

Optional independent dual cooling loops are available. In the event of a single loop failure, the other loop can still maintain partial operation, ensuring uninterrupted cooling in critical areas.

Compact Structure

Designed for the limited deck and equipment room space of LNG ships, it features a compact structural design, supporting wall-mounted, floor-standing, or recessed installation.

Technical Specifications

Parameter	Options
Cooling Capacity	5 kW ~ 60 kW (sized based on room area and ambient conditions)
Explosion-proof Rating	ATEX II 2G Ex d e mb IIB T4 / IECEx (optional)
Protection Rating	IP56 / IP66
Housing Material	316L Stainless Steel / Marine-grade Aluminum Alloy / Galvanized Steel with Heavy-duty Anti-corrosion Coating
Power Supply	3P, 380V, 50Hz / 3P, 440V, 60Hz
Condenser Type	Air-cooled / Water-cooled (fresh water or sea water)
Compressor	Danfoss / Copeland Scroll Compressor (explosion-proof optional)
Low Temperature Start-up	Standard with low temperature start-up kit, suitable for -25℃ environment
Heating Function	Optional PTC electric heater or heat pump, suitable for cold regions

Application

LNG air conditioners are widely used in various LNG-related vessels and marine engineering facilities:

Typical application scenarios:

LNG carrier living quarters and control rooms

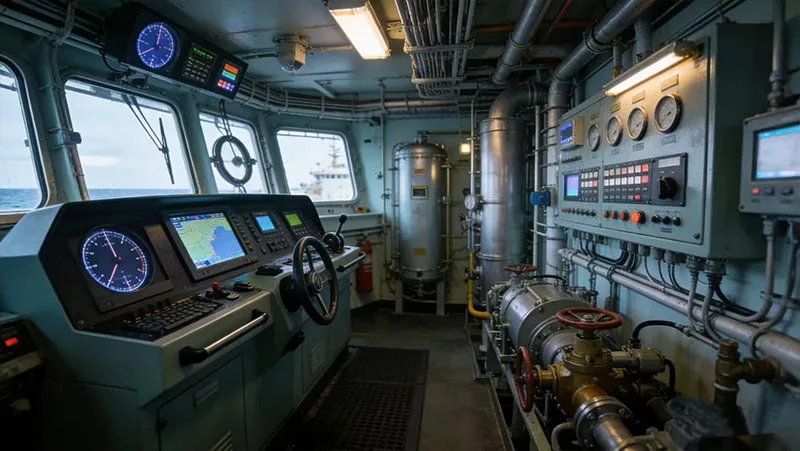

LNG bunkering vessel bridge and equipment room

LNG-powered vessel electrical and battery compartments

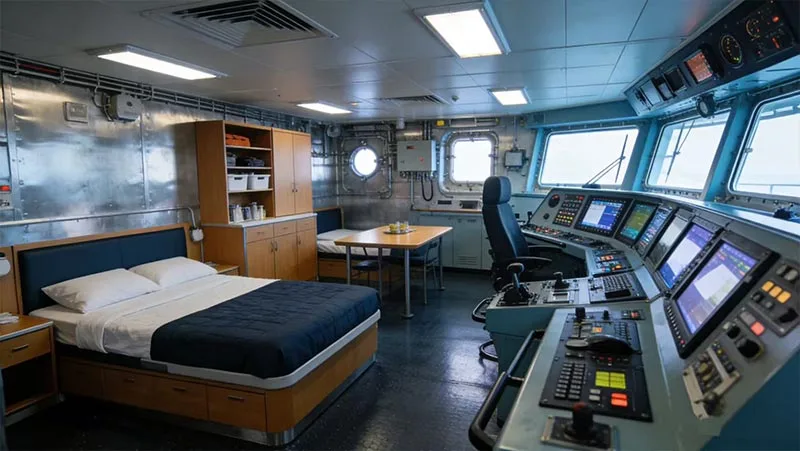

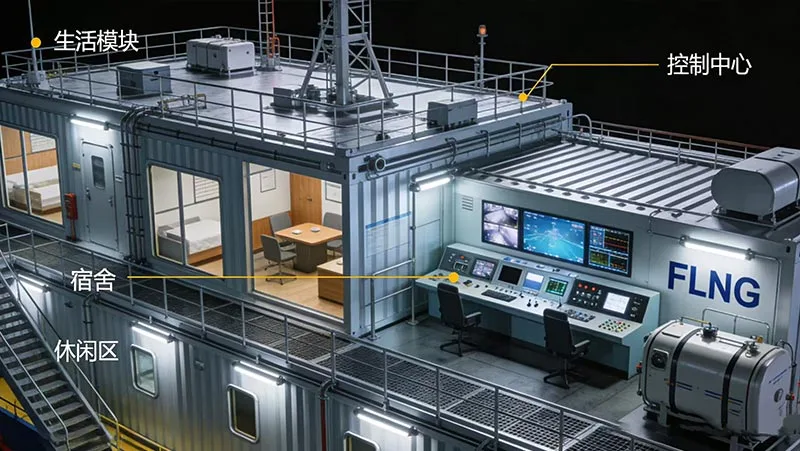

Floating LNG (FLNG) living quarters and control center

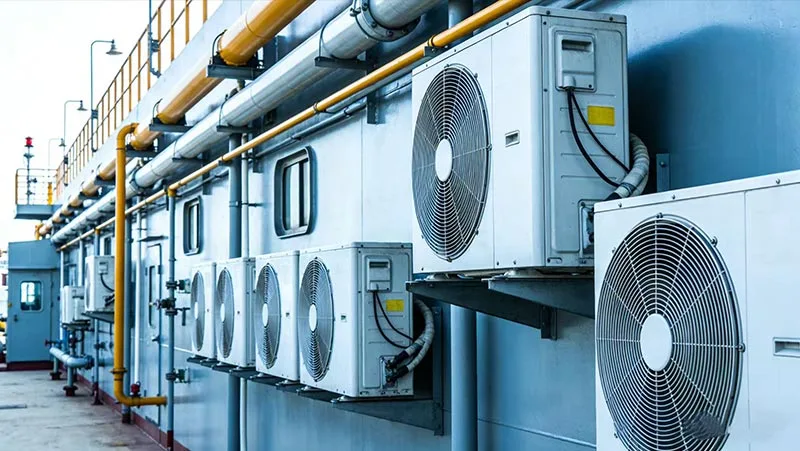

Air conditioning systems in receiving terminal operating areas

Certification / Quality Control

Choosing Hisurp's LNG Air Conditioner means choosing a highly reliable product that meets international safety standards and provides full lifecycle service support:

Authoritative Certifications:

ISO 9001 Quality Management System Certified
Explosion-proof models are ATEX/IECEx Certified

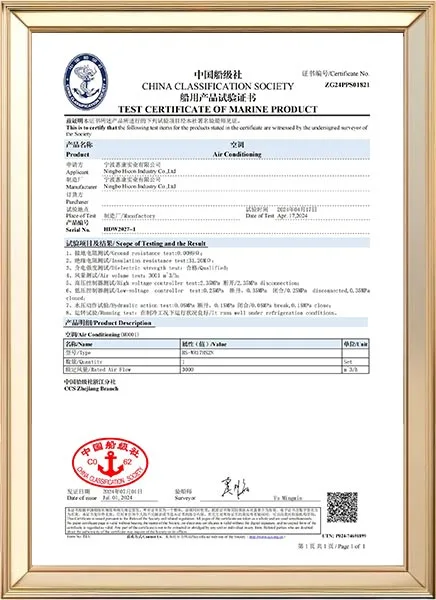

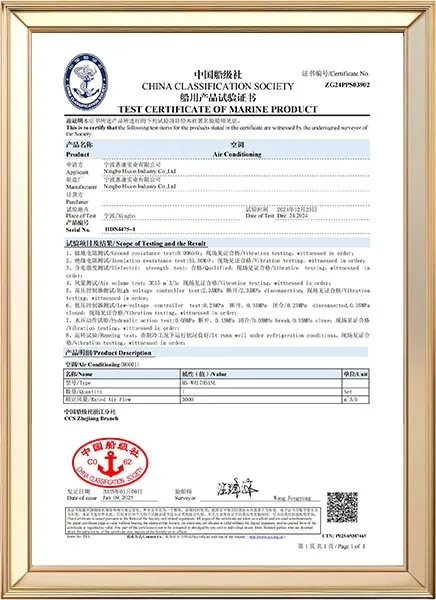

Type approval certificates from major international classification societies such as CCS, DNV, ABS, BV, and LR are available.

Quality Control:

Each LNG Air Conditioner undergoes explosion-proof performance testing, low-temperature start-up testing, salt spray testing, and 48-hour continuous operation testing before leaving the factory.
100% explosion-proof testing for key electrical components and 100% airtightness testing for the enclosure.

After-sales Service:

Warranty Period: 18-month extended warranty for the entire unit, with even longer warranty periods for the compressor and explosion-proof components.
Technical Support: Installation manuals and maintenance videos in both Chinese and English are provided; engineers support remote diagnostics, and global rapid response is available in emergencies.
Spare Parts Guarantee: Long-term inventory of explosion-proof spare parts ensures rapid replacement.
