Marine Cabin Air Conditioner
  • Marine Cabin Air ConditionerMarine Cabin Air Conditioner
  • Marine Cabin Air ConditionerMarine Cabin Air Conditioner
  • Marine Cabin Air ConditionerMarine Cabin Air Conditioner

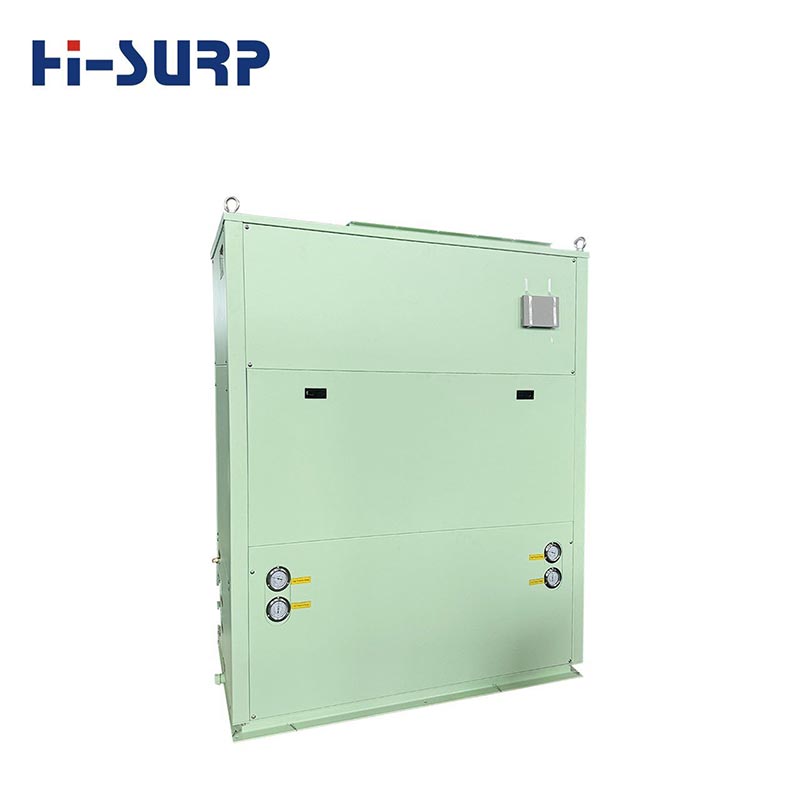

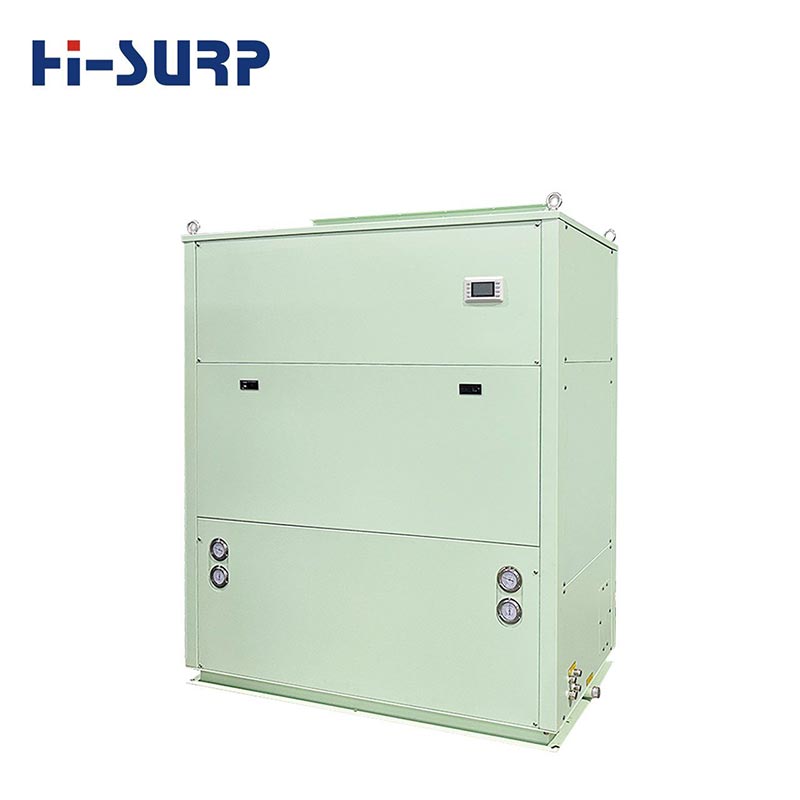

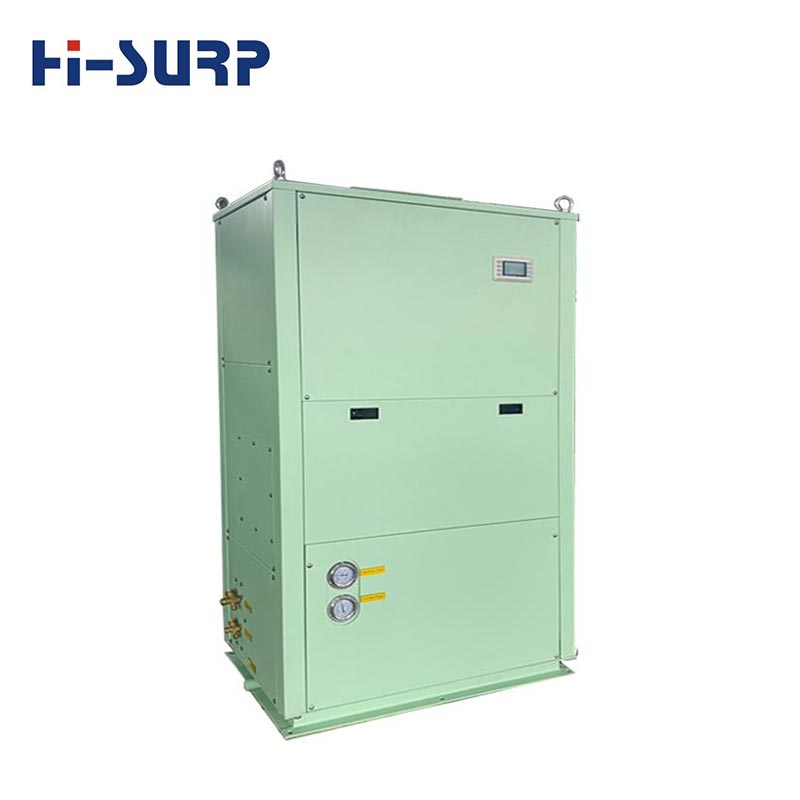

Marine Cabin Air Conditioner

HISURP offers quiet and compact cooling solutions designed to improve crew comfort onboard all types of vessels. As a professional China manufacturer, our systems are engineered with low-noise operation, space-saving structure, and corrosion-resistant materials suitable for marine environments. The Marine Cabin Air Conditioner units provide individual temperature control, energy-efficient performance, and easy-maintenance components to ensure long-term reliability. Contact trusted suppliers for CE-certified quality, competitive pricing, customized configurations, and fast global delivery with factory-direct support from HISURP.

What is?

The Marine Cabin Air Conditioner is a highly efficient and compact air conditioning unit designed by Hisurp specifically for ship cabins, suitable for crew living quarters, passenger cabins, and various small living spaces. It precisely controls the temperature and humidity inside the cabin, providing a comfortable and healthy living environment for crew and passengers during long voyages.

Addressing the specific requirements of marine applications, the Marine Cabin Air Conditioner features a compact design, low-noise operation technology, and excellent resistance to salt spray corrosion and vibration. It is widely used in various ship types, including cargo ships, ro-ro passenger ships, offshore support vessels, yachts, and government vessels.

Technical Specifications

Parameter Specifications
Cooling Capacity 7 kW ~ 86 kW
Heating Capacity 3 kW ~ 40 kW
Refrigerant R404A / R407C / R134A / R22
Type Water-cooled / Air-cooled
Water Type Fresh Water / Sea Water
Supply Power 3P, 380V, 50Hz / 3P, 440V, 60Hz
Power Note Products are 50/60Hz universal, but need to clarify the power supply phase system when ordering.
Air Supply Top / Direct / Customized
Heating Type Electric Heating / Steam Heating
Refrigerating Working Conditions Indoor DB Temp 27℃, WB Temp 19.5℃; Cooling Water Inlet 36℃

Key Components

Dan foss scroll compressor

Dan foss scroll compressor

deep oil tank to avoid oil shortage when the compressor s wings , ensuring reliability
nautically dedicated anti - corrosion paints
Independent refrigeration circuits

Sy slab control

Sy slab control

Low voltage switch

Low voltage switch

Expansion valve

Expansion valve

High and low voltage switch

High and low voltage switch

Filters, ball valves, oil separators

Filters, ball valves, oil separators

Features

Three panels

  • Easy to dismantle and maintain
  • Not easy to deform

Integrated design

High and low pressure gauge

  • Know the operating status of the refrigeration system of the unit

Sheet metal

  • Special s prayed panels for marine use
  • Long lifespan and anti - corrosion treatment

Protective Bly gold coating for coils

  • passed salt spray test and anti - corr 0 sion test

Air supply

  • Duct air supply can supply air from a long distance
  • With blower box , no air duct required and easy to install

Nylon filter

  • can directly open the front panel and pull it out

Packing & Delivery

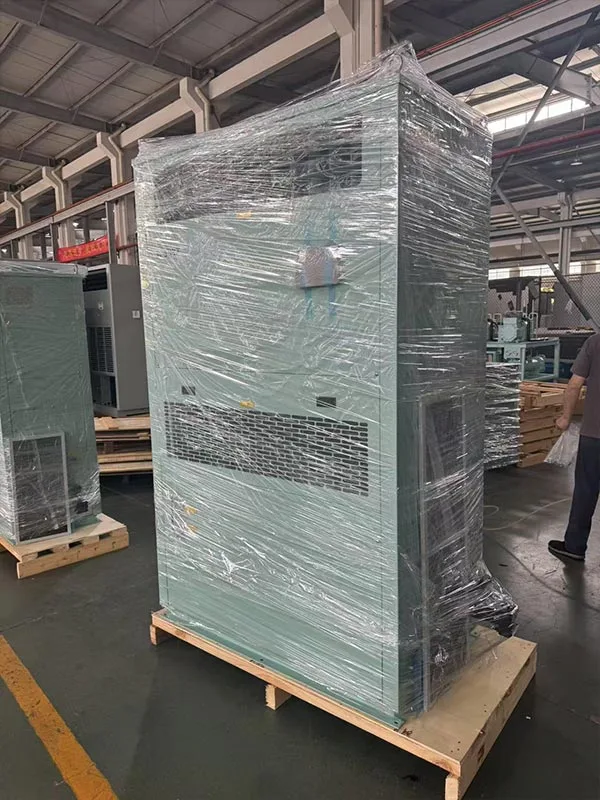

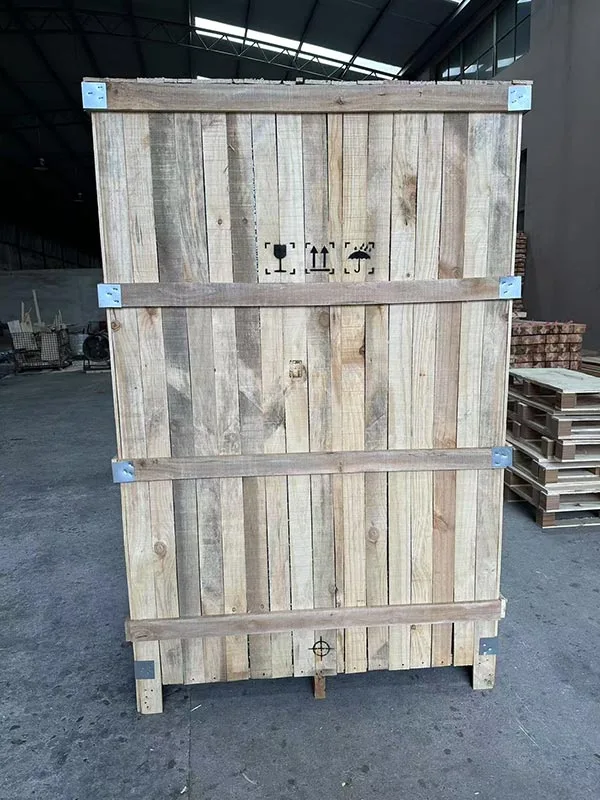

Hisurp employs stringent export-grade packaging standards for its Marine Cabin Air Conditioner. The equipment is wrapped in a moisture-proof film, with cushioning padding added to critical areas. The outer layer is a high-strength export-grade plywood crate or high-strength corrugated cardboard box, secured to the pallet with bolts at the bottom to ensure safety during long-distance sea transport and multiple transshipments. All wooden packaging meets ISPM-15 fumigation standards and bears the IPPC mark. Each unit undergoes a 48-hour continuous operation test and airtightness and electrical performance testing before leaving the factory. The packaging includes a certificate of conformity, an installation manual in both Chinese and English, a maintenance manual, and a test report. The minimum order quantity is 1 unit. Delivery time for standard models is 15-20 working days, and for customized models, it is 25-30 working days.

Marine Cabin Air ConditionerMarine Cabin Air ConditionerMarine Cabin Air Conditioner
Hot Tags: marine cabin air conditioner
