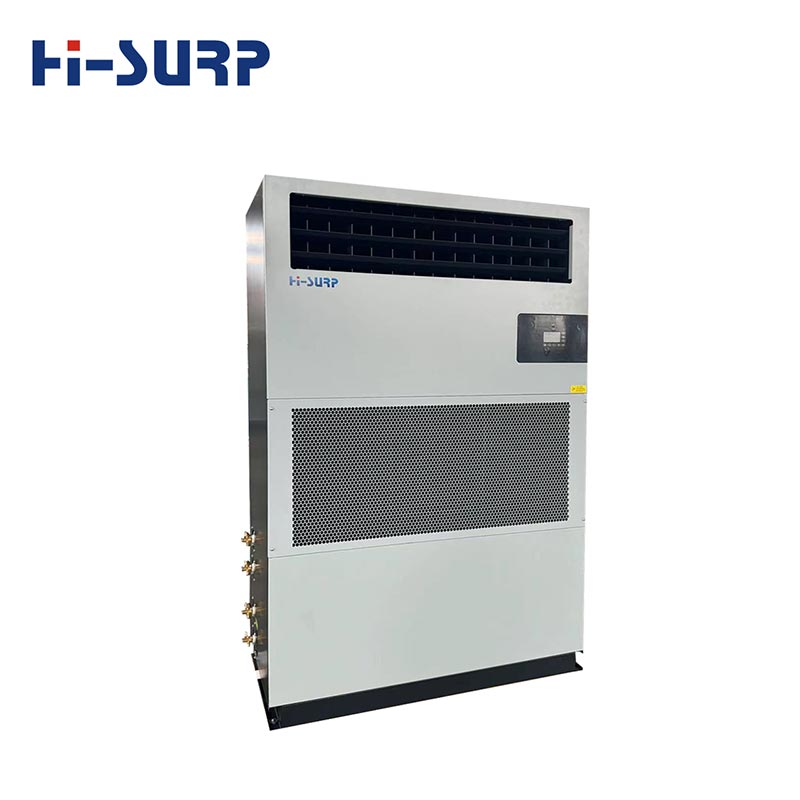

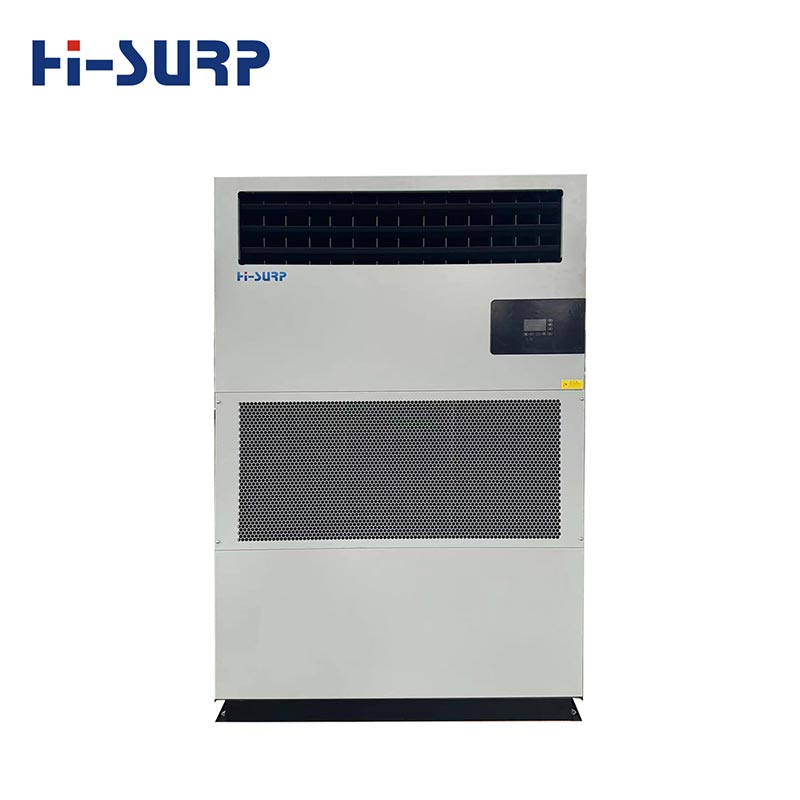

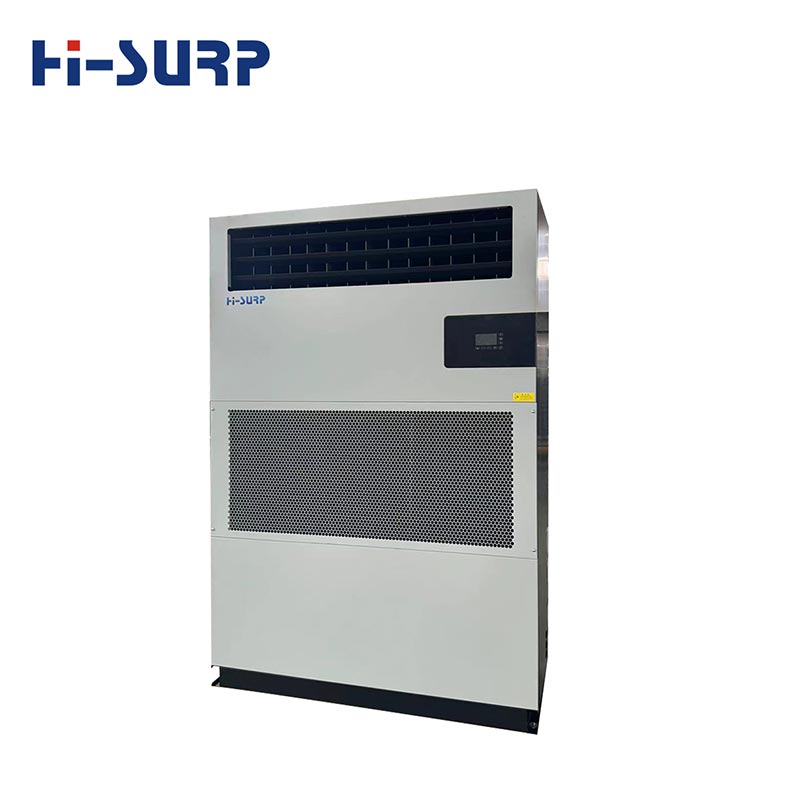

Inverter Unitary Air Conditioner

Hisurp advanced Inverter Unitary Air Conditioner has optimized edges and corners, personalized design, fine processing technology, highlighting the high-end design and room.

What is Inverter Unitary Air Conditioner

Inverter unitary air conditioners are based on ordinary air conditioners but use a dedicated inverter compressor and add an inverter control system. Their structure and cooling principle are basically the same as ordinary air conditioners. The main unit of an inverter air conditioner automatically performs stepless speed regulation, and it can automatically provide the required cooling (heating) capacity according to the room conditions (or other location conditions). Once the indoor temperature reaches the desired value, the air conditioner main unit operates at a constant speed to accurately maintain this temperature, achieving "non-stop operation" and thus ensuring stable ambient temperature.

Specification

Type of Inverter Unitary Air Conditioner Cooling Capacity Range
Direct Air Supply 12-270kW
Top Air Supply 12-270kW

Features

High-Quality Fans/Motors: Extended Service Life

High-Quality Fans/Motors: Extended Service Life

The outdoor axial fan of Inverter Unitary Air Conditioner uses high-quality galvanized steel sheet with an epoxy powder coating for corrosion protection. The motor uses F-class insulation, a low-temperature rise design, and a built-in over-temperature protector. The indoor centrifugal fan uses high-quality galvanized steel sheet, and the motor uses B-class insulation, a low-temperature rise design, and a built-in over-temperature protector. This ensures the use of high-quality components and adequate safety protection, meeting the requirements for safe, reliable, and long-lasting operation of the fans and motors.

Complete System Components

Complete System Components

The Inverter Unitary Air Conditioner includes key components such as a dryer filter, liquid receiver, gas-liquid separator, pressure gauge, high and low pressure protection, exhaust temperature controller, and liquid spray cooling system for better monitoring and protection of the system's safe and reliable operation.

Configuration List

For standard model of Inverter Unitary Air Conditioners, they will be equipped as below for reference.

No. Name of Components Brand Original Notes
1 Compressor DAKIN CHINA Foreign Investment
Panasonic CHINA Foreign Investment
HIGHLY CHINA Foreign Investment
INVOTECH SUZHOU, CHINA
2 High and low voltage switches MATCH-WELL CHANGZHOU, CHINA
NUOWEISI ZHEJIANG, CHINA
3 Expansion valve EMERSON CHINA Foreign Investment
SANHUA ZHEJIANG, CHINA
4 Drying filter KANGLIDE XINCHANG, CHINA
HUIHEFENG SHANGHAI, CHINA
5 Liquid storage tank KANGLIDE XINCHANG, CHINA
6 Gas-liquid separator KANGLIDE XINCHANG, CHINA
7 Axial fans CHUNLIDA NANJING, CHINA
GANGLING NINGBO, CHINA
8 Fin heat exchanger HICON NINGBO, CHINA
9 Centrifugal supply fan JIEFENG NINGBO, CHINA
YINGDELI JIANGSU, CHINA
10 Computer boards DEFU HUZHOU, CHINA
11 Electric heater ANTAI CHANGZHOU, CHINA
12 Condensing pressure controller SAGINOMIYA SEISAKUSHO JAPAN Import
13 Contactors LS CHINA Foreign Investment
14 Thermal Relay LS CHINA Foreign Investment

Company Qualifications

Hisurp has complete Inverter Unitary Air Conditioner manufacturing lines, an enthalpy difference test room, a noise vibration test room, and a heat balance test room. Our laboratory testing centre has also accreditation certification from the China National Accreditation Service for Conformity Assessment (CNAS). Our products also reach criteria from China CCC, ISO9001, ISO14001, ISO45001, OHSAS certified company, intellectual property management system, CE, UL,CCS, CB, CNEX etc. A total of 123 patents were obtained, including 3 invention patents, 91 utility model patents, and 29 design patents.
