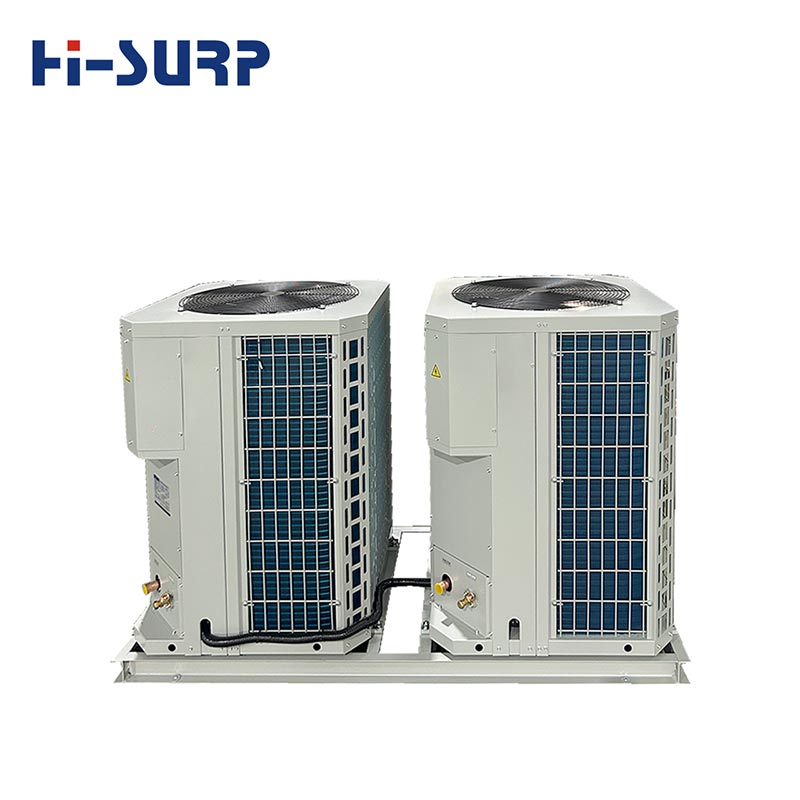

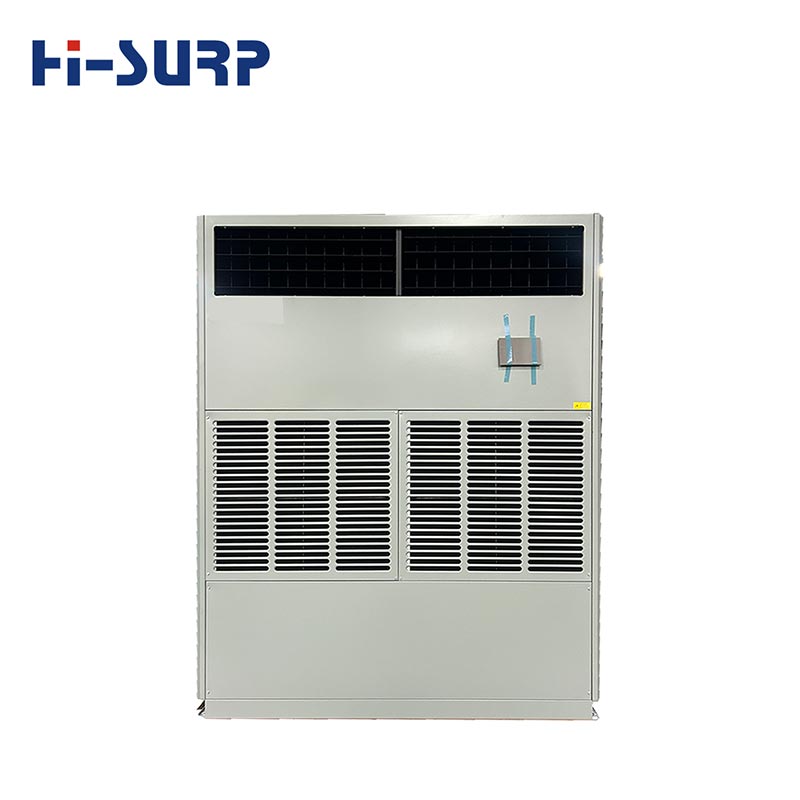

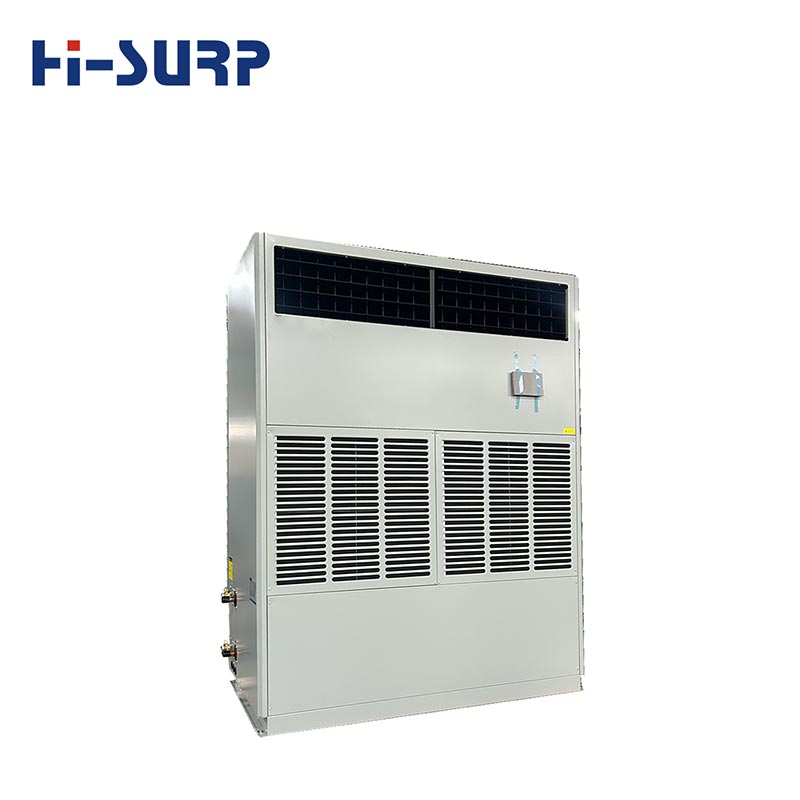

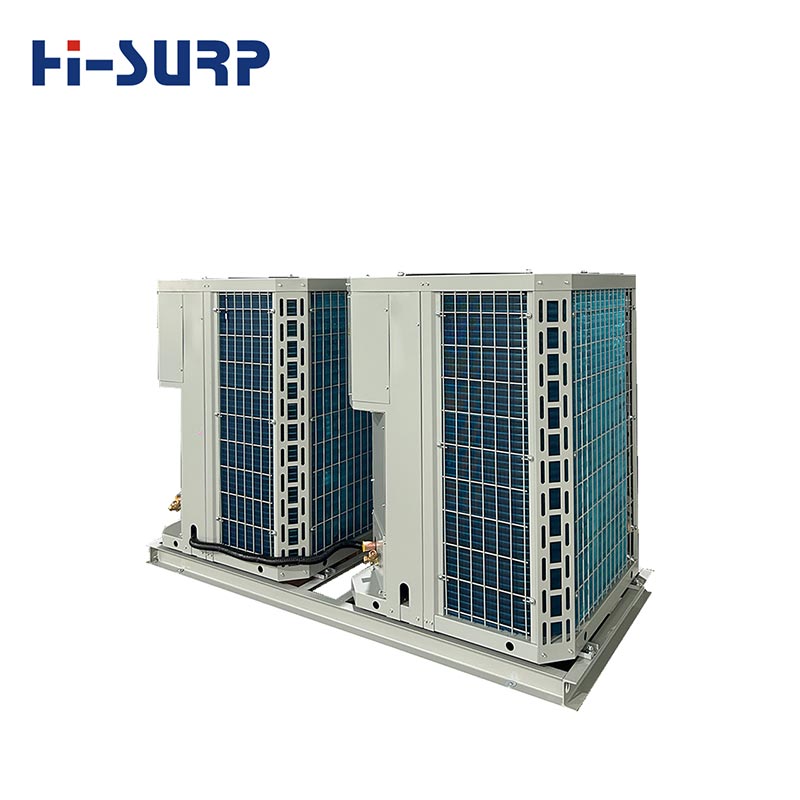

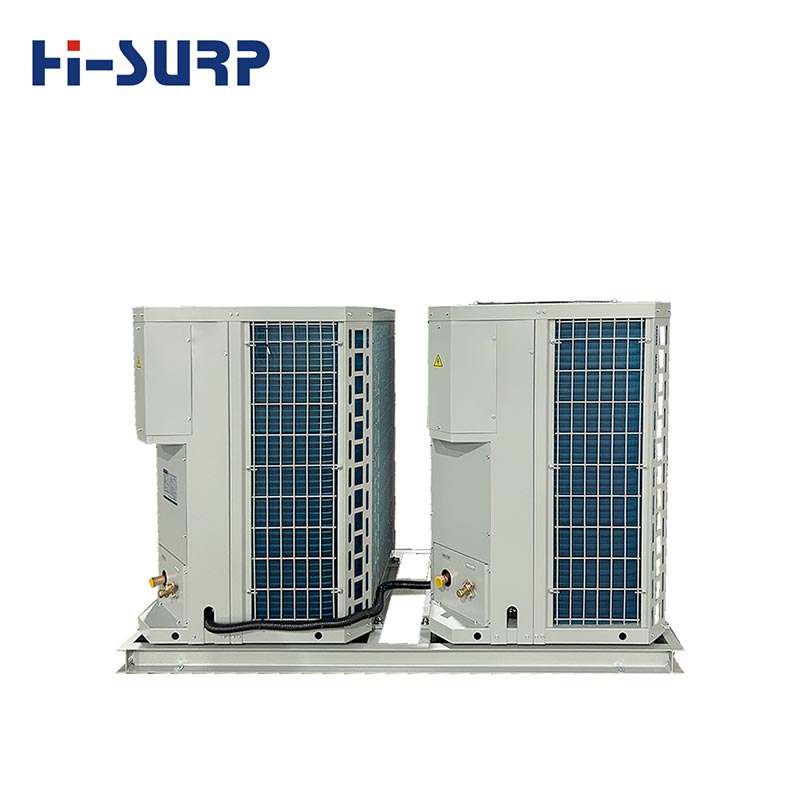

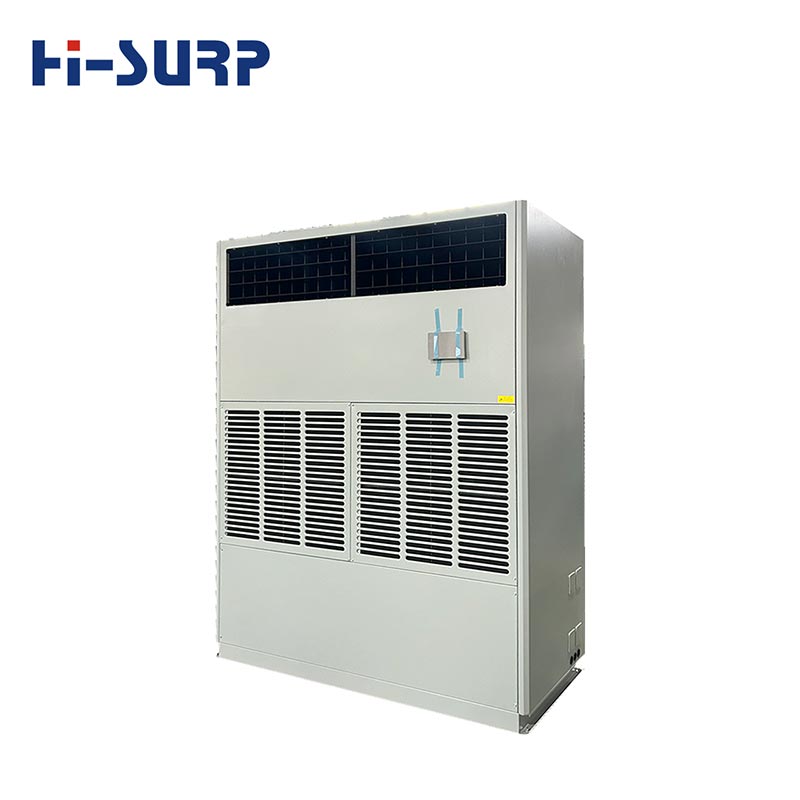

Vertical Air Conditioner

Hisurp, a factory located in China, its Vertical Air Conditioner is one or more factory-made assemblies ordinarily including an evaporator or cooling coil(s), compressor(s), and condenser(s) and may include a heating function

Specification

Cooling Capacity(KW) B-Type Unit
80~~630
A-Type Unit
80~~700
A-Type Unit
800~~2100
Type Direct air supply Direct air supply or top air supply type
Compressor Standard: 1, DAIKIN ;2, Sanyo (now Panasonic);
Optional: Copeland (Emerson)
Power Supply 3-phase-AC380V-50Hz
(special power supply can be customized)
Fan Outer rotor direct drive centrifugal fan Outer rotor direct drive and shaft pulley drive
Refrigeration Accessories Thermal expansion valve, gas-liquid separator, liquid receiver
Electric Heaters All available Partially available

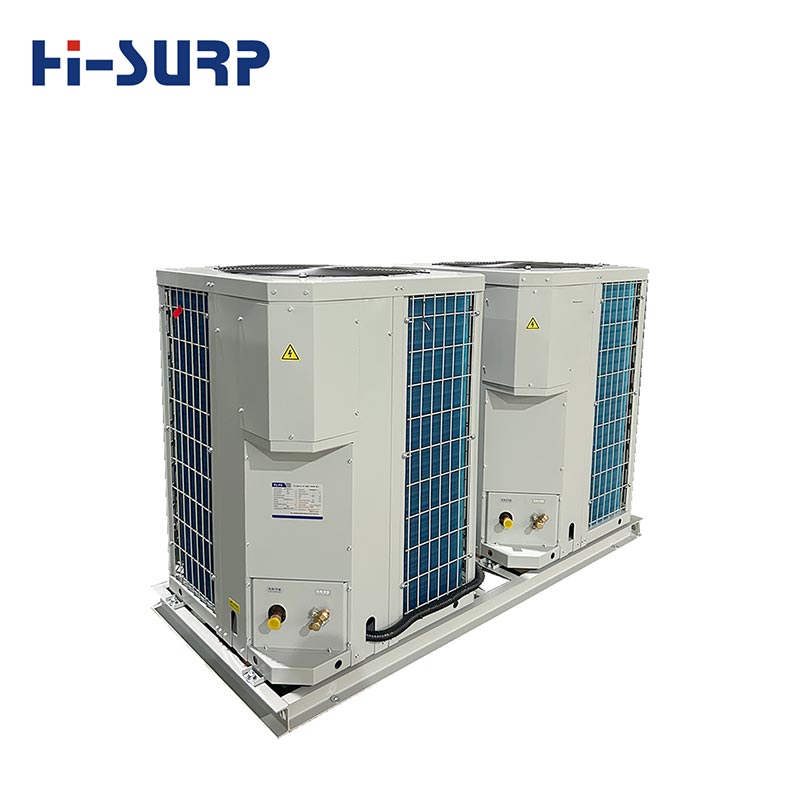

Compressor Location The outdoor unit Optional indoor or outdoor unit
Refrigerant Type R410A /R134a/R407C
The electromagnetic valve Standard configuration: liquid spray cooling solenoid valve
Winter Cooling Optional: condensing pressure switch above 15°C; optional: condensing pressure controller below 15°C
Electrical Parts LS (optional: ABB, Schneider)
Switch The standard does not match, please specify when ordering
Phase Sequence Protection Computer board comes with

Features

Easy Maintenance and Repair

The simple and functional frame structure design fully considers the needs of flexible installation and maintenance, making installation and repair very convenient. A double-layer pre-filter with removable and washable mesh is included, offering a long service life of Vertical Air Conditioner.

Meeting Special User Requirements

Based on user needs, functions such as year-round refrigeration operation, high air volume with low differential pressure, anti-corrosion coating, long-distance ducting, 100% fresh air supply, cool storage, remote control, steam heating, and hot water heating can be added for Vertical Air Conditioner.

Running Current Calculation

When calculating running current of Vertical Air Conditioner, you may consider:

Cooling-only unit: Operating current = Rated cooling capacity * 2, Starting current = Operating current * 4
Cooling-only electric heating unit: If electric heating is included, it needs to be added separately. Electric heating current = Electric heating power * 1.5

Running Current Calculation

FAQ

Q

What’s the production time for Vertical Air Conditioner?

A

We don’t have products in stock. So for standard models, the leadtime is 20-30 workdays; for customized models, the leadtime is 40-50 workdays.

Q

How to choose the model of Vertical Air Conditioner i need?

A

First, provide the application site to select the product types.
Secondly, tell us the parameters like cooling/heating capacity, refrigerant, power supply... or any more information you can share, we will calculate and suggest a suitable model proposal for you.

Q

Do you have any certificates?

A

Yes. Our company and products are UL, CE, CB, CNTE, CCS, ISO certificated.

Q

What’s the MOQ?

A

To show our willing to work together with you, the MOQ could be 1 set for most units.

Q

ABOUT US?

A

Ningbo Hicon Industrial Co., Ltd. was founded in 2003 , has a registered capital of 60.43 million RMB. The company specializes in the production of industrial & commercial air conditioners. The company currently has a construction area of 150,000 square meters and 520 employees, of which R&D personnel account for more than 10%.

Q

Are you a manufacturer or trade company?

A

We are manufacturer located in No. 77 Sihai Avenue, Simen Town Yuyao, Ningbo, Zhejiang, China. So we could also do customization.
