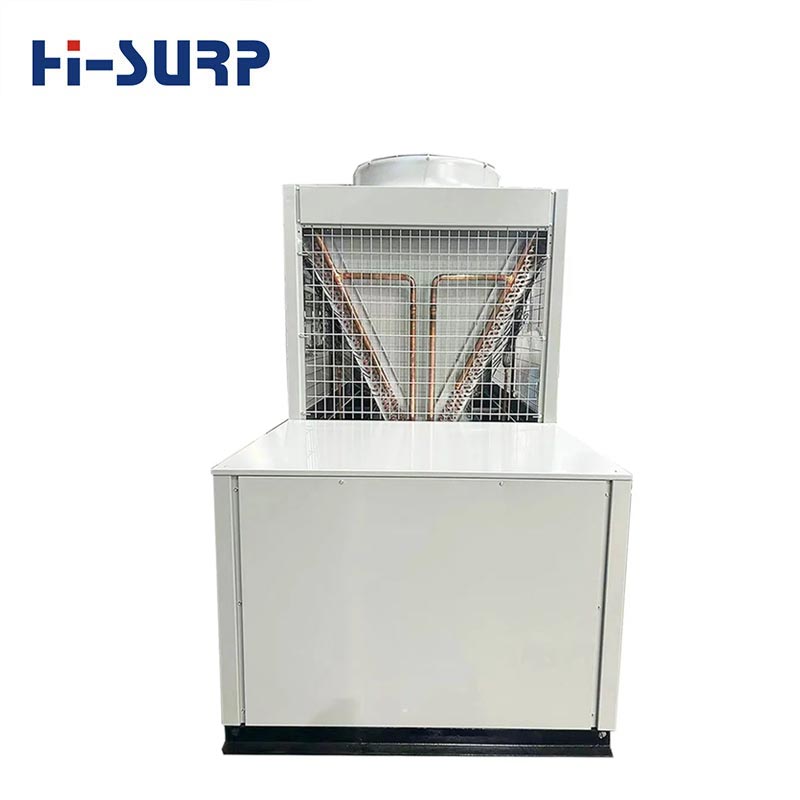

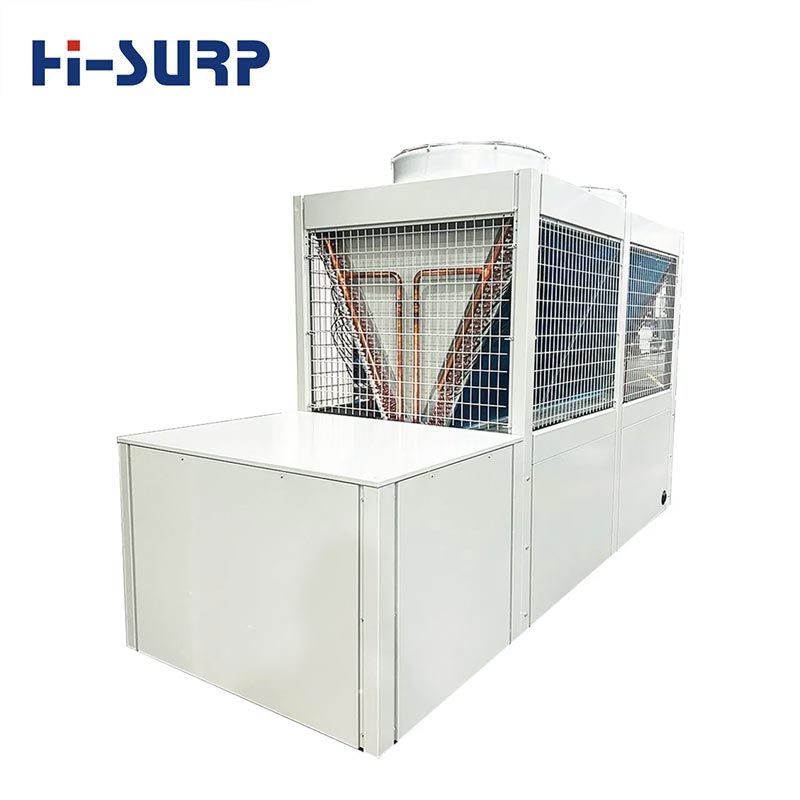

Air Cooled Chiller with Hydraulic Module

Hisurp Air Cooled Chiller with Hydraulic Module is an advanced integrated air conditioning system that combines water system components such as water pumps, expansion tanks, water supply devices, safety valves, and filters within the unit itself or its frame, based on a traditional air cooled scroll chiller. This design significantly simplifies on-site water system installation, improves system stability and construction efficiency.

How does Air Cooled Chiller with Hydraulic Module work

During this made-in-China Air Cooled Chiller with Hydraulic Module operation:

Step 1: The compressor starts, and the refrigerant circulates in the system.
Step 2: The refrigerant absorbs heat from the water side in the evaporator, cooling the chilled water.
Step 3: The cooled chilled water is transported to terminal devices (such as fan coil units, air handling units, etc.) via a built-in circulating water pump.
Step 4: After absorbing heat from the room, the return water from the terminal devices returns to the evaporator to continue circulating.
Step 5: The refrigerant dissipates heat in the air-cooled condenser through a fan, releasing the heat to the outside air.

For dual-purpose (heat pump) units, heating operation is achieved via a four-way valve.

Main Spare Parts

Scroll compressor

Scroll compressor
COP up to 3.1
Low vibration
low noise and long service life
Protection against liquid strikes
No warm-up required after long shutdown

Control

Control
CAREL brand
RS485 communication protocol
Lifespan up to 20000h
Multiligual choices
Resistant to 4KV high voltage and surges

Fan

Fan
High efficiency and low noise
High impeller strength with a high rim speed
Axial & EC fan optional
Ebmpapst brand optional

Features

The design, by Hisurp factory, of Air Cooled Chiller with Hydraulic Module significantly simplifies on-site water system installation, improves system stability and construction efficiency.

Simple installation Reduces on-site water system construction
High reliability Factory integrated commissioning
Small footprint No need for a separate pump room
Cost savings Reduces water system equipment procurement
System stability Optimized hydraulic matching

Why HISURP

- Diverse product range, covering almost all air conditioners and chillers needs across industrial sectors, including commercial and agricultural applications.

- Certifications include: China National Accreditation Service for Conformity Assessment (CNAS); CCC, ISO9001, ISO14001, ISO45001; CE, UL, CCS, CB, CNEX; 120+ patents.

- Own CNAS laboratory, providing CNAS reports upon request.

- Leveraging the national "Belt and Road" initiative, Hisurp has established in-depth cooperation with well-known domestic and international companies, with products exported to countries and regions along the Belt and Road and globally, covering core markets in North America, Europe, the Middle East, Asia, Africa, and Latin America.
