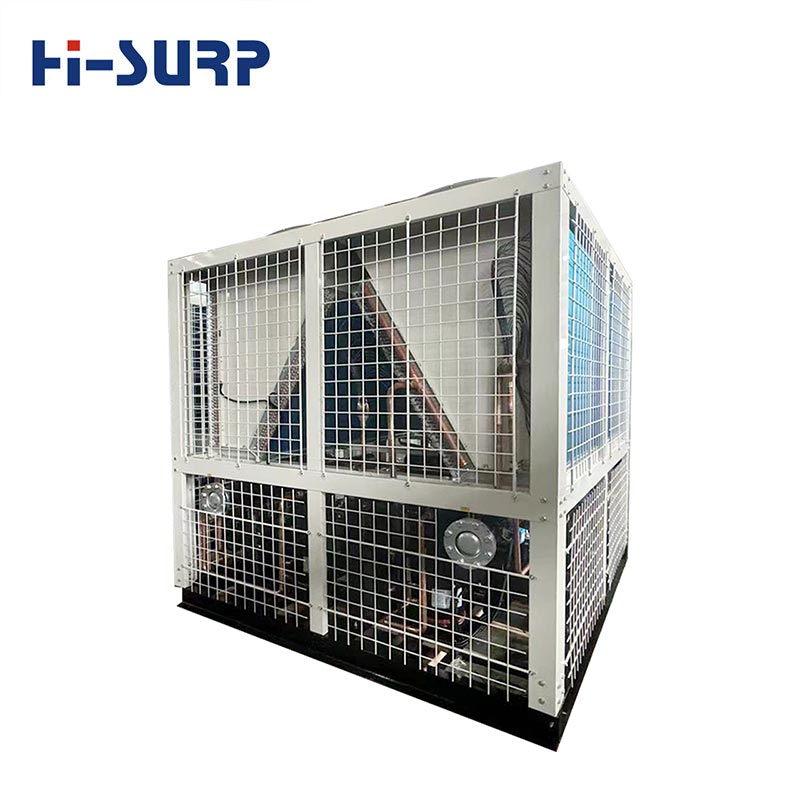

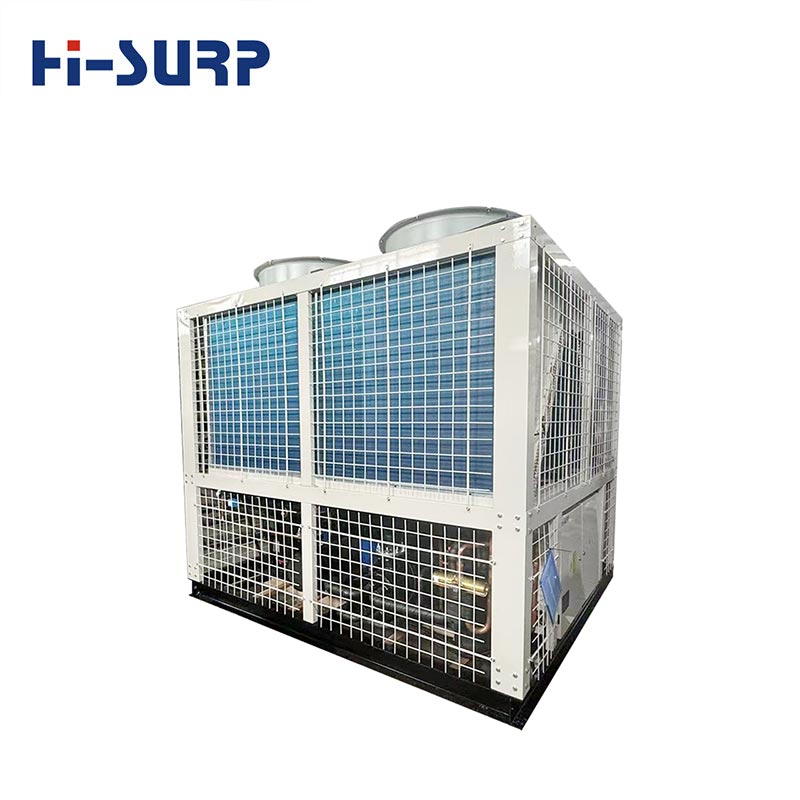

Air Cooled Chiller

Hisurp Air Cooled Chillers adopt a modular or integrated structural advanced design, integrating the compressor, evaporator, air-cooled condenser, throttling device, and intelligent control system. They can be directly installed on the roof or outdoor equipment platform, and transfer cooling or heating capacity to the terminal air conditioning equipment through a water system, providing stable and reliable temperature control for building or industrial environments.

Specification

Model HACHW-260-Z
Nominal Cooling Capacity kW 260
kcal/h 223600
Cooling Input Power kW 78.8
Nominal Heating Capacity kW 268
kcal/h 230480
Heating Input Power kW 79.8
Power Supply AC380V-3PH-50Hz
Operation Control Mode Fully Automatic Control
Throttling Method Thermal Expansion Valve/Electronic expansion valve
Safety Protection High and low pressure protection, flow protection,
antifreeze protection, compressor overload, overheating protection, etc.
Compressor Type Flexibility Scroll Compressor
QTY Set 4
Rated Current kW /
Fan Motor Type Axial Side Air-Supply
QTY Set 4
Rated Current kW 1.80*4
Air conditioning water heat exchanger Form Shell and tube heat exchanger
Water flow rate m3/h 44.7
Water pressure drop kPa ≤58
Water pump dimeter DN100
Unit Noise dB(A) 76
Dimension L mm 2500
W mm 2270
H mm 2400
Unit Weight kg 2600

Features

  • Multi-functional, capable of cooling, heating, and boiling water
  • Modular, flexible combination and customized
  • Reliable performance
  • Long service life
  • Low operation cost
  • Energy-saving and eco-friendly
  • Remote microcomputer control, automatic troubleshooting

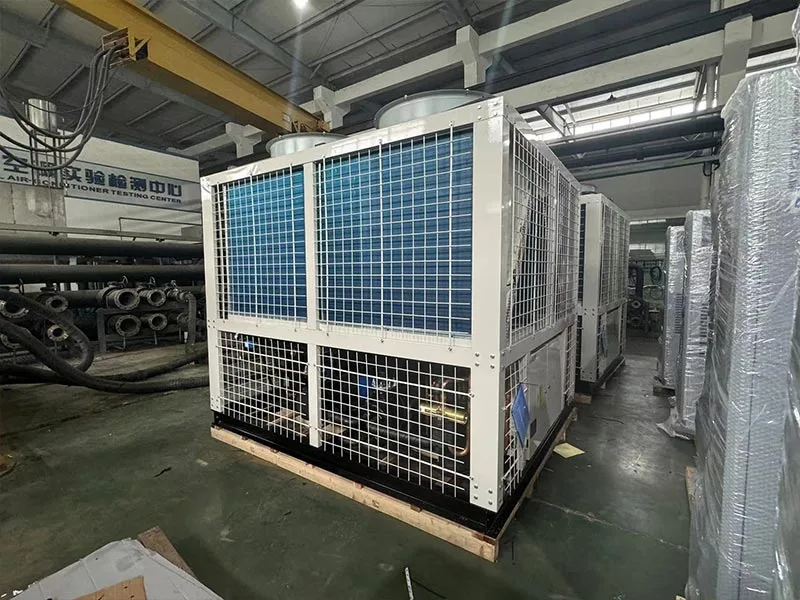

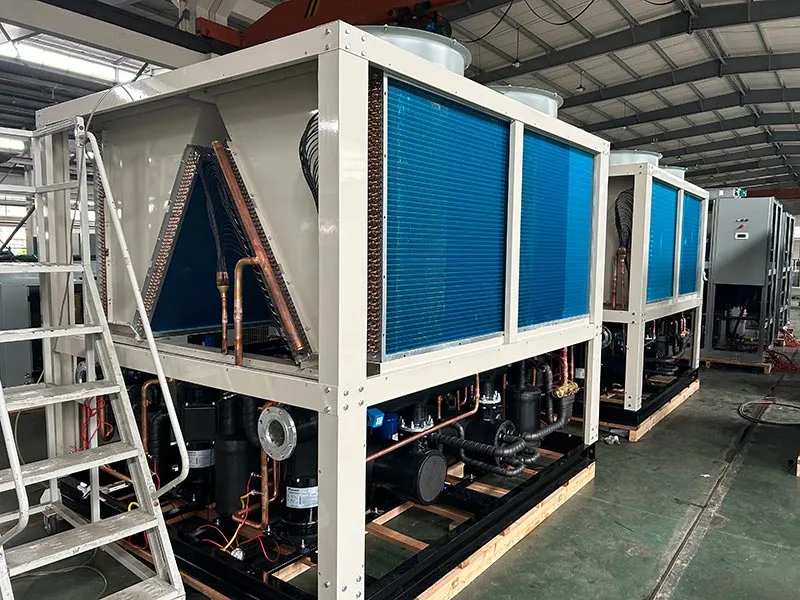

Project Cases

Project CasesProject Cases

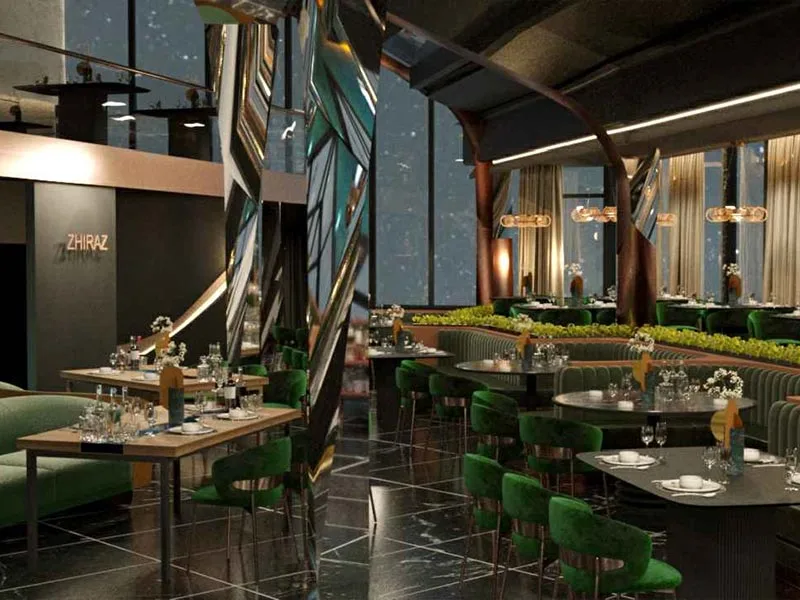

In the Megyusk region of Almaty, Kazakhstan, Shiraz Restaurant is attracting countless diners with its unique charm. Behind this success, Hisurp's top-of-the-line classy Air Cooled Chillers, with their superior performance, infuse every detail of the restaurant with technological power and comfortable enjoyment.

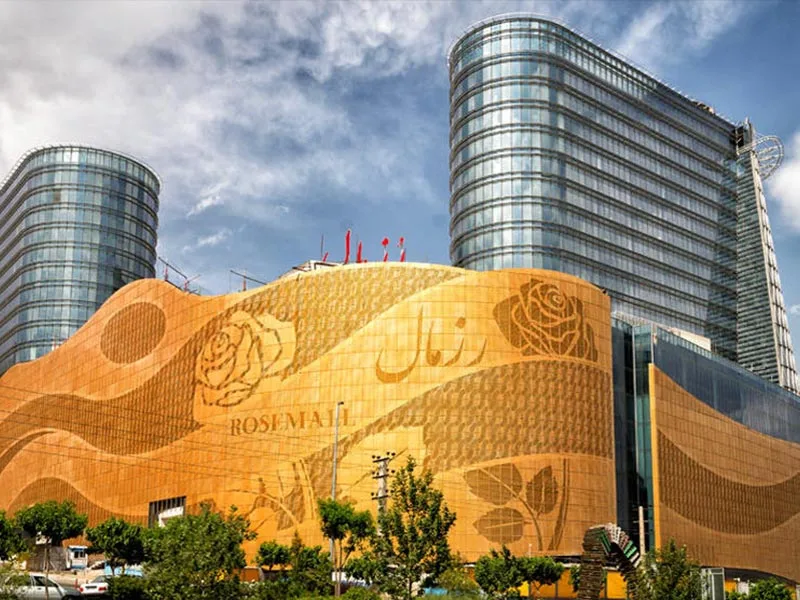

The ROSEMALL supermarket project in Tehran selected Hisurp Air Cooled Chillers as the cold and heat source equipment for its central air conditioning system. This project primarily serves the year-round air conditioning needs of a large commercial supermarket, providing stable and reliable chilled and hot water for the sales area, warehouses, and public areas. The units feature high-efficiency compressors and intelligent control systems, offering stable operation, energy efficiency, and easy maintenance.

Project CasesProject Cases

After Sales Service

After Sales Service

Free Warranty Period: One year free warranty. During the warranty period, replacements for quality issues or damaged parts (excluding those caused by improper use) will be provided free of charge by HISURP.
Paid Maintenance Period: Lifetime paid warranty is offered at a discounted rate. HISURP personnel can provide on-site installation and repair guidance, waiving labor costs.
Technical Support: Lifetime free technical consultation, including operation manuals and technical materials.
Software Updates: Long-term free software version upgrades and enhancements are provided.
