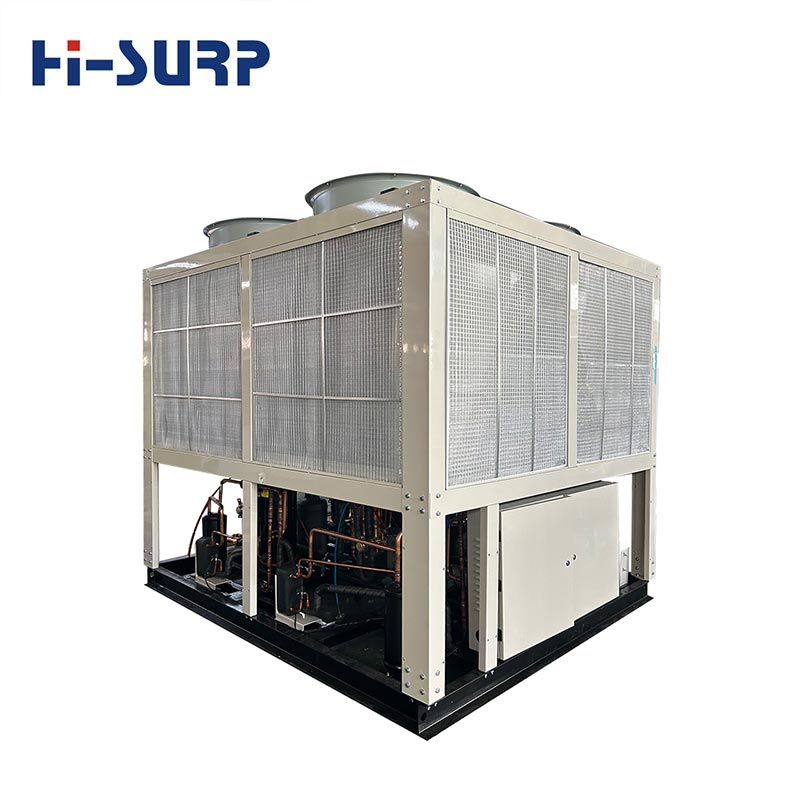

Air Cooled Heat Pump

HISURP is a trusted China supplier of industrial HVAC solutions, providing high-efficiency Air Cooled Heat Pump systems for hotels, hospitals, office buildings, commercial facilities, and industrial applications. Featuring inverter compressors, intelligent controls, EVI low-temperature heating technology, and operating ranges down to -25°C, our units deliver reliable performance, energy savings, and customized solutions for global projects and bulk procurement.

Application

Application
Application

Manufactured Air Cooled Air Cooled Heat Pump always use in Hotels, ins, hospitals, CBD office buildings,entertainment venues, large and medium-sized restaurants, supermarkets, gym stadiums and industrial uses, etc.

Specification (R410a Air Cooled Heat Pump)

Model HACHW-17DC HACHW-65DC-Z HACHW-130DC-Z
Nominal Cooling Capacity kW 17.0 65.0 130.0
kcal/h 14620 55900 111800
Cooling Input Power kW 6.42 19.5 39.0
Nominal Heating Capacity kW 18.7 68.0 135.0
kcal/h 16082 58480 116100
Heating Input Power kW 6.56 19.9 39.4
Low Ambient Temperature Heating Nominal Heating Capacity kW / 41.0 83.0
kcal/h / 35260 71380
Heating Input Power kW / 17.7 35.6
Power Supply AC380V-3PH-50Hz AC380V-3PH-50Hz
Adjust range 0,15~100%
Operation Control Mode Microcomputer automatic Fully Automatic Control
Rated Current A / 35.0 70.0
Throttling Method electronic expansion valve electronic expansion valve
Safety Protection High and low pressure protection, flow protection,
antifreeze protection, compressor overload, overheating protection, etc.
Compressor Qty set 1 2 2
Type DC inverter compressor DC inverter scroll compressor
Power kW / 9.00*2 17.70*2
Fan Motor Type Axial Side Blowers Axial Fan
Qty set 2 2 2
Power kW 0.75*2 1.80*2
water heat exchanger Type Iron square shell heat exchanger Shell and tube heat exchanger
Water flow m3/h 3.00 11.18 22.35
Water Pressure Drop kPa 30 ≤70 ≤75
Pump head m 19 / /
Water pump dimeter DN40 DN65 DN80
Unit Noise dB(A) 65 70 75
Dimension L 1600 1000 1300
M 620 2200 2500
H 1560 2230 2230
Weight kg 220 750 1300

Cooling capacity working conditions

Chilled water outlet temperature 7℃, water flow: 0.172 m³/h;
Air side inlet dry bulb temperature (ambient temperature) 35 ℃.

Heating capacity working condition

Hot water outlet temperature 45℃, water flow: 0.172 m³/h;
Air-side inlet dry bulb temperature (ambient temperature) 7 ℃, wet bulb temperature 6 ℃.

Low ambient temperature heating conditions

Outlet water temperature 41 ℃, water flow: 0.172 m³/h;
Air side inlet dry bulb temperature (ambient temperature) -12 ℃, wet bulb temperature -14℃.

Operating ambient temperature range of the unit

-15℃ ~ 40 ℃, limit -25 ℃ ~ 43℃.

Why Choose Hisurp Modular Air Cooled Heat Pump

Reliable & Cost-Effective

Reliable & Cost-Effective

Hisurp's premium compressor ensures long life, high reliability, and low operating costs.

Efficient Heat Exchange

Efficient Heat Exchange

Hisurp Villa Chiller uses high-performance copper tubes for superior heat transfer and energy efficiency.

Smart & Safe Control

Smart & Safe Control

Hisurp's Scroll Chiller use full intelligent protections enable safe, unattended operation.

Low-Temperature Heating

Low-Temperature Heating

Hisurp's EVI technology supports powerful heating down to -25°C, increasing capacity by 30%.

Esteemed Customers

Hisurp works closely with many global customers,so they have applied our customized products(Air Cooled Heat Pump) in almost every country in the world already, which enter Sinopec, PetroChina, CNOOC, Nippon Steel Co., Ltd. , Fuyao Group, Philips Medical, Schneider and ABB E -HOUSE overseas projects , Sinosteel “One Belt and One Road”, COFCO, NOVENCO, Asia Pulp and Paper Industry, Shanxi Satellite Launch Base Assembly Workshop and other outstanding domestic and foreign enterprises and projects.

Esteemed Customers
