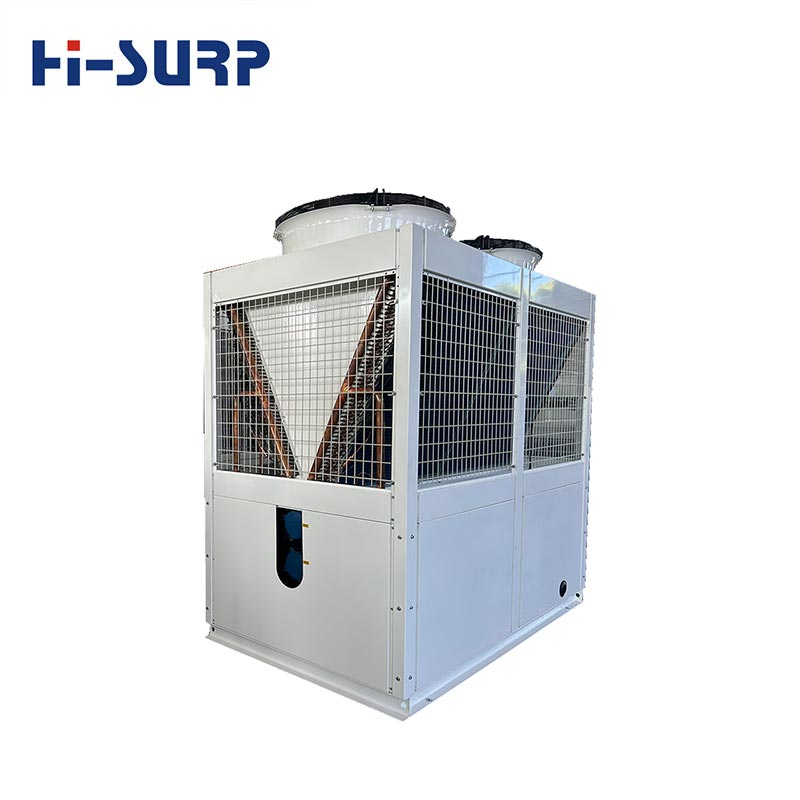

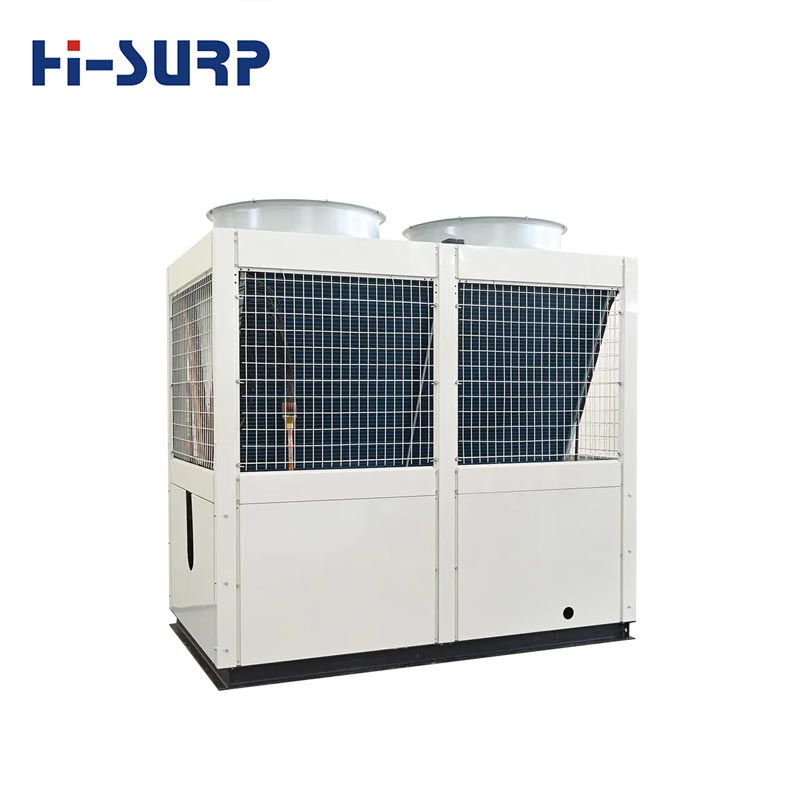

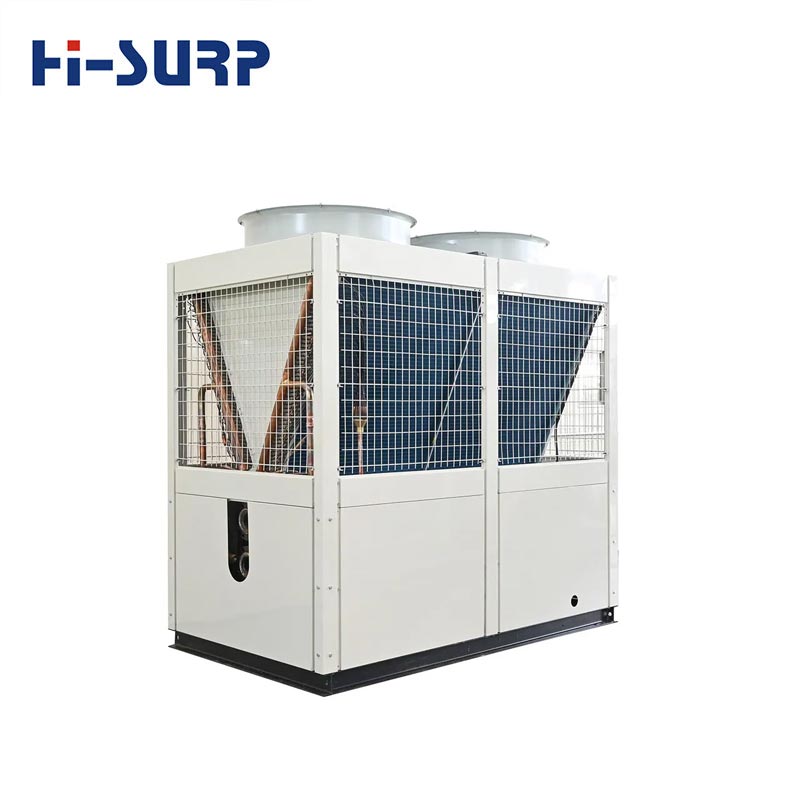

Modular Chiller

As a professional factory from China, Hisurp is not only an experienced Modular Chiller manufacturer and reliable supplier but also capable of providing customized solutions based on customers' actual working conditions.

A Modular Chiller is a type of industrial cooling system made up of multiple independent chiller modules that can work individually or together. It is designed to provide scalable, flexible, and energy-efficient cooling for commercial and industrial applications.

Unlike traditional large single-unit chillers, a modular system allows users to increase or decrease capacity by adding or removing modules based on demand.

Advantages Compared to Traditional Chillers

• More flexible installation and expansion
• Higher redundancy and system stability
• Better energy performance under partial load
• Easier transportation and installation due to modular design

Hisurp Modular Chillers are widely used in industrial plants, data centers, power systems, communication equipment rooms, commercial buildings, medical facilities, and public buildings, providing efficient and reliable cooling and heating source solutions for various environments.

1. Cooling capacity working condition:
Chilled water inlet temperature 12 ℃, outlet temperature 7℃ Air side inlet DB (ambient temperature) 35℃
2. Working condition of heating capacity:
Hot water inlet temperature 40℃, outlet temperature 45℃Air side inlet DB (ambient temperature) 7℃, WB 6℃
3. Operating ambient temperature range of the unit:
- 15℃～40℃, limit: - 20℃～43℃

Hisurp, as a leading manufacturer of industrial air conditioners and chillers, its Modular Chiller series is using the technology of air-cooled heat pump cold water and hot water unit (patent No ZL 200610049854.4) which can reduce the temperature of its working condition. It has excellent and reliable cooling effect in high ambient temperature, saving the operation cost and prolonging the service life. According to the working conditions, it can save about 30% of the power operation cost at most, and guarantee long-term fault-free cooling under 48℃.

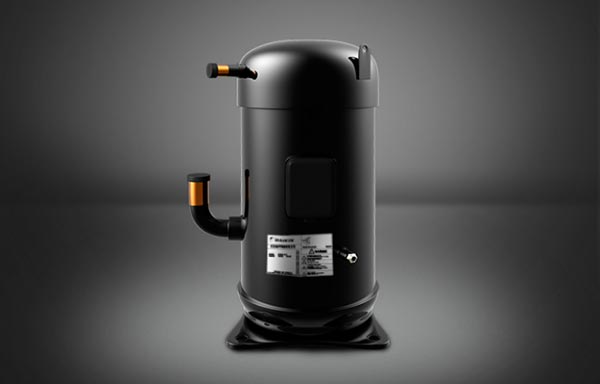

01 Compressor system

Hisurp Modular Chiller adopts INVOTHCH / DAIKIN / COPELAND brand compressors, to insure the quality of components. Besides that, there are also high and low pressure partitions, low noise floating valves, PPS resin sealing rings, high performance PTFE bearing with immersion etc., to make sure this modular chiller is environmental friendly durable and reliable, with long service life and low running costs.

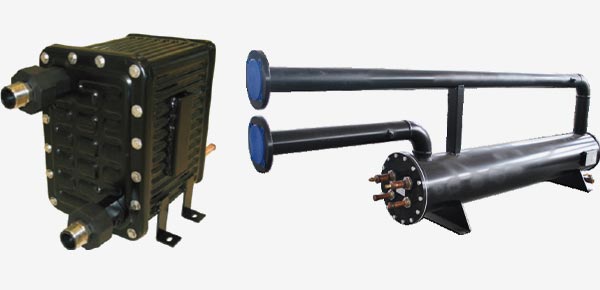

02 Casing, tubular steel casing, shell & tube system

For heat exchanger on water side: it has high heat transfer coefficient and energy saving effect.

• When cooling, the water-side heat exchanger is the evaporator for absorbing cold energy, and the wind-side heat exchanger is the condenser.
• When heating, the water-side heat exchanger is a condenser for absorbing heat energy, and the wind-side heat exchanger is the evaporator.
• Using the efficient heat exchange copper pipe, the frozen water flows outside of heat exchanger pipe on water side, and the refrigerant flows inside pipe of the heat exchanger on water side.
• New design, the water quality requirements are not too strict not easy to form dirty blocking, ice blocking.
• Excellent performance, withstand pressure and vibration resistance, not easy to deformation, etc.

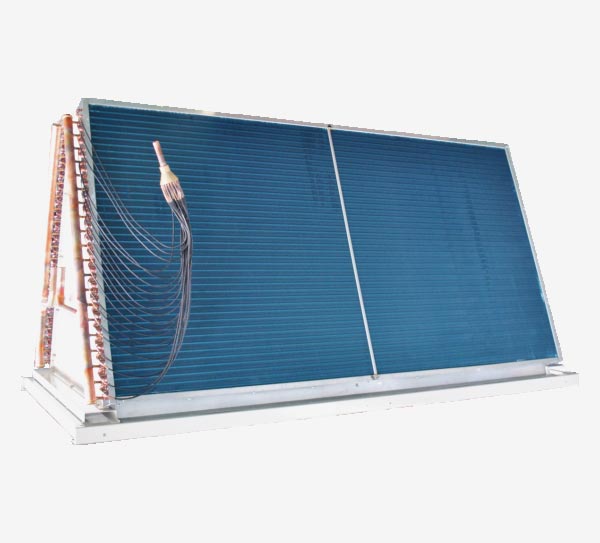

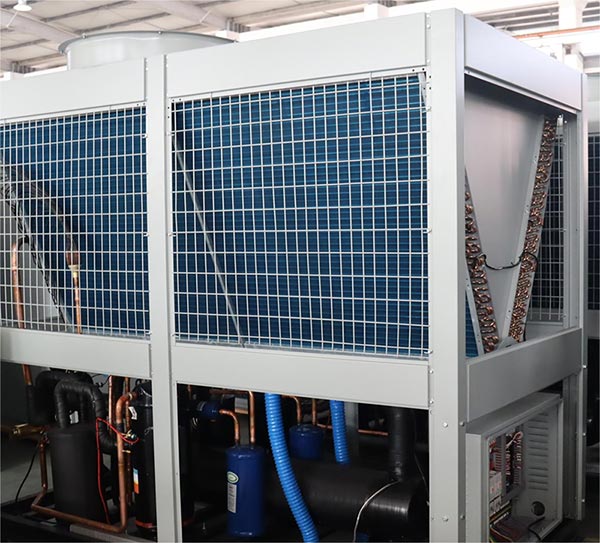

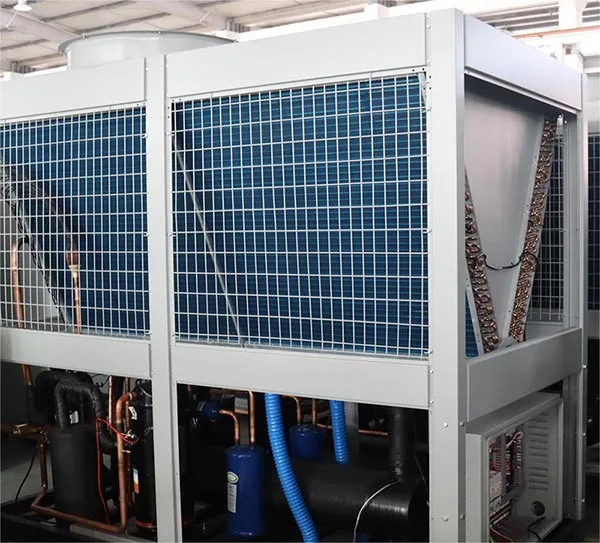

03 Air-side heat exchanger

• The high quality (hydrophilic) aluminum foil is stamped with a full set of imported stamping line, and which is tightly combined with high efficiency heat exchange copper pipe through mechanical expansion machine or hydraulic expansion, and through strict pressure leakage test, to ensure the product's excellent heat exchange performance and high sealing.
• V-type wind side heat exchanger is often used in the air cooling module unit with uniform ventilation and clean and thorough defrosting in winter.

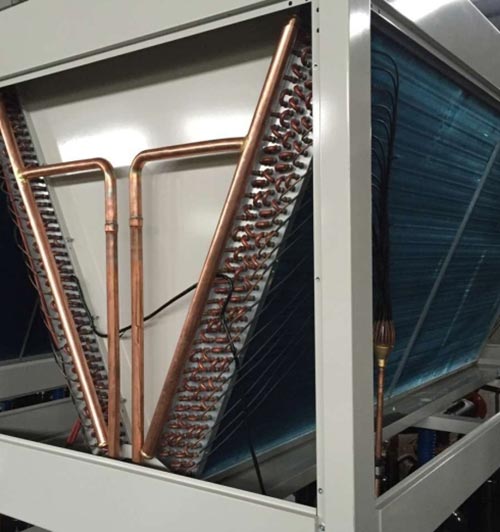

04 Unique sub-cooling circuits

The finned heat exchanger has a unique sub-cooling circuit at the bottom.
It increases the sub-cooling of the refrigerant and improves the cooling efficiency in summer when the bottom of the unit freezes in a normal heat exchanger. In winter, a warm floor is laid on the bottom of the outdoor heat exchanger to allow the condensate to flow properly. Effectively reducing defrost time and providing heating efficiency.

05 Fully automatic control

Adopt the most advanced intelligent control, the unit is equipped with many kinds of protection functions: high and low pressure protection, water interrupt, antifreeze, overheating, over-temperature, under phase, anti-phase, under-voltage, overload and other protection functions, without needing special management personnel, greatly convenient for users to use.
