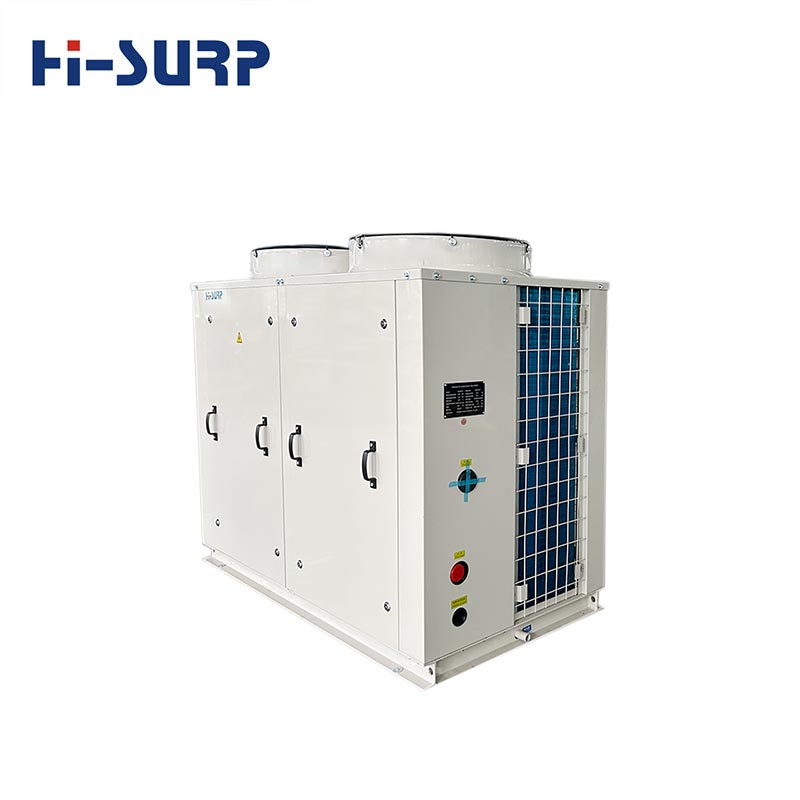

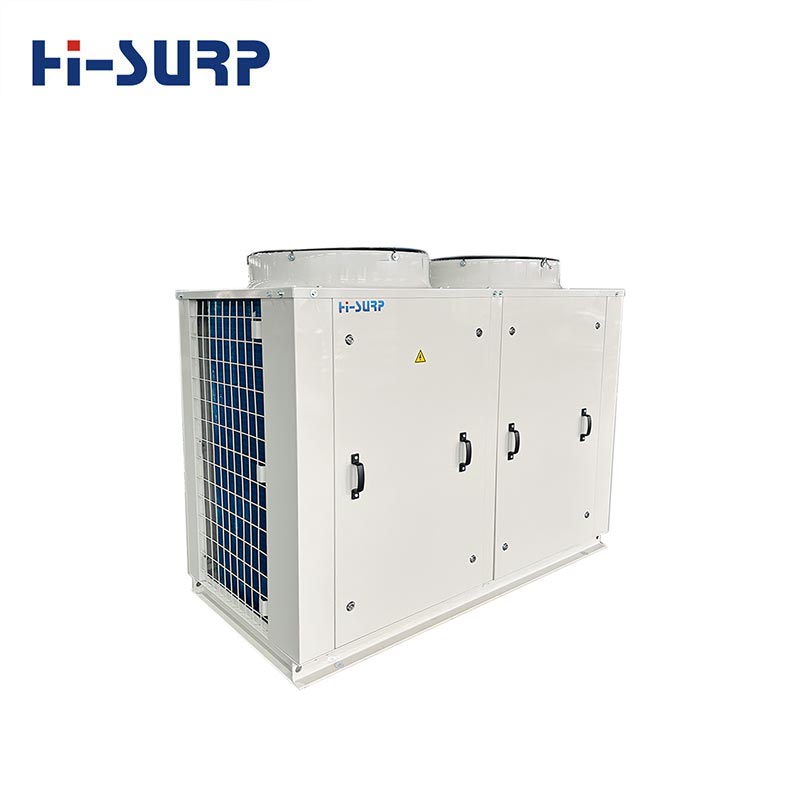

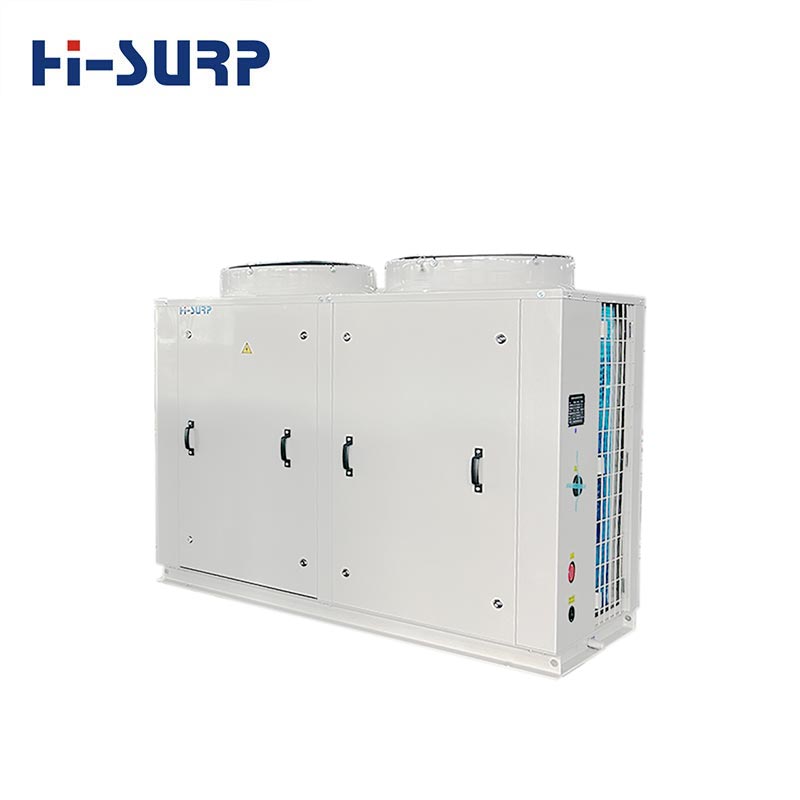

Villa Chiller

Without a cooling water system, Villa Chiller is simple in its pipeline network, easily installed, cost effective, and short in construction period and can be invested by stages. Contact Hisurp to get a price.

Specification

Model HACHW-40
Nominal Cooling Capacity kW 40.0
kcal/h 34400
Heating Input Power kW 15.3
Power Supply AC380V-3PH-50Hz
Rated Current A 28.0
Operation Control Mode Microcomputer fully automatic
Refrigerant Type R410A
Throttling Method Thermal expansion valve
Safety Protection High and low pressure protection, flow protection,
antifreeze protection, compressor overload, overheating protection, etc.
Compressor QTY SET 2
Rated Power kW 6.26
Type Scroll
Fan & Motor Form Axial flow top air supply
QTY SET 2
Power Supply AC380V-3PH-50Hz
Motor Rated Power kW 0.55
water side heat exchanger Form Cased heat exchangers
Water flow rate m3/h 6.90
Water pressure drop kPa 32
Pump Head m 25
Power Supply AC380V-3PH-50Hz
Rated Power kW 1.29
Pipe diameter DN40
Unit Noise dB(A) 71
Dimension(Length×Width×Height) mm 1700*950*1445
Unit Weight kg 420

Features

Comfort

The indoor system eliminates the need for Freon systems, utilizing chilled water cooling. This results in a small temperature difference in the supplied air and a large air volume, ensuring even room temperature distribution and maintaining relative humidity between 40% and 70%, promoting better health. Villa Chiller integrates cooling and heating, creating a comfortable environment year-round.

Convenience

Starting, stopping, setting, and controlling the temperature of the indoor fan coil units in any room is as simple as pressing a button. The fully automatic control of the main unit's microcomputer allows for seamless switching between on/off, cooling, and heating, requiring no professional management personnel.

Safety

The Villa Chiller boasts comprehensive protection functions, including a self-diagnostic system that automatically balances compressor wear. During heating operation, it automatically detects fin frost based on actual operating conditions and defrosts promptly and quickly, minimizing indoor temperature fluctuations and preventing the fan coil units from blowing cold air into the room during defrosting. The unit is equipped with multiple protection functions, including high/low pressure protection, water shortage protection, freeze protection, overheat protection, phase loss protection, under-voltage protection, and overload protection, ensuring safe and reliable operation and a longer service life.

MOQ & Delivery Time

  • MOQ: Depends on product type. For villa chiller, the MOQ is 1 unit.
  • Delivery Time: Standard models 30-40 days; Custom models 40 days and above (approximately 15 days for redesigning and issuing drawings, approximately 20 days for parts preparation + sheet metal work + two components, plus debugging and testing).

Packing & Delivery

To ensure goods (Villa Chiller) arrive at the customer's hands intact, Hisurp take the following steps:

During packaging, we assess the product's size and weight and select a suitable packaging method. The unit is secured to the base frame with screws to prevent movement during transport. Cardboard boxes, foam, and bubble wrap are used for filling to prevent surface scratches caused by significant shaking during transport.

If container shipping is chosen, we design a reasonable loading plan, communicating with the customer in advance. During on-site loading, we ensure full utilization of the container, using fumigated triangles to secure any empty space and prevent movement of the goods during transport.

Villa ChillerVilla ChillerVilla ChillerVilla Chiller
